PTO DRIVE SHAFT GROUP - CK20M-T220A

Kioti TRACTOR | CK Series | CK20

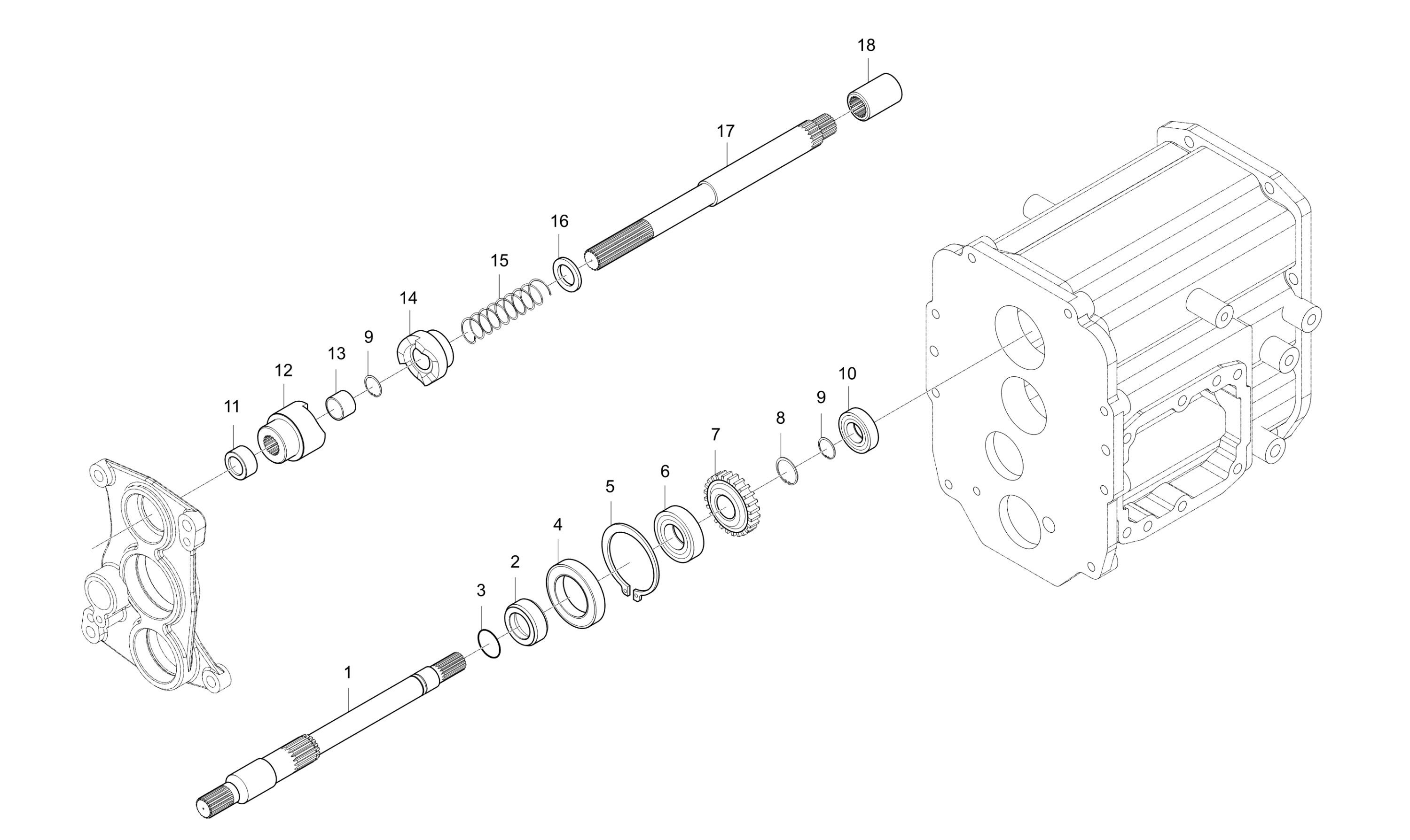

Diagram for PTO DRIVE SHAFT GROUP - CK20M-T220A
  • 1

    SHAFT 1,PTO DRIVE

    • Part No. T2350-25261
    • 1 shown on diagram
    $87.99
  • 2

    SPACER1, PTO DRIVE SHAFT1

    • Part No. T2350-25572
    • Applied Dates Up to 2003-04-22
    • * multiple options for #2
    • 1 shown on diagram
    $16.99
  • 2

    SPACER1(PTO DRIVE SHAFT1)

    • Part No. T2350-25573
    • Compatibility Interchngable
    • Applied Dates 2003-04-23 to 2006-06-11
    • * multiple options for #2
    • 1 shown on diagram
    $19.99
  • 2

    SPACER1, PTO DRIVE SHAFT1

    • Part No. T2350-25574
    • Compatibility Interchngable
    • Applied Dates 2006-06-12 and up
    • * multiple options for #2
    • 1 shown on diagram
    $35.99
  • 3 O RING

    O RING

    • Part No. 04811-00250
    • DIA24.7
    • 1 shown on diagram
    $1.49
  • 4 SEAL,OIL 40x62x11

    SEAL,OIL 40x62x11

    • Part No. 09504-06211
    • 1 shown on diagram
    $5.49
  • 5 CIR CLIP, INTERNAL

    CIR CLIP, INTERNAL

    • Part No. 04611-00620
    • DIA62
    • 1 shown on diagram
    $3.99
  • 6

    BEARING,BALL

    • Part No. 08101-06305
    • DIA25
    • 1 shown on diagram
    $24.99
  • 7

    GEAR 22

    • Part No. T2350-25521
    • 1 shown on diagram
    $71.99
  • 8 CIR-CLIP

    CIR-CLIP

    • Part No. 04612-00250
    • DIA25
    • 1 shown on diagram
    $1.09
  • 9 Snap Ring (04612-00200)

    Snap Ring (04612-00200)

    • Part No. 04612-00200
    • DIA20
    • 2 shown on diagram
    $1.09
  • 10 BALL BEARING 20x47x14

    BALL BEARING 20x47x14

    • Part No. 08101-06204
    • DIA20
    • 1 shown on diagram
    $15.99
  • 11

    SPACER

    • Part No. T2350-25581
    • Applied Dates Up to 2006-12-03
    • DIA27.2*T5.5
    • * multiple options for #11
    • 1 shown on diagram
    $7.99
  • 11

    SPACER

    • Part No. T2350-25582
    • Compatibility Interchngable
    • Applied Dates 2006-12-04 and up
    • DIA27.2*T5.5
    • * multiple options for #11
    • 1 shown on diagram
    $9.99
  • 12

    CAM,CLUTCH A v

    • Part No. T2350-25441
    • Applied Dates Up to 2005-10-18
    • * multiple options for #12
    • 1 shown on diagram
    $99.99
  • 12

    CAM,CLUTCH A

    • Part No. T2350-25442
    • Compatibility No interchange
    • Applied Dates 2005-10-19 and up
    • * multiple options for #12
    • 1 shown on diagram
    $159.99
  • 13

    BUSH v

    • Part No. 08511-01915
    • Applied Dates Up to 2005-10-18
    • * multiple options for #13
    • 1 shown on diagram
    $7.49
  • 13 Bushing (2 required per wheel)

    Bushing (2 required per wheel)

    • Part No. 08511-01615
    • Compatibility No interchange
    • Applied Dates 2005-10-19 and up
    • Inner Diameter 16XL15
    • * multiple options for #13
    • 1 shown on diagram
    $2.49
  • 14

    CAM,CLUTCH B

    • Part No. T2350-25452
    • 1 shown on diagram
    $97.99
  • 15

    CAM,SPRING

    • Part No. T2350-25462
    • DIA2.6
    • 1 shown on diagram
    $4.99
  • 16

    SPACER

    • Part No. 76KP-0514
    • T3.2*35*35
    • 1 shown on diagram
    $3.49
  • 17

    SHAFT 2,PTO DRIVE v dnr

    • Part No. T2350-25272
    • Applied Dates Up to 2003-05-01
    • * multiple options for #17
    • 1 shown on diagram
    $56.99
  • 17

    SHAFT, DRIVE PTO-2

    • Part No. T2350-25273
    • Compatibility New repl old
    • Applied Dates 2003-05-02 to 2004-11-08
    • * multiple options for #17
    • 1 shown on diagram
    $89.99
  • 17

    SHAFT2,PTO DRIVING

    • Part No. T2350-25274
    • Compatibility No interchange
    • Applied Dates 2004-11-09 to 2005-10-18
    • * multiple options for #17
    • 1 shown on diagram
    $48.99
  • 17

    SHAFT2, PTO DRIVE v

    • Part No. T2350-25275
    • Compatibility No interchange
    • Applied Dates 2005-10-19 to 2006-11-19
    • * multiple options for #17
    • 1 shown on diagram
    $61.99
  • 17

    SHAFT2, PTO DRIVE

    • Part No. T2350-25276
    • Compatibility Interchngable
    • Applied Dates 2006-11-20 and up
    • * multiple options for #17
    • 1 shown on diagram
    $68.99
  • 18

    COUPLING

    • Part No. T2305-44521
    • DIA28
    • 1 shown on diagram
    $33.99
