FRONT DRIVING GEAR GROUP - CK20M-T260A

Kioti TRACTOR | CK Series | CK20

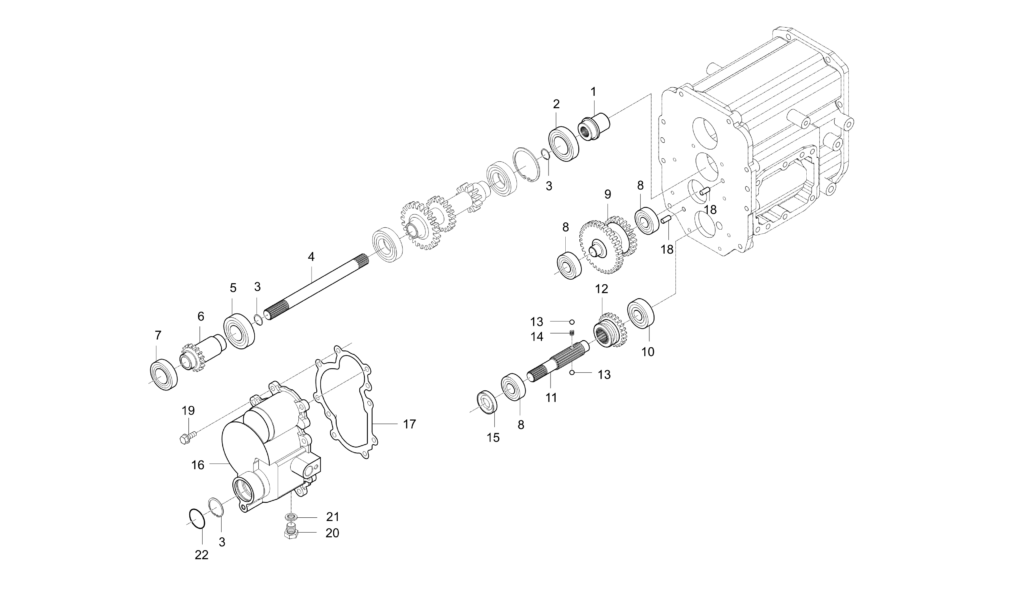

Diagram for FRONT DRIVING GEAR GROUP - CK20M-T260A
  • 1

    COUPLING

    • Part No. T2350-44591
    • * multiple options for #1
    • 1 shown on diagram
    $57.99
  • 1 COUPLING

    COUPLING

    • Part No. 44512-1373-3
    • Compatibility Call for compat
    • Applied Dates Up to 2012-03-05
    • * multiple options for #1
    • 1 shown on diagram
    $39.99
  • 2 BEARING BALL 40x67x19

    BEARING BALL 40x67x19

    • Part No. 08101-06007
    • DIA35
    • 1 shown on diagram
    $26.99
  • 3 Snap Ring (04612-00200)

    Snap Ring (04612-00200)

    • Part No. 04612-00200
    • DIA20
    • 3 shown on diagram
    $1.09
  • 4

    SHAFT 1,FRONT DRIVE

    • Part No. T2350-44561
    • * multiple options for #4
    • 1 shown on diagram
    $64.99
  • 4

    SHAFT 1, FRONT DRIVE

    • Part No. T2350-44562
    • Compatibility Call for compat
    • * multiple options for #4
    • 1 shown on diagram
    $49.99
  • 5 Ball Bearing 30x62x16

    Ball Bearing 30x62x16

    • Part No. 08101-06206
    • #6206
    • 1 shown on diagram
    $19.99
  • 6

    GEAR 18

    • Part No. T2350-44521
    • 1 shown on diagram
    $129.99
  • 7 BEARING, BALL 30x55x13

    BEARING, BALL 30x55x13

    • Part No. 08101-06006
    • DIA30
    • 1 shown on diagram
    $23.99
  • 8 BALL BEARING 20x47x14

    BALL BEARING 20x47x14

    • Part No. 08101-06204
    • DIA20
    • 3 shown on diagram
    $15.99
  • 9

    GEAR 28-38

    • Part No. T2350-44181
    • Applied Dates Up to 2004-11-22
    • * multiple options for #9
    • 1 shown on diagram
    $219.99
  • 9

    GEAR,28-38

    • Part No. T2350-44182
    • Compatibility Interchngable
    • Applied Dates 2004-11-25 to 2004-11-25
    • * multiple options for #9
    • 1 shown on diagram
    $219.99
  • 10

    BALL BEARING

    • Part No. 08101-06304
    • #6304
    • 1 shown on diagram
    $18.99
  • 11

    SHAFT 2,FRONT DRIVE

    • Part No. T2350-44191
    • Applied Dates Up to 2006-06-11
    • * multiple options for #11
    • 1 shown on diagram
    $64.99
  • 11

    SHAFT2,FRONT WHEEL DRIVE

    • Part No. T2350-44192
    • Compatibility New repl old
    • * multiple options for #11
    • 1 shown on diagram
    $81.99
  • 12

    SHIFT,FRONT

    • Part No. T2350-44231
    • Applied Dates Up to 2004-11-22
    • * multiple options for #12
    • 1 shown on diagram
    $85.99
  • 12

    SHIFTER, FRONT WHEEL

    • Part No. T2350-44232
    • Compatibility Interchngable
    • Applied Dates 2004-11-25 to 2004-11-25
    • * multiple options for #12
    • 1 shown on diagram
    $96.99
  • 13 BALL,STEEL

    BALL,STEEL

    • Part No. 07715-01605
    • DIA7.9375
    • 2 shown on diagram
    $0.56
  • 14 SPRING

    SPRING

    • Part No. T2305-44252
    • DIA1.6
    • 1 shown on diagram
    $3.49
  • 15 SEAL,OIL 20x42x8

    SEAL,OIL 20x42x8

    • Part No. 09500-20428
    • 1 shown on diagram
    $4.99
  • 16

    CASE,FRONT WHEEL DRIVE

    • Part No. T2350-44112
    • Applied Dates Up to 2003-04-22
    • * multiple options for #16
    • 1 shown on diagram
    $164.99
  • 16

    CASE, FRONT WHEEL DRIVE

    • Part No. T2350-44113
    • Compatibility Interchngable
    • Applied Dates 2003-04-23 to 2006-11-01
    • * multiple options for #16
    • 1 shown on diagram
    $194.99
  • 16

    CASE

    • Part No. T2350-44114
    • Compatibility No interchange
    • * multiple options for #16
    • 1 shown on diagram
    $299.99
  • 17

    PACKING obs v

    • Part No. T2350-44122
    • Applied Dates Up to 2006-11-01
    • T0.5
    • 1 shown on diagram
    $11.99
  • 18 PIN, PARALLEL

    PIN, PARALLEL

    • Part No. 05012-00818
    • DIA8XL18
    • 2 shown on diagram
    $1.59
  • 19 Bolt With Washer, M8 P1.25 x 25mm

    Bolt With Washer, M8 P1.25 x 25mm

    • Part No. 01123-50825
    • M8XP1.25
    • 8 shown on diagram
    $1.99
  • 20 PLUG M10XP1.25

    PLUG M10XP1.25

    • Part No. 06331-35010
    • M10XP1.25
    • 1 shown on diagram
    $4.49
  • 21 WASHER, SEAL M10

    WASHER, SEAL M10

    • Part No. 04717-01000
    • M10
    • 1 shown on diagram
    $1.99
  • 22 O RING

    O RING

    • Part No. 04811-06420
    • DIA42.2
    • 1 shown on diagram
    $1.69
