DOOR GROUP - CK30C-T9030A

Kioti TRACTOR | CK Series | CK25H

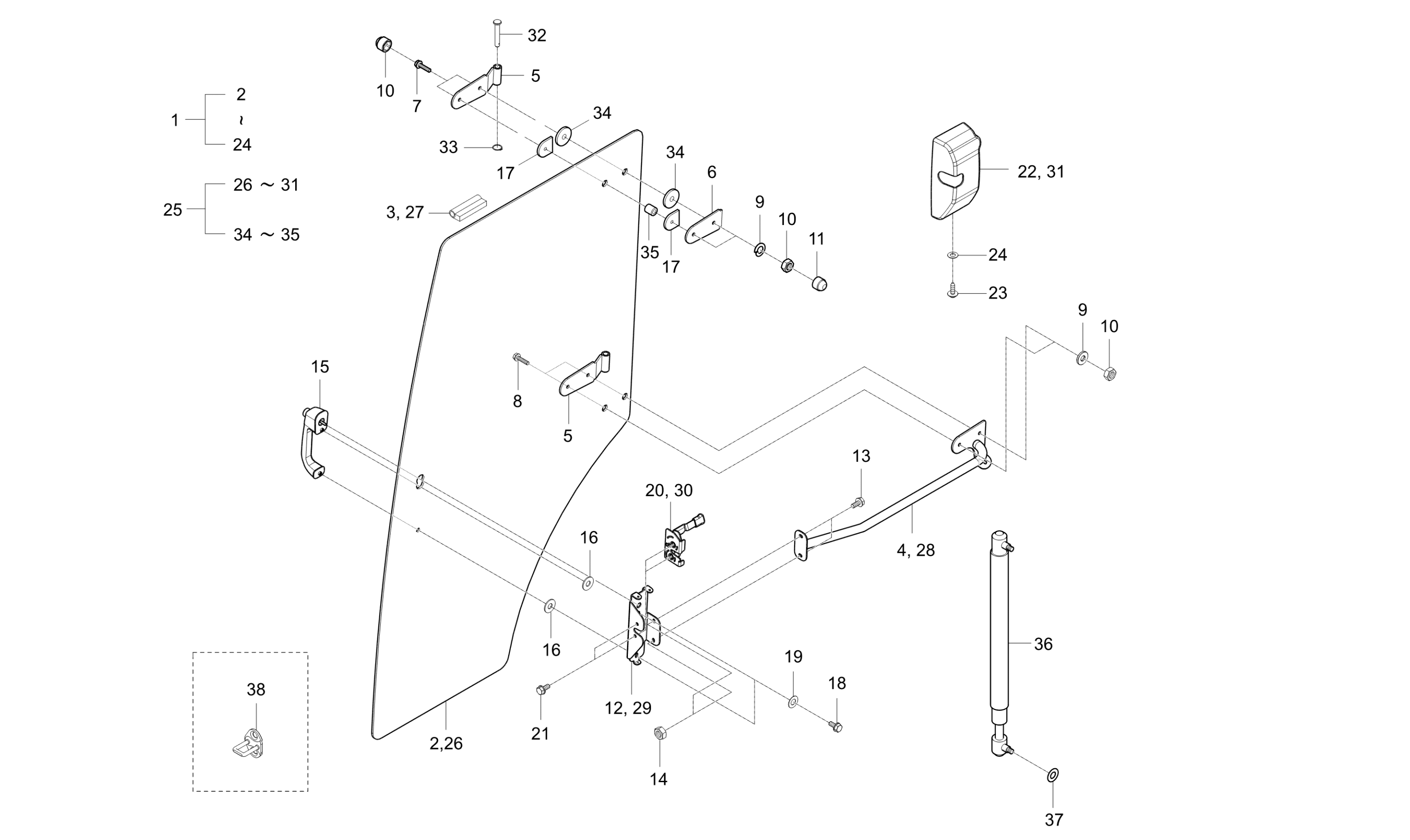

Diagram for DOOR GROUP - CK30C-T9030A
  • 1

    TRK – ASSY DOOR LH

    • Part No. T2131-84101
    • 1 shown on diagram
    $1,649.99
  • 2

    TRK – GLASS DOOR LH

    • Part No. T2131-84121
    • 1 shown on diagram
    $744.99
  • 3

    RUBBER GLASS DOOR LH

    • Part No. T2131-84131
    • 1 shown on diagram
    $71.99
  • 4

    ASSY FRAME DOOR LH

    • Part No. T2131-84211
    • 1 shown on diagram
    $224.99
  • 5

    HINGE DOOR

    • Part No. T2131-84251
    • 4 shown on diagram
    $61.99
  • 6

    PLATE DOOR FRAME HOLDING

    • Part No. T2391-84241
    • 2 shown on diagram
    $19.99
  • 7 Bolt With Washer, M8 P1.25 x 30mm

    Bolt With Washer, M8 P1.25 x 30mm

    • Part No. 01123-50830
    • M8P1.25*30
    • 8 shown on diagram
    $2.49
  • 8 BOLT,CUSHION (interchanges w/ T4620-81841)

    BOLT,CUSHION (interchanges w/ T4620-81841)

    • Part No. T4620-81842
    • 16 shown on diagram
    $6.99
  • 9 Flat Washer M8

    Flat Washer M8

    • Part No. 04013-50080
    • 16 shown on diagram
    $0.79
  • 10 NUT

    NUT

    • Part No. 02114-50080
    • M8*P1.25
    • 8 shown on diagram
    $0.67
  • 11 Cap Nut, M8 T4815-93211

    Cap Nut, M8 T4815-93211

    • Part No. T4815-93211
    • M8
    • 16 shown on diagram
    $1.49
  • 12

    BRACKET HANDLE LH

    • Part No. T2131-83761
    • 1 shown on diagram
    $61.99
  • 13

    BOLT, FLANGE

    • Part No. 01754-50620
    • M6XP1.0
    • 4 shown on diagram
    $1.29
  • 14 Nut, Flange, M6 P1.00 02751-50060

    Nut, Flange, M6 P1.00 02751-50060

    • Part No. 02751-50060
    • M6XP1.0
    • 4 shown on diagram
    $0.73
  • 15

    HANDLE DOOR

    • Part No. T2131-51031
    • 2 shown on diagram
    $83.99
  • 16 PACKING

    PACKING

    • Part No. T4520-88401
    • 4 shown on diagram
    $3.49
  • 17

    PACKING

    • Part No. T4681-90911
    • 4 shown on diagram
    $5.49
  • 18

    BOLT WASHER

    • Part No. 01023-50625
    • M6XP1.0
    • 4 shown on diagram
    $1.79
  • 19 Flat Washer M6

    Flat Washer M6

    • Part No. 04013-50060
    • M6
    • 4 shown on diagram
    $0.73
  • 20

    LH Latch Assembly T4930-51351

    • Part No. T4930-51351
    • 1 shown on diagram
    $109.99
  • 21 BOLT, FLANGE, M8 P1.25

    BOLT, FLANGE, M8 P1.25

    • Part No. 01754-50825
    • M8XP1.25
    • 4 shown on diagram
    $2.49
  • 22

    COVER SIDE DOOR LH

    • Part No. T4930-81321
    • T3.0
    • 1 shown on diagram
    $19.99
  • 23

    SCREW

    • Part No. 03054-50416
    • M4*0.7
    • 2 shown on diagram
    $0.68
  • 24

    Flat Washer M4

    • Part No. 04013-50040
    • M4
    • 2 shown on diagram
    $0.79
  • 25

    TRK – ASSY DOOR RH

    • Part No. T2131-85101
    • 1 shown on diagram
    $1,419.99
  • 26

    TRK – GLASS DOOR RH

    • Part No. T2131-85121
    • 1 shown on diagram
    $794.99

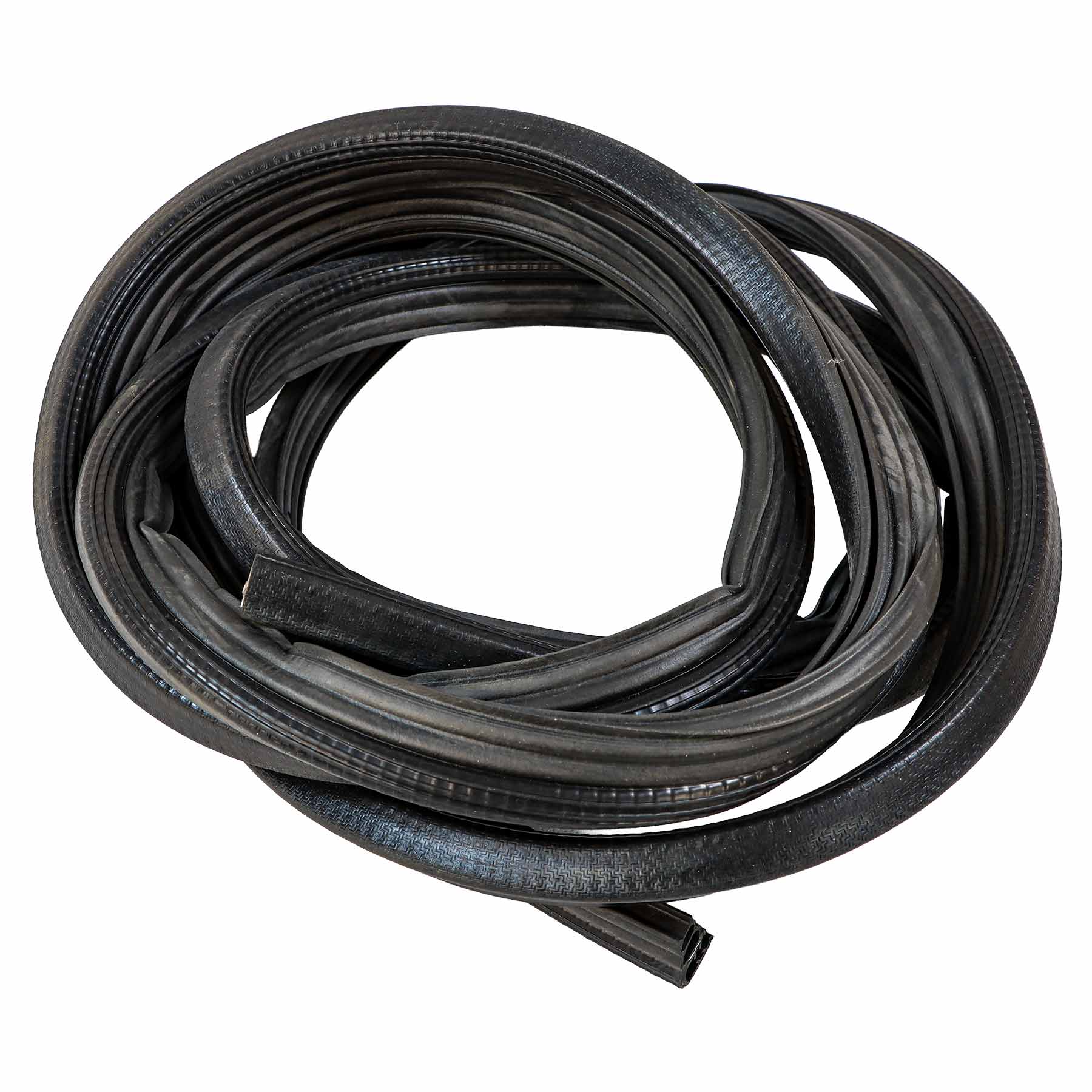

  • 27 RUBBER GLASS DOOR RH

    RUBBER GLASS DOOR RH

    • Part No. T2131-85131
    • 1 shown on diagram
    $71.99
  • 28

    Assy Frame Door Rh

    • Part No. T2131-85211
    • 1 shown on diagram
    $189.99
  • 29

    Handle Bracket (RH) T2131-83771

    • Part No. T2131-83771
    • 1 shown on diagram
    $59.99
  • 30 ASSY LATCH RH

    ASSY LATCH RH

    • Part No. T4930-51361
    • 1 shown on diagram
    $114.99
  • 31

    COVER SIDE DOOR RH

    • Part No. T4930-81331
    • T3.0
    • 1 shown on diagram
    $21.99
  • 32

    PIN HINGE ENTRANCE

    • Part No. T4810-82741
    • 4 shown on diagram
    $7.49
  • 33 RING SNAP

    RING SNAP

    • Part No. 04613-50100
    • 4 shown on diagram
    $0.49
  • 34 Packing, 1 T4520-87402

    Packing, 1 T4520-87402

    • Part No. T4520-87402
    • T3
    • 8 shown on diagram
    $2.99
  • 35

    COLLAR

    • Part No. T4681-83431
    • 8 shown on diagram
    $3.49

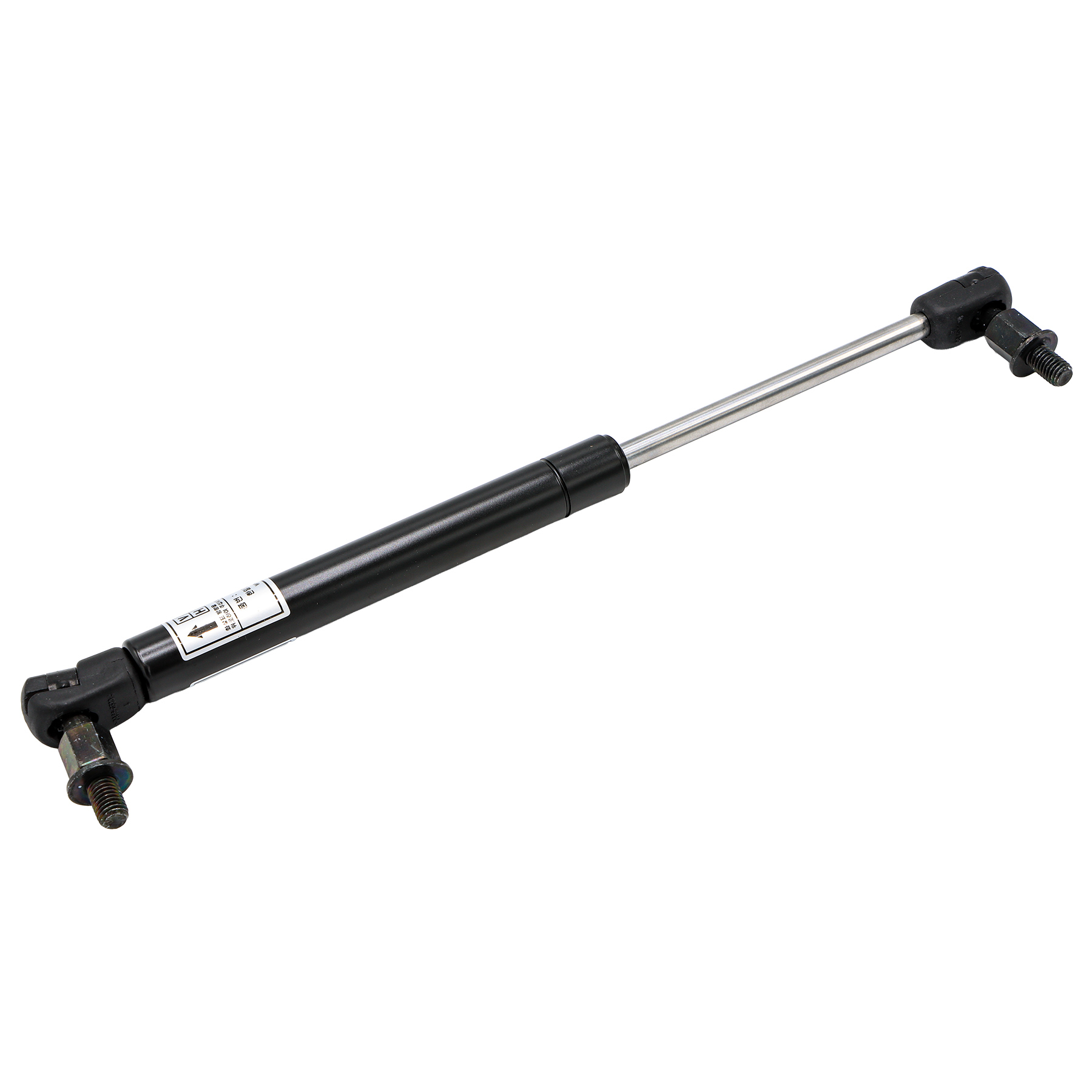

  • 36 SPRING GAS

    SPRING GAS

    • Part No. T2131-84731
    • 2 shown on diagram
    $134.99
  • 37 Flat Washer M8

    Flat Washer M8

    • Part No. 04013-50080
    • 2 shown on diagram
    $0.79
  • 38

    STRIKER, LATCH

    • Part No. T5270-82771
    • 1 shown on diagram
    $26.99
