ROOF GROUP - CK30C-T9050A

Kioti TRACTOR | CK Series | CK25H

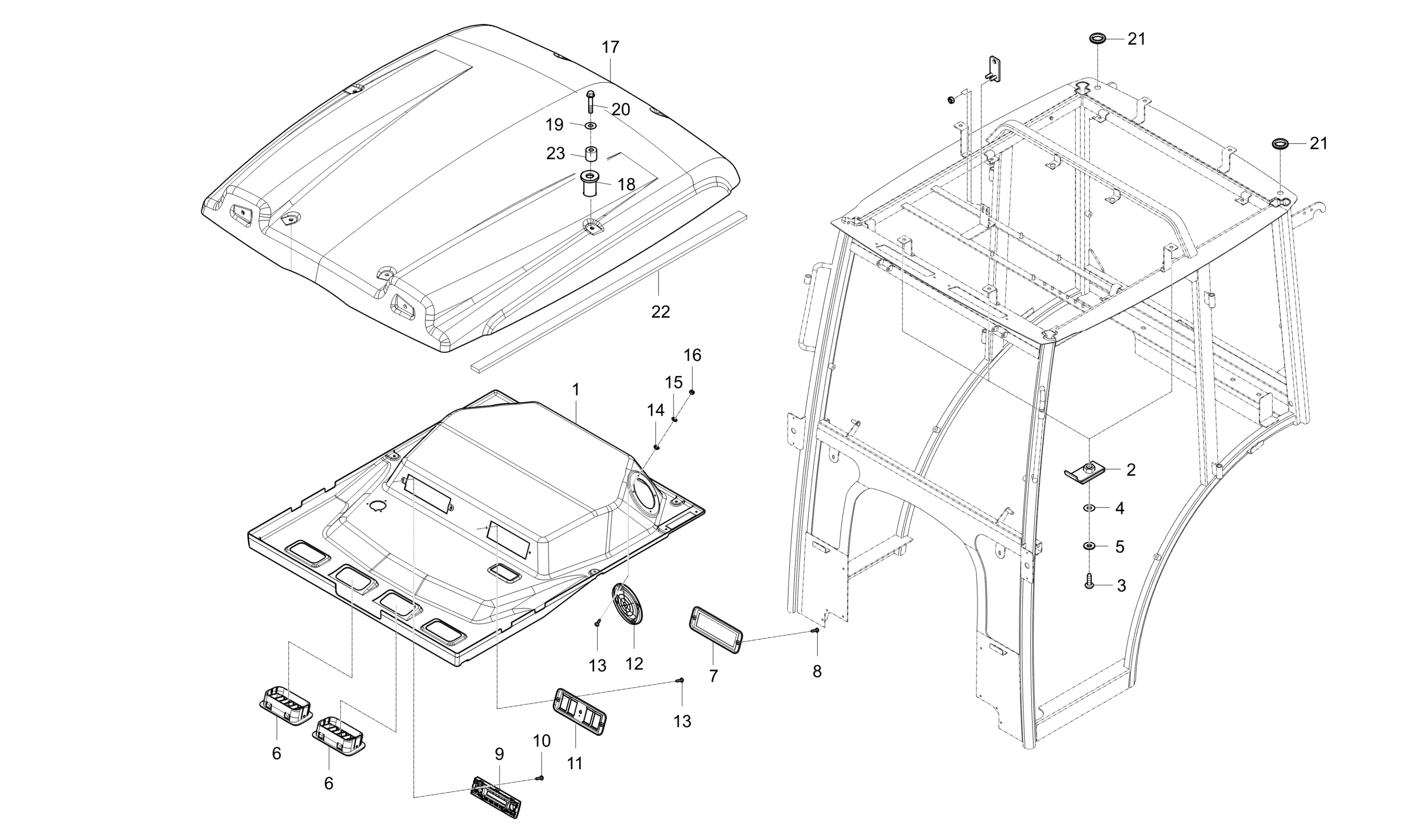

Diagram for ROOF GROUP - CK30C-T9050A
  • 1

    CEILING

    • Part No. T2131-82011
    • 1 shown on diagram
    $464.99
  • 2 NUT, SPRING

    NUT, SPRING

    • Part No. 38245-2925-3
    • 6 shown on diagram
    $4.49
  • 3

    M6*P1.0 Screw (03014-50630)

    • Part No. 03014-50630
    • M6*P1.0
    • 6 shown on diagram
    $0.96
  • 4 Flat Washer M6

    Flat Washer M6

    • Part No. 04013-50060
    • M6
    • 6 shown on diagram
    $0.73
  • 5

    CAP RUBBER

    • Part No. T4145-82081
    • 6 shown on diagram
    $9.99
  • 6

    GRILL AIR CONDITIONER

    • Part No. T4930-83082
    • 4 shown on diagram
    $52.99
  • 7 Stereo Cover (T4145-82072 )

    Stereo Cover (T4145-82072 )

    • Part No. T4145-82072
    • 1 shown on diagram
    $9.99
  • 8

    SCREW

    • Part No. 03054-50416
    • M4*0.7
    • 2 shown on diagram
    $0.68
  • 9

    PANNEL SWITCH

    • Part No. T2131-82511
    • 1 shown on diagram
    $9.99
  • 10 COVER

    COVER

    • Part No. T2131-82521
    • 2 shown on diagram
    $4.49
  • 11

    SCREW

    • Part No. 03054-50416
    • M4*0.7
    • 2 shown on diagram
    $0.68
  • 12 GRILL SPEAKER

    GRILL SPEAKER

    • Part No. T4810-82352
    • 2 shown on diagram
    $24.99
  • 13 OB Screw (03054-50420)

    OB Screw (03054-50420)

    • Part No. 03054-50420
    • 8 shown on diagram
    $0.68
  • 14

    Flat Washer M4

    • Part No. 04013-50040
    • M4
    • 8 shown on diagram
    $0.79
  • 15

    WASHER, SPRING

    • Part No. 04512-50040
    • M04
    • 8 shown on diagram
    $0.55
  • 16

    Nut M4XP0.7 (02054-50040)

    • Part No. 02054-50040
    • M4XP0.7
    • 8 shown on diagram
    $0.61
  • 17

    TRK – ROOF

    • Part No. T2131-82001
    • 1 shown on diagram
    $899.99
  • 18 WASHER PACKING v

    WASHER PACKING v

    • Part No. T4833-87141
    • 6 shown on diagram
    $2.49
  • 19 Flat Washer M8

    Flat Washer M8

    • Part No. 04013-50080
    • 6 shown on diagram
    $0.79
  • 20 Bolt, Flange M8 P1.25

    Bolt, Flange M8 P1.25

    • Part No. 01754-50830
    • M8XP1.25
    • 6 shown on diagram
    $1.89
  • 21

    Grommet, Replaced by T4815-78112

    • Part No. T4815-78111
    • 2 shown on diagram
    $0.00
  • 22

    RUBBER ROOF SEALING

    • Part No. T2131-82421
    • 1 shown on diagram
    $59.99
  • 23

    COLLAR

    • Part No. T4681-83431
    • 6 shown on diagram
    $3.49
