ELECTRICITY SYSTEM 1GROUP - CK30M-T930A

Kioti TRACTOR | CK Series | CK25

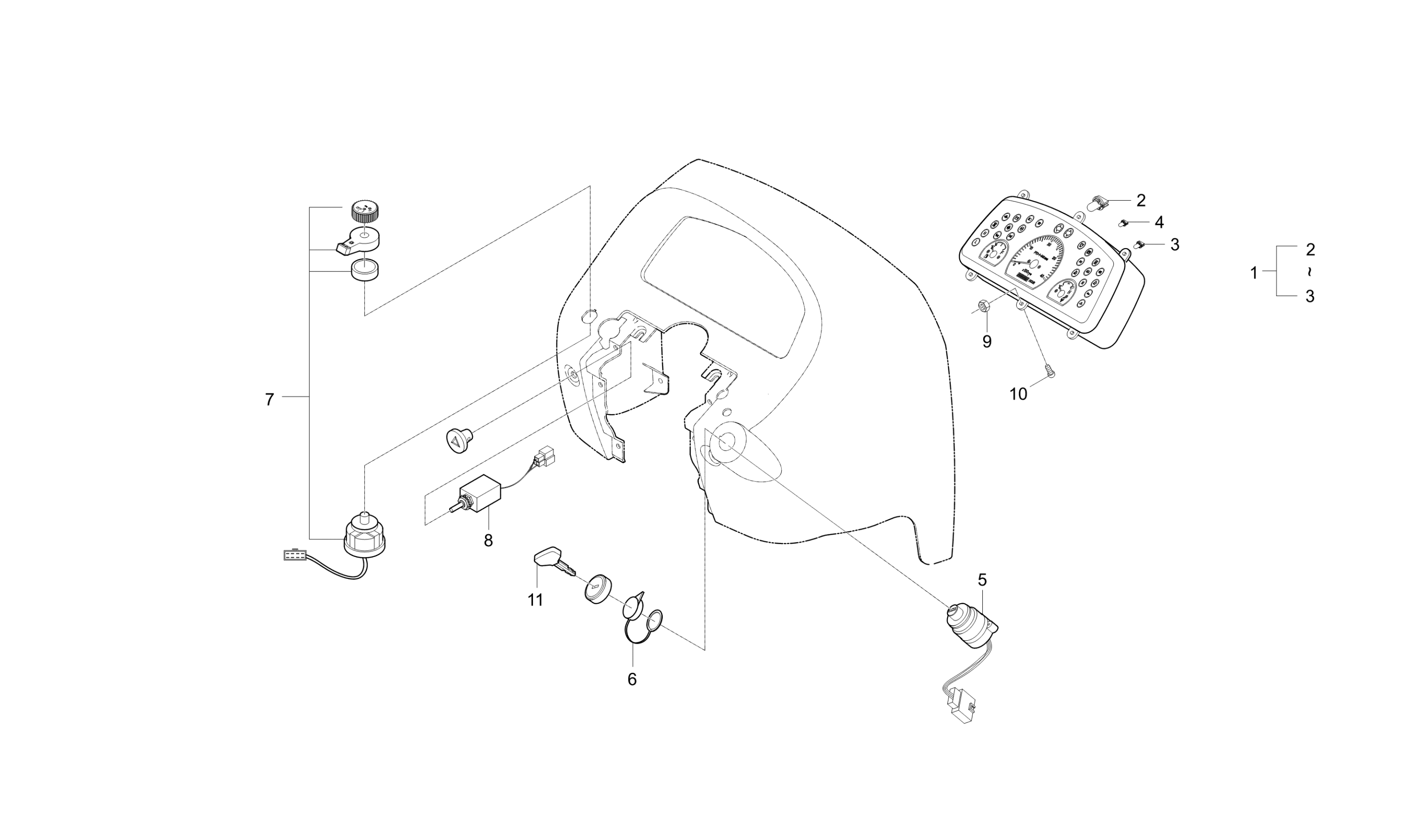

Diagram for ELECTRICITY SYSTEM 1GROUP - CK30M-T930A
  • 1

    Ass’y Combination Meter, Replaced by T2185-69013

    • Part No. T2185-69011
    • Serial No. Up to E70100250
    • * multiple options for #1
    • 1 shown on diagram
    $479.99
  • 1

    Assy Plate,Meter Replaced by T2185-69013

    • Part No. T2185-69012
    • Compatibility New repl old
    • Serial No. E70100251 to F70100460
    • * multiple options for #1
    • 1 shown on diagram
    $454.99
  • 1

    ASSY METER, INSTRUMENT DIAL v

    • Part No. T2185-69013
    • Compatibility New repl old
    • Serial No. F70100461 to G70100180
    • * multiple options for #1
    • 1 shown on diagram
    $864.99
  • 1

    ASSY PLATE,METER v

    • Part No. T2185-69014
    • Compatibility No interchange
    • Serial No. G70100181 and up
    • * multiple options for #1
    • 1 shown on diagram
    $654.99
  • 1 Meter Plate Assembly

    Meter Plate Assembly

    • Part No. T2185-69015
    • Compatibility No interchange
    • * multiple options for #1
    • 1 shown on diagram
    $894.99
  • 2

    BULB dnr v

    • Part No. T4684-69021004
    • 12V3.4W
    • 2 shown on diagram
    $6.99
  • 3

    BULB v

    • Part No. T2185-00101
    • Serial No. Up to G70100180
    • 14V 1.4W
    • 12 shown on diagram
    $5.49
  • 4

    LAMP dnr v

    • Part No. T4710-69021013
    • 14V3W
    • 1 shown on diagram
    $7.49
  • 5

    Starter Switch, Replaced by T4520-75176

    • Part No. T4520-75174
    • Applied Dates Up to 2009-12-31
    • * multiple options for #5
    • 1 shown on diagram
    $0.00
  • 5

    Starter Switch, Replaced by T4520-75176

    • Part No. T4520-75175
    • Compatibility New repl old
    • Applied Dates 2010-01-01 to 2010-07-28
    • * multiple options for #5
    • 1 shown on diagram
    $0.00
  • 5 Ignition Starter Switch, w/o Key

    Ignition Starter Switch, w/o Key

    • Part No. T4520-75176
    • Compatibility New repl old
    • Applied Dates 2010-07-29 and up
    • Serial No. K70100001 and up
    • * multiple options for #5
    • 1 shown on diagram
    $99.99
  • 5

    Starter Switch (T5515-75171)

    • Part No. T5515-75171
    • Compatibility Call for compat
    • Applied Dates 2012-01-01 to 2012-05-31
    • * multiple options for #5
    • 1 shown on diagram
    $89.99
  • 5

    ASSY SWITCH, STARTER W/O KEY v (single cut key)

    • Part No. T5515-75172
    • Compatibility New repl old
    • * multiple options for #5
    • 1 shown on diagram
    $99.99
  • 5 Ignition Starter Switch, w/o Key

    Ignition Starter Switch, w/o Key

    • Part No. T4520-75176
    • Compatibility New repl old
    • * multiple options for #5
    • 1 shown on diagram
    $99.99
  • 6 WATERPROOF COVER, STARTING SWITCH, CLEAR, Replaced by T4837-77774

    WATERPROOF COVER, STARTING SWITCH, CLEAR, Replaced by T4837-77774

    • Part No. T4837-77772
    • Applied Dates Up to 2007-06-20
    • Serial No. Up to G70100180
    • * multiple options for #6
    • 1 shown on diagram
    $3.49
  • 6

    Starter Switch Waterproof Cover (T4837-77773)

    • Part No. T4837-77773
    • Compatibility Interchngable
    • * multiple options for #6
    • 1 shown on diagram
    $5.99
  • 7

    ASS Y, COMBINATION SW, Replaced by T4620-69025

    • Part No. T4620-69024
    • Applied Dates Up to 2012-04-09
    • * multiple options for #7
    • 1 shown on diagram
    $0.00
  • 7 COMBINATION SWITCH ASSY v

    COMBINATION SWITCH ASSY v

    • Part No. T4620-69025
    • Compatibility New repl old
    • Applied Dates 2012-04-10 and up
    • * multiple options for #7
    • 1 shown on diagram
    $89.99
  • 8

    ASSY SWITCH HAZARD v

    • Part No. T4520-76552
    • Applied Dates Up to 2004-10-31
    • Serial No. Up to D70100194
    • * multiple options for #8
    • 1 shown on diagram
    $47.99
  • 8 ASSY, HAZARD SWITCH

    ASSY, HAZARD SWITCH

    • Part No. T4520-76553
    • Compatibility Interchngable
    • Applied Dates 2004-11-01 and up
    • Serial No. D70100195 and up
    • * multiple options for #8
    • 1 shown on diagram
    $71.99
  • 9

    Nut M4XP0.7 (02054-50040)

    • Part No. 02054-50040
    • M4XP0.7
    • 6 shown on diagram
    $0.61
  • 10

    SCREW

    • Part No. 03024-50414
    • Applied Dates 2004-04-07 to 2006-07-24
    • Serial No. Up to F70100460
    • M4XP0.7
    • * multiple options for #10
    • 6 shown on diagram
    $0.68
  • 10 TAPPING SCREW v

    TAPPING SCREW v

    • Part No. 38240-1883-1
    • Compatibility No interchange
    • Applied Dates 2004-04-14 to 2004-03-31
    • Serial No. D70100001 to F70100396
    • M4X16
    • * multiple options for #10
    • 5 shown on diagram
    $0.79
  • 11 Kioti Ignition Keys, Trapezoid Handle, Double Cut Blade, Set of 2

    Kioti Ignition Keys, Trapezoid Handle, Double Cut Blade, Set of 2

    • Part No. T4625-75191
    • Applied Dates Up to 2004-04-06
    • 2 shown on diagram
    $16.99
