BATTERY GROUP - CK35H-T920A

Kioti TRACTOR | CK Series | CK25

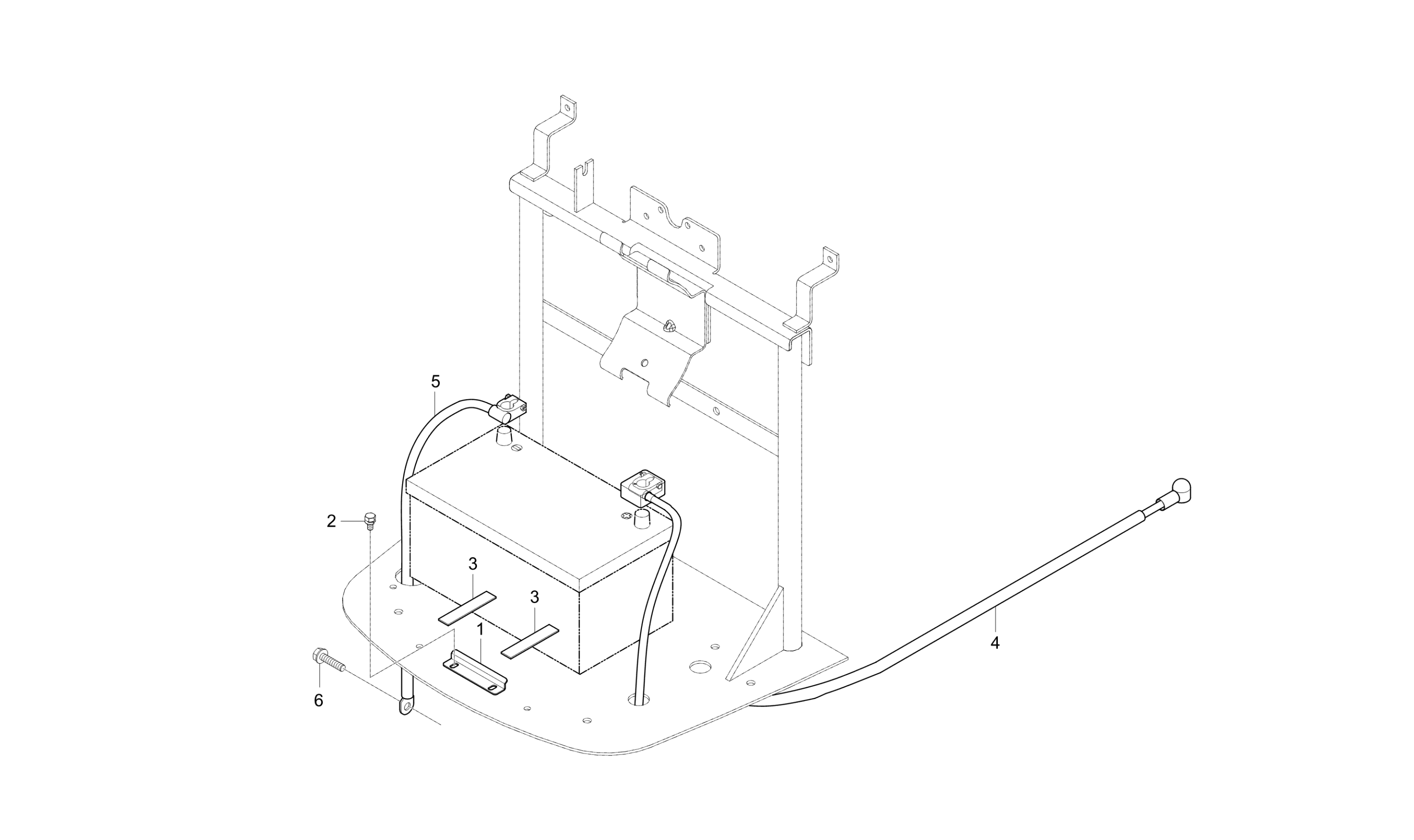

Diagram for BATTERY GROUP - CK35H-T920A
  • 1

    BRACKET, BATTERY dnr v

    • Part No. T2350-50252
    • Applied Dates 2007-02-11 to 2008-11-28
    • Serial No. G70100041 and up
    • T2.3
    • * multiple options for #1
    • 1 shown on diagram
    $29.99
  • 1

    BRACKET BATTERY dnr v

    • Part No. T2350-50252ED
    • Compatibility New repl old
    • Applied Dates 2013-02-10 and up
    • * multiple options for #1
    • 1 shown on diagram
    $27.99
  • 2 Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    • Part No. 01123-50816
    • Applied Dates Up to 2007-01-29
    • M8XP1.25
    • * multiple options for #2
    • 2 shown on diagram
    $1.09
  • 2 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • Compatibility New repl old
    • M8XP1.25
    • * multiple options for #2
    • 2 shown on diagram
    $1.79
  • 3 RUBBER, CUSHION v

    RUBBER, CUSHION v

    • Part No. T2610-50271
    • Applied Dates Up to 2007-07-10
    • Serial No. Up to G70100244
    • * multiple options for #3
    • 2 shown on diagram
    $5.99
  • 3

    CUSHION,RUBBER v

    • Part No. T2380-50271
    • Compatibility New repl old
    • Applied Dates 2007-08-01 to 2012-07-27
    • Serial No. G70100245 and up
    • * multiple options for #3
    • 2 shown on diagram
    $5.49
  • 3

    RUBBER, CUSHION

    • Part No. T2380-50272
    • Compatibility Old repl new
    • Applied Dates 2012-07-31 to 2012-10-10
    • * multiple options for #3
    • 2 shown on diagram
    $5.99
  • 3

    RUBBER, CUSHION

    • Part No. T4665-50271
    • Compatibility Interchngable
    • Applied Dates 2012-10-11 to 2014-01-31
    • * multiple options for #3
    • 2 shown on diagram
    $4.99
  • 3

    RUBBER, CUSHION

    • Part No. T2380-50272
    • Compatibility Call for compat
    • Serial No. P70100001 and up
    • * multiple options for #3
    • 2 shown on diagram
    $5.99
  • 4

    CORD,BATTERY v

    • Part No. T4682-69161
    • Applied Dates Up to 2007-11-10
    • * multiple options for #4
    • 1 shown on diagram
    $59.99
  • 4

    CORD,BATTERY v

    • Part No. T2185-69161
    • Compatibility New repl old
    • Applied Dates 2007-12-15 to 2010-09-05
    • Serial No. G70100555 and up
    • * multiple options for #4
    • 1 shown on diagram
    $52.99
  • 5

    CABLE BATTERY (-) dnr v

    • Part No. T2195-69611
    • Applied Dates Up to 2010-09-05
    • * multiple options for #5
    • 1 shown on diagram
    $42.99
  • 5

    CABLE, BATTERY EARTH v

    • Part No. T2195-69612
    • Compatibility Interchngable
    • Applied Dates 2010-09-06 and up
    • * multiple options for #5
    • 1 shown on diagram
    $72.99
  • 6 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50812
    • M8XP1.25
    • 1 shown on diagram
    $1.79
