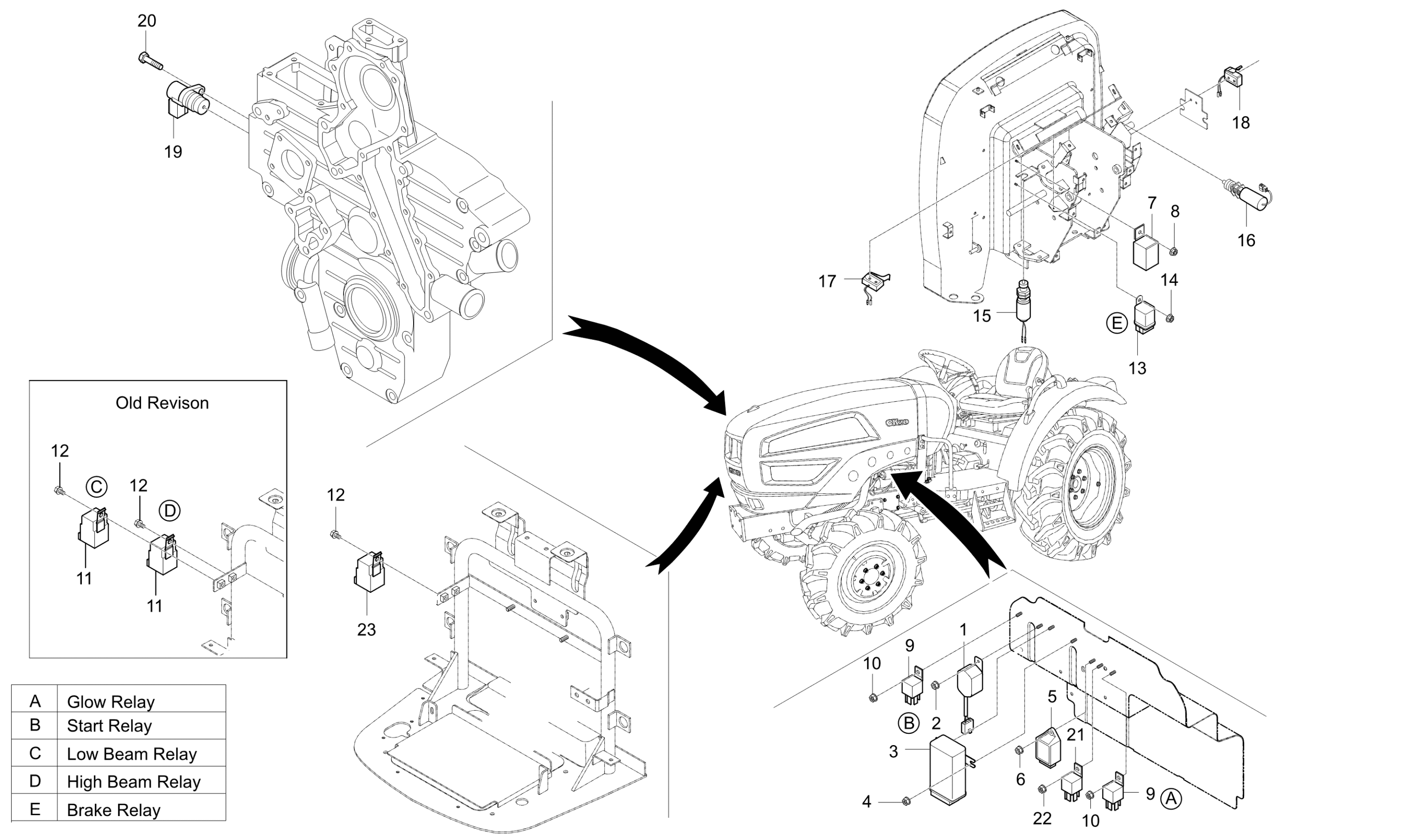

ELECTRICITY SYSTEM 2 GROUP - CK30M-T940A

TIMER RELAY

• Part No. 15475-6024-2
• Applied Dates Up to 2005-02-20
• Serial No. Up to E70100080
• * multiple options for #1
• 1 shown on diagram

RELAY,TIMER V, Replaced by T2185-60242

• Part No. T2185-60241
• Compatibility No interchange
• Applied Dates 2005-02-21 to 2006-12-03
• Serial No. E70100081 and up
• * multiple options for #1
• 1 shown on diagram

Nut, Flange, M6 P1.00 02751-50060

• Part No. 02751-50060
• M6XP1.0
• 1 shown on diagram

PREHEATER CONTROLLER

• Part No. T4620-69054
• Applied Dates Up to 2006-12-03
• Serial No. Up to F70100660
• * multiple options for #3
• 1 shown on diagram

ASSY UNIT v

• Part No. T2185-69871
• Compatibility No interchange
• Applied Dates 2006-12-04 to 2007-03-21
• Serial No. G70100001 to G70100180
• * multiple options for #3
• 1 shown on diagram

ASSY UNIT V

• Part No. T2185-69872
• Compatibility New repl old
• Applied Dates 2007-03-22 to 2008-03-23
• Serial No. G70100181 and up
• * multiple options for #3
• 1 shown on diagram

Safety Starter Display Unit, Replaced By TE15-0153A

• Part No. T2185-69873
• Compatibility No interchange
• Applied Dates 2008-03-24 to 2010-11-21
• * multiple options for #3
• 1 shown on diagram

DISPLAY UNIT V, Replaced by TE15-0153A

• Part No. T2185-69874
• Compatibility Interchngable
• Applied Dates 2010-11-22 to 2011-02-25
• * multiple options for #3
• 1 shown on diagram

UNIT DISPLAY, Replaced by TE15-0153A

• Part No. T2185-69875
• Compatibility New repl old
• Applied Dates 2011-02-26 and up
• * multiple options for #3
• 1 shown on diagram

Safety Starter Display Unit

• Part No. TE15-0153A
• Compatibility New repl old
• * multiple options for #3
• 1 shown on diagram

Nut, Flange, M6 P1.00 02751-50060

• Part No. 02751-50060
• M6XP1.0
• 2 shown on diagram

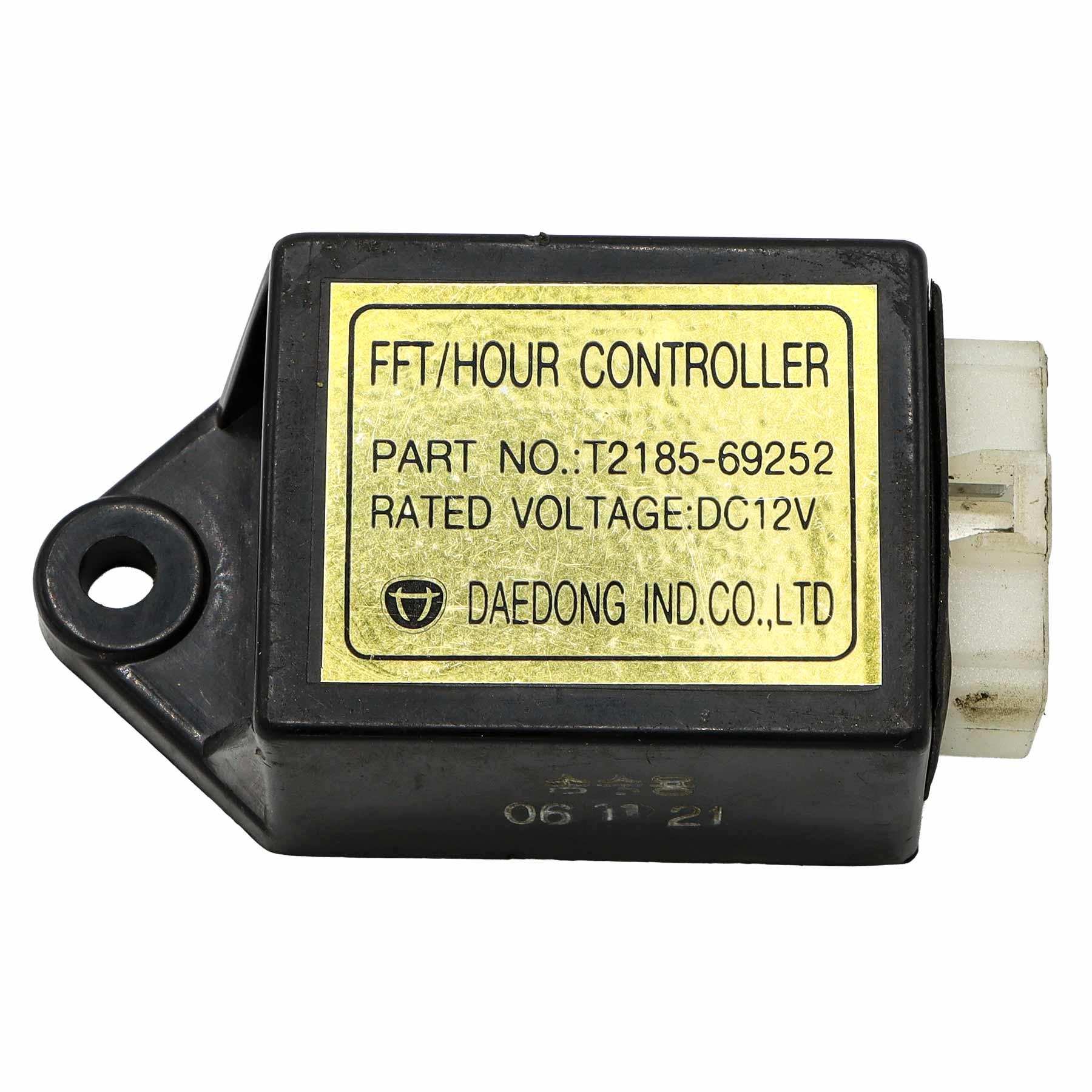

ASS Y FFT-HOUR CONTROL

• Part No. T2185-69252
• Applied Dates 2004-01-13 to 2006-12-03
• 1 shown on diagram

Nut, Flange, M6 P1.00 02751-50060

• Part No. 02751-50060
• M6XP1.0
• 1 shown on diagram

UNIT, FLASHER V

• Part No. T4240-31052
• Applied Dates Up to 2006-12-03
• * multiple options for #7
• 1 shown on diagram

FLASHER UNIT v

• Part No. T4121-31051
• Compatibility Interchngable
• Applied Dates 2006-12-04 to 2007-07-06
• Serial No. G70100001 to G70100304
• * multiple options for #7
• 1 shown on diagram

UNIT, FLASHER IA, Replaced by T4121-31054

• Part No. T4121-31052
• Compatibility New repl old
• Applied Dates 2007-07-07 to 2010-10-29
• Serial No. G70100305 and up
• * multiple options for #7
• 1 shown on diagram

UNIT FLASHER v

• Part No. T4121-31053
• Compatibility Interchngable
• Applied Dates 2010-10-30 and up
• Serial No. K70100001 and up
• * multiple options for #7
• 1 shown on diagram

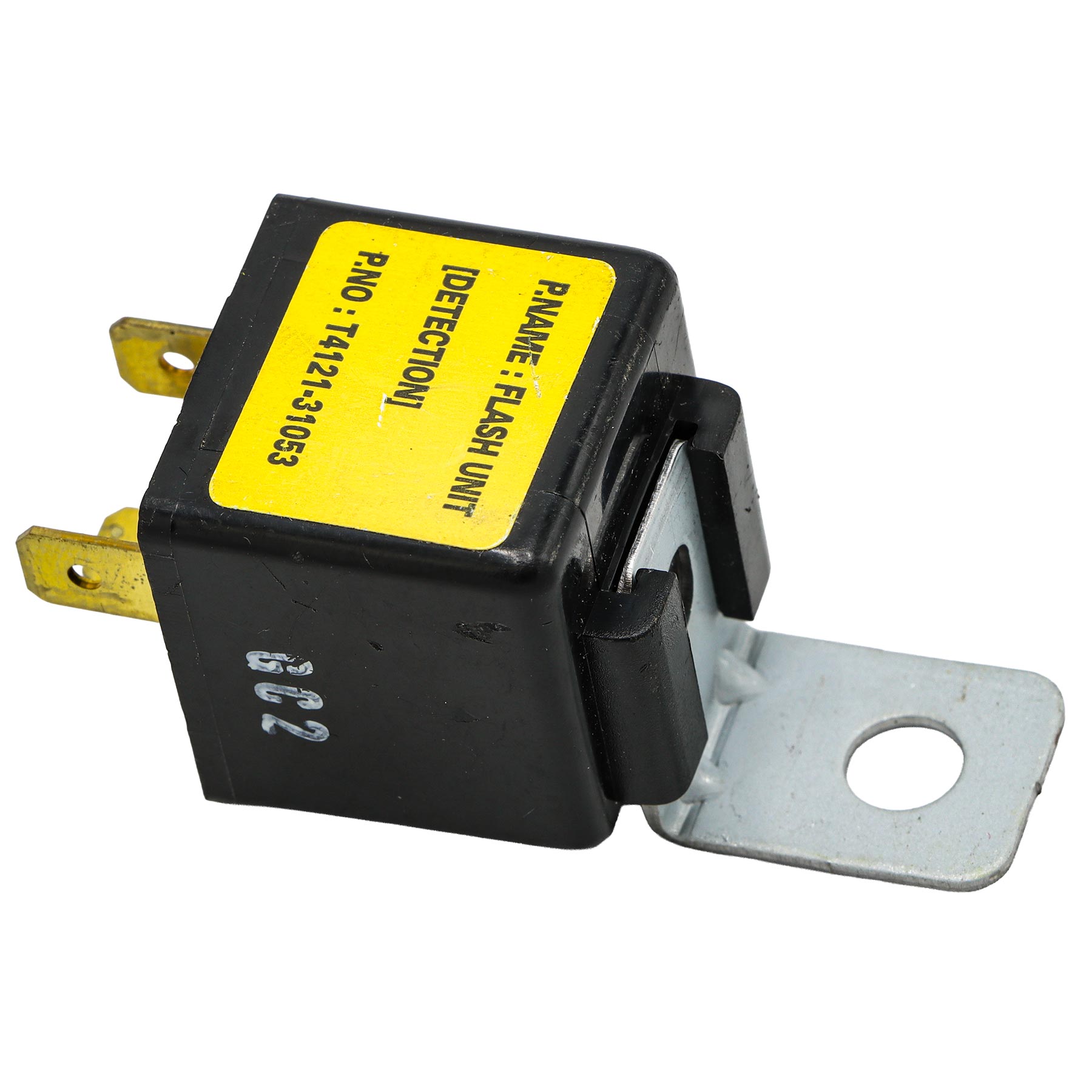

FLASHER UNIT, SENSOR v

• Part No. T4121-31054
• Compatibility Interchngable
• Applied Dates 2015-02-01 to 2016-01-07
• * multiple options for #7
• 1 shown on diagram

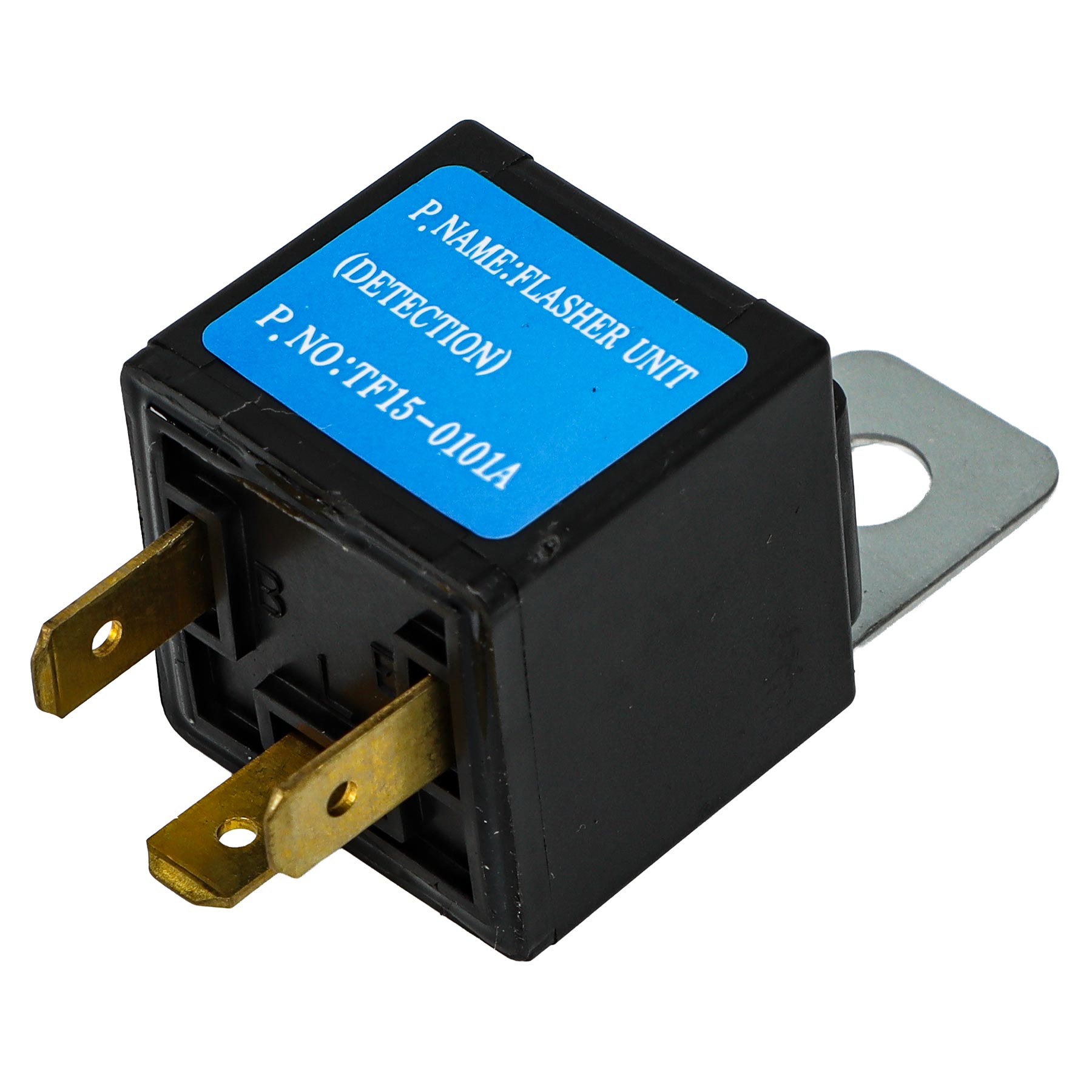

UNIT, FLASHER SENSOR

• Part No. TF15-0101A
• Compatibility New repl old
• Applied Dates 2016-01-08 and up
• * multiple options for #7
• 1 shown on diagram

Nut, Flange, M6 P1.00 02751-50060

• Part No. 02751-50060
• M6XP1.0
• 1 shown on diagram

GLOW RELAY V, Replaced by T4180-69951

• Part No. C5510-43101
• Applied Dates 2005-05-01 to 2005-07-25
• Serial No. E70100081 to F70100280
• * multiple options for #9
• 2 shown on diagram

GLOW RELAY V, Replaced by T4180-69951

• Part No. C5510-43102
• Compatibility Interchngable
• Applied Dates 2005-07-26 to 2006-12-03
• Serial No. F70100281 to G70100244
• * multiple options for #9
• 2 shown on diagram

Relay 5p V, Replaced By T5535-69961

• Part No. T2185-69971
• Compatibility Interchngable
• Applied Dates 2007-01-11 to 2008-09-29
• Serial No. G70100001 and up
• * multiple options for #9
• 2 shown on diagram

RELAY(5P) v, Replaced by T5535-69961

• Part No. T2368-69961
• Compatibility Interchngable
• Applied Dates 2008-06-16 to 2009-03-29
• 12V 40A
• * multiple options for #9
• 2 shown on diagram

Relay 5p V, Replaced By T5535-69961

• Part No. T2185-69971
• Compatibility Interchngable
• * multiple options for #9
• 2 shown on diagram

RELAY 5P, Replaced by T5535-69961

• Part No. T4180-69961
• Compatibility Interchngable
• Applied Dates 2009-10-27 to 2010-07-18
• * multiple options for #9
• 2 shown on diagram

Nut, Flange, M6 P1.00 02751-50060

• Part No. 02751-50060
• M6XP1.0
• 2 shown on diagram

(4) Pin Power Relay (T4710-69971)

• Part No. T4710-69971
• Applied Dates 2004-01-13 to 2006-12-03
• * multiple options for #11
• 2 shown on diagram

Relay 5p V, Replaced By T5535-69961

• Part No. T2185-69971
• Compatibility Interchngable
• * multiple options for #11
• 2 shown on diagram

RELAY(5P) v, Replaced by T5535-69961

• Part No. T2368-69961
• Compatibility Interchngable
• 12V 40A
• * multiple options for #11
• 2 shown on diagram

Relay 5p V, Replaced By T5535-69961

• Part No. T2185-69971
• Compatibility Interchngable
• * multiple options for #11
• 2 shown on diagram

RELAY 5P, Replaced by T5535-69961

• Part No. T4180-69961
• Compatibility Interchngable
• * multiple options for #11
• 2 shown on diagram

BOLT, FLANGE

• Part No. 01754-50610
• M6XP1.0
• 2 shown on diagram

RELAY-COOLER

• Part No. T4520-75031
• Applied Dates Up to 2006-06-07
• 1 shown on diagram

Nut, Flange, M6 P1.00 02751-50060

• Part No. 02751-50060
• M6XP1.0
• 1 shown on diagram

SWITCH, SAFETY STARTE

• Part No. T4520-75481
• 1 shown on diagram

ASSY STOP SWITCH

• Part No. T4520-41821
• 1 shown on diagram

MARK SWITCH v

• Part No. 44512-8317-2
• Applied Dates Up to 2007-05-30
• * multiple options for #17
• 1 shown on diagram

SWTICH, MICRO NO

• Part No. T4930-83171
• Compatibility Interchngable
• Applied Dates 2007-05-31 to 2007-10-24
• * multiple options for #17
• 1 shown on diagram

MARK SWITCH v

• Part No. 44512-8317-2
• Compatibility Interchngable
• * multiple options for #17
• 1 shown on diagram

MICRO SWITCH N/O

• Part No. T2198-83171
• Compatibility Call for compat
• Applied Dates 2008-08-01 and up
• Serial No. H70100001 and up
• DC30V 3A
• * multiple options for #17
• 1 shown on diagram

MICRO SWITCH, Replaced by T2198-68811

• Part No. 44512-6881-3
• Applied Dates Up to 2007-05-30
• * multiple options for #18
• 1 shown on diagram

MICRO SWITCH v

• Part No. T4930-68811
• Compatibility Interchngable
• Applied Dates 2007-05-31 to 2007-10-24
• * multiple options for #18
• 1 shown on diagram

MICRO SWITCH, Replaced by T2198-68811

• Part No. 44512-6881-3
• Compatibility Interchngable
• * multiple options for #18
• 1 shown on diagram

MICRO SWITCH N/C

• Part No. T2198-68811
• Compatibility Call for compat
• Applied Dates 2008-07-11 and up
• Serial No. H70100001 and up
• DC30V 3A
• * multiple options for #18
• 1 shown on diagram

PICK UP SENSOR

• Part No. E6302-04931
• 1 shown on diagram

BOLT, FLANGE

• Part No. 01754-50612
• M6XP1.0
• 1 shown on diagram

GLOW RELAY V, Replaced by T4180-69951

• Part No. C5510-43101
• * multiple options for #21
• 1 shown on diagram

GLOW RELAY V, Replaced by T4180-69951

• Part No. C5510-43102
• Compatibility Interchngable
• * multiple options for #21
• 1 shown on diagram

RELAY V, Replaced by T4180-69951

• Part No. T2198-69951
• Compatibility New repl old
• Applied Dates 2007-07-31 to 2008-09-21
• Serial No. G70100245 and up
• 70A (epoxy)
• * multiple options for #21
• 1 shown on diagram

RELAY v, Replaced by T5535-69961

• Part No. T2368-69951
• Compatibility Interchngable
• Applied Dates 2008-06-16 to 2009-03-29
• 12V 70A
• * multiple options for #21
• 1 shown on diagram

RELAY V, Replaced by T4180-69951

• Part No. T2198-69951
• Compatibility Interchngable
• 70A (epoxy)
• * multiple options for #21
• 1 shown on diagram

RELAY 4P 70A, Replaced by T5535-69951

• Part No. T4180-69951
• Compatibility Interchngable
• Applied Dates 2009-12-01 to 2015-01-31
• 12V 70A
• * multiple options for #21
• 1 shown on diagram

• Part No. T5535-69951
• Compatibility Interchngable
• Applied Dates 2015-02-01 and up
• * multiple options for #21
• 1 shown on diagram

Nut, Flange, M6 P1.00 02751-50060

• Part No. 02751-50060
• M6XP1.0
• 1 shown on diagram

ACCESSORY RELAY ASSY 8 PIN, Replaced by T4351-43102

• Part No. T4351-43101
• Applied Dates 2010-07-19 to 2015-12-31
• * multiple options for #23
• 1 shown on diagram

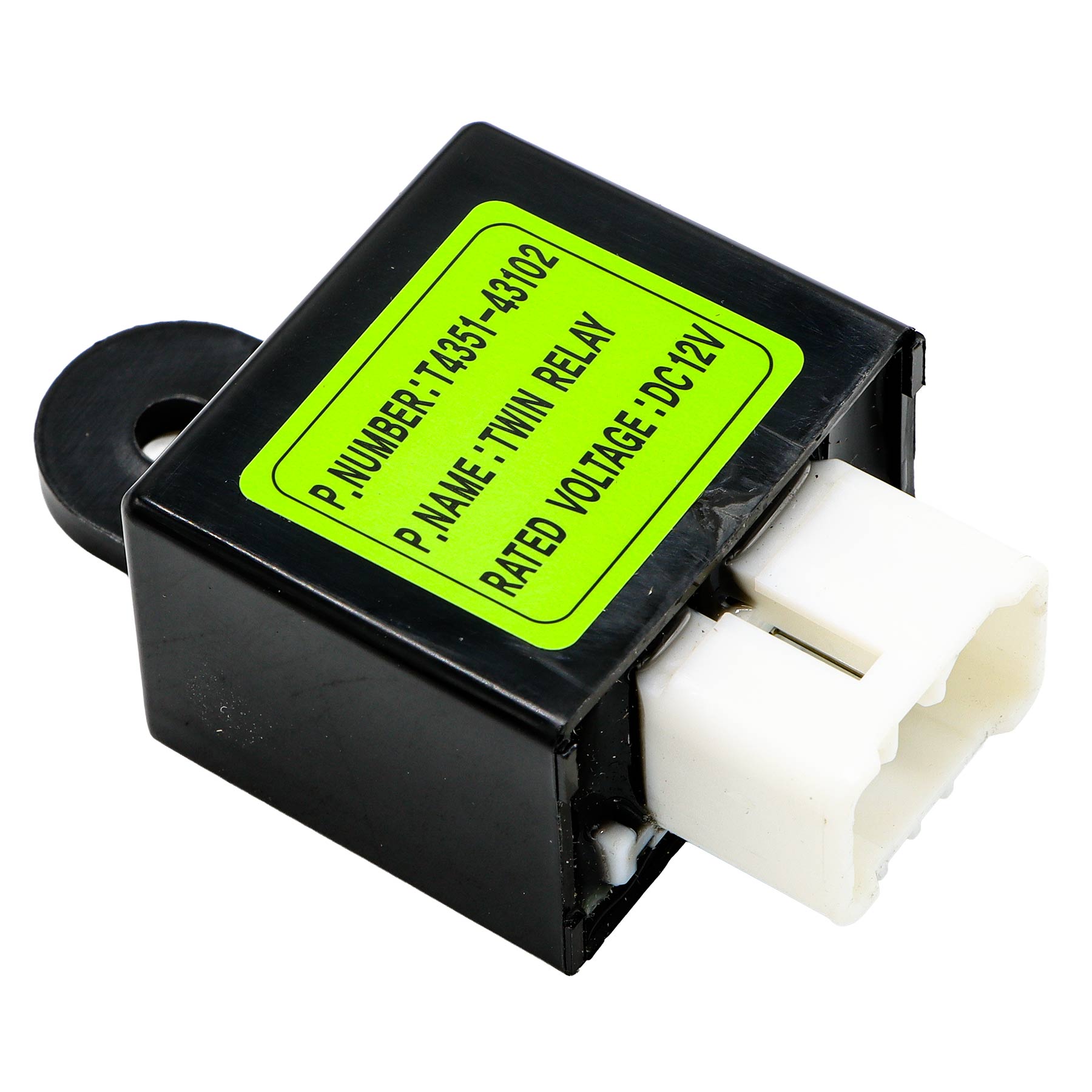

TWIN RELAY, 8 PIN v

• Part No. T4351-43102
• Compatibility Interchngable
• Applied Dates 2016-01-01 and up
• * multiple options for #23
• 1 shown on diagram
