PROPER SHAFT GROUP - D380L-T560A

Kioti TRACTOR | DK Series | DK50SE

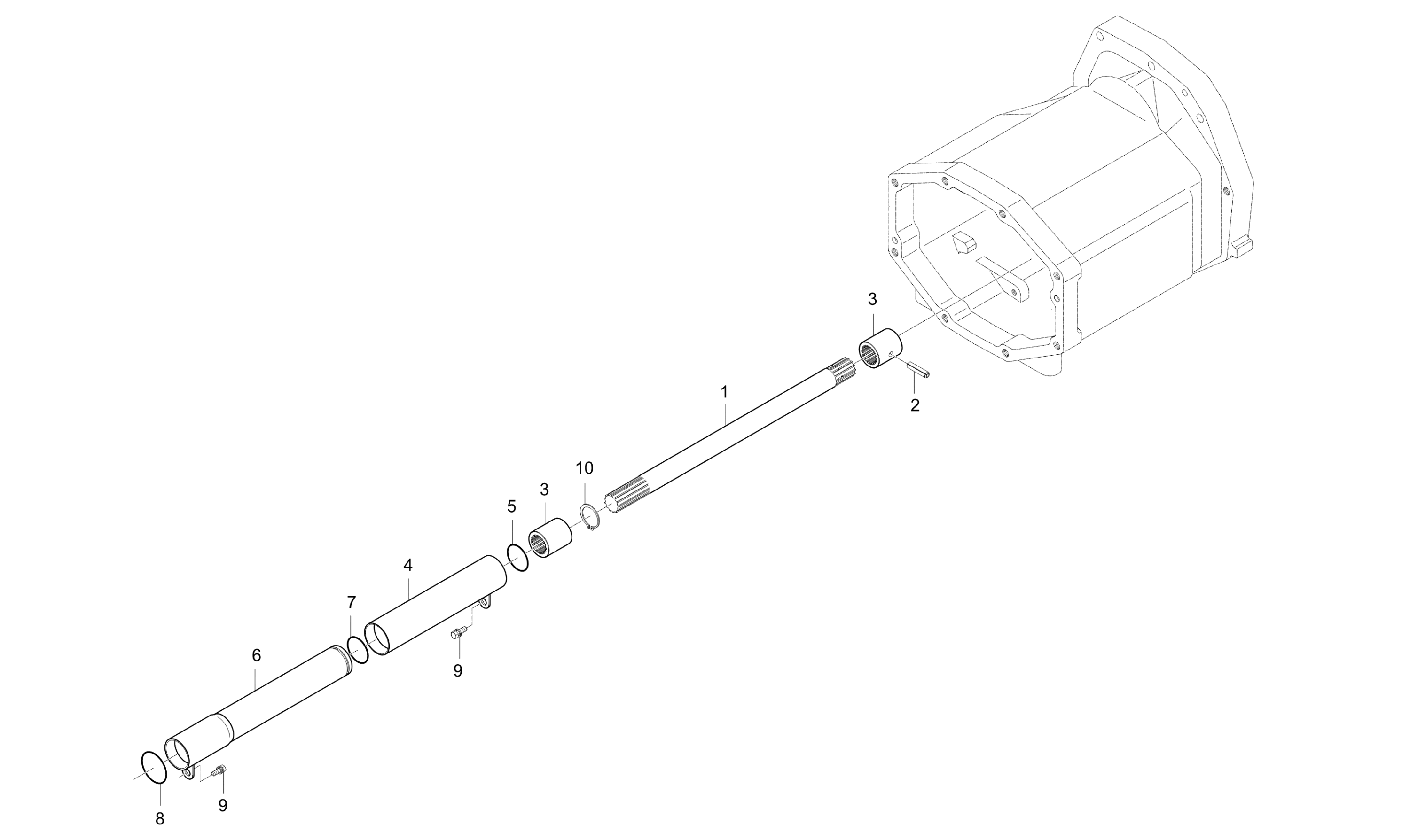

Diagram for PROPER SHAFT GROUP - D380L-T560A
  • 1 SHAFT 2,PROPELLER

    SHAFT 2,PROPELLER

    • Part No. T2630-44581
    • DIA25
    • 1 shown on diagram
    $114.99
  • 2 PIN, SPRING

    PIN, SPRING

    • Part No. 05411-00636
    • Applied Dates 2000-03-01 to 2005-02-14
    • *multiple options for # 2
    • 1 shown on diagram
    $0.90
  • 2 PIN, SPRING

    PIN, SPRING

    • Part No. 05411-00635
    • Compatibility New Replaces Old
    • Applied Dates 2005-02-15 to 2007-02-23
    • DIA6.4XL35
    • *multiple options for # 2
    • 1 shown on diagram
    $0.96
  • 3 Coupling, 42.7 mm OD

    Coupling, 42.7 mm OD

    • Part No. T4620-44592
    • OD42.7*T1.6
    • 2 shown on diagram
    $39.99
  • 4

    COVER, PROPELLER V, Replaced by T4681-44611BB

    • Part No. T2610-44591
    • Applied Dates Up to 2008-08-13
    • *multiple options for # 4
    • 1 shown on diagram
    $18.72
  • 4

    COVER 1, PROPELLER SHAFT

    • Part No. T2610-44591BB
    • Compatibility No Interchange
    • *multiple options for # 4
    • 1 shown on diagram
    $24.99
  • 4

    COVER, PROPELLER SHAFT

    • Part No. T4681-44611ED
    • Compatibility Interchangeable
    • Applied Dates 2008-10-01 to 2009-12-06
    • Serial No. HS9600001 to JS9600024
    • *multiple options for # 4
    • 1 shown on diagram
    $0.00
  • 5 O RING

    O RING

    • Part No. 04811-06420
    • DIA42.2
    • 1 shown on diagram
    $1.69
  • 6

    COVER 2, PROPELLER, Replaced by T2630-44602BB

    • Part No. T2630-44601
    • *multiple options for # 6
    • 1 shown on diagram
    $0.00
  • 6

    COVER 1, PROPELLER SHAFT dnr v

    • Part No. T2630-44601BB
    • Compatibility No Interchange
    • Applied Dates 2009-05-01 to 2011-04-02
    • Serial No. JS9600001 and up
    • *multiple options for # 6
    • 1 shown on diagram
    $59.99
  • 6

    COVER 1, PROPELLER SHAFT

    • Part No. T2630-44602
    • Compatibility New Replaces Old
    • *multiple options for # 6
    • 1 shown on diagram
    $39.99
  • 7

    O-Ring

    • Part No. 04811-06350
    • DIA35.2
    • 1 shown on diagram
    $1.09
  • 8 O RING

    O RING

    • Part No. 04811-00420
    • DIA41.7
    • 1 shown on diagram
    $1.19
  • 9 Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    • Part No. 01123-50816
    • M8XP1.25
    • 2 shown on diagram
    $1.09
  • 10 CIR-CLIP

    CIR-CLIP

    • Part No. 04612-00250
    • DIA25
    • 1 shown on diagram
    $1.09
