FRONT DIFFERENTIAL GROUP - LX470-T525A

Kioti TRACTOR | DK Series | DK50SE

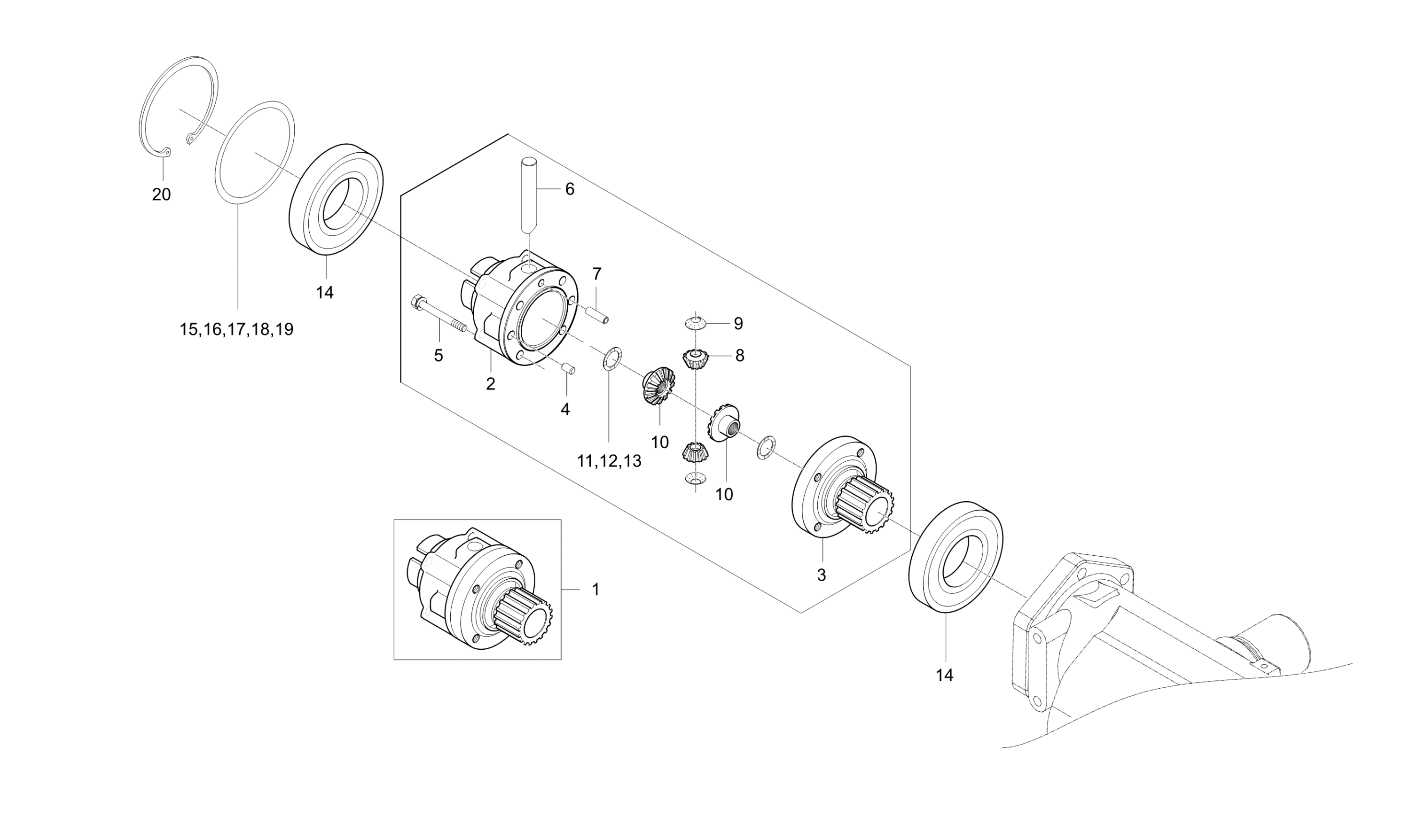

Diagram for FRONT DIFFERENTIAL GROUP - LX470-T525A
  • 1

    ASS’Y DIFF,FRONT

    • Part No. T4125-43101
    • *multiple options for # 1
    • 1 shown on diagram
    $424.99
  • 1

    FRONT DIFFERENTIAL ASSEMBLY v, Replaced by T4125-43103

    • Part No. T4125-43102
    • Compatibility Interchangeable
    • *multiple options for # 1
    • 1 shown on diagram
    $0.00
  • 1

    FRONT DIFFERENTIAL ASSEMBLY v

    • Part No. T4125-43103
    • Compatibility Interchangeable
    • *multiple options for # 1
    • 1 shown on diagram
    $639.99
  • 2

    CASE, FRONT DIFF

    • Part No. T2630-43121
    • 1 shown on diagram
    $224.99
  • 3

    COVER V, Replaced by T4125-42322

    • Part No. T4125-42321
    • Applied Dates Up to 2014-12-31
    • *multiple options for # 3
    • 1 shown on diagram
    $0.00
  • 3

    Differential Case Cover

    • Part No. T4125-42322
    • Compatibility Interchangeable
    • Applied Dates Up to 2014-12-31
    • *multiple options for # 3
    • 1 shown on diagram
    $164.99
  • 4 PIN, STRAIGHT 05012-01018

    PIN, STRAIGHT 05012-01018

    • Part No. 05012-01018
    • Applied Dates Up to 2014-12-31
    • DIA10XL18
    • 2 shown on diagram
    $1.79
  • 5

    BOLT, WASHER

    • Part No. 01133-51075
    • M10XP1.25
    • 4 shown on diagram
    $5.99
  • 6

    SHAFT, DIFF. PINION

    • Part No. T2630-43111
    • 1 shown on diagram
    $54.99
  • 7 PIN, PARALLEL

    PIN, PARALLEL

    • Part No. T4520-43171
    • 1 shown on diagram
    $9.49
  • 8

    PINION, DIFFERENTIAL dnr v

    • Part No. T4520-43131
    • Applied Dates Up to 2014-12-31
    • *multiple options for # 8
    • 2 shown on diagram
    $68.99
  • 8

    PINION, DIFFERENTIAL

    • Part No. T4682-43132
    • Compatibility Interchangeable
    • *multiple options for # 8
    • 2 shown on diagram
    $124.99
  • 9

    WASHER, DIFF PINION

    • Part No. T4520-43151
    • 2 shown on diagram
    $16.99
  • 10

    GEAR, DIFF SIDE v

    • Part No. T4520-43141
    • 2 shown on diagram
    $299.99
  • 11 SHIM, 0.8

    SHIM, 0.8

    • Part No. T4520-43071
    • Applied Dates Up to 2014-12-31
    • T0.8
    • 2 shown on diagram
    $5.49
  • 12 SHIM, 0.1

    SHIM, 0.1

    • Part No. T4520-43081
    • Applied Dates Up to 2014-12-31
    • T1.0
    • 2 shown on diagram
    $4.49
  • 13 SHIM, 1.2

    SHIM, 1.2

    • Part No. T4520-43091
    • Applied Dates Up to 2014-12-31
    • T1.2
    • 2 shown on diagram
    $6.49
  • 14 BEARING, BALL

    BEARING, BALL

    • Part No. 08101-06212
    • DIA60
    • 2 shown on diagram
    $89.99
  • 15 SHIM 0.8

    SHIM 0.8

    • Part No. T2630-43011
    • T0.8
    • 1 shown on diagram
    $5.49
  • 16 SHIM 1.0

    SHIM 1.0

    • Part No. T2630-43021
    • T1.0
    • 1 shown on diagram
    $5.49
  • 17 SHIM 1.2

    SHIM 1.2

    • Part No. T2630-43031
    • T1.2
    • 1 shown on diagram
    $5.99
  • 18

    SHIM 2.0 v [NLA]

    • Part No. T2630-43041
    • T2.0
    • 1 shown on diagram
    $5.49
  • 19

    OBS SHIM 2.3 [NLA]

    • Part No. T2630-43051
    • T2.3
    • 1 shown on diagram
    $5.49
  • 20

    SNAP RING

    • Part No. 04611-01100
    • 1 shown on diagram
    $23.99
