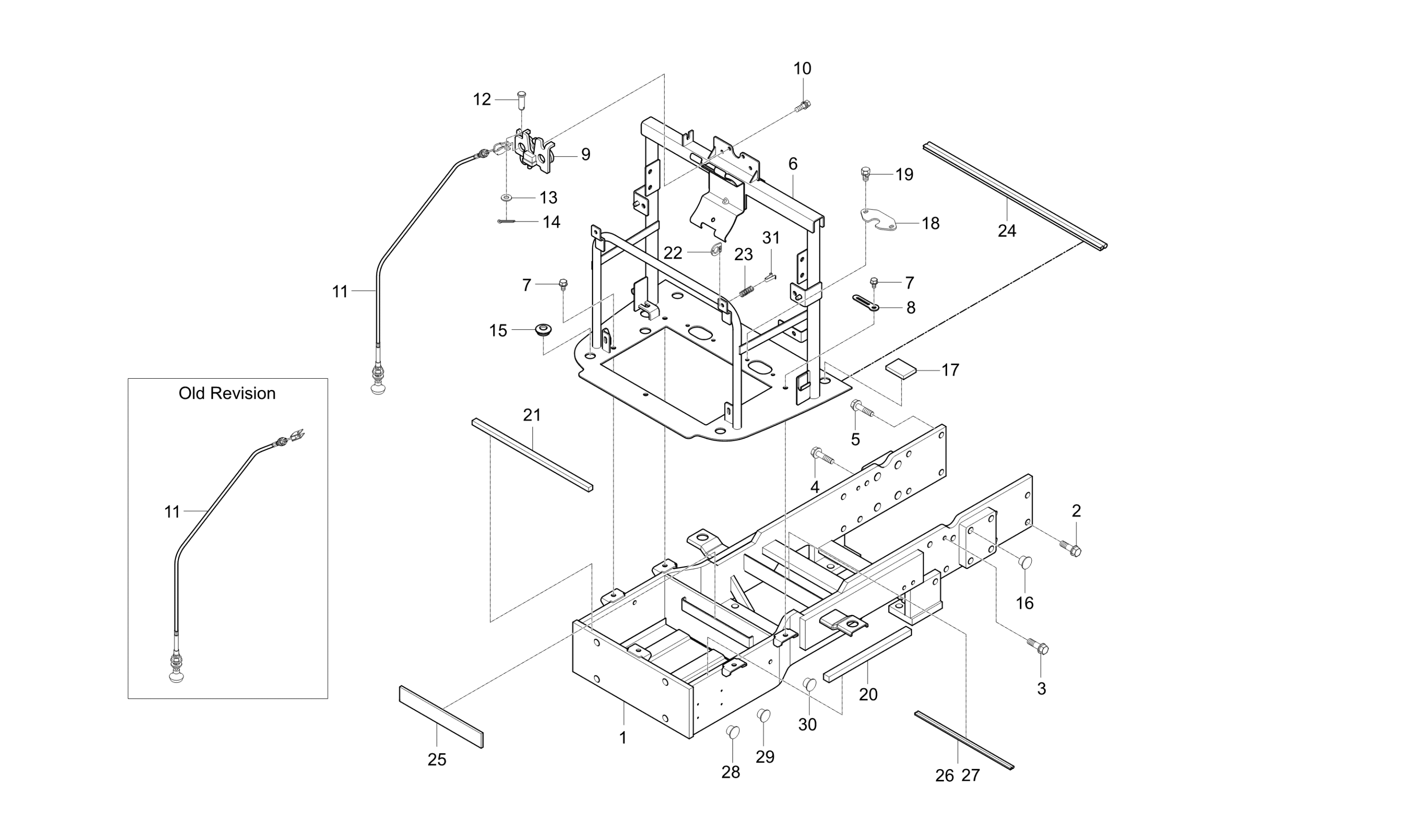

FRONT AXLE FRAME GROUP - EX45M-T505A
Kioti TRACTOR | DK Series | DK50SE
-
FRAME,FRONT AXLE v
- Part No. T4125-50015
- Applied Dates 2007-03-31 to 2008-01-30
- Serial No. GS9600001 and up
- *multiple options for # 1
- 1 shown on diagram
$634.99 -
FRAME,FRONT AXLE v
- Part No. T4125-50016
- Compatibility New Replaces Old
- Applied Dates 2008-01-31 to 2008-06-02
- *multiple options for # 1
- 1 shown on diagram
$734.99 -
FRAME, FRONT AXLE v, Replaced by T4125-50017BB
- Part No. T4125-50017
- Compatibility New Replaces Old
- Applied Dates 2008-06-03 and up
- Serial No. HS9600001 and up
- *multiple options for # 1
- 1 shown on diagram
$0.00 -
BOLT v
- Part No. 01177-51235
- M12XP1.25
- 11 shown on diagram
$3.49 -
WASHER BOLT M12 P1.25 x35
- Part No. 01133-51235
- M12XP1.25
- 2 shown on diagram
$4.49 -
BOLT
- Part No. 01177-51250
- M12XP1.25(9T)
- 2 shown on diagram
$3.99 -
BOLT, M10 P1.25×30
- Part No. 01177-51030
- M10XP1.25(9T)
- 1 shown on diagram
$3.49 -
SUPPORT, RADIATOR
- Part No. T4125-50203
- Applied Dates 2006-04-19 to 2008-01-30
- *multiple options for # 6
- 1 shown on diagram
$399.99 -
SUPPORT, RADIATOR v
- Part No. T4125-50204
- Compatibility New Replaces Old
- Applied Dates 2008-01-31 to 2008-10-22
- *multiple options for # 6
- 1 shown on diagram
$284.99 -
SUPPORT, RADIATOR
- Part No. T4125-50205
- Compatibility No Interchange
- Applied Dates 2011-10-01 to 2011-09-30
- *multiple options for # 6
- 1 shown on diagram
$0.00 -
SUPPORT, RADIATOR
- Part No. T4125-50206
- Compatibility No Interchange
- Applied Dates 2011-10-01 to 2013-11-30
- Serial No. LS9600009 to NS9600044
- *multiple options for # 6
- 1 shown on diagram
$0.00 -
SUPPORT, RADIATOR
- Part No. T4125-50207
- Compatibility New Replaces Old
- Applied Dates 2013-12-01 and up
- Serial No. NS9600045 and up
- *multiple options for # 6
- 1 shown on diagram
$274.99 -
Bolt With Washer, M8 P1.25 x 22mm
- Part No. 01123-50822
- Applied Dates 2008-09-30 to 2010-06-08
- Serial No. HS9600001 to KS9600024
- M8XP1.25
- *multiple options for # 7
- 5 shown on diagram
$2.49 -
FLANGE BOLT, HEX HEAD M8
- Part No. 01754-50820
- Compatibility Interchangeable
- M8XP1.25
- *multiple options for # 7
- 5 shown on diagram
$1.19 -
CLAMP
- Part No. 37150-3447-1
- T0.5
- 2 shown on diagram
$4.99 -
ASSY,CATCH
- Part No. T4125-50681
- Applied Dates Up to 2011-09-30
- Serial No. Up to LS9600008
- *multiple options for # 9
- 1 shown on diagram
$98.99 -
HANDLE ASSY
- Part No. T4145-60581
- Compatibility No Interchange
- Applied Dates 2011-10-01 to 2011-09-30
- *multiple options for # 9
- 1 shown on diagram
$44.99 -
HANDLE ASSY
- Part No. T4145-60582
- Compatibility No Interchange
- Applied Dates 2011-10-01 and up
- Serial No. LS9600009 and up
- *multiple options for # 9
- 1 shown on diagram
$66.99 -
BOLT, FLANGE
- Part No. 01754-50625
- M6XP1.0
- 4 shown on diagram
$1.29 -
CABLE,BONNET OPEN dnr v
- Part No. T4125-50692
- Applied Dates Up to 2011-05-28
- *multiple options for # 11
- 1 shown on diagram
$37.99 -
CABLE BONNET
- Part No. T4125-50693
- Compatibility Interchangeable
- Applied Dates 2011-05-29 and up
- Serial No. LS9600001 and up
- *multiple options for # 11
- 1 shown on diagram
$44.99 -
Pin, Joint M6x14mm
- Part No. 05122-50614
- 1 shown on diagram
$2.49 -
Flat Washer M6
- Part No. 04014-50060
- 1 shown on diagram
$0.67 -
Split Pin (05511-51615)
- Part No. 05511-51615
- DIA1.4XL15
- 1 shown on diagram
$0.56 -
RUBBER, CUSHION
- Part No. T4125-50591
- Compatibility New Replaces Old
- Applied Dates 2009-02-11 and up
- Serial No. JS9600001 and up
- 2 shown on diagram
$3.99 -
PLUG
- Part No. 32210-2758-1
- M12
- 8 shown on diagram
$1.59 -
SPONGE
- Part No. T2350-37551
- 2 shown on diagram
$2.49 -
PLATE, GUIDE
- Part No. T2185-50441
- T2.3
- 2 shown on diagram
$6.49 -
BOLT, FLANGE M6 P1.00 x 16
- Part No. 01754-50616
- Applied Dates 2009-05-13 to 2010-01-25
- Serial No. JS9600001 and up
- M6XP1.0
- *multiple options for # 19
- 4 shown on diagram
$1.89 -
BOLT, FLANGE
- Part No. 01754-50612
- Compatibility Interchangeable
- Applied Dates 2010-01-26 to 2006-06-13
- Serial No. KS9600001 and up
- M6XP1.0
- *multiple options for # 19
- 4 shown on diagram
$1.39 -
SPONGE
- Part No. T4125-50272
- 2 shown on diagram
$5.99 -
SPONGE
- Part No. T4125-50282
- 1 shown on diagram
$7.99 -
FIXED PLATE, Replaced by T4125-50862BK
- Part No. T4125-50862
- T1.6
- 2 shown on diagram
$0.00 -
SPRING
- Part No. T4125-50882
- T1.0
- 2 shown on diagram
$2.99 -
RUBBER(RADIATOR)
- Part No. T4125-13691
- 1 shown on diagram
$14.99 -
RUBBER, CUSHION v
- Part No. T2610-50271
- 1 shown on diagram
$5.99 -
RUBBER
- Part No. T4125-50091
- 1 shown on diagram
$5.99 -
RUBBER
- Part No. T4125-50901
- 2 shown on diagram
$4.99 -
PLUG
- Part No. T4520-26911
- 20 shown on diagram
$4.99 -
PLUG
- Part No. 31220-1429-3
- 9 shown on diagram
$3.49 -
PLUG
- Part No. 32210-2758-1
- M12
- 10 shown on diagram
$1.59 -
HANGER
- Part No. T4125-50871
- T2.0
- 2 shown on diagram
$3.49
