CLUTCH PEDAL GROUP - D52-T465A

Kioti TRACTOR | DK Series | DK65C

  • 1

    PRDAL CLUTCH

    • Part No. T4810-67301
    • Applied Dates Up to 2002-06-06
    • *multiple options for # 1
    • 1 shown on diagram
    $59.99
  • 1

    CLUTCH PEDAL

    • Part No. T4810-67302
    • Compatibility New Replaces Old
    • Applied Dates 2002-06-07 and up
    • Serial No. 262300100 and up
    • *multiple options for # 1
    • 1 shown on diagram
    $114.99
  • 2

    SHAFT, CLUTCH PEDAL

    • Part No. T4520-26951
    • 1 shown on diagram
    $13.99
  • 3 Bolt With Washer, M8 P1.25 x 16mm

    Bolt With Washer, M8 P1.25 x 16mm

    • Part No. 01123-50816
    • M8XP1.25
    • 1 shown on diagram
    $1.09
  • 4 SPRING, BRAKE

    SPRING, BRAKE

    • Part No. T4520-26161
    • DIA2.5
    • 1 shown on diagram
    $9.99
  • 5

    CUSHION v

    • Part No. T4520-26931
    • 1 shown on diagram
    $6.49
  • 6

    CABLE,CLUTCH v

    • Part No. T4815-55521
    • Applied Dates Up to 2002-03-31
    • Serial No. Up to 262300099
    • *multiple options for # 6
    • 1 shown on diagram
    $37.99
  • 6

    CLUTCH CABLE v

    • Part No. T4815-55522
    • Compatibility No Interchange
    • Applied Dates 2002-04-01 to 2003-04-16
    • Serial No. 262300100 to 362300108
    • *multiple options for # 6
    • 1 shown on diagram
    $35.99
  • 6

    CABLE, CLUTCH v

    • Part No. T4815-55523
    • Compatibility New Replaces Old
    • Applied Dates 2003-04-17 to 2004-02-02
    • Serial No. 362300109 and up
    • *multiple options for # 6
    • 1 shown on diagram
    $36.99

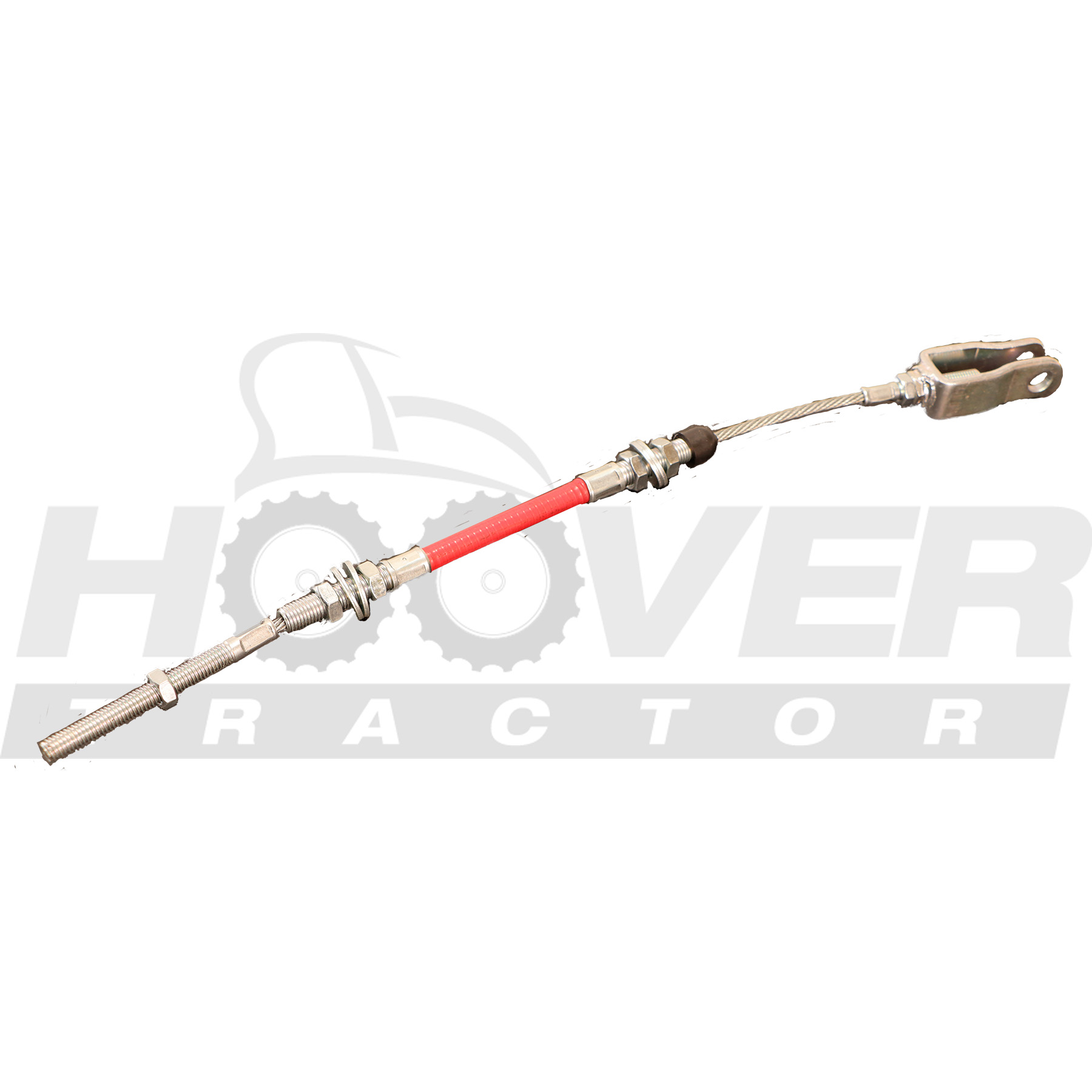

  • 6 CLUTCH CABLE v

    CLUTCH CABLE v

    • Part No. T4815-55524
    • Compatibility New Replaces Old
    • Applied Dates 2004-02-03 and up
    • Serial No. D62300001 and up
    • *multiple options for # 6
    • 1 shown on diagram
    $58.99
  • 7

    PIN, HEAD dnr v

    • Part No. 05112-51028
    • 2 shown on diagram
    $3.49
  • 8

    Flat Washer M10

    • Part No. 04011-50100
    • M10
    • 2 shown on diagram
    $0.67
  • 9

    PIN, SNAP

    • Part No. 05515-51000
    • DIA10
    • 1 shown on diagram
    $1.29
  • 10

    PIN, SNAP

    • Part No. 05515-51000
    • Applied Dates 2000-02-03 and up
    • DIA10
    • 1 shown on diagram
    $1.29

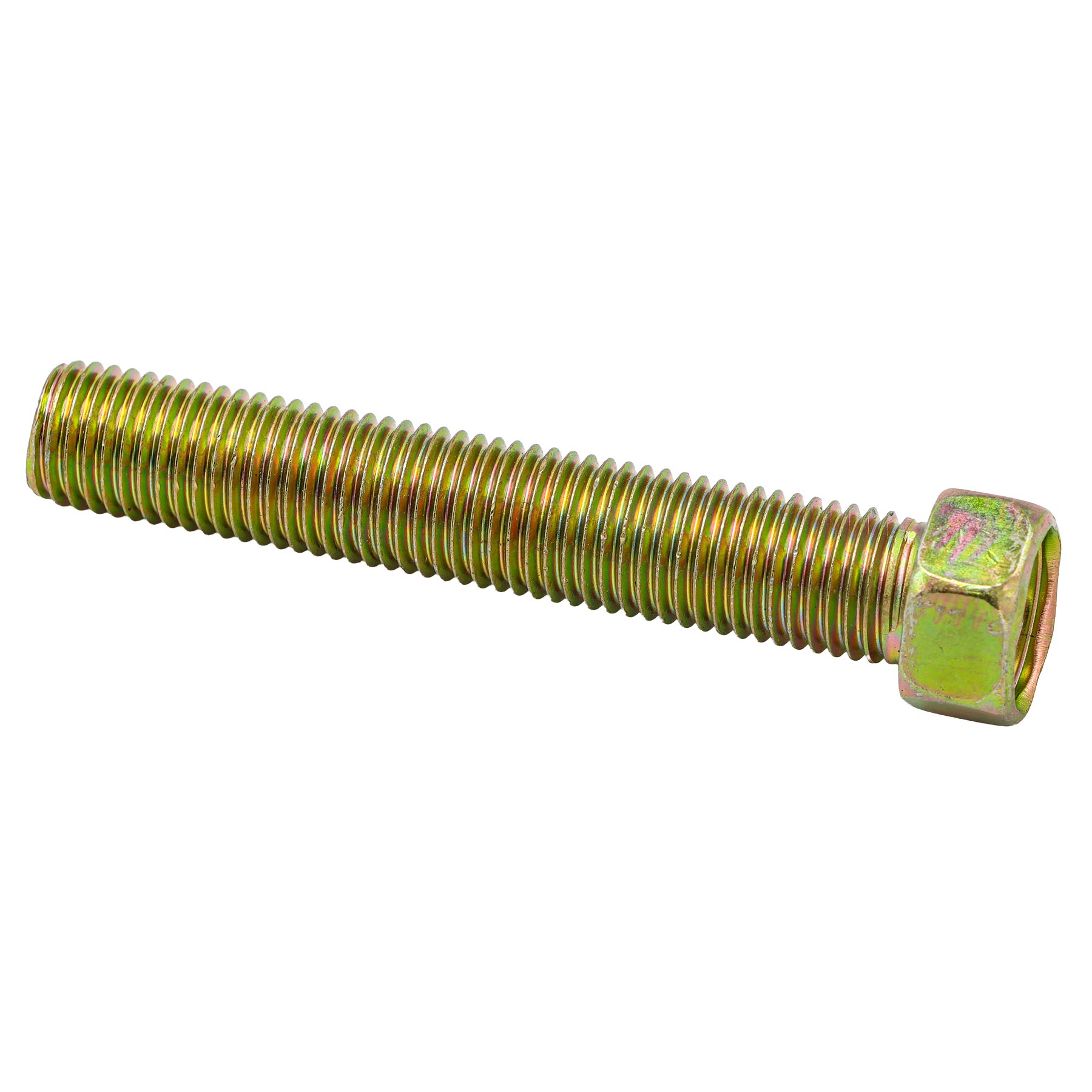

  • 11 BOLT

    BOLT

    • Part No. 01175-51060
    • 1 shown on diagram
    $2.99
  • 12 Nut M10 P1.25

    Nut M10 P1.25

    • Part No. 02176-50100
    • M10XP1.25
    • 2 shown on diagram
    $0.98
  • 13

    ROD

    • Part No. T4520-26171
    • 1 shown on diagram
    $9.49
  • 14

    BRACKET, LOCK

    • Part No. T4520-26181
    • 1 shown on diagram
    $9.99
  • 15

    Flat Washer M5

    • Part No. 04013-50050
    • 1 shown on diagram
    $0.67
  • 16

    PIN, SPLIT, Replaced by 05525-50600

    • Part No. 05511-51612
    • 1 shown on diagram
    $0.00
  • 17

    PEDAL v

    • Part No. T4810-67331
    • Applied Dates Up to 2004-09-30
    • *multiple options for # 17
    • 1 shown on diagram
    $24.99
  • 17

    PEDAL, BRAKE dnr v, Replaced by T4624-67332BB

    • Part No. T4624-67332
    • Compatibility New Replaces Old
    • Applied Dates 2004-10-01 and up
    • *multiple options for # 17
    • 1 shown on diagram
    $0.00
  • 18 Bolt With Washer, M8 P1.25 x 25mm

    Bolt With Washer, M8 P1.25 x 25mm

    • Part No. 01123-50825
    • M8XP1.25
    • 2 shown on diagram
    $1.99
  • 19

    CUSHION

    • Part No. T4620-55841
    • 1 shown on diagram
    $3.49
  • 20

    Control Link

    • Part No. T4815-55531
    • Applied Dates 2003-04-17 and up
    • 1 shown on diagram
    $34.99
