CLUTCH GROUP - D62-T295A

Kioti TRACTOR | DK Series | DK65C

  • 1

    USE T4810-14302 (Clutch Disk Ass’y) 04/05

    • Part No. T4810-14301
    • Applied Dates Up to 1999-10-31
    • *multiple options for # 1
    • 1 shown on diagram
    $294.99
  • 1

    ASSY,CLUTCH DISK v

    • Part No. T4810-14302
    • Compatibility No Interchange
    • Applied Dates 1999-11-01 to 2002-03-31
    • Serial No. 962300001 to 262300051
    • *multiple options for # 1
    • 1 shown on diagram
    $364.99
  • 1 ASS Y, CLUTCH DISC V, Replaced by T4850-14303S

    ASS Y, CLUTCH DISC V, Replaced by T4850-14303S

    • Part No. T4850-14303
    • Compatibility No Interchange
    • Applied Dates 2002-04-01 and up
    • Serial No. 262300052 and up
    • *multiple options for # 1
    • 1 shown on diagram
    $0.00
  • 2

    ASSY,CYLINDER COVER obs v

    • Part No. T4810-14501
    • Applied Dates Up to 1999-10-31
    • *multiple options for # 2
    • 1 shown on diagram
    $229.99
  • 2

    ASSY,CYLINDER COVER

    • Part No. T4810-14502
    • Compatibility No Interchange
    • Applied Dates 1999-11-01 to 1999-12-29
    • Serial No. 962300001 and up
    • *multiple options for # 2
    • 1 shown on diagram
    $234.99
  • 2

    ASSY,CYLINDER COVER v

    • Part No. T4810-14503
    • Compatibility No Interchange
    • Applied Dates 1999-12-30 to 2002-03-31
    • Serial No. 062300001 to 262300051
    • *multiple options for # 2
    • 1 shown on diagram
    $719.99

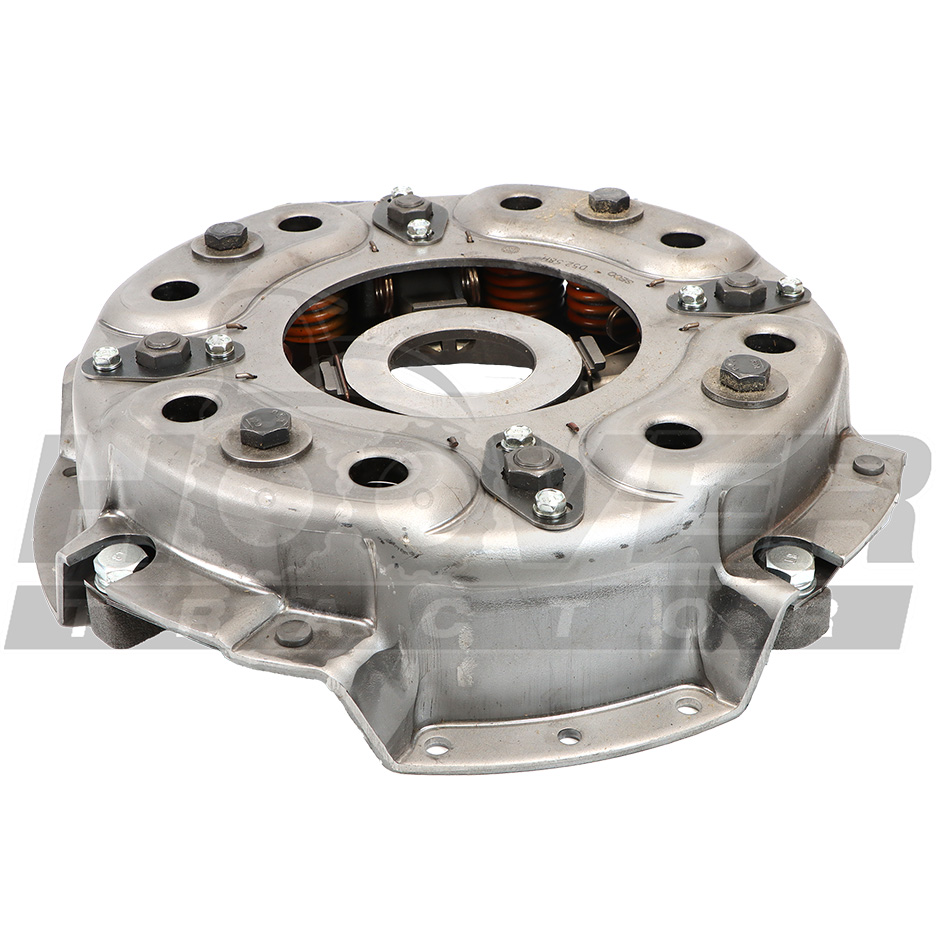

  • 2 ASS Y, CLUTCH COVER

    ASS Y, CLUTCH COVER

    • Part No. T4810-14504
    • Compatibility No Interchange
    • Applied Dates 2002-04-01 and up
    • Serial No. 262300052 and up
    • *multiple options for # 2
    • 1 shown on diagram
    $929.99
  • 3

    BOLT

    • Part No. T4815-14611
    • Applied Dates 1999-11-01 to 2002-03-31
    • Serial No. 962300001 to 262300051
    • *multiple options for # 3
    • 6 shown on diagram
    $3.99
  • 3

    Bolt With Washer, M8 P1.25 x 18mm

    • Part No. 01123-50818
    • Compatibility No Interchange
    • Applied Dates 2002-04-01 to 1999-11-08
    • Serial No. 262300052 and up
    • M8XP1.25
    • *multiple options for # 3
    • 8 shown on diagram
    $2.49
  • 4 Spring Lock Washer M8

    Spring Lock Washer M8

    • Part No. 04512-50080
    • Applied Dates 1999-11-01 to 2002-03-31
    • Serial No. 962300001 to 262300051
    • M08
    • *multiple options for # 4
    • 6 shown on diagram
    $0.61
  • 4 PIN, PARALLEL

    PIN, PARALLEL

    • Part No. 05012-00818
    • Compatibility No Interchange
    • Applied Dates 2002-04-01 and up
    • Serial No. 262300052 and up
    • DIA8XL18
    • *multiple options for # 4
    • 2 shown on diagram
    $1.59
  • 5

    STUD

    • Part No. T4810-14211
    • 2 shown on diagram
    $4.99
  • 6

    NUT

    • Part No. 37300-1419-2
    • M10*1.25
    • 2 shown on diagram
    $5.49
  • 7 Lock Washer M10

    Lock Washer M10

    • Part No. 04512-50100
    • M10
    • 2 shown on diagram
    $0.79
  • 8

    BOLT

    • Part No. 01176-51265
    • Applied Dates 2002-03-01 and up
    • Serial No. Up to 262300090
    • M12X1.25
    • 6 shown on diagram
    $5.99
  • 9

    BOLT

    • Part No. 01176-51250
    • Applied Dates 2002-03-01 and up
    • Serial No. Up to 262300090
    • 5 shown on diagram
    $5.49
  • 10 M12 Spring Washer (04512-50120)

    M12 Spring Washer (04512-50120)

    • Part No. 04512-50120
    • M12
    • 13 shown on diagram
    $0.95
  • 11

    STUD

    • Part No. 01574-51260
    • M12XP1.25
    • 2 shown on diagram
    $7.49
  • 12 Nut M12 P1.25

    Nut M12 P1.25

    • Part No. 02176-50120
    • M12XP1.25
    • 2 shown on diagram
    $1.49
  • 13 Flat Washer M12

    Flat Washer M12

    • Part No. 04013-50120
    • M12
    • 2 shown on diagram
    $0.85
