FRONT AXLE FRAME GROUP - DK55CHSE-T815A

Kioti TRACTOR | DK Series | DK60CHSE

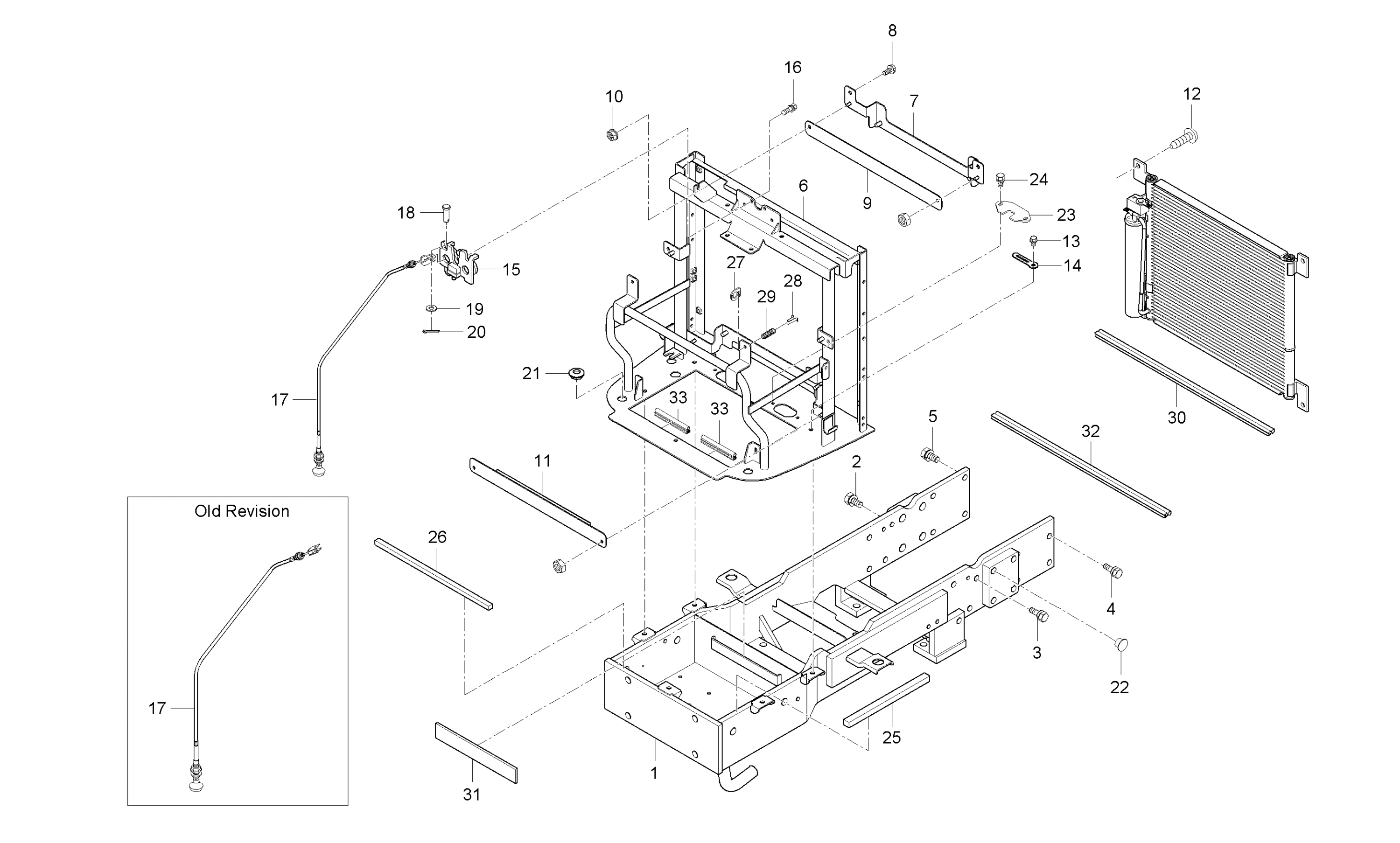

Diagram for FRONT AXLE FRAME GROUP - DK55CHSE-T815A
  • 1

    FRAME, FRONT AXLE dnr v, Replaced by T4145-50012BB

    • Part No. T4145-50012
    • 1 shown on diagram
    $0.00
  • 2

    BOLT v

    • Part No. 01177-51235
    • M12XP1.25
    • 11 shown on diagram
    $3.49
  • 3

    Bolt w/Lock Washer M12 P1.25x35mm

    • Part No. 01133-51235
    • M12XP1.25
    • 2 shown on diagram
    $4.49
  • 4

    BOLT

    • Part No. 01177-51250
    • M12XP1.25(9T)
    • 2 shown on diagram
    $3.99
  • 5 BOLT, M10 P1.25×30

    BOLT, M10 P1.25×30

    • Part No. 01177-51030
    • M10XP1.25(9T)
    • 1 shown on diagram
    $3.49
  • 6

    SUPPORT, RADIATOR obs v

    • Part No. T5515-50202
    • Applied Dates 2011-07-18 to 2011-07-31
    • *multiple options for # 6
    • 1 shown on diagram
    $294.99
  • 6

    SUPPORT, RADIATOR

    • Part No. T5515-50203
    • Compatibility No Interchange
    • Applied Dates 2011-08-01 to 2011-08-29
    • *multiple options for # 6
    • 1 shown on diagram
    $0.00
  • 6

    SUPPORT, RADIATOR

    • Part No. T5515-50204
    • Compatibility No Interchange
    • Applied Dates 2011-08-30 and up
    • Serial No. LA8600001 and up
    • *multiple options for # 6
    • 1 shown on diagram
    $0.00
  • 6

    SUPPORT, RADIATOR

    • Part No. T5515-50205
    • Compatibility New Replaces Old
    • *multiple options for # 6
    • 1 shown on diagram
    $274.99
  • 7

    SUPPORT, OIL COOLER obs v

    • Part No. T5515-50501
    • 1 shown on diagram
    $17.99
  • 8 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 2 shown on diagram
    $1.79
  • 9

    GUIDE, NET UPR

    • Part No. T5515-50522
    • 1 shown on diagram
    $7.99
  • 10 Nut, Flange, M6 P1.00 02751-50060

    Nut, Flange, M6 P1.00 02751-50060

    • Part No. 02751-50060
    • M6XP1.0
    • 4 shown on diagram
    $0.73
  • 11

    GUIDE, NET LWR

    • Part No. T5515-50542
    • 1 shown on diagram
    $13.99

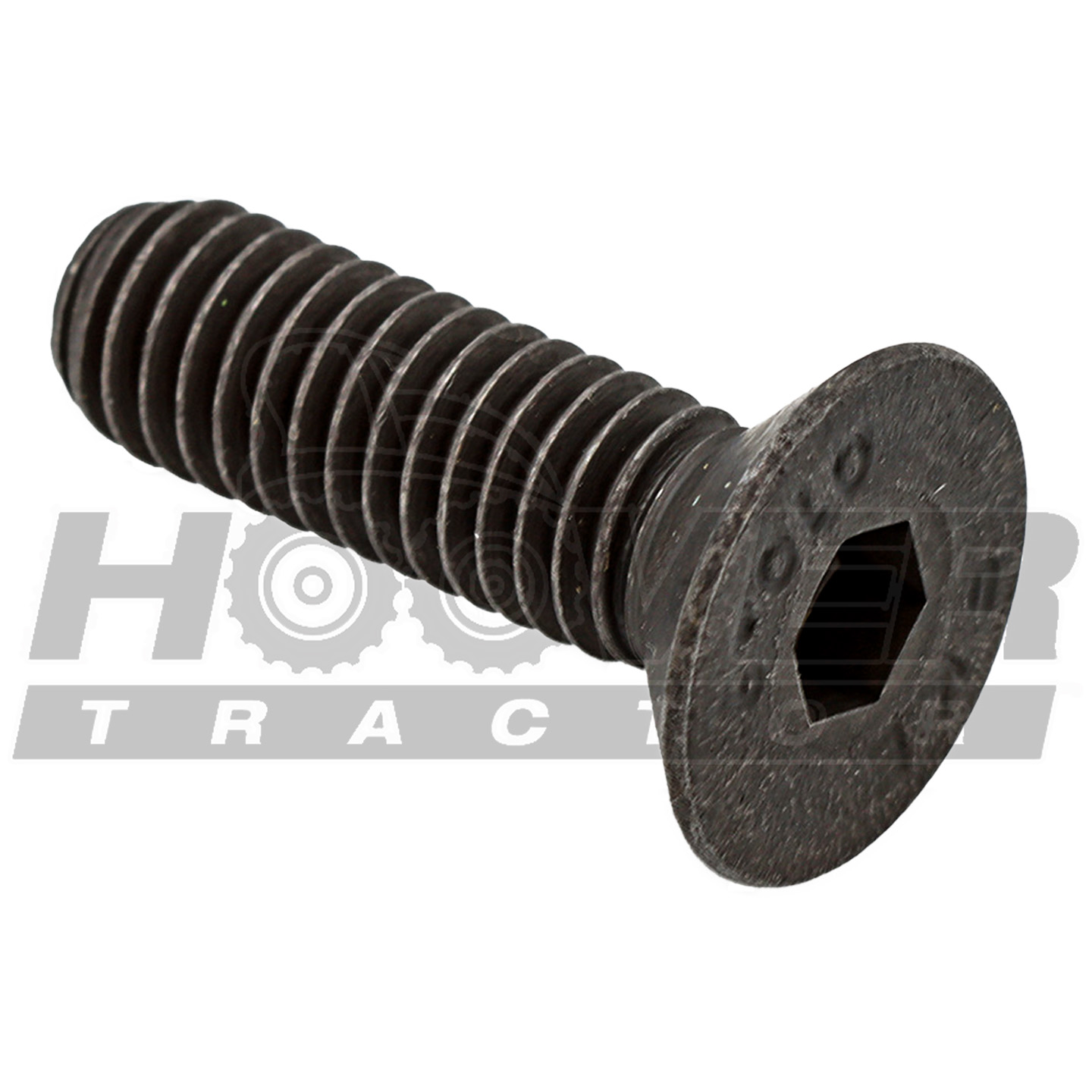

  • 12 BOLT

    BOLT

    • Part No. T5517-77711
    • 4 shown on diagram
    $0.85
  • 13 FLANGE BOLT, HEX HEAD M8

    FLANGE BOLT, HEX HEAD M8

    • Part No. 01754-50820
    • M8XP1.25
    • 5 shown on diagram
    $1.19
  • 14

    CLAMP

    • Part No. 37150-3447-1
    • T0.5
    • 2 shown on diagram
    $4.99
  • 15

    ASSY,CATCH

    • Part No. T4125-50681
    • Applied Dates Up to 2011-07-31
    • *multiple options for # 15
    • 1 shown on diagram
    $98.99
  • 15

    HANDLE ASSY

    • Part No. T4145-60581
    • Compatibility No Interchange
    • Applied Dates 2011-08-01 to 2011-08-29
    • *multiple options for # 15
    • 1 shown on diagram
    $44.99
  • 15 HANDLE ASSY

    HANDLE ASSY

    • Part No. T4145-60582
    • Compatibility No Interchange
    • Applied Dates 2011-08-30 and up
    • Serial No. LA8600001 and up
    • *multiple options for # 15
    • 1 shown on diagram
    $66.99
  • 16 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50625
    • M6XP1.0
    • 4 shown on diagram
    $1.29
  • 17

    CABLE,BONNET OPEN dnr v

    • Part No. T4125-50692
    • Applied Dates Up to 2011-05-28
    • *multiple options for # 17
    • 1 shown on diagram
    $37.99
  • 17 CABLE BONNET

    CABLE BONNET

    • Part No. T4125-50693
    • Compatibility Interchngable
    • Applied Dates 2011-05-29 and up
    • Serial No. LA8600001 and up
    • *multiple options for # 17
    • 1 shown on diagram
    $44.99
  • 18

    Pin, Joint M6x14mm

    • Part No. 05122-50614
    • 1 shown on diagram
    $2.49
  • 19

    Flat Washer M6

    • Part No. 04014-50060
    • 1 shown on diagram
    $0.67
  • 20

    Split Pin (05511-51615)

    • Part No. 05511-51615
    • DIA1.4XL15
    • 1 shown on diagram
    $0.56
  • 21 RUBBER, CUSHION v

    RUBBER, CUSHION v

    • Part No. T2610-50271
    • 1 shown on diagram
    $5.99
  • 22

    PLUG

    • Part No. 32210-2758-1
    • M12
    • 8 shown on diagram
    $1.59
  • 23

    PLATE, GUIDE

    • Part No. T2185-50441
    • T2.3
    • 2 shown on diagram
    $6.49
  • 24 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50612
    • M6XP1.0
    • 4 shown on diagram
    $1.39
  • 25

    SPONGE

    • Part No. T4125-50272
    • 2 shown on diagram
    $5.99
  • 26

    SPONGE

    • Part No. T4125-50282
    • 2 shown on diagram
    $7.99
  • 27 FIXED PLATE, Replaced by T4125-50862BK

    FIXED PLATE, Replaced by T4125-50862BK

    • Part No. T4125-50862
    • T1.6
    • 2 shown on diagram
    $0.00
  • 28 HANGER

    HANGER

    • Part No. T4125-50871
    • T2.0
    • 2 shown on diagram
    $3.49
  • 29 SPRING

    SPRING

    • Part No. T4125-50882
    • T1.0
    • 2 shown on diagram
    $2.99
  • 30

    RUBBER(RADIATOR)

    • Part No. T4125-13691
    • 1 shown on diagram
    $14.99
  • 31

    RUBBER, CUSHION

    • Part No. T4125-50591
    • 2 shown on diagram
    $3.99
  • 32

    RUBBER

    • Part No. T4125-50091
    • 1 shown on diagram
    $5.99
  • 33

    RUBBER

    • Part No. T4125-50901
    • 2 shown on diagram
    $4.99
