CYLINDER HEAD GROUP - DK753-E030

CYLINDER HEAD ASSEMBLY

• Part No. ZZ80279
• 1 shown on diagram

VALVE GUIDE v

• Part No. 3313A012
• 4 shown on diagram

VALVE GUIDE v

• Part No. 3313A012
• 4 shown on diagram

VALVE SEAT INSERT

• Part No. 3314A221
• 4 shown on diagram

VALVE SEAT INSERT

• Part No. 3314A231
• 4 shown on diagram

PLUG v

• Part No. 32416117
• 2 shown on diagram

PLUG v

• Part No. 650588
• 4 shown on diagram

INTAKE VALVE v

• Part No. 3142H101
• 4 shown on diagram

VALVE STEM SEAL (GREEN) v

• Part No. 2418M519
• 4 shown on diagram

VALVE SPRING

• Part No. 3174A031
• 4 shown on diagram

CAP

• Part No. 3342A021
• 4 shown on diagram

VALVE COLLET v

• Part No. 2714A002
• 8 shown on diagram

EXHAUST VALVE v

• Part No. 3142A171
• 4 shown on diagram

SEAL-VALVE STEM

• Part No. 2418M517
• 4 shown on diagram

VALVE SPRING

• Part No. 3174A031
• 4 shown on diagram

CAP

• Part No. 3342A021
• 4 shown on diagram

VALVE COLLET v

• Part No. 2714A002
• 8 shown on diagram

O-Ring 15.8 mm

• Part No. 04811-00160
• DIA15.8
• 1 shown on diagram

ADAPTER dnr v, Replaced by E7240-32292

• Part No. E7240-32291
• 1 shown on diagram

TEMPERATURE SENSOR ASSY

• Part No. E7240-32731
• 1 shown on diagram

PLUG v

• Part No. 2431154
• 1 shown on diagram

• Part No. 3.681E+54
• 1 shown on diagram

BOLT

• Part No. 3218A011
• 7 shown on diagram

BOLT v

• Part No. 3218A012
• 3 shown on diagram

PLUG v

• Part No. 2431154
• 1 shown on diagram

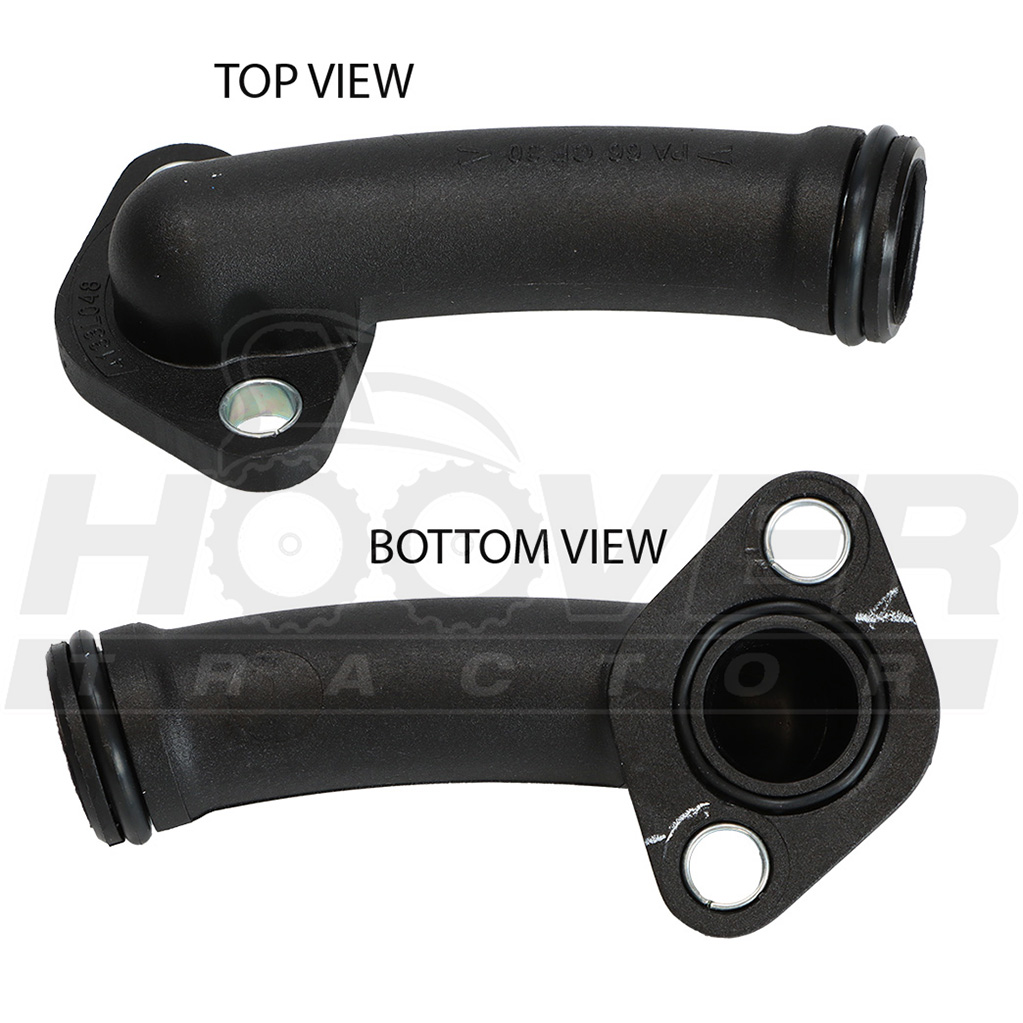

CONNECTION ASS’Y v

• Part No. 4133L048
• 1 shown on diagram

O RING v

• Part No. 2418F002
• 1 shown on diagram

O RING

• Part No. 2418F001
• 1 shown on diagram

BOLT v

• Part No. 2314H003
• 2 shown on diagram

WATER OUTLET

• Part No. 4133L509
• 1 shown on diagram

SEAL-WATER OUTLET v

• Part No. 2415H219
• 1 shown on diagram

PLUG

• Part No. 29990015
• 1 shown on diagram

SEAL-O RING

• Part No. 29990016
• 1 shown on diagram

BOLT v

• Part No. 2314H012
• 1 shown on diagram

BOLT

• Part No. 2314H004
• 1 shown on diagram
