SEAT FLOOR GROUP - EX45M-T895A

Kioti TRACTOR | DK Series | DK50SE

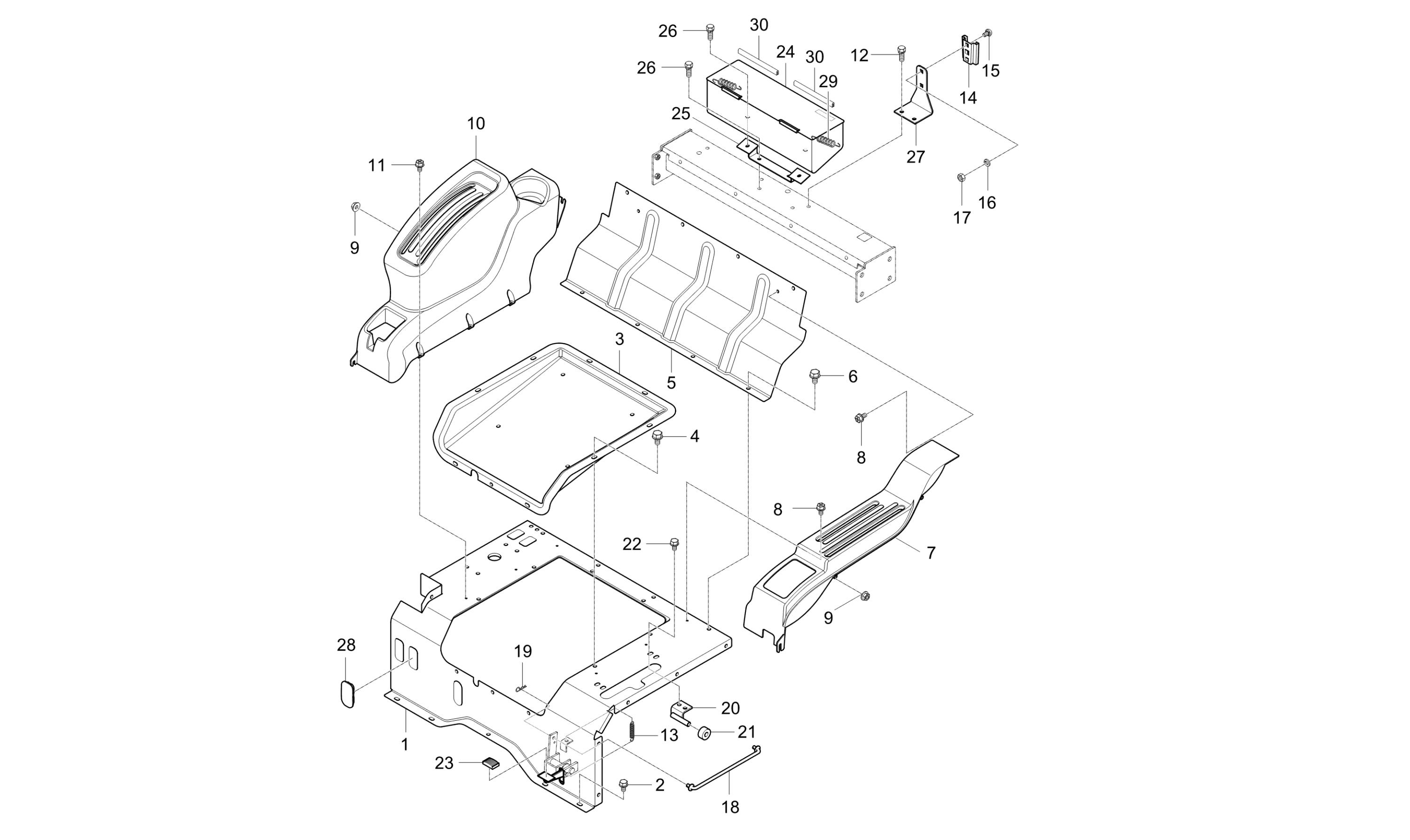

Diagram for SEAT FLOOR GROUP - EX45M-T895A
  • 1

    COVER, SEAT FLOOR

    • Part No. T4115-70412
    • Applied Dates 2006-02-07 to 2007-03-12
    • *multiple options for # 1
    • 1 shown on diagram
    $454.99
  • 1

    COVER, SEAT FLOOR

    • Part No. T4115-70413
    • Compatibility Call for compatibility
    • Applied Dates 2007-03-13 to 2007-09-27
    • *multiple options for # 1
    • 1 shown on diagram
    $284.99
  • 1

    COVER, SEAT FLOOR

    • Part No. T4115-70414
    • Compatibility No Interchange
    • Applied Dates 2007-12-06 and up
    • Serial No. GS9600001 and up
    • *multiple options for # 1
    • 1 shown on diagram
    $454.99
  • 1

    FLOOR, SEAT

    • Part No. T4115-70415
    • Compatibility Interchangeable
    • *multiple options for # 1
    • 1 shown on diagram
    $379.99
  • 2 FLANGE BOLT, HEX HEAD M8

    FLANGE BOLT, HEX HEAD M8

    • Part No. 01754-50820
    • M8XP1.25
    • 5 shown on diagram
    $1.19
  • 3

    PLATE, SEAT SUPPORT

    • Part No. T4125-70442
    • *multiple options for # 3
    • 1 shown on diagram
    $249.99
  • 3

    PLATE, SEAT SUPPORT

    • Part No. T4125-70443
    • Compatibility New Replaces Old
    • *multiple options for # 3
    • 1 shown on diagram
    $249.99
  • 4 FLANGE BOLT, HEX HEAD M8

    FLANGE BOLT, HEX HEAD M8

    • Part No. 01754-50820
    • M8XP1.25
    • 9 shown on diagram
    $1.19
  • 5

    COVER,REAR dnr v

    • Part No. T4125-70452
    • Applied Dates 2006-02-07 to 2006-11-13
    • *multiple options for # 5
    • 1 shown on diagram
    $144.99
  • 5

    COVER, REAR dnr v

    • Part No. T4125-70453
    • Compatibility New Replaces Old
    • Applied Dates 2006-11-14 to 2010-10-23
    • Serial No. FS9600001 to KS9600032
    • *multiple options for # 5
    • 1 shown on diagram
    $134.99
  • 5

    COVER, RR

    • Part No. T4125-70454
    • Compatibility Interchangeable
    • Applied Dates 2010-10-24 and up
    • Serial No. KS9600033 and up
    • *multiple options for # 5
    • 1 shown on diagram
    $0.00
  • 6 FLANGE BOLT, HEX HEAD M8

    FLANGE BOLT, HEX HEAD M8

    • Part No. 01754-50820
    • M8XP1.25
    • 8 shown on diagram
    $1.19
  • 7

    GUIDE LEVER LH V, Replaced by T4115-95423BB

    • Part No. T4115-95423
    • Applied Dates 2006-09-19 to 2008-10-21
    • Serial No. FS9600001 and up
    • *multiple options for # 7
    • 1 shown on diagram
    $0.00
  • 7

    LEVER GUIDE

    • Part No. T4115-95423BB
    • Compatibility No Interchange
    • *multiple options for # 7
    • 1 shown on diagram
    $144.99
  • 7

    GUIDE, LEVER LH

    • Part No. T4115-95424
    • Compatibility Interchangeable
    • Applied Dates 2011-07-01 to 2015-09-30
    • Serial No. LS9600001 and up
    • *multiple options for # 7
    • 1 shown on diagram
    $63.99
  • 7

    GUIDE, LEVER LH

    • Part No. T4115-95425
    • Compatibility No Interchange
    • *multiple options for # 7
    • 1 shown on diagram
    $95.99
  • 8 Flange Bolt (T4625-55431)

    Flange Bolt (T4625-55431)

    • Part No. T4625-55431
    • 5 shown on diagram
    $1.09
  • 9 Nut, Flange, M6 P1.00 02751-50060

    Nut, Flange, M6 P1.00 02751-50060

    • Part No. 02751-50060
    • M6XP1.0
    • 4 shown on diagram
    $0.73
  • 10

    LEVER GUIDE RH v

    • Part No. T4125-95432
    • Applied Dates 2006-02-09 to 2008-10-21
    • *multiple options for # 10
    • 1 shown on diagram
    $114.99
  • 10

    GUIDE, LEVER RH obs

    • Part No. T4125-95432BB
    • Compatibility No Interchange
    • *multiple options for # 10
    • 1 shown on diagram
    $119.99
  • 10

    GUIDE, LEVER RH -V-

    • Part No. T4125-95433
    • Compatibility Interchangeable
    • Applied Dates 2011-07-01 to 2015-09-30
    • Serial No. LS9600001 and up
    • *multiple options for # 10
    • 1 shown on diagram
    $114.99
  • 10

    GUIDE, LEVER RH

    • Part No. T4125-95434
    • Compatibility No Interchange
    • *multiple options for # 10
    • 1 shown on diagram
    $91.99
  • 11 Flange Bolt (T4625-55431)

    Flange Bolt (T4625-55431)

    • Part No. T4625-55431
    • 5 shown on diagram
    $1.09
  • 12 Bolt With Washers, M8 P1.25 x 16mm (01125-50816)

    Bolt With Washers, M8 P1.25 x 16mm (01125-50816)

    • Part No. 01125-50816
    • M8XP1.25
    • 2 shown on diagram
    $2.49
  • 13

    SPRING, PEDAL RETURN

    • Part No. P5370-65242
    • DIA2.3
    • 1 shown on diagram
    $5.99
  • 14

    BRACKET dnr v

    • Part No. T4125-70511
    • T1.6
    • 1 shown on diagram
    $15.99
  • 15

    SCREW

    • Part No. T4125-70521
    • 2 shown on diagram
    $3.99
  • 16 Spring Lock Washer M8

    Spring Lock Washer M8

    • Part No. 04512-50080
    • M08
    • 2 shown on diagram
    $0.61
  • 17 NUT

    NUT

    • Part No. 02114-50080
    • Applied Dates Up to 2007-09-03
    • M8*P1.25
    • *multiple options for # 17
    • 2 shown on diagram
    $0.67
  • 17 Nut M8 P1.25

    Nut M8 P1.25

    • Part No. 02156-50080
    • Compatibility Interchangeable
    • Applied Dates 2015-07-01 and up
    • M8XP1.25
    • *multiple options for # 17
    • 2 shown on diagram
    $0.85
  • 18

    ROD,DIFF. SET

    • Part No. T4125-65012
    • 1 shown on diagram
    $13.99
  • 19

    PIN, SNAP

    • Part No. 05515-50800
    • DIA8
    • 2 shown on diagram
    $1.29
  • 20

    BRACKET

    • Part No. T4115-70471
    • 2 shown on diagram
    $12.99
  • 21

    CUSHION, RADIATOR

    • Part No. 15111-7218-1
    • Applied Dates 2006-02-07 and up
    • 2 shown on diagram
    $4.99
  • 22 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 4 shown on diagram
    $1.79
  • 23

    RUBBER, PEDAL

    • Part No. T2350-26661
    • Applied Dates 2006-02-09 to 2007-09-27
    • 1 shown on diagram
    $7.99
  • 24

    ASS’Y TOOL BOX

    • Part No. T4685-70514
    • Applied Dates 2006-04-08 to 2007-03-30
    • *multiple options for # 24
    • 1 shown on diagram
    $114.99
  • 24

    TOOL BOX

    • Part No. T4930-70492
    • Compatibility No Interchange
    • Applied Dates 2007-05-31 and up
    • Serial No. GS9600001 and up
    • *multiple options for # 24
    • 1 shown on diagram
    $25.99
  • 24

    BOX, TOOL

    • Part No. T4930-70493
    • Compatibility Interchangeable
    • *multiple options for # 24
    • 1 shown on diagram
    $25.99
  • 25

    BRACKET

    • Part No. T4125-70551
    • Applied Dates 2006-04-08 to 2007-03-30
    • 1 shown on diagram
    $18.99
  • 26 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 4 shown on diagram
    $1.79
  • 27

    BRACKET

    • Part No. T4125-70541
    • t3.2
    • 1 shown on diagram
    $13.99
  • 28

    COVER

    • Part No. T4630-65281
    • 1 shown on diagram
    $16.99
  • 29 SPRING, DIFF.LOCK PEDAL

    SPRING, DIFF.LOCK PEDAL

    • Part No. T2305-26641
    • Applied Dates 2006-09-22 to 2007-03-30
    • DIA1.2
    • 2 shown on diagram
    $5.99
  • 30

    PACKING

    • Part No. 55511-2612-1
    • Applied Dates 2006-09-22 to 2007-03-30
    • ??
    • 2 shown on diagram
    $2.99
