RADIATOR GROUP - EX50M-T035A

Kioti TRACTOR | DK Series | DK50SE

  • 1

    RADIATOR V, Replaced by T5410-72161

    • Part No. T4686-72162
    • Applied Dates 2006-02-17 to 2007-12-26
    • *multiple options for # 1
    • 1 shown on diagram
    $0.00
  • 1

    RADIATOR v, Replaced by T5410-72161

    • Part No. T4686-72163
    • Compatibility New Replaces Old
    • Applied Dates 2007-12-27 to 2008-01-28
    • *multiple options for # 1
    • 1 shown on diagram
    $0.00
  • 1

    RADIATOR V, Replaced by T5410-72161

    • Part No. T4686-72164
    • Compatibility Interchangeable
    • Applied Dates 2008-01-29 to 2009-08-08
    • Serial No. HS9600001 and up
    • *multiple options for # 1
    • 1 shown on diagram
    $674.23
  • 1

    RADIATOR, Replaced by T5410-72161

    • Part No. T4686-72165
    • Compatibility New Replaces Old
    • Applied Dates 2009-08-09 and up
    • Serial No. JS9600001 and up
    • *multiple options for # 1
    • 1 shown on diagram
    $0.00
  • 2

    SHIRAOUD

    • Part No. T4325-13521
    • 1 shown on diagram
    $69.99
  • 3

    PLATE

    • Part No. T4125-13612
    • Applied Dates 2006-02-13 to 2008-08-14
    • T1.6
    • *multiple options for # 3
    • 1 shown on diagram
    $29.99
  • 3

    PLATE dnr v

    • Part No. T4125-13613
    • Compatibility New Replaces Old
    • Applied Dates 2008-10-01 to 2008-10-23
    • Serial No. NS9600001 and up
    • T1.6
    • *multiple options for # 3
    • 1 shown on diagram
    $53.99
  • 3

    PLATE obs v

    • Part No. T4125-13613ED
    • Compatibility No Interchange
    • *multiple options for # 3
    • 1 shown on diagram
    $49.99
  • 4 Flange Bolt (T4625-55431)

    Flange Bolt (T4625-55431)

    • Part No. T4625-55431
    • 4 shown on diagram
    $1.09
  • 5

    Bolt

    • Part No. T2185-70491
    • 4 shown on diagram
    $1.59
  • 6

    CUSHION

    • Part No. T4125-13561
    • 2 shown on diagram
    $5.99
  • 7

    PLATE LH,SET

    • Part No. T4125-50224
    • Applied Dates 2006-12-31 to 2008-10-23
    • Serial No. FS9600001 and up
    • T2.6
    • *multiple options for # 7
    • 1 shown on diagram
    $29.99
  • 7

    PLATE, FIXED

    • Part No. T4125-50224ED
    • Compatibility No Interchange
    • *multiple options for # 7
    • 1 shown on diagram
    $31.99
  • 8 FLANGE BOLT, HEX HEAD M8

    FLANGE BOLT, HEX HEAD M8

    • Part No. 01754-50820
    • M8XP1.25
    • 4 shown on diagram
    $1.19
  • 9

    SPACER

    • Part No. T2350-50421
    • DIA13.8XT2.3
    • 2 shown on diagram
    $4.49
  • 10

    GROMMET

    • Part No. T2350-50431
    • 2 shown on diagram
    $4.99
  • 11

    BOLT

    • Part No. 01127-50825
    • M8XP1.25
    • 2 shown on diagram
    $2.49
  • 12

    GUIDE, NET dnr v, Replaced by T4115-13532BB

    • Part No. T4115-13532
    • Applied Dates 2013-02-10 and up
    • Serial No. NS9600001 and up
    • *multiple options for # 12
    • 1 shown on diagram
    $0.00
  • 12

    GUIDE, WIRE-NET

    • Part No. T4115-13532ED
    • Compatibility No Interchange
    • *multiple options for # 12
    • 1 shown on diagram
    $144.99
  • 13 Flange Bolt (T4625-55431)

    Flange Bolt (T4625-55431)

    • Part No. T4625-55431
    • 6 shown on diagram
    $1.09
  • 14

    NET 1, Replaced by T4125-13113BB

    • Part No. T4125-13113
    • Applied Dates 2006-12-31 to 2008-10-22
    • Serial No. FS9600001 and up
    • *multiple options for # 14
    • 1 shown on diagram
    $0.00
  • 14

    WIRE-NET, RADIATOR, Replaced by T4125-13113BB

    • Part No. T4125-13113ED
    • Compatibility No Interchange
    • *multiple options for # 14
    • 1 shown on diagram
    $138.27
  • 15

    NET 2

    • Part No. T4125-13123
    • Applied Dates 2006-12-31 to 2008-10-22
    • Serial No. FS9600001 and up
    • *multiple options for # 15
    • 1 shown on diagram
    $179.99
  • 15

    WIRE-NET, RADIATOR

    • Part No. T4125-13123ED
    • Compatibility No Interchange
    • *multiple options for # 15
    • 1 shown on diagram
    $179.99
  • 16

    RUBBER

    • Part No. T4125-13622
    • 1 shown on diagram
    $19.99
  • 17

    HOSE,WATER v

    • Part No. T4125-13572
    • 1 shown on diagram
    $29.99

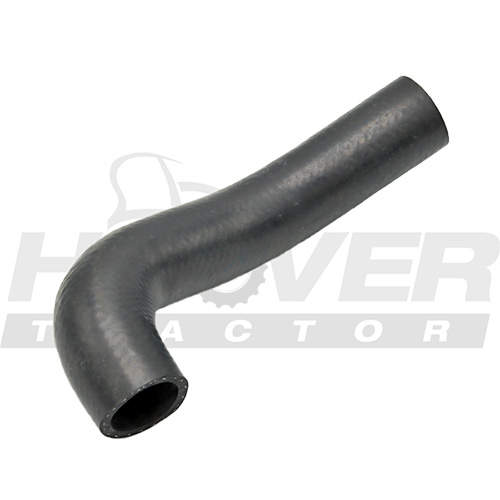

  • 18 HOSE,WATER

    HOSE,WATER

    • Part No. T4125-13581
    • 1 shown on diagram
    $29.99
  • 19

    BAND

    • Part No. 15108-7287-3
    • Applied Dates 2006-04-11 to 2008-11-05
    • ??45#
    • *multiple options for # 19
    • 4 shown on diagram
    $3.99
  • 19

    HOSE_CLAMP dnr v

    • Part No. 09318-89045
    • Compatibility Interchangeable
    • Applied Dates 2009-02-02 to 2009-11-03
    • Serial No. JS9600001 and up
    • ??46#
    • *multiple options for # 19
    • 6 shown on diagram
    $2.99
  • 19

    CLIP, HOSE

    • Part No. 09318-89048
    • Compatibility Interchangeable
    • Applied Dates 2009-11-04 and up
    • Serial No. JS9600001 and up
    • ??#48
    • *multiple options for # 19
    • 6 shown on diagram
    $2.99
  • 19

    CLAMP BAND

    • Part No. E1500-18411
    • Compatibility New Replaces Old
    • *multiple options for # 19
    • 6 shown on diagram
    $4.49

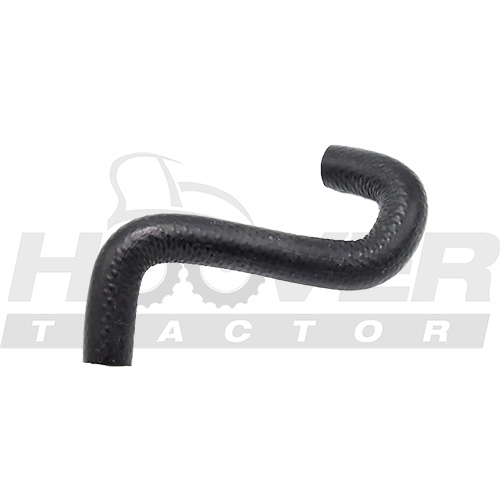

  • 20 HOSE 2, OIL COOLER

    HOSE 2, OIL COOLER

    • Part No. T4325-13531
    • 1 shown on diagram
    $15.99
  • 21

    BAND HOSE

    • Part No. T4340-38241
    • Applied Dates 2006-02-10 to 2008-09-09
    • ??27#
    • *multiple options for # 21
    • 2 shown on diagram
    $4.49
  • 21

    BAND, HOSE

    • Part No. 66204-3623-1
    • Compatibility Call for compatibility
    • Applied Dates 2008-09-10 to 2014-11-18
    • Serial No. JS9600001 to PS9600024
    • *multiple options for # 21
    • 2 shown on diagram
    $3.99
  • 22

    ASSY BRACKET, Replaced by T4125-72083

    • Part No. T4125-72082
    • Applied Dates 2006-04-11 to 2009-02-04
    • *multiple options for # 22
    • 1 shown on diagram
    $0.00
  • 22

    ASSY BRACKET

    • Part No. T4125-72083
    • Compatibility Interchangeable
    • Applied Dates 2013-02-10 and up
    • Serial No. NS9600001 and up
    • *multiple options for # 22
    • 1 shown on diagram
    $99.99
  • 22

    BRACKET ASSY

    • Part No. T4125-72083ED
    • Compatibility No Interchange
    • Applied Dates 2009-03-11 to 2013-02-09
    • Serial No. JS9600001 and up
    • *multiple options for # 22
    • 1 shown on diagram
    $61.99
  • 23 Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    • Part No. 01123-50816
    • Applied Dates 2006-04-04 and up
    • M8XP1.25
    • 4 shown on diagram
    $1.09
  • 24

    ASS’Y TANK,RESERVE v

    • Part No. T4125-12451
    • Applied Dates 2006-04-11 to 2008-01-03
    • *multiple options for # 24
    • 1 shown on diagram
    $61.99
  • 24

    ASS’Y TANK,RESERVE v

    • Part No. T4125-12452
    • Compatibility New Replaces Old
    • Applied Dates 2008-01-04 to 2013-04-30
    • Serial No. HS9600001 and up
    • *multiple options for # 24
    • 1 shown on diagram
    $58.99
  • 24

    WATER TANK ASSY ( USE T4125-12454 ) dnr v

    • Part No. T4125-12453
    • Compatibility New Replaces Old
    • Applied Dates 2013-05-01 to 2013-10-31
    • Serial No. NS9600001 to NS9600040
    • *multiple options for # 24
    • 1 shown on diagram
    $57.99
  • 24

    WATER TANK ASSY v, Replaced by T4125-12455

    • Part No. T4125-12454
    • Compatibility Interchangeable
    • *multiple options for # 24
    • 1 shown on diagram
    $54.77
  • 24

    Water Tank

    • Part No. T4125-12455
    • Compatibility Interchangeable
    • *multiple options for # 24
    • 1 shown on diagram
    $69.99
  • 25

    TANK

    • Part No. 54721-3811-1
    • Applied Dates 2006-04-11 to 2008-01-03
    • *multiple options for # 25
    • 1 shown on diagram
    $49.99
  • 25

    TANK, OIL, Replaced by T5620-50711

    • Part No. C3240-38111
    • Compatibility New Replaces Old
    • *multiple options for # 25
    • 1 shown on diagram
    $33.51
  • 26 TANK CAP ASSY

    TANK CAP ASSY

    • Part No. 76621-5482-0
    • 1 shown on diagram
    $22.99
  • 27

    HOSE, OVER FLOW

    • Part No. T4125-12451003
    • OD13*ID7*L480
    • 1 shown on diagram
    $19.99
  • 28 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 2 shown on diagram
    $1.79
  • 29

    CLIP, HOSE

    • Part No. 15301-7247-0
    • Applied Dates 2006-04-11 and up
    • ??16#
    • 1 shown on diagram
    $2.49
  • 30

    Band Cord (T4520-82561)

    • Part No. T4520-82561
    • Applied Dates Up to 2009-03-12
    • L200
    • *multiple options for # 30
    • 1 shown on diagram
    $0.59
  • 30

    BAND, CORD

    • Part No. T2185-82561
    • Compatibility Interchangeable
    • L200
    • *multiple options for # 30
    • 1 shown on diagram
    $0.49
  • 31

    SPONGE

    • Part No. T4125-13631
    • Applied Dates Up to 2014-03-01
    • Serial No. Up to PS9600012
    • *multiple options for # 31
    • 1 shown on diagram
    $5.99
  • 31

    SPONGE

    • Part No. E7230-72081
    • Compatibility Call for compatibility
    • Applied Dates 2014-03-02 and up
    • Serial No. PS9600012 and up
    • 10*10*510
    • *multiple options for # 31
    • 1 shown on diagram
    $3.99
  • 32

    SPONGE

    • Part No. T4125-13641
    • 1 shown on diagram
    $3.49
  • 33

    SPONGE

    • Part No. T4125-13651
    • 2 shown on diagram
    $1.49
  • 34

    PLATE, SIDE COVER(LH)

    • Part No. T4125-13662
    • Applied Dates 2013-02-10 to 2008-10-22
    • Serial No. NS9600001 and up
    • t1.2
    • *multiple options for # 34
    • 1 shown on diagram
    $17.99
  • 34

    PLATE

    • Part No. T4125-13662ED
    • Compatibility No Interchange
    • *multiple options for # 34
    • 1 shown on diagram
    $18.99
  • 35

    PLATE, SIDE COVER(RH)

    • Part No. T4125-13672
    • Applied Dates 2013-02-10 to 2008-10-22
    • Serial No. NS9600001 and up
    • t1.2
    • *multiple options for # 35
    • 1 shown on diagram
    $16.99
  • 35

    PLATE

    • Part No. T4125-13672ED
    • Compatibility No Interchange
    • *multiple options for # 35
    • 1 shown on diagram
    $13.99
  • 36 Flange Bolt (T4625-55431)

    Flange Bolt (T4625-55431)

    • Part No. T4625-55431
    • 6 shown on diagram
    $1.09
  • 37

    RUBBER

    • Part No. T4125-50891
    • 2 shown on diagram
    $15.99
  • 38

    HOSE 1, FUEL

    • Part No. 15371-4217-0
    • 1 shown on diagram
    $5.99
  • 39

    CLAMP, FUEL HOSE

    • Part No. 38430-4515-1
    • Applied Dates 2006-02-17 to 2009-03-30
    • ??19#
    • *multiple options for # 39
    • 1 shown on diagram
    $5.49
  • 39

    CLIP, TUBE

    • Part No. 14911-4275-1
    • Compatibility Interchangeable
    • T0.8*#12
    • *multiple options for # 39
    • 1 shown on diagram
    $1.49
  • 40

    PLATE RH,SET

    • Part No. T4125-50232
    • Applied Dates 2013-02-10 and up
    • Serial No. NS9600001 and up
    • T2.6
    • *multiple options for # 40
    • 1 shown on diagram
    $18.99
  • 40

    PLATE, FIXED obs v

    • Part No. T4125-50232ED
    • Compatibility No Interchange
    • *multiple options for # 40
    • 1 shown on diagram
    $16.99
  • 41

    BRACKET dnr v, Replaced by T4125-73012BB

    • Part No. T4125-73012
    • Applied Dates 2007-07-11 to 2008-10-22
    • Serial No. GS9600001 and up
    • *multiple options for # 41
    • 1 shown on diagram
    $0.00
  • 41

    BRACKET

    • Part No. T4125-73012ED
    • Compatibility No Interchange
    • *multiple options for # 41
    • 1 shown on diagram
    $29.99
  • 42

    Bolt With Washers, M8 P1.25 x 25mm

    • Part No. 01125-50825
    • M8XP1.25
    • 1 shown on diagram
    $2.49
  • 43 NUT, FLANGE

    NUT, FLANGE

    • Part No. 02763-50080
    • M8XP1.25
    • 1 shown on diagram
    $0.85
  • 44

    CAP v, Replaced by P15110900

    • Part No. T4686-72161010
    • 1 shown on diagram
    $0.00
  • 45

    BOLT, WING

    • Part No. 01811-50612
    • M6P1.0
    • 1 shown on diagram
    $2.49
  • 46

    BAND CORD

    • Part No. T2185-82551
    • L290
    • 1 shown on diagram
    $1.29
