HYD.CYLINDER GROUP - T2555-G620

Kioti TRACTOR | CS Series | CS2210S (XY8300001 and up)

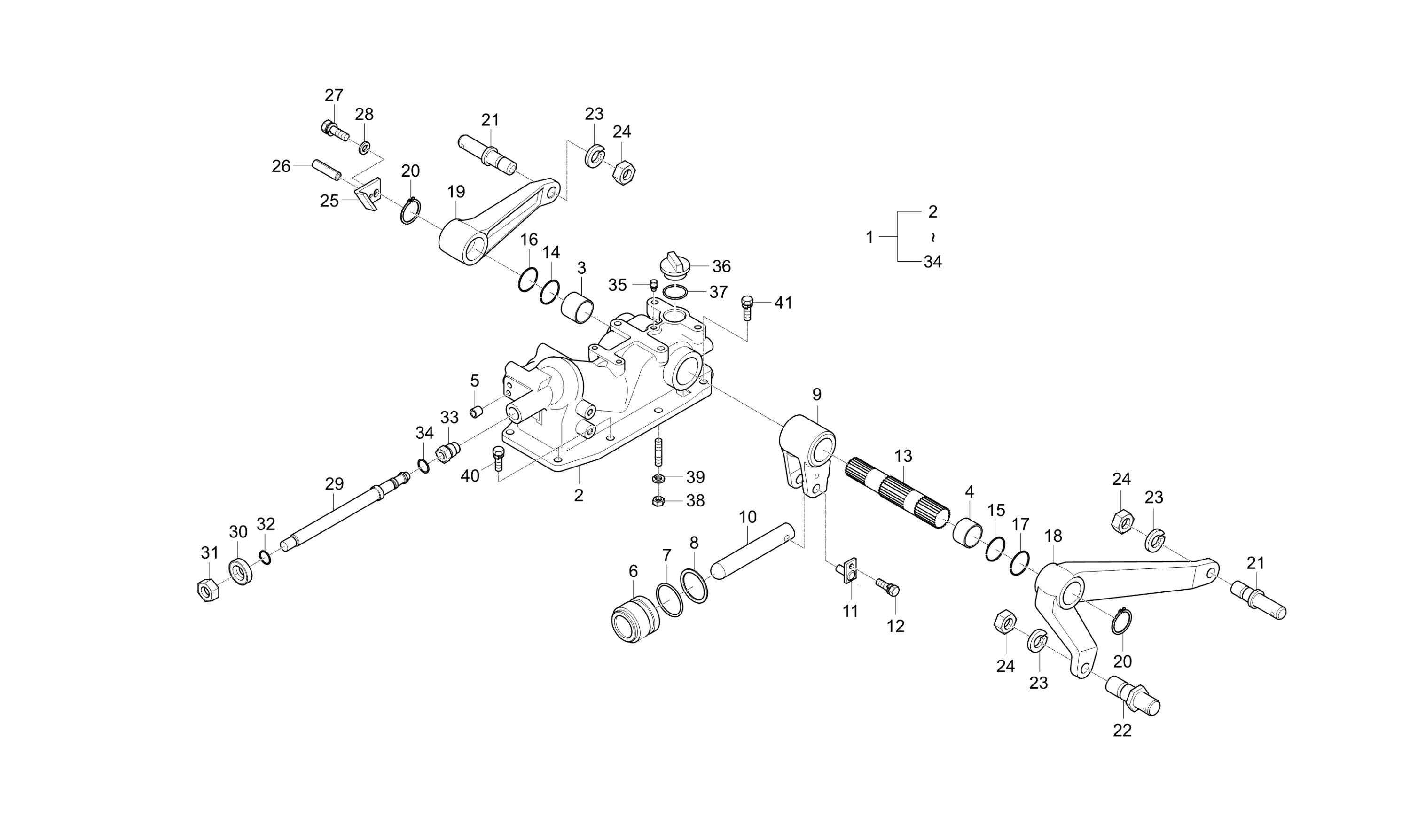

Diagram for HYD.CYLINDER GROUP - T2555-G620
  • 1

    ASSY,HYD CYLINDER

    • Part No. T2555-37006
    • 1 shown on diagram
    $1,244.99
  • 2

    BODY, POWERLIFT

    • Part No. T2555-37113
    • 1 shown on diagram
    $434.99
  • 3

    BUSH

    • Part No. 08511-03530
    • 1 shown on diagram
    $16.99
  • 4

    Bush,DU

    • Part No. 08511-04030
    • 1 shown on diagram
    $15.99
  • 5

    PLUG dnr v

    • Part No. 15521-9602-2
    • 3 shown on diagram
    $3.99

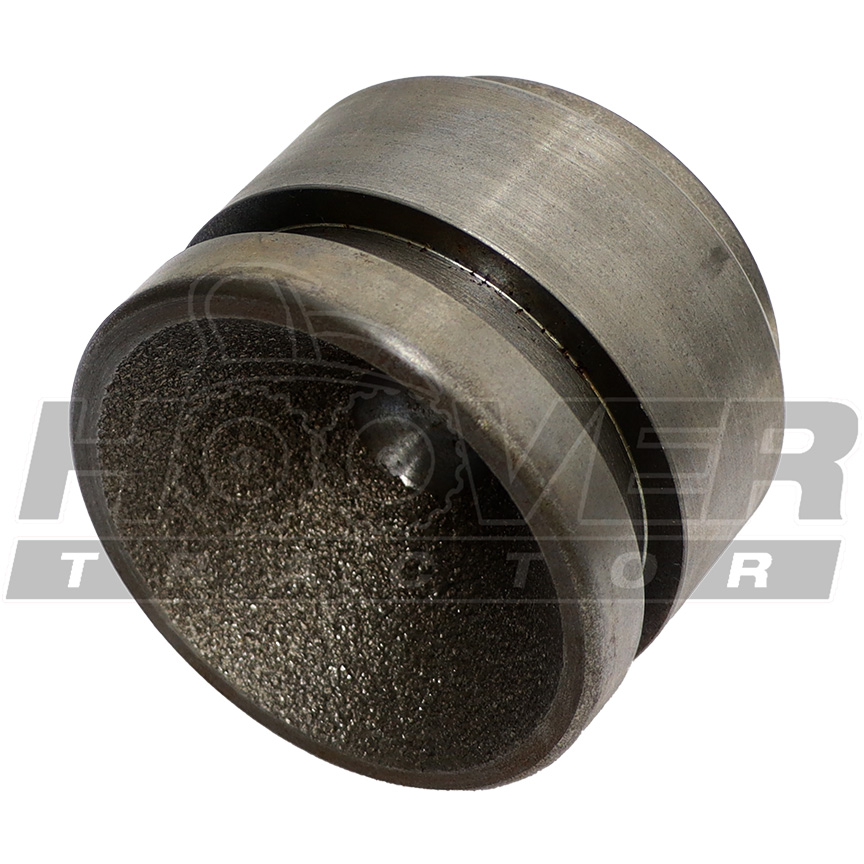

  • 6 PISTON

    PISTON

    • Part No. T2555-37212
    • 1 shown on diagram
    $38.99

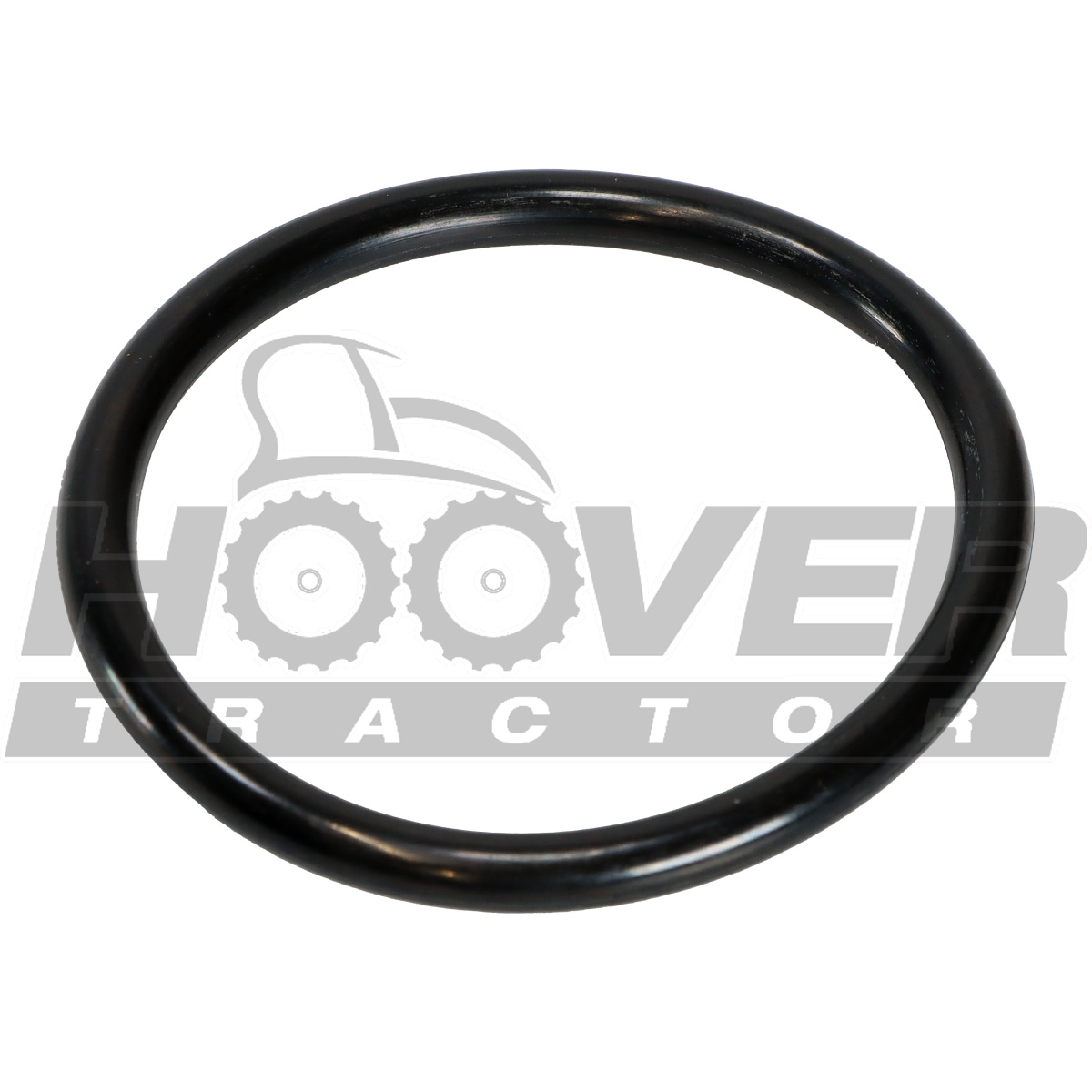

  • 7 O-RING

    O-RING

    • Part No. 04810-00600
    • 1 shown on diagram
    $2.49
  • 8 Back-Up Ring

    Back-Up Ring

    • Part No. T2555-37221
    • P60
    • 1 shown on diagram
    $11.99
  • 9

    CRANK

    • Part No. T2555-37232
    • 1 shown on diagram
    $69.99
  • 10

    CONNECTING ROD

    • Part No. T2555-37241
    • 1 shown on diagram
    $21.99
  • 11

    PIN

    • Part No. T2555-37251
    • 1 shown on diagram
    $17.99
  • 12 Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    • Part No. 01123-50816
    • M8XP1.25
    • 1 shown on diagram
    $1.09
  • 13

    SHAFT HYD ARM

    • Part No. T2555-37121
    • 1 shown on diagram
    $254.99

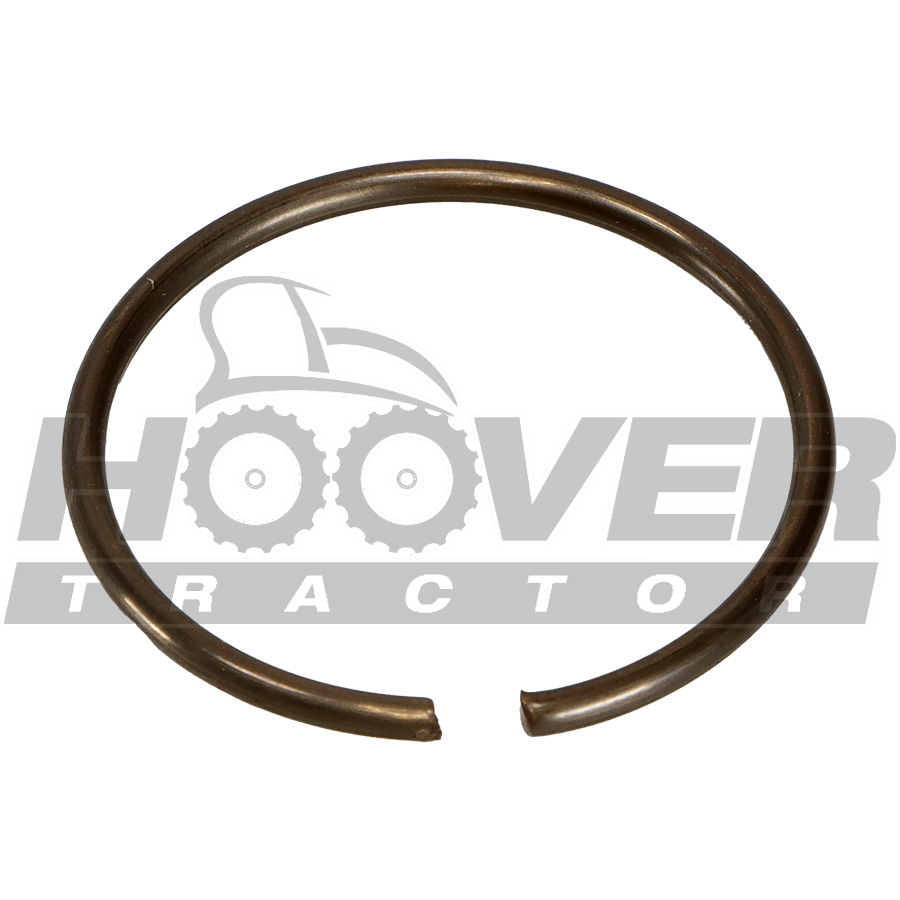

  • 14 FRICTION SPRING

    FRICTION SPRING

    • Part No. T2555-37261
    • 1 shown on diagram
    $1.59

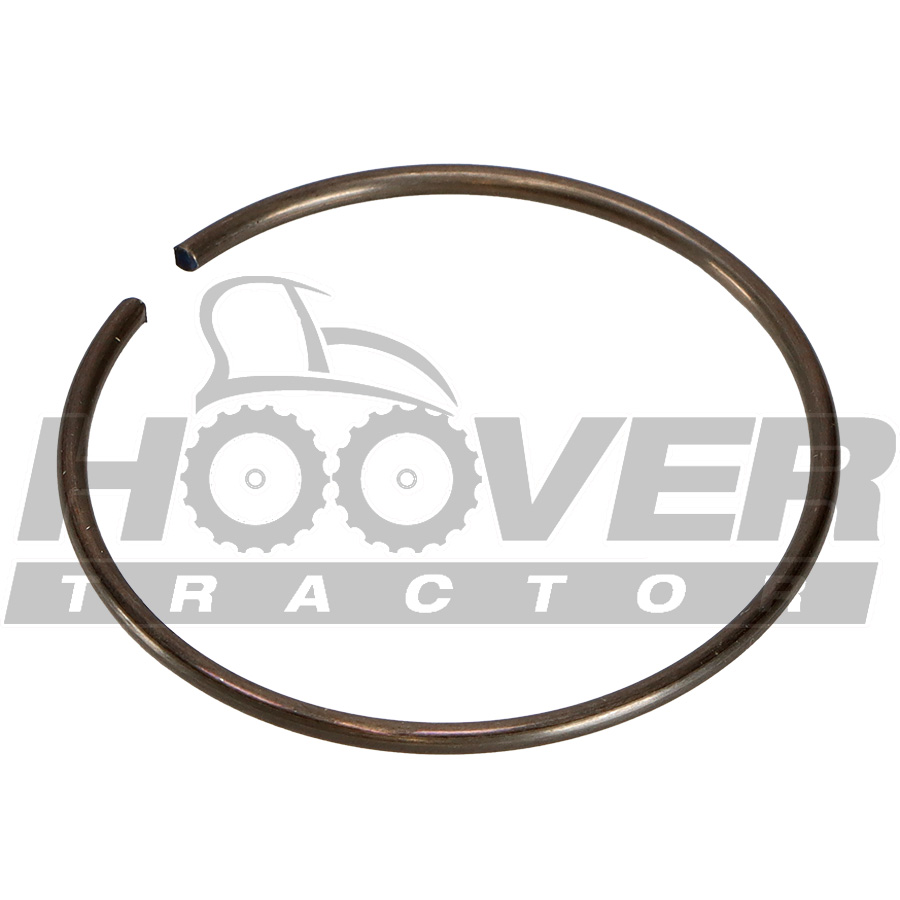

  • 15 FRICTION SPRING

    FRICTION SPRING

    • Part No. T2555-37271
    • 1 shown on diagram
    $1.29
  • 16 O RING

    O RING

    • Part No. 04811-50350
    • 1 shown on diagram
    $1.09

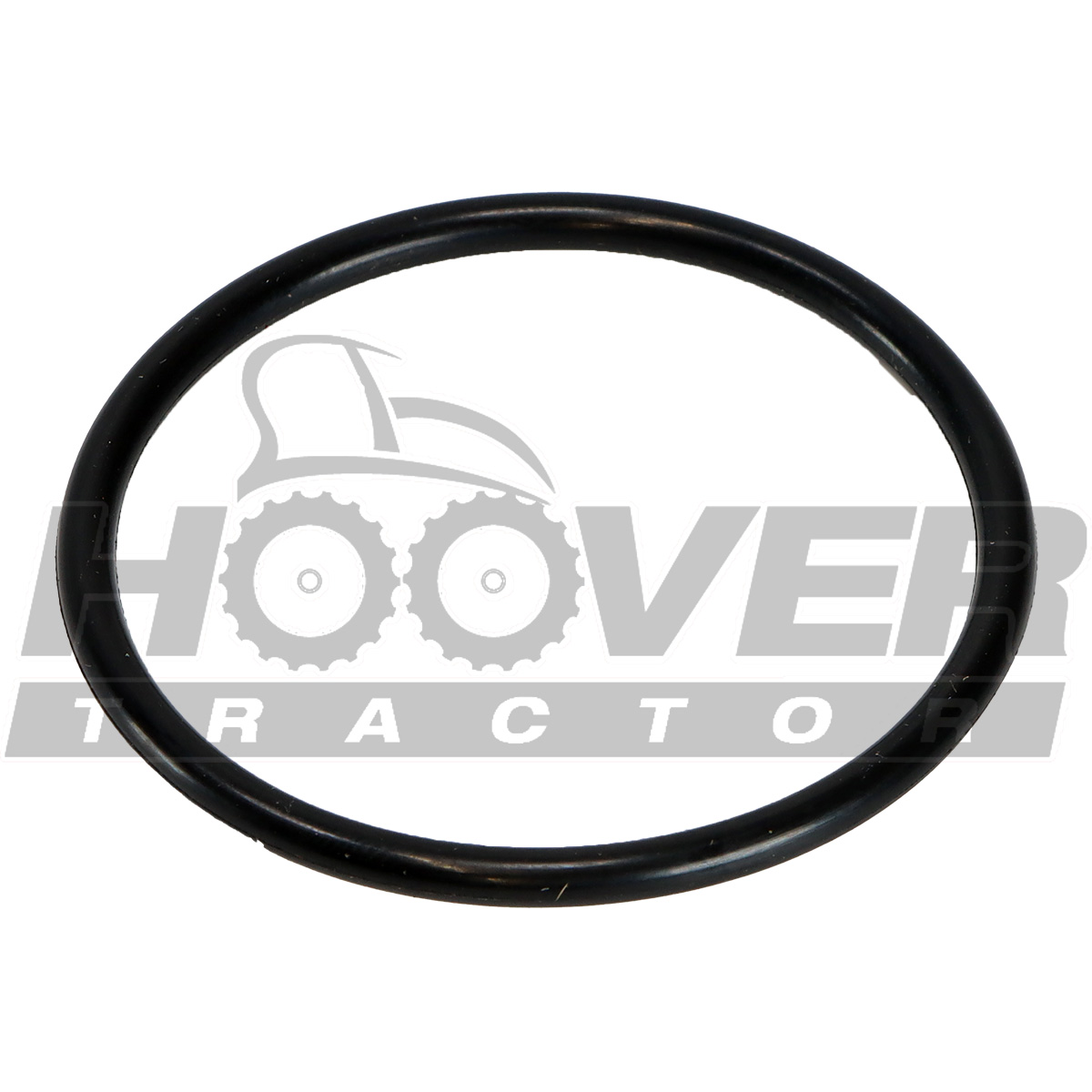

  • 17 O RING

    O RING

    • Part No. 04811-50450
    • 1 shown on diagram
    $1.19
  • 18

    ARM-LIFT(L)

    • Part No. T2555-37281
    • 1 shown on diagram
    $99.99
  • 19

    ARM-LIFT(R)

    • Part No. T2555-37291
    • 1 shown on diagram
    $83.99
  • 20 CIR CLIP, EXTERNAL

    CIR CLIP, EXTERNAL

    • Part No. 04612-00350
    • DIA35
    • 2 shown on diagram
    $1.89
  • 21

    PIN

    • Part No. T2555-37191
    • 2 shown on diagram
    $39.99
  • 22

    PIN

    • Part No. T2555-37182
    • 1 shown on diagram
    $42.99
  • 23 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50160
    • M16
    • 3 shown on diagram
    $1.29
  • 24 NUT

    NUT

    • Part No. 02176-50160
    • M16XP1.5
    • 3 shown on diagram
    $2.49
  • 25

    PLATE v

    • Part No. T2555-37132
    • 1 shown on diagram
    $9.49

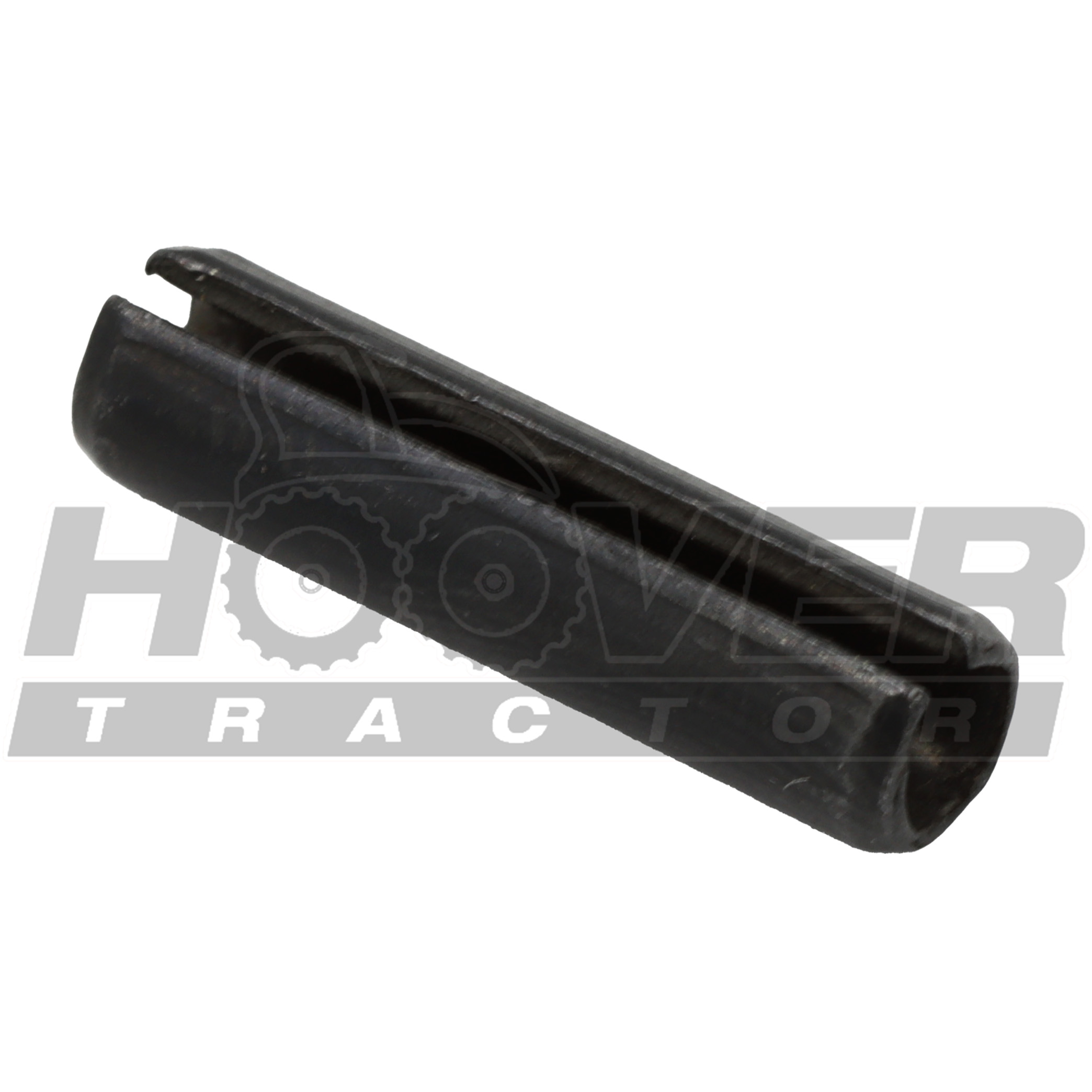

  • 26 PIN,SPRING (Roll) 5×20

    PIN,SPRING (Roll) 5×20

    • Part No. 05411-00520
    • 1 shown on diagram
    $0.85
  • 27 Bolt With Washer, M8 P1.25 x 20mm

    Bolt With Washer, M8 P1.25 x 20mm

    • Part No. 01123-50820
    • M8XP1.25
    • 1 shown on diagram
    $2.49
  • 28 Flat Washer M8

    Flat Washer M8

    • Part No. 04012-50080
    • M8
    • 1 shown on diagram
    $0.67

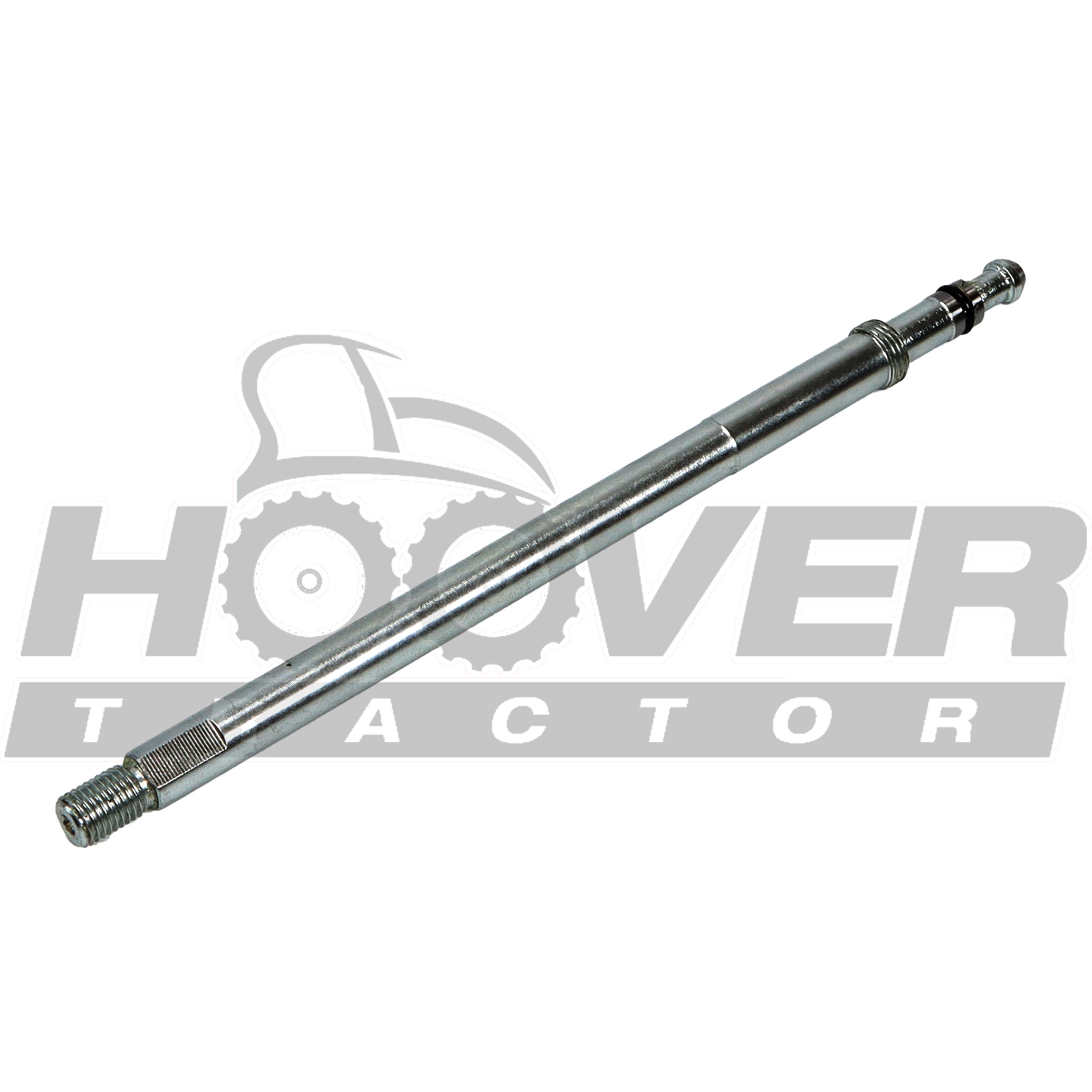

  • 29 FLOW CONTROL VALVE

    FLOW CONTROL VALVE

    • Part No. T2555-37442
    • 1 shown on diagram
    $57.99
  • 30

    GRIP

    • Part No. T2555-37452
    • 1 shown on diagram
    $13.99
  • 31 NUT

    NUT

    • Part No. 02116-50100
    • M10XP1.25
    • 1 shown on diagram
    $0.67
  • 32

    O RING

    • Part No. 04810-00070
    • 1 shown on diagram
    $0.56
  • 33

    GUIDE

    • Part No. T2555-37461
    • 1 shown on diagram
    $17.99
  • 34 O RING

    O RING

    • Part No. 04811-00120
    • DIA11.8
    • 1 shown on diagram
    $0.79
  • 35 BREATHER

    BREATHER

    • Part No. T2555-37311
    • 1 shown on diagram
    $32.99
  • 36 COVER, OIL FILLER dnr v, Replaced by 38240-2141-2BK

    COVER, OIL FILLER dnr v, Replaced by 38240-2141-2BK

    • Part No. 38240-2141-2
    • 1 shown on diagram
    $0.00
  • 37 O Ring 29.4mm (04811-50300)

    O Ring 29.4mm (04811-50300)

    • Part No. 04811-50300
    • DIA29.4
    • 1 shown on diagram
    $1.29
  • 38 Nut M10 P1.25

    Nut M10 P1.25

    • Part No. 02176-50100
    • M10XP1.25
    • 2 shown on diagram
    $0.98
  • 39 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50100
    • M10
    • 2 shown on diagram
    $0.79
  • 40 BOLT, WASHER

    BOLT, WASHER

    • Part No. 01133-51030
    • M10XP1.25
    • 4 shown on diagram
    $2.99
  • 41

    WASHER BOLT

    • Part No. 01133-51035
    • M10XP1.25
    • 2 shown on diagram
    $3.49
