GEAR PUMP GROUP - TB2-G412001

Kioti TRACTOR | CS Series | CS2210S (XY8300001 and up)

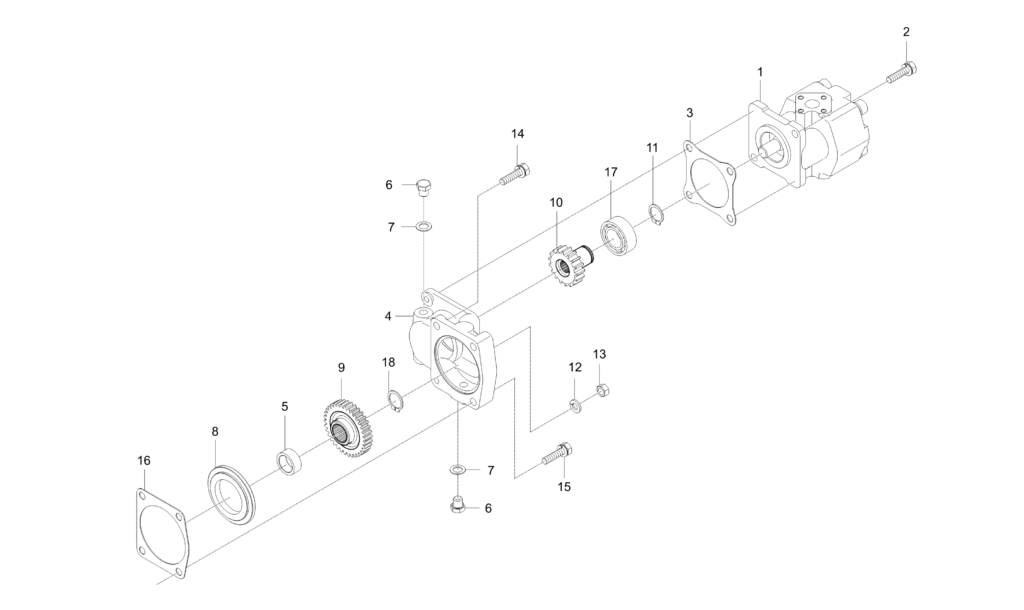

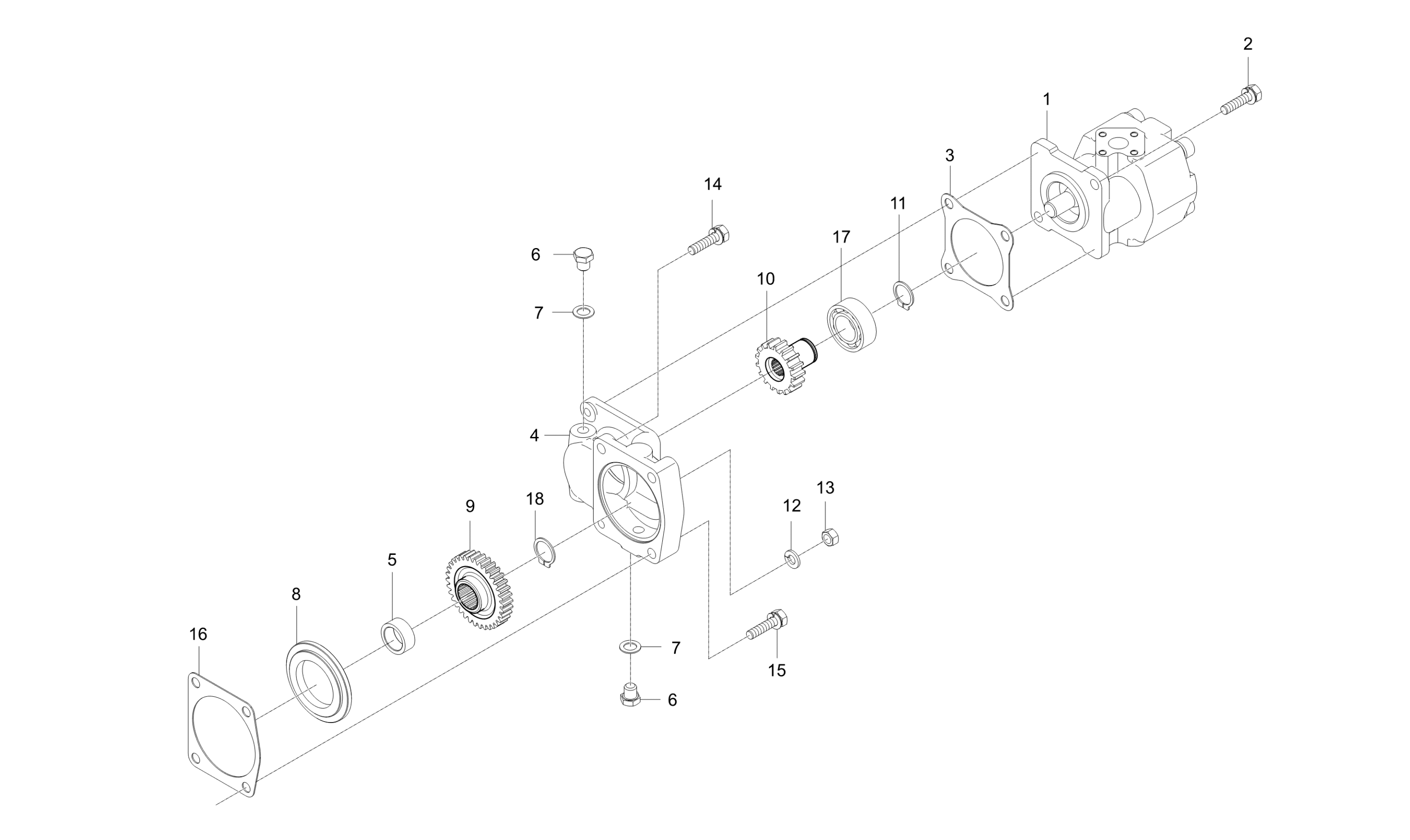

Diagram for GEAR PUMP GROUP - TB2-G412001
  • 1

    ASSY PUMP, GEAR

    • Part No. TB24-0050A
    • * multiple options for #1
    • 1 shown on diagram
    $434.99
  • 1

    PUMP, GEAR

    • Part No. TB24-0056A
    • Compatibility Call for compat
    • Applied Dates 2020-07-23 and up
    • * multiple options for #1
    • 1 shown on diagram
    $574.99
  • 2 Bolt With Washer, M8 P1.25 x 22mm

    Bolt With Washer, M8 P1.25 x 22mm

    • Part No. 01123-50822
    • M8XP1.25
    • 2 shown on diagram
    $2.49
  • 3 GASKET

    GASKET

    • Part No. T2380-87132
    • T1.0
    • * multiple options for #3
    • 1 shown on diagram
    $6.99
  • 3

    GASKET

    • Part No. T2380-87133
    • Compatibility Interchngable
    • T1.0
    • * multiple options for #3
    • 1 shown on diagram
    $0.00
  • 4

    HOLDER, GEAR PUMP

    • Part No. T2368-76001
    • 1 shown on diagram
    $129.99
  • 5

    SPACER, GEAR PUMP

    • Part No. T2350-76041
    • DIA27.2*3.5
    • 1 shown on diagram
    $6.49
  • 6 PLUG M10XP1.25

    PLUG M10XP1.25

    • Part No. 06331-35010
    • M10XP1.25
    • 2 shown on diagram
    $4.49
  • 7

    PACKING

    • Part No. 04714-00100
    • 2 shown on diagram
    $2.49
  • 8

    BUSH

    • Part No. E5205-36481
    • DIA75
    • 1 shown on diagram
    $21.99
  • 9

    GEAR, 29 PUMP

    • Part No. T2350-76021
    • 1 shown on diagram
    $77.99
  • 10

    SHAFT, GEAR 18 GEAR PUMP

    • Part No. T2350-76031
    • 1 shown on diagram
    $79.99
  • 11

    SNAP RING

    • Part No. 04612-00190
    • DIA19
    • 1 shown on diagram
    $1.19
  • 12 Spring Lock Washer M8

    Spring Lock Washer M8

    • Part No. 04512-50080
    • M08
    • 1 shown on diagram
    $0.61
  • 13 Nut M8 P1.25

    Nut M8 P1.25

    • Part No. 02156-50080
    • M8XP1.25
    • 1 shown on diagram
    $0.85
  • 14 Bolt With Washer, M8 P1.25 x 22mm

    Bolt With Washer, M8 P1.25 x 22mm

    • Part No. 01123-50822
    • M8XP1.25
    • 1 shown on diagram
    $2.49
  • 15 Bolt With Washer, M8 P1.25 x 35mm

    Bolt With Washer, M8 P1.25 x 35mm

    • Part No. 01123-50835
    • M8XP1.25
    • 2 shown on diagram
    $2.49
  • 16 GASKET, FUEL CAMSHAFT

    GASKET, FUEL CAMSHAFT

    • Part No. E5760-36332
    • 1 shown on diagram
    $6.99
  • 17

    BALL BEARING

    • Part No. 08241-05204
    • 1 shown on diagram
    $83.99
  • 18 Snap Ring (04612-00200)

    Snap Ring (04612-00200)

    • Part No. 04612-00200
    • DIA20
    • 1 shown on diagram
    $1.09
