LIFT CYLINDER GROUP - TB3-G463501

Kioti TRACTOR | CS Series | CS2210S (XY8300001 and up)

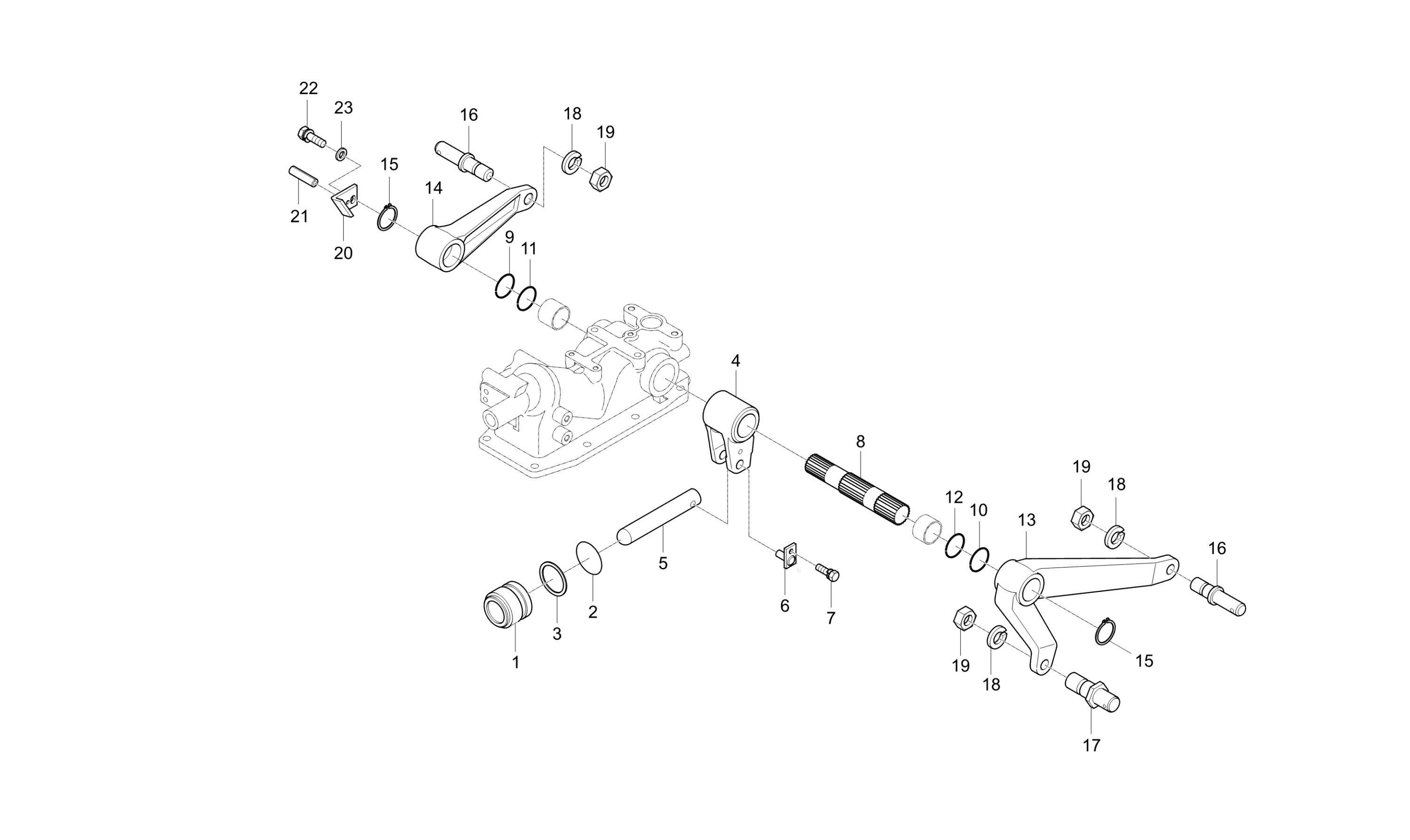

Diagram for LIFT CYLINDER GROUP - TB3-G463501
  • 1 PISTON

    PISTON

    • Part No. T2555-37212
    • 1 shown on diagram
    $38.99
  • 2 O-RING

    O-RING

    • Part No. 04810-00600
    • 1 shown on diagram
    $2.49
  • 3 Back-Up Ring

    Back-Up Ring

    • Part No. T2555-37221
    • P60
    • 1 shown on diagram
    $11.99
  • 4

    CRANK

    • Part No. T2555-37232
    • 1 shown on diagram
    $69.99
  • 5

    CONNECTING ROD

    • Part No. T2555-37241
    • 1 shown on diagram
    $21.99
  • 6

    PIN

    • Part No. T2555-37251
    • 1 shown on diagram
    $17.99
  • 7 Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    • Part No. 01123-50816
    • M8XP1.25
    • 1 shown on diagram
    $1.09
  • 8

    SHAFT HYD ARM

    • Part No. T2555-37121
    • 1 shown on diagram
    $254.99
  • 9 FRICTION SPRING

    FRICTION SPRING

    • Part No. T2555-37261
    • 1 shown on diagram
    $1.59
  • 10 FRICTION SPRING

    FRICTION SPRING

    • Part No. T2555-37271
    • 1 shown on diagram
    $1.29
  • 11 O RING

    O RING

    • Part No. 04811-50350
    • 1 shown on diagram
    $1.09
  • 12

    O RING v

    • Part No. 04811-50400
    • 1 shown on diagram
    $1.09
  • 13

    ARM-LIFT(L)

    • Part No. T2555-37281
    • 1 shown on diagram
    $99.99
  • 14

    ARM-LIFT(R)

    • Part No. T2555-37291
    • 1 shown on diagram
    $83.99
  • 15 CIR CLIP, EXTERNAL

    CIR CLIP, EXTERNAL

    • Part No. 04612-00350
    • DIA35
    • 2 shown on diagram
    $1.89
  • 16

    PIN

    • Part No. T2555-37191
    • 2 shown on diagram
    $39.99
  • 17

    PIN

    • Part No. T2555-37182
    • 1 shown on diagram
    $42.99
  • 18 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50160
    • M16
    • 3 shown on diagram
    $1.29
  • 19 NUT

    NUT

    • Part No. 02176-50160
    • M16XP1.5
    • 3 shown on diagram
    $2.49
  • 20

    PLATE v

    • Part No. T2555-37132
    • 1 shown on diagram
    $9.49
  • 21 PIN,SPRING (Roll) 5×20

    PIN,SPRING (Roll) 5×20

    • Part No. 05411-00520
    • 1 shown on diagram
    $0.85
  • 22 Bolt With Washer, M8 P1.25 x 20mm

    Bolt With Washer, M8 P1.25 x 20mm

    • Part No. 01123-50820
    • M8XP1.25
    • 1 shown on diagram
    $2.49
  • 23 Flat Washer M8

    Flat Washer M8

    • Part No. 04012-50080
    • M8
    • 1 shown on diagram
    $0.67
