FRONT AXLE CASE GROUP - TC2-G316003

Kioti TRACTOR | CK Series | CK3510SEB

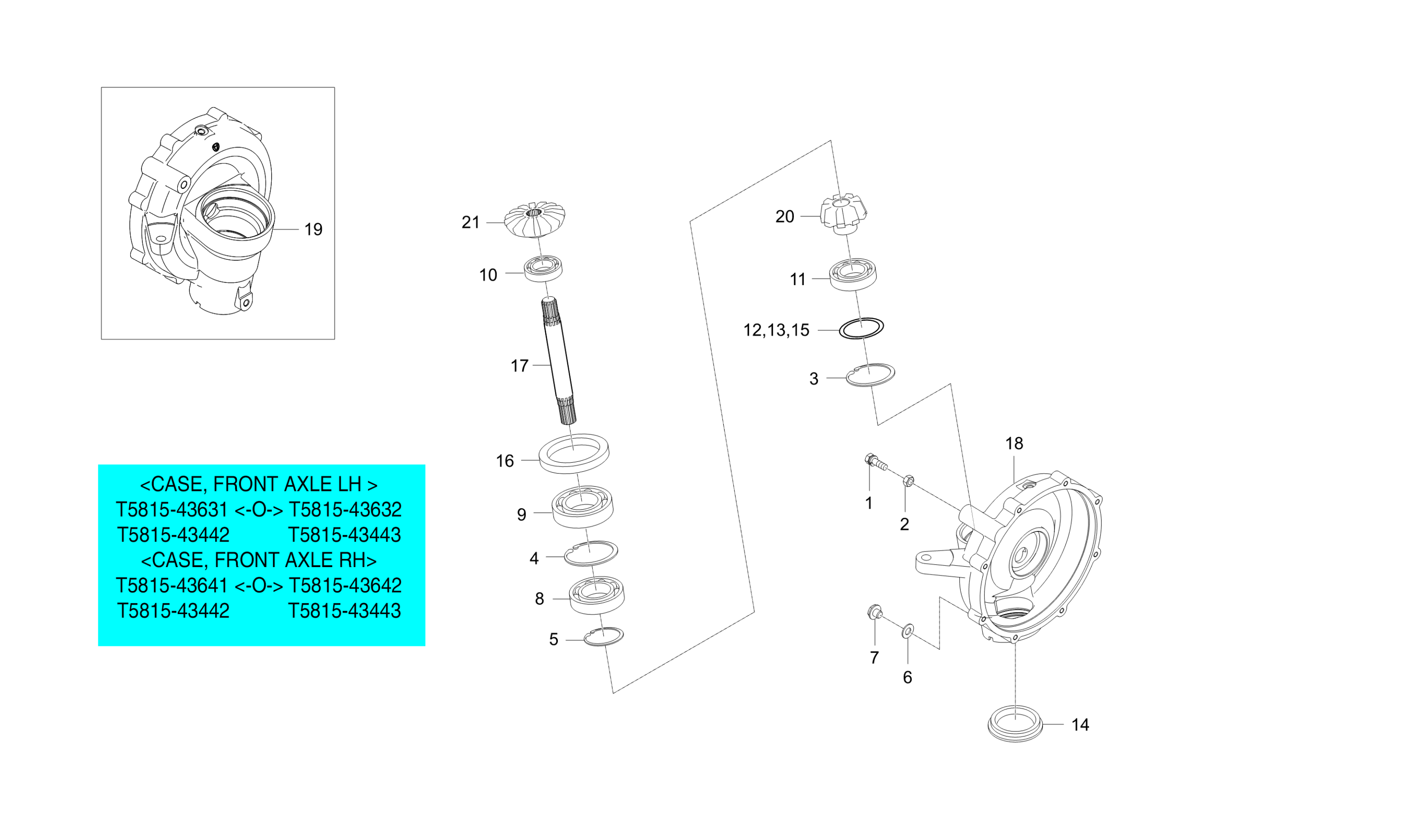

Diagram for FRONT AXLE CASE GROUP - TC2-G316003
  • 1

    BOLT

    • Part No. 01175-51250
    • 7T
    • 2 shown on diagram
    $4.49

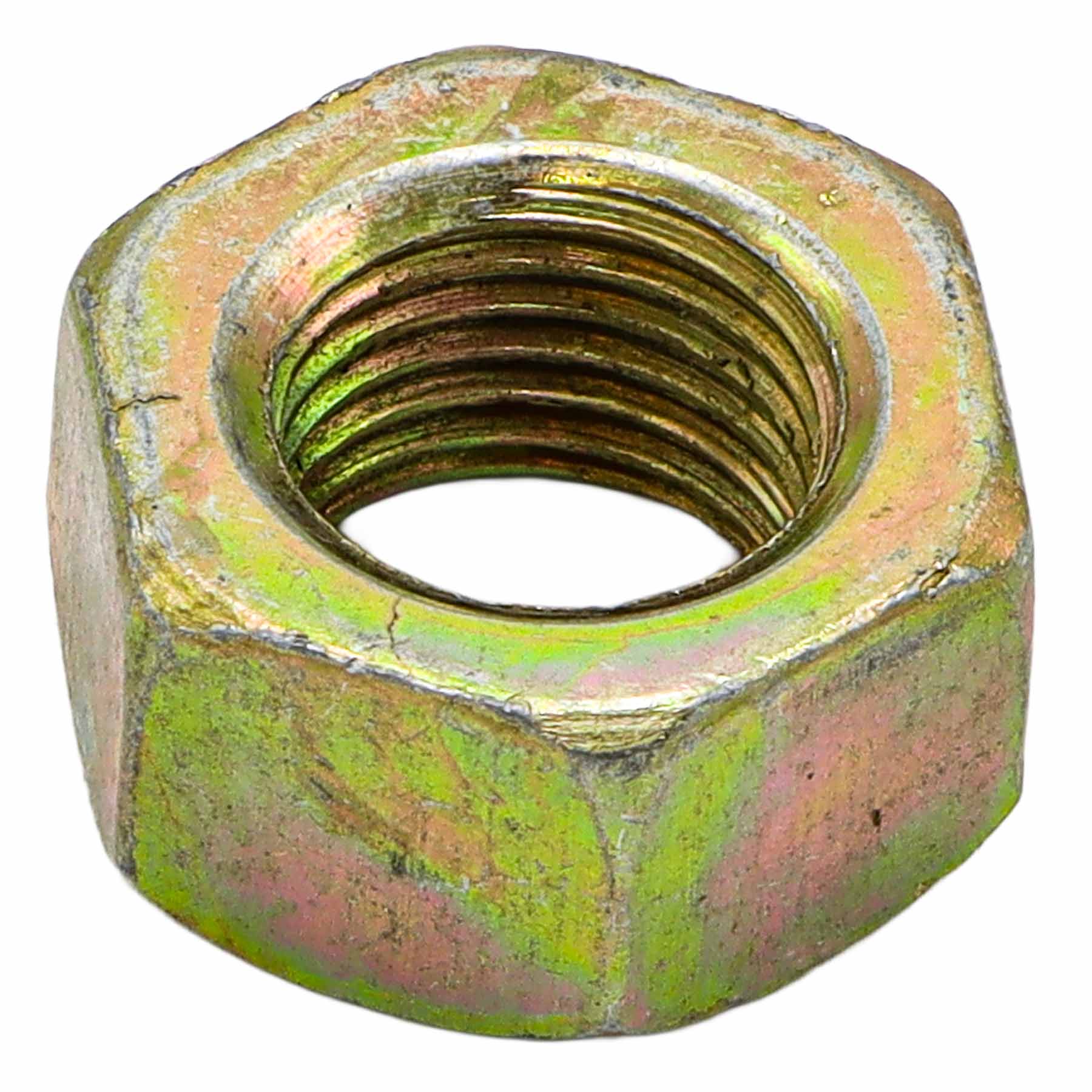

  • 2 NUT, M12 P1.25

    NUT, M12 P1.25

    • Part No. 02076-50120
    • 2 shown on diagram
    $1.19
  • 3 RING,SNAP

    RING,SNAP

    • Part No. 04611-00720
    • DIA72
    • 2 shown on diagram
    $7.99
  • 4
    • Part No. 04611-00800
    • DIA80
    • 2 shown on diagram
  • 5

    SNAP RING

    • Part No. 04612-00500
    • 2 shown on diagram
    $3.49
  • 6 WASHER, SEAL M10

    WASHER, SEAL M10

    • Part No. 04717-01000
    • M10
    • 2 shown on diagram
    $1.99
  • 7
    • Part No. 06331-45010
    • M10XP1.25
    • 2 shown on diagram
  • 8 BEARING,BALL 50x80x16

    BEARING,BALL 50x80x16

    • Part No. 08101-06010
    • #6010
    • 2 shown on diagram
    $49.99

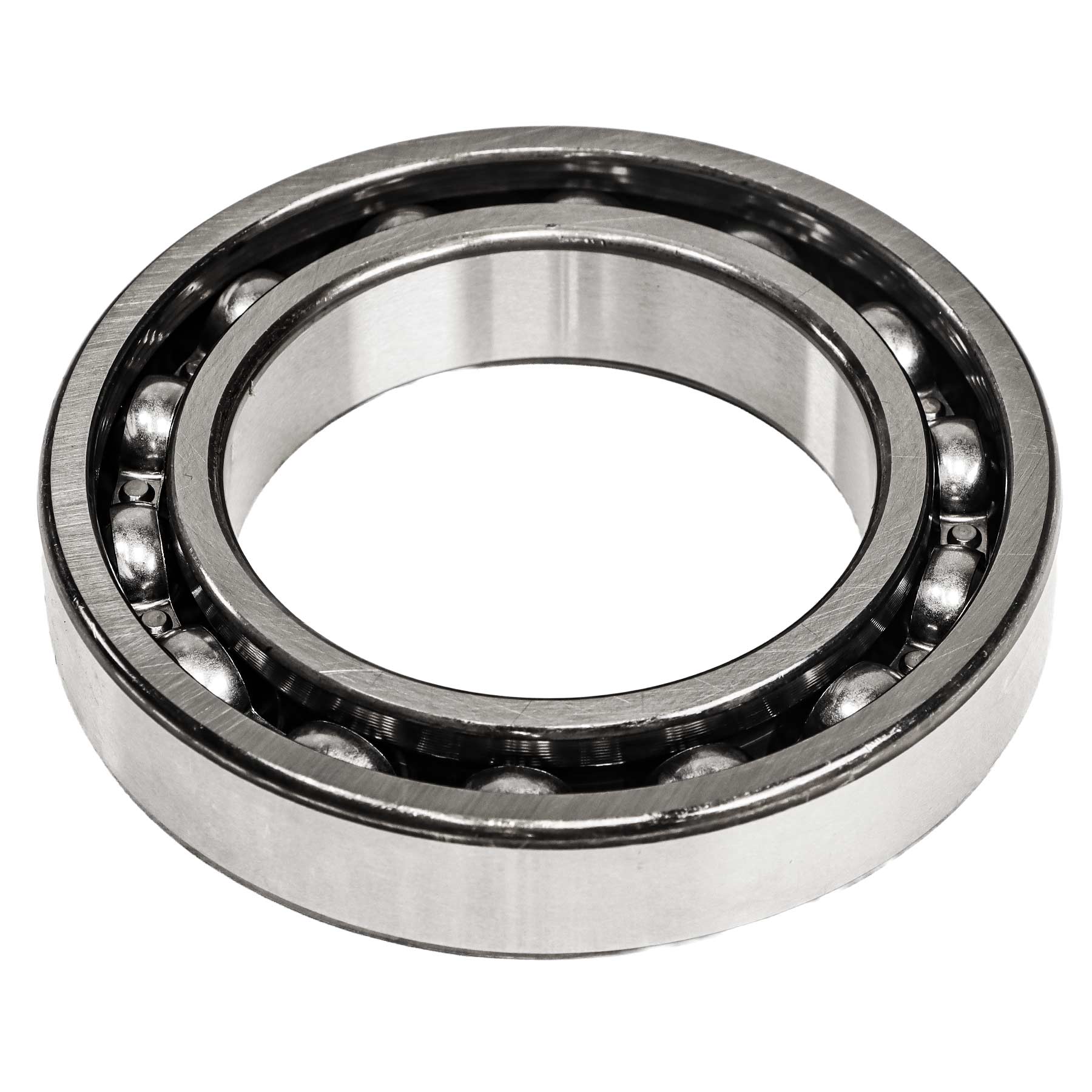

  • 9 BEARING,BALL

    BEARING,BALL

    • Part No. 08101-06012
    • 2 shown on diagram
    $71.99
  • 10 Ball Bearing 30x62x16

    Ball Bearing 30x62x16

    • Part No. 08101-06206
    • #6206
    • 2 shown on diagram
    $19.99
  • 11 Bearing 6207 35x72x17

    Bearing 6207 35x72x17

    • Part No. 08101-06207
    • DIA35
    • 2 shown on diagram
    $28.99
  • 12

    SHIM1.6

    • Part No. T2185-42361
    • 2 shown on diagram
    $5.49
  • 13

    SHIM1.8

    • Part No. T2185-42371
    • 2 shown on diagram
    $4.99
  • 14
    • Part No. T2185-43541
    • 2 shown on diagram
  • 15
    • Part No. T2185-43901
    • 2 shown on diagram
  • 16 Oil Seal

    Oil Seal

    • Part No. T5715-27131
    • 2 shown on diagram
    $56.99
  • 17

    BEVEL GEAR SHAFT

    • Part No. T5815-43461
    • 2 shown on diagram
    $94.99
  • 18

    CASE, FRONT AXLE LH

    • Part No. T5815-43631
    • * multiple options for #18
    • 1 shown on diagram
    $534.99
  • 18

    CASE, FRONT AXLE-LH

    • Part No. T5815-43632
    • Compatibility Call for compat
    • * multiple options for #18
    • 1 shown on diagram
    $534.99
  • 19
    • Part No. T5815-43641
    • * multiple options for #19
    • 1 shown on diagram
  • 19

    CASE, FRONT AXLE-RH

    • Part No. T5815-43642
    • Compatibility Call for compat
    • * multiple options for #19
    • 1 shown on diagram
    $534.99
  • 20

    GEAR,BEVEL 9

    • Part No. T5815-43651
    • 2 shown on diagram
    $76.99
  • 21

    GEAR,BEVEL 16

    • Part No. T5815-43831
    • 2 shown on diagram
    $89.99
