STEERING CYLINDER GROUP - TC2-G321001

Kioti TRACTOR | CK Series | CK3510SEB

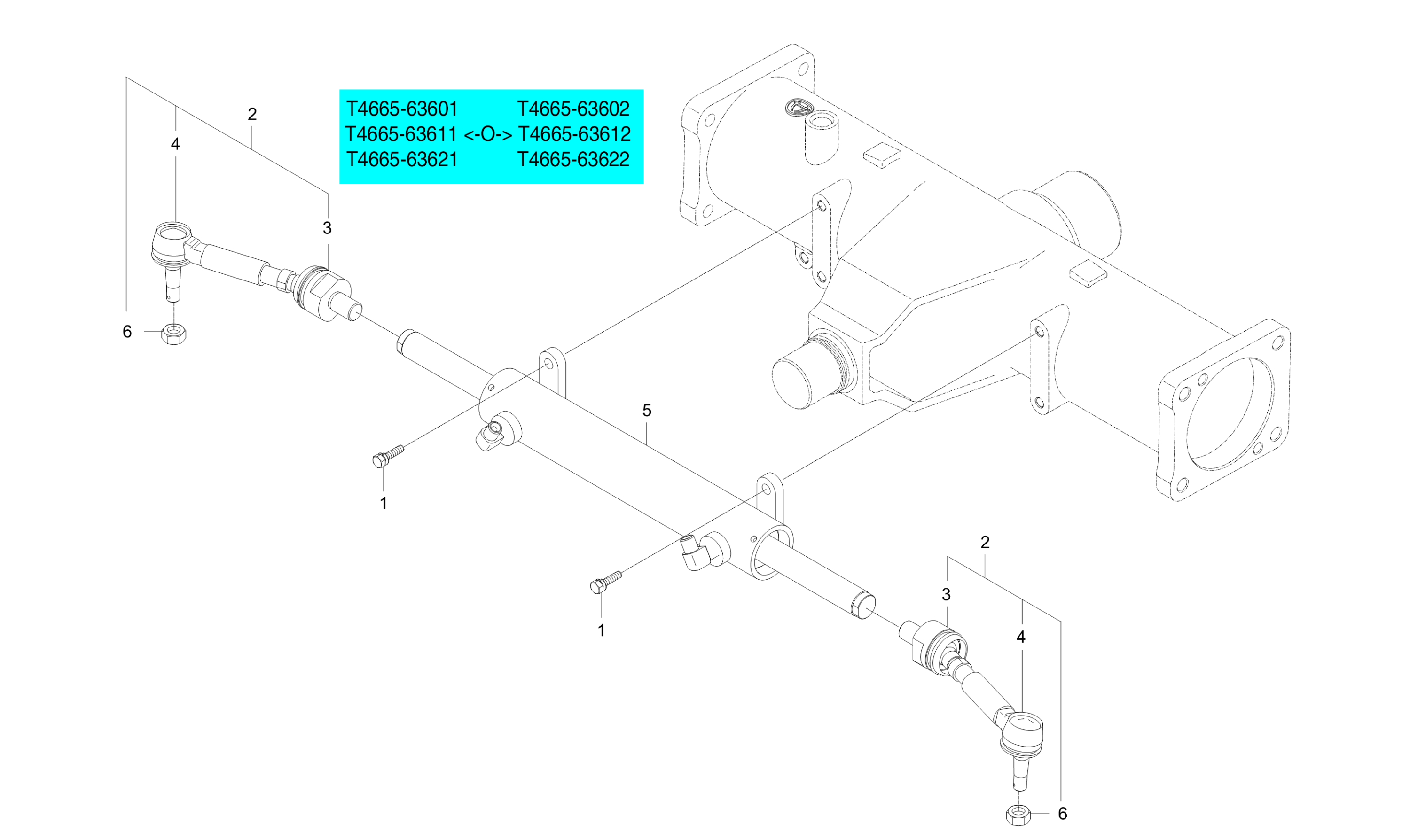

Diagram for STEERING CYLINDER GROUP - TC2-G321001
  • 1 BOLT

    BOLT

    • Part No. 01133-51025
    • M10XP1.25
    • 4 shown on diagram
    $3.49
  • 2
    • Part No. T4670-63601
    • * multiple options for #2
    • 1 shown on diagram
  • 2 BALL JOINT ASSEMBLY

    BALL JOINT ASSEMBLY

    • Part No. T4670-63602
    • Compatibility New repl old
    • Applied Dates 2017-06-01 and up
    • Serial No. TJJ700001 to WJJ700036
    • * multiple options for #2
    • 1 shown on diagram
    $99.99
  • 3
    • Part No. TB13-0004A
    • 1 shown on diagram
  • 4
    • Part No. T4665-63622
    • 1 shown on diagram
  • 5

    CYLINDER ASSY

    • Part No. T5815-45201
    • 1 shown on diagram
    $884.99
  • 6

    NUT obs v

    • Part No. W121811A
    • 1 shown on diagram
    $6.99
