FRONT AXLE BRACKET GROUP - TC2-G332001

Kioti TRACTOR | CK Series | CK3510SEB

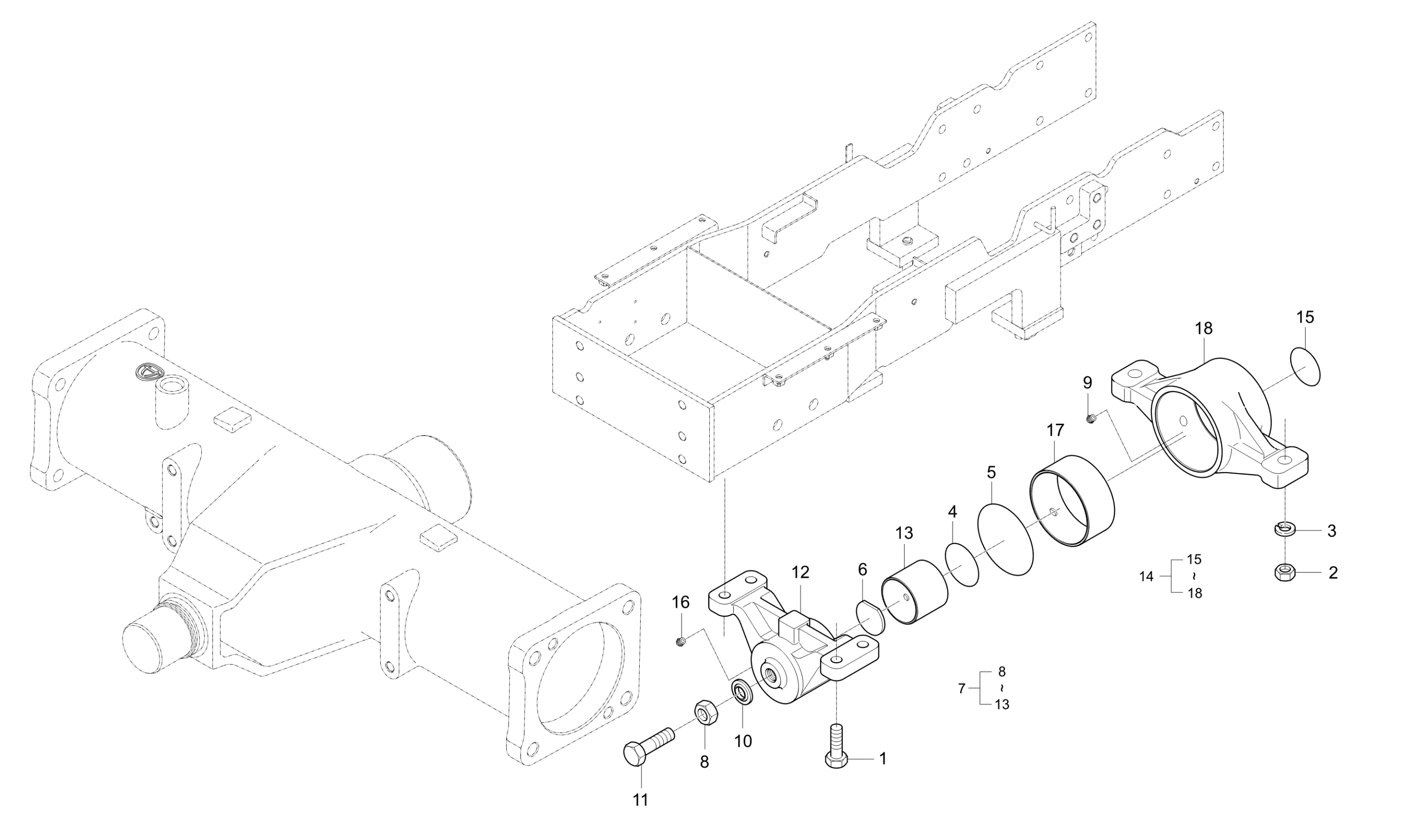

Diagram for FRONT AXLE BRACKET GROUP - TC2-G332001
  • 1

    BOLT v

    • Part No. 01177-51235
    • M12XP1.25
    • 2 shown on diagram
    $3.49
  • 2 NUT

    NUT

    • Part No. 02176-50140
    • M14XP1.5
    • 2 shown on diagram
    $1.79
  • 3

    M14 Spring Lock Washer 04512-50140

    • Part No. 04512-50140
    • M14
    • 2 shown on diagram
    $0.9
  • 4

    O RING

    • Part No. 04811-00490
    • 1 shown on diagram
    $1.29

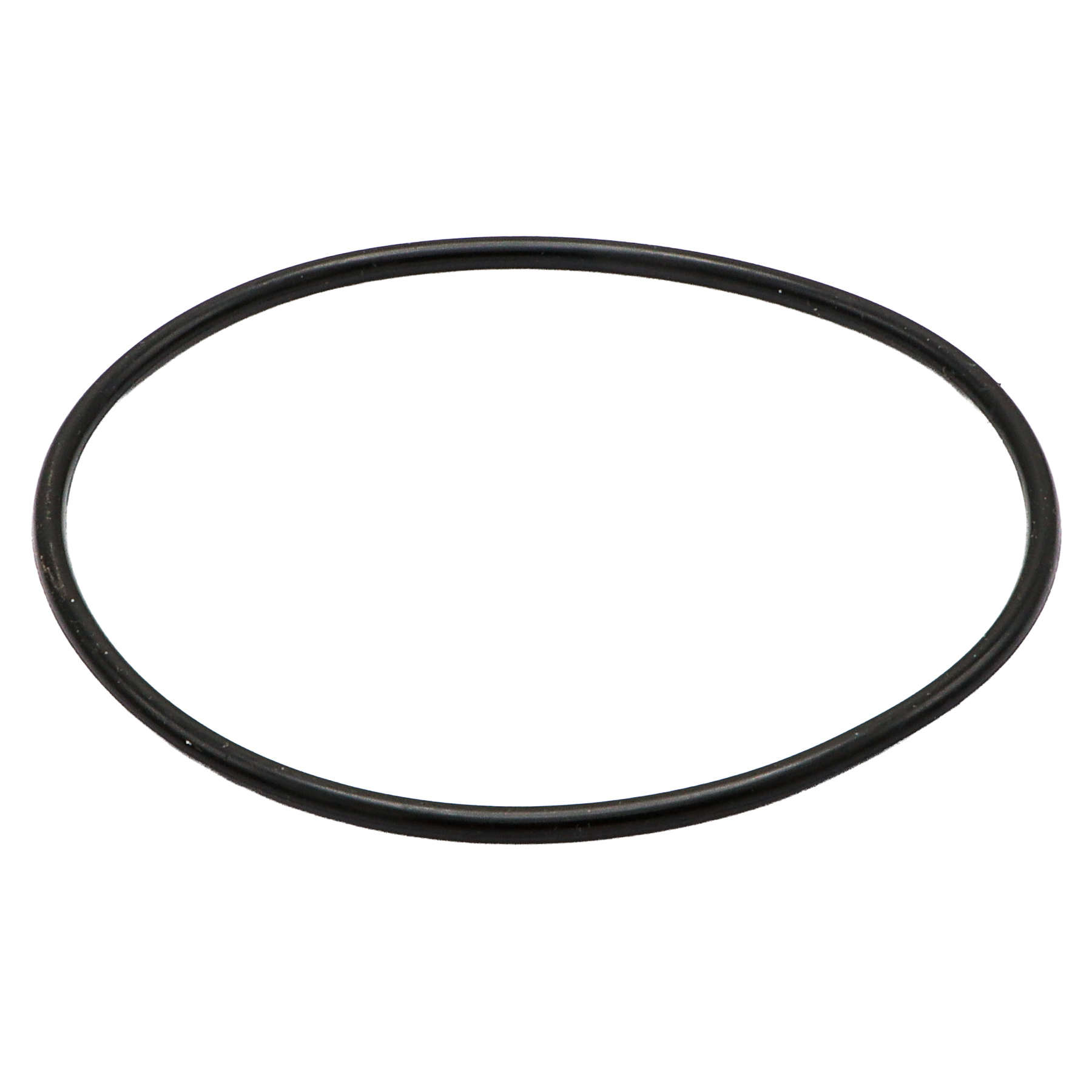

  • 5 O RING

    O RING

    • Part No. 04811-50850
    • 1 shown on diagram
    $1.69
  • 6

    COLLAR

    • Part No. 38440-4467-3
    • 1 shown on diagram
    $5.99
  • 7

    BRACKET ASSY, FR dnr v

    • Part No. T2185-41602
    • Applied Dates 2015-08-01 and up
    • 1 shown on diagram
    $134.99
  • 8

    NUT

    • Part No. 02172-50160
    • M16*P1.5
    • 1 shown on diagram
    $1.29
  • 9 Grease Zerk 45� 1/8″ BSPT

    Grease Zerk 45� 1/8″ BSPT

    • Part No. 06613-20010
    • 1 shown on diagram
    $4.49
  • 10
    • Part No. 38440-4475-1
    • 1 shown on diagram
  • 11

    BOLT v

    • Part No. 38630-4476-1
    • DIA16
    • 1 shown on diagram
    $7.99
  • 12

    BRAKET,FRONT

    • Part No. T2185-41611
    • 1 shown on diagram
    $139.99
  • 13
    • Part No. T4520-43601
    • 50-40DX
    • 1 shown on diagram
  • 14

    REAR BRAKET ASSEMBLY

    • Part No. T5815-41632
    • Applied Dates 2015-08-01 and up
    • 1 shown on diagram
    $199.99
  • 15
    • Part No. 04811-00420
    • DIA41.7
    • 1 shown on diagram
  • 16 Grease Zerk 45� 1/8″ BSPT

    Grease Zerk 45� 1/8″ BSPT

    • Part No. 06613-20010
    • 1 shown on diagram
    $4.49
  • 17

    BUSH,DX

    • Part No. T2185-41691
    • 1 shown on diagram
    $59.99
  • 18

    BRACKET, REAR obs v

    • Part No. T5815-41621
    • 1 shown on diagram
    $92.99
