FRONT WORKING LAMP GROUP(OPTION) - TD2-G526501

Kioti TRACTOR | DK Series | DK5010

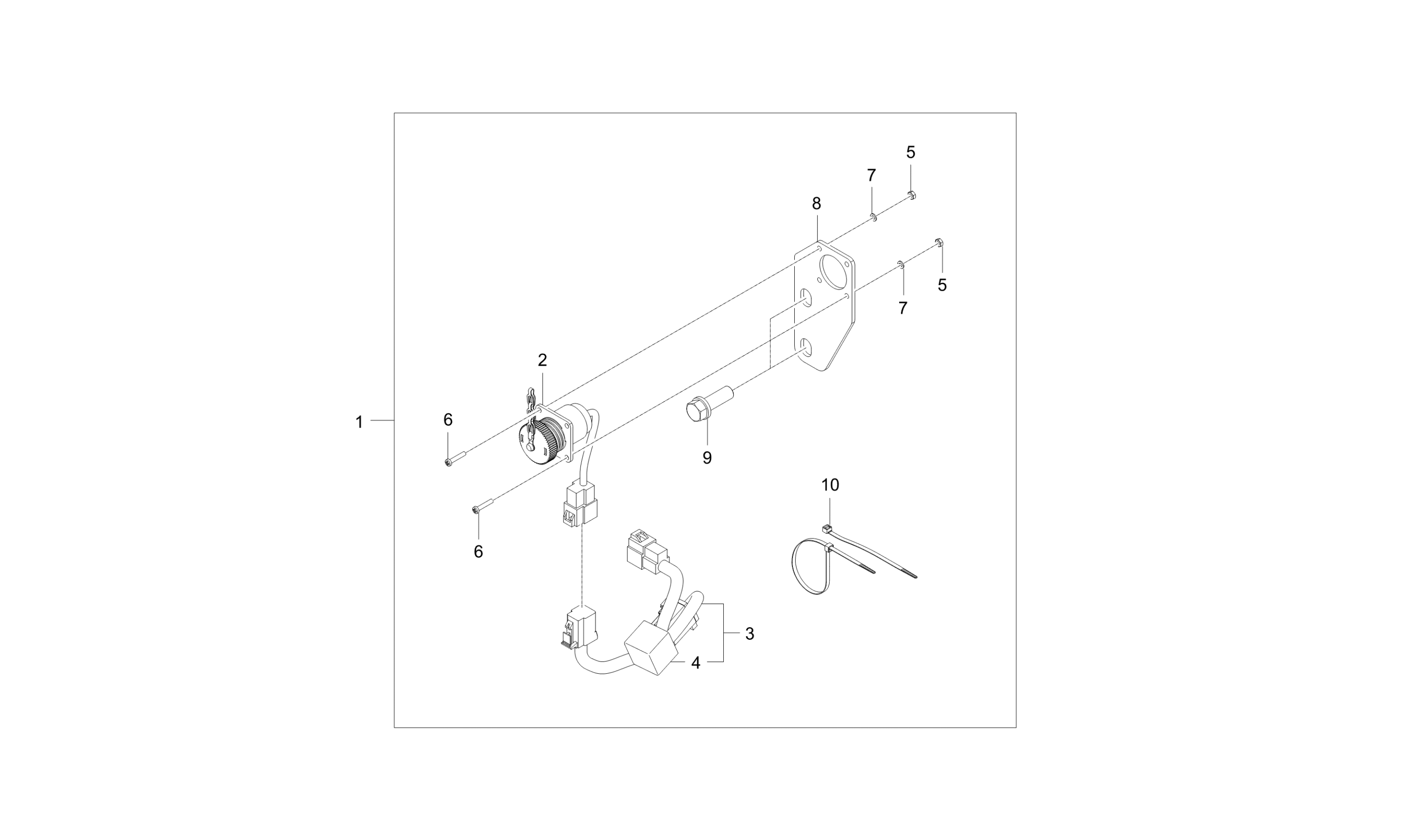

Diagram for FRONT WORKING LAMP GROUP(OPTION) - TD2-G526501
  • 1

    3 Pin Socket Kit

    • Part No. T5755-A7052
    • 1 shown on diagram
    $0.00
  • 2

    3 PIN SOCKET ASSY v

    • Part No. T5310-69031
    • 1 shown on diagram
    $219.99
  • 3

    WIRE,CONNECTION

    • Part No. T5755-69342
    • 1 shown on diagram
    $44.99
  • 4 RELAY, 5P 20/35A, no bracket

    RELAY, 5P 20/35A, no bracket

    • Part No. T5710-69941
    • 1 shown on diagram
    $19.99
  • 5

    NUT

    • Part No. 02054-50030
    • M3XP0.5
    • 4 shown on diagram
    $0.61
  • 6

    BOLT SCREW

    • Part No. 03054-50316
    • M3XP0.5
    • 4 shown on diagram
    $0.62
  • 7

    WASHER, SPRING

    • Part No. 04512-50030
    • M03
    • 4 shown on diagram
    $0.61
  • 8

    BRACKET

    • Part No. T5755-77511
    • T3.0
    • 1 shown on diagram
    $14.99
  • 9

    Bolt With Washer, M10 P1.50 x 30mm

    • Part No. 01123-51030
    • M10*1.5
    • 2 shown on diagram
    $3.49
  • 10

    BAND CORD

    • Part No. T2185-82551
    • L290
    • 1 shown on diagram
    $1.29
