FRONT WORKING LAMP GROUP - TD2-G593008

Kioti TRACTOR | DK Series | DK5010

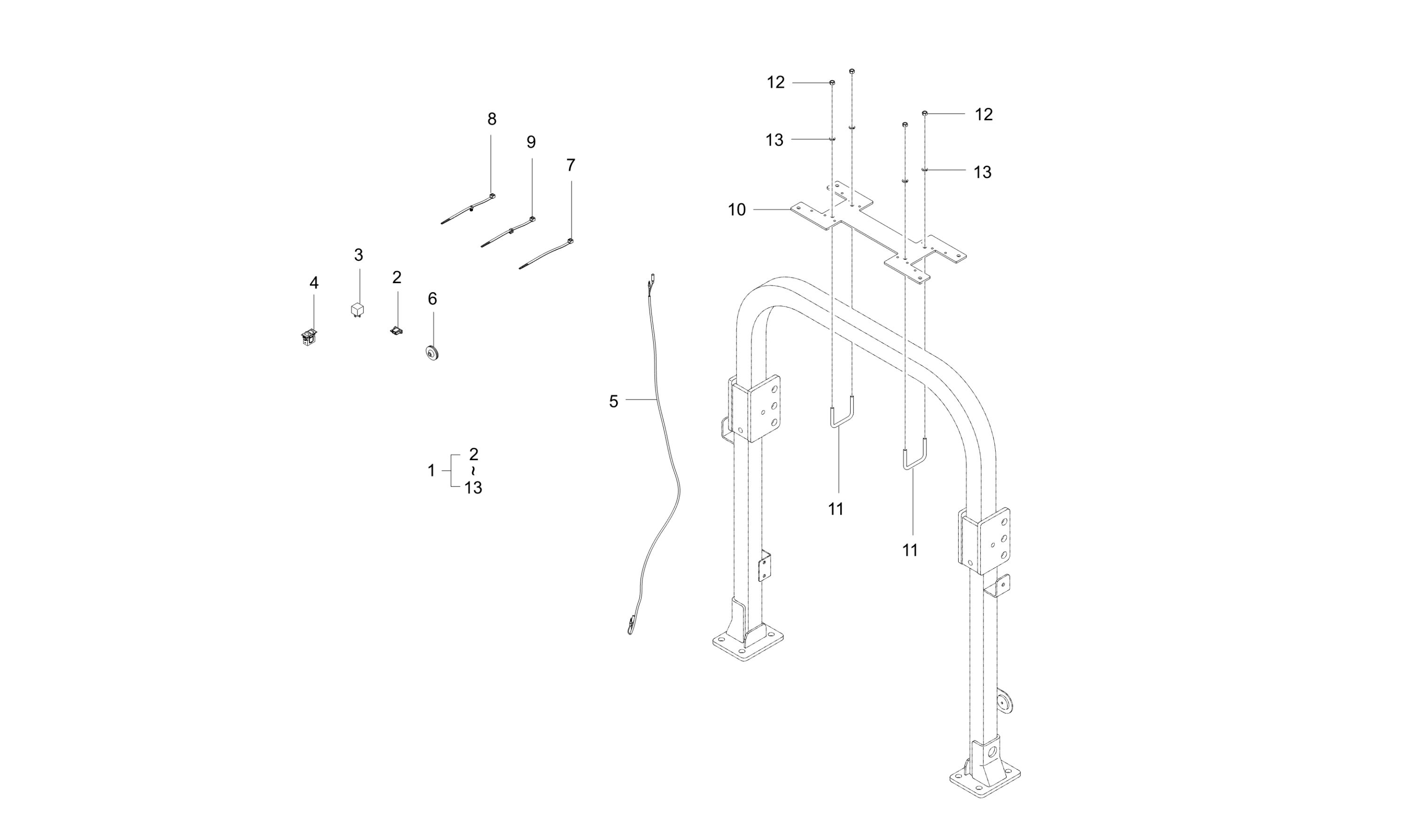

Diagram for FRONT WORKING LAMP GROUP - TD2-G593008
  • 1

    OPTION KIT, WORK LAMP ASSY KIT-FRONT

    • Part No. TD25-F0012A
    • 1 shown on diagram
    $0.00
  • 2

    FUSE 20A

    • Part No. T5210-68682
    • 20A(??LPF)
    • 1 shown on diagram
    $2.49
  • 3 RELAY, 5P 20/35A, no bracket

    RELAY, 5P 20/35A, no bracket

    • Part No. T5710-69941
    • 1 shown on diagram
    $19.99
  • 4 WORKING LAMP SWITCH, FR

    WORKING LAMP SWITCH, FR

    • Part No. T5535-54221
    • 1 shown on diagram
    $82.99
  • 5

    ASSY WIRE HARNESS, WORKING LAMP-FR

    • Part No. TD25-0212A
    • 1 shown on diagram
    $0.00
  • 6

    GROMMET

    • Part No. LF16-0227A
    • 1 shown on diagram
    $4.49
  • 7

    BAND CORD

    • Part No. T2185-82551
    • L290
    • 20 shown on diagram
    $1.29
  • 8

    BAND v

    • Part No. T2198-82571
    • 1 shown on diagram
    $1.99
  • 9

    CLAMP

    • Part No. T5270-82551
    • 2 shown on diagram
    $6.99
  • 10

    PLATE

    • Part No. TC26-2137A
    • T6.0
    • 1 shown on diagram
    $0.00
  • 11

    U BOLT v

    • Part No. T2185-85101005
    • M10XP1.5
    • 2 shown on diagram
    $13.99
  • 12

    NUT

    • Part No. 02014-50100
    • M10XP1.5
    • 4 shown on diagram
    $0.79
  • 13 Lock Washer M10

    Lock Washer M10

    • Part No. 04512-50100
    • M10
    • 4 shown on diagram
    $0.79
