REAR WORKING LAMP GROUP(OPTION) - TD2-G593102

Kioti TRACTOR | DK Series | DK5010

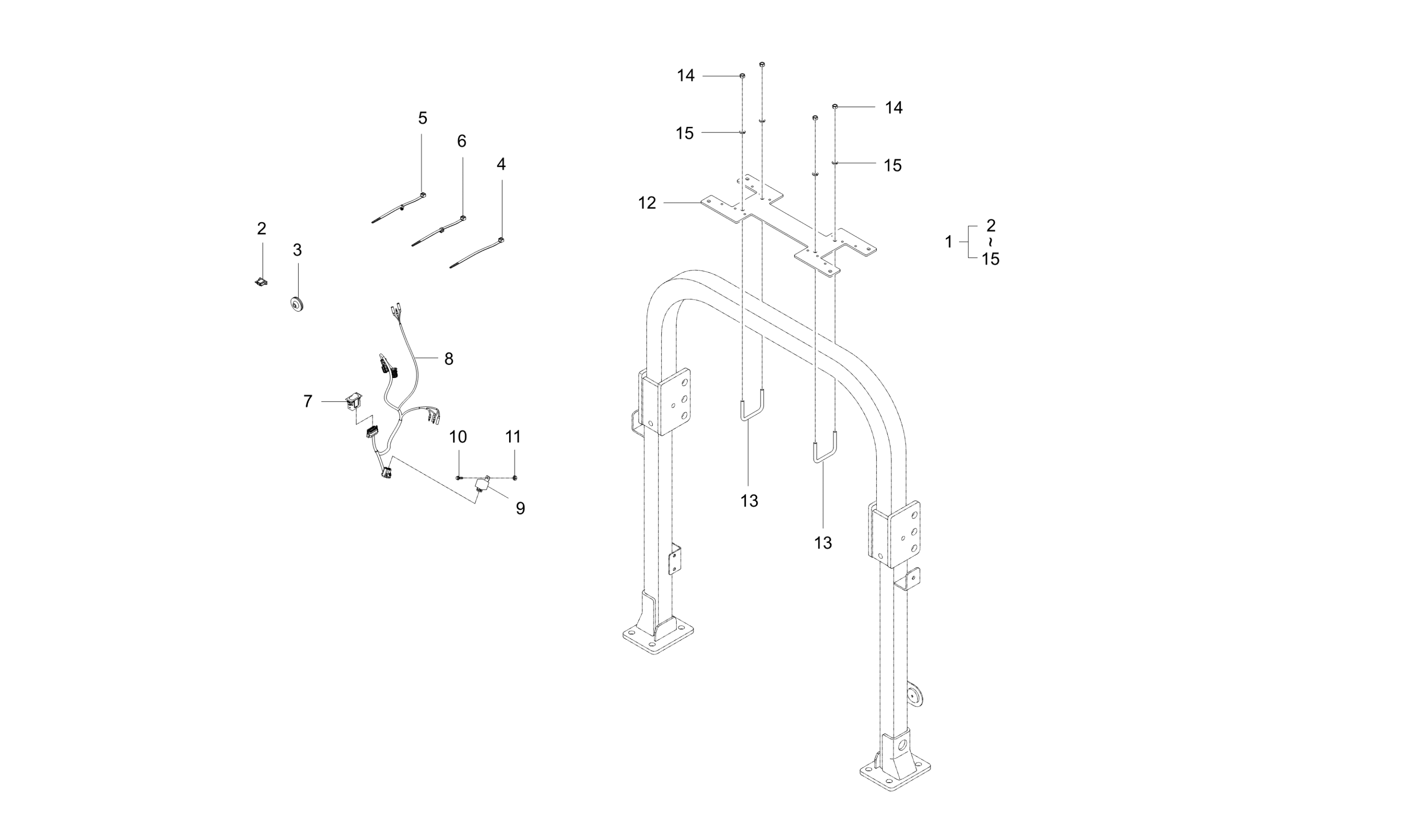

Diagram for REAR WORKING LAMP GROUP(OPTION) - TD2-G593102
  • 1

    OPTION KIT, WORK LAMP ASSY KIT-REAR

    • Part No. TD25-F0013A
    • 1 shown on diagram
    $0.00
  • 2

    FUSE 20A

    • Part No. T5210-68682
    • 20A(??LPF)
    • 1 shown on diagram
    $2.49
  • 3

    GROMMET

    • Part No. LF16-0227A
    • 1 shown on diagram
    $4.49
  • 4

    BAND CORD

    • Part No. T2185-82551
    • L290
    • 20 shown on diagram
    $1.29
  • 5

    BAND v

    • Part No. T2198-82571
    • 6 shown on diagram
    $1.99
  • 6

    CLAMP

    • Part No. T5270-82551
    • 2 shown on diagram
    $6.99
  • 7 ASSY SWITCH, WORKING LAMP-RR

    ASSY SWITCH, WORKING LAMP-RR

    • Part No. TD25-0208A
    • 1 shown on diagram
    $48.99
  • 8

    ASSY WIRE HARNESS, WORKING LAMP-RR

    • Part No. TD25-0210A
    • 1 shown on diagram
    $0.00
  • 9 Relay, 5P, 30A 40A, with bracket

    Relay, 5P, 30A 40A, with bracket

    • Part No. T5535-69961
    • Bracket
    • 1 shown on diagram
    $19.99
  • 10

    BOLT, FLANGE

    • Part No. 01754-50610
    • M6XP1.0
    • 1 shown on diagram
    $1.09
  • 11 Nut, Flange, M6 P1.00 02751-50060

    Nut, Flange, M6 P1.00 02751-50060

    • Part No. 02751-50060
    • M6XP1.0
    • 1 shown on diagram
    $0.73
  • 12

    PLATE

    • Part No. TC26-2137A
    • T6.0
    • 1 shown on diagram
    $0.00
  • 13

    U BOLT v

    • Part No. T2185-85101005
    • M10XP1.5
    • 2 shown on diagram
    $13.99
  • 14

    NUT

    • Part No. 02014-50100
    • M10XP1.5
    • 4 shown on diagram
    $0.79
  • 15 Lock Washer M10

    Lock Washer M10

    • Part No. 04512-50100
    • M10
    • 4 shown on diagram
    $0.79
