ENGINE STOP LEVER GROUP - 3C093A-E160

Kioti TRACTOR | CK Series | CK20H

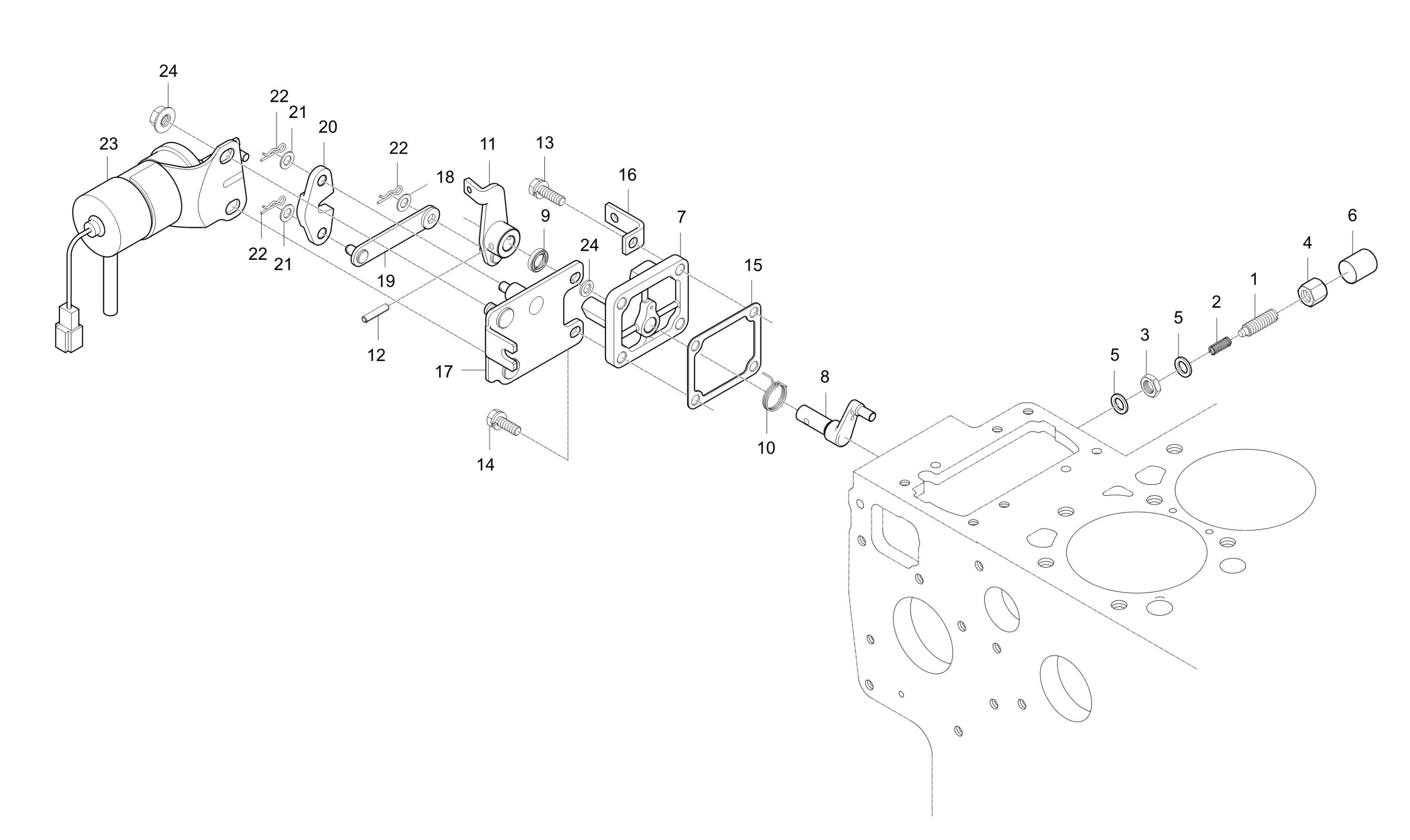

Diagram for ENGINE STOP LEVER GROUP - 3C093A-E160
  • 1

    BOLT,ADJUSTING

    • Part No. E5205-54252
    • DIA18*30
    • 1 shown on diagram
    $6.99
  • 2

    SPRING

    • Part No. E5205-54261
    • PI0.35
    • 1 shown on diagram
    $1.59
  • 3

    NUT,LOCKER obs v

    • Part No. E5205-92021
    • HEX13*M8*1.0
    • 1 shown on diagram
    $4.49
  • 4

    NUT,CAP

    • Part No. E5205-92331
    • Applied Dates Up to 2003-01-02
    • HEX13*18
    • * multiple options for #4
    • 1 shown on diagram
    $4.49
  • 4

    CAP NUT

    • Part No. 15521-9233-1
    • Compatibility Call for compat
    • Applied Dates 2003-01-03 and up
    • HEX13*25,M8*1.0
    • * multiple options for #4
    • 1 shown on diagram
    $8.99

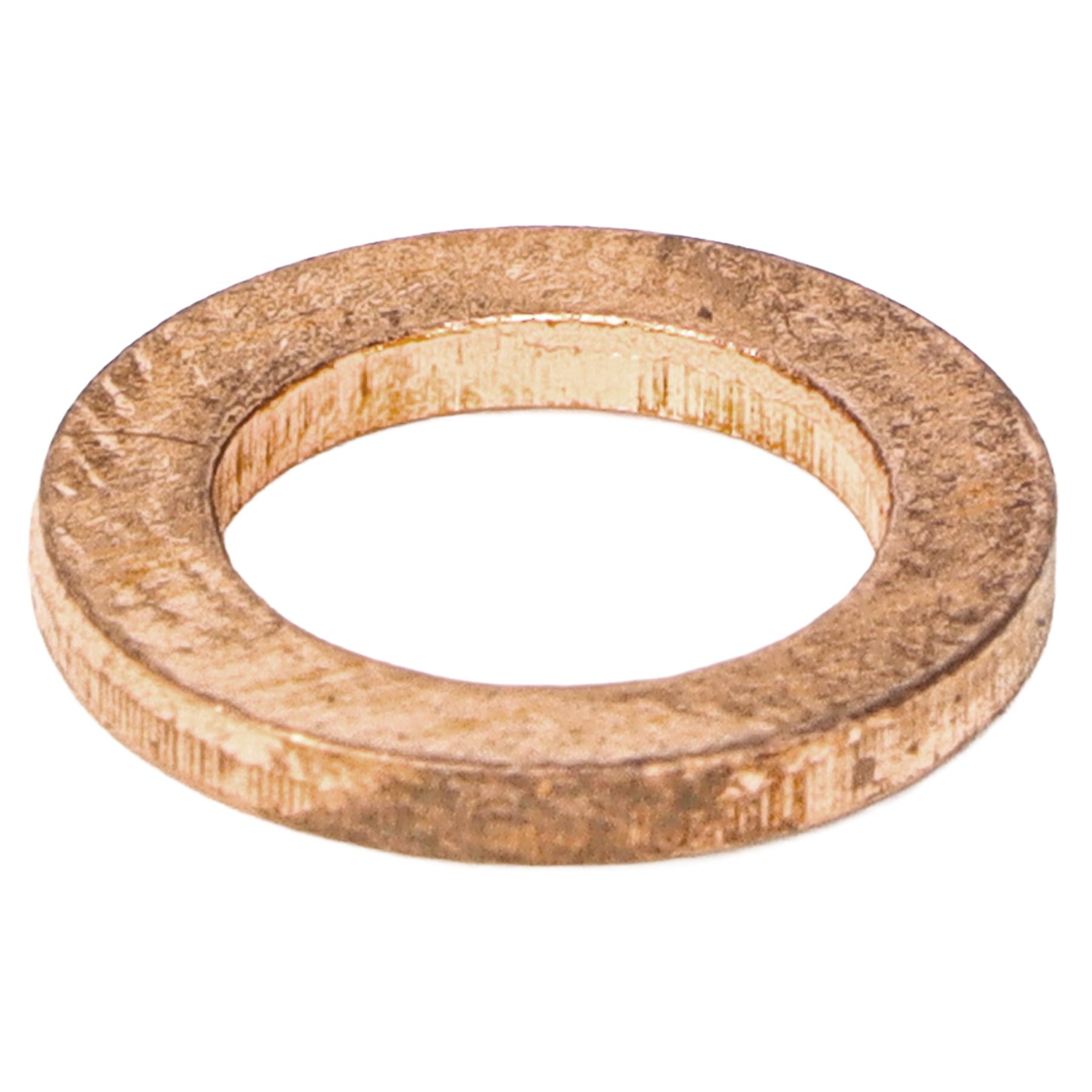

  • 5 WASHER

    WASHER

    • Part No. 15021-3366-1
    • T1.5
    • 2 shown on diagram
    $3.99

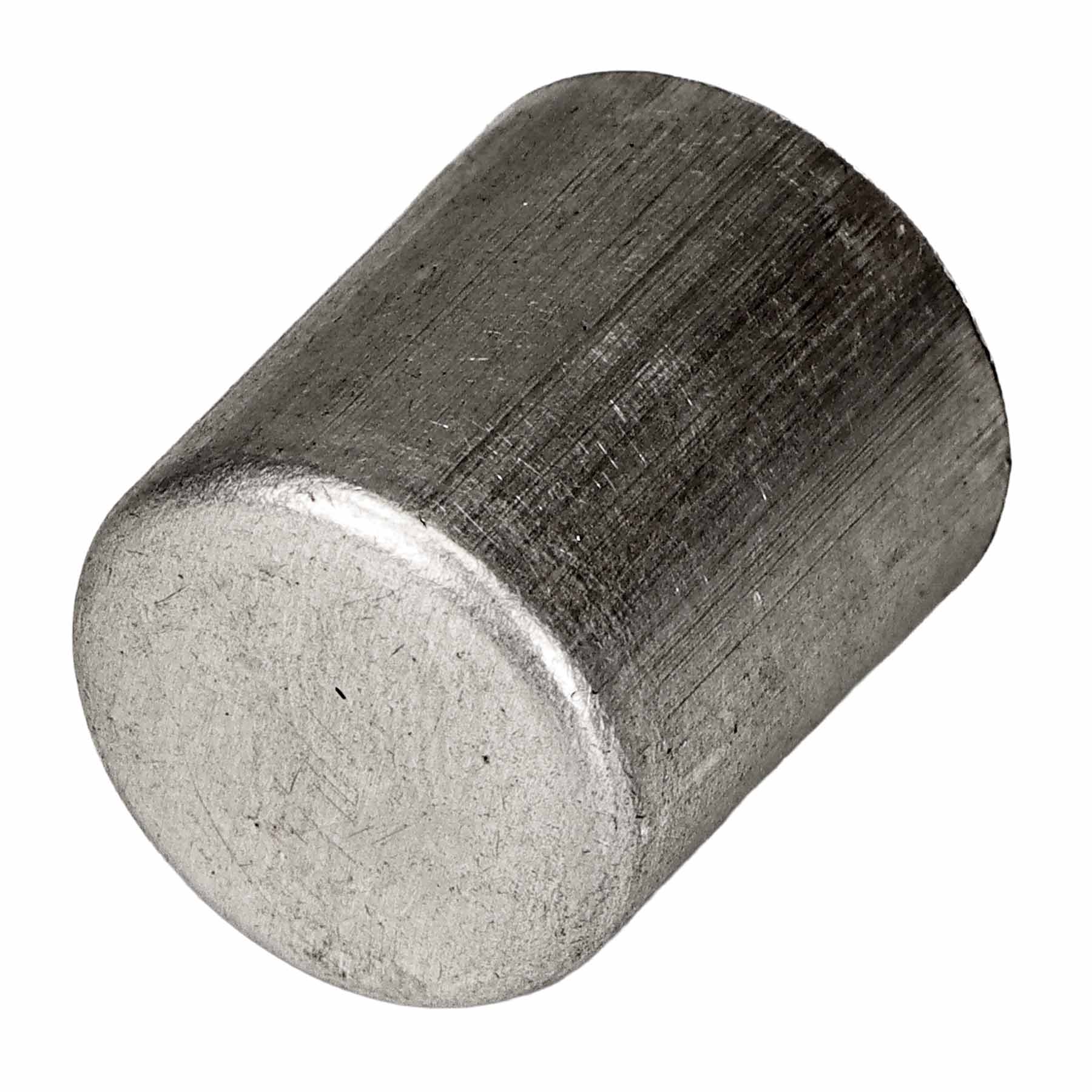

  • 6 CAP

    CAP

    • Part No. E5205-54271
    • Applied Dates Up to 2003-01-02
    • T0.5*60*60
    • * multiple options for #6
    • 1 shown on diagram
    $5.49
  • 6

    CAP

    • Part No. 15521-5427-1
    • Compatibility Call for compat
    • Applied Dates 2003-01-03 and up
    • DIA16*35,T0.5
    • * multiple options for #6
    • 1 shown on diagram
    $4.49

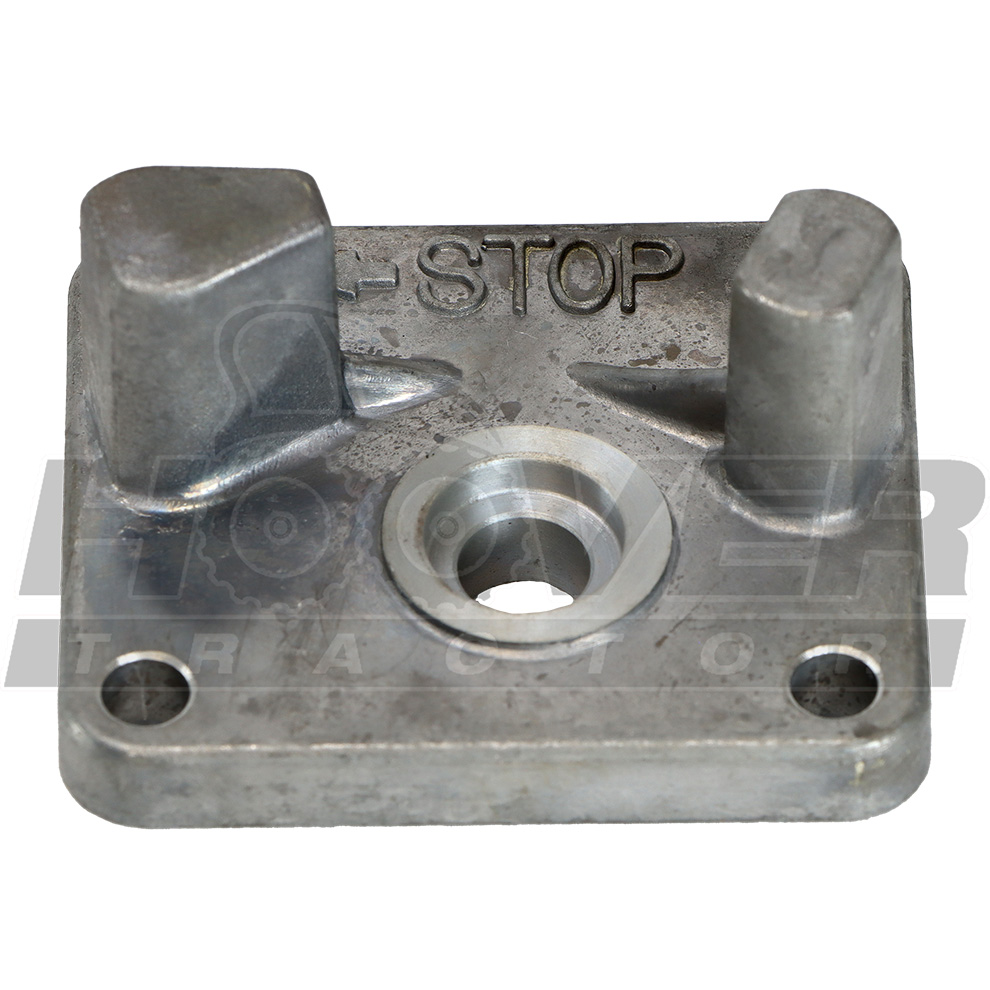

  • 7 COVER INJECTION PUMP

    COVER INJECTION PUMP

    • Part No. E5700-51652
    • Applied Dates Up to 2001-01-17
    • * multiple options for #7
    • 1 shown on diagram
    $11.99
  • 7

    Injection Pump Cover (E5700-51653)

    • Part No. E5700-51653
    • Compatibility New repl old
    • Applied Dates 2001-01-18 to 2001-04-15
    • * multiple options for #7
    • 1 shown on diagram
    $9.99
  • 7

    COVER,INJECTION PUMP

    • Part No. E5700-51654
    • Compatibility No interchange
    • Applied Dates 2001-04-16 and up
    • * multiple options for #7
    • 1 shown on diagram
    $23.99
  • 8

    OB LEVER,SHAFT

    • Part No. E5205-57722
    • Applied Dates Up to 2001-01-17
    • * multiple options for #8
    • 1 shown on diagram
    $9.99
  • 8

    Shaft Lever (E5700-57722)

    • Part No. E5700-57722
    • Compatibility Interchngable
    • Applied Dates 2001-01-18 to 2001-04-15
    • * multiple options for #8
    • 1 shown on diagram
    $11.99
  • 8

    Lever Shaft Replaced by E5752-57741

    • Part No. E5700-57723
    • Compatibility Old repl new
    • Applied Dates 2001-04-16 and up
    • * multiple options for #8
    • 1 shown on diagram
    $15.99

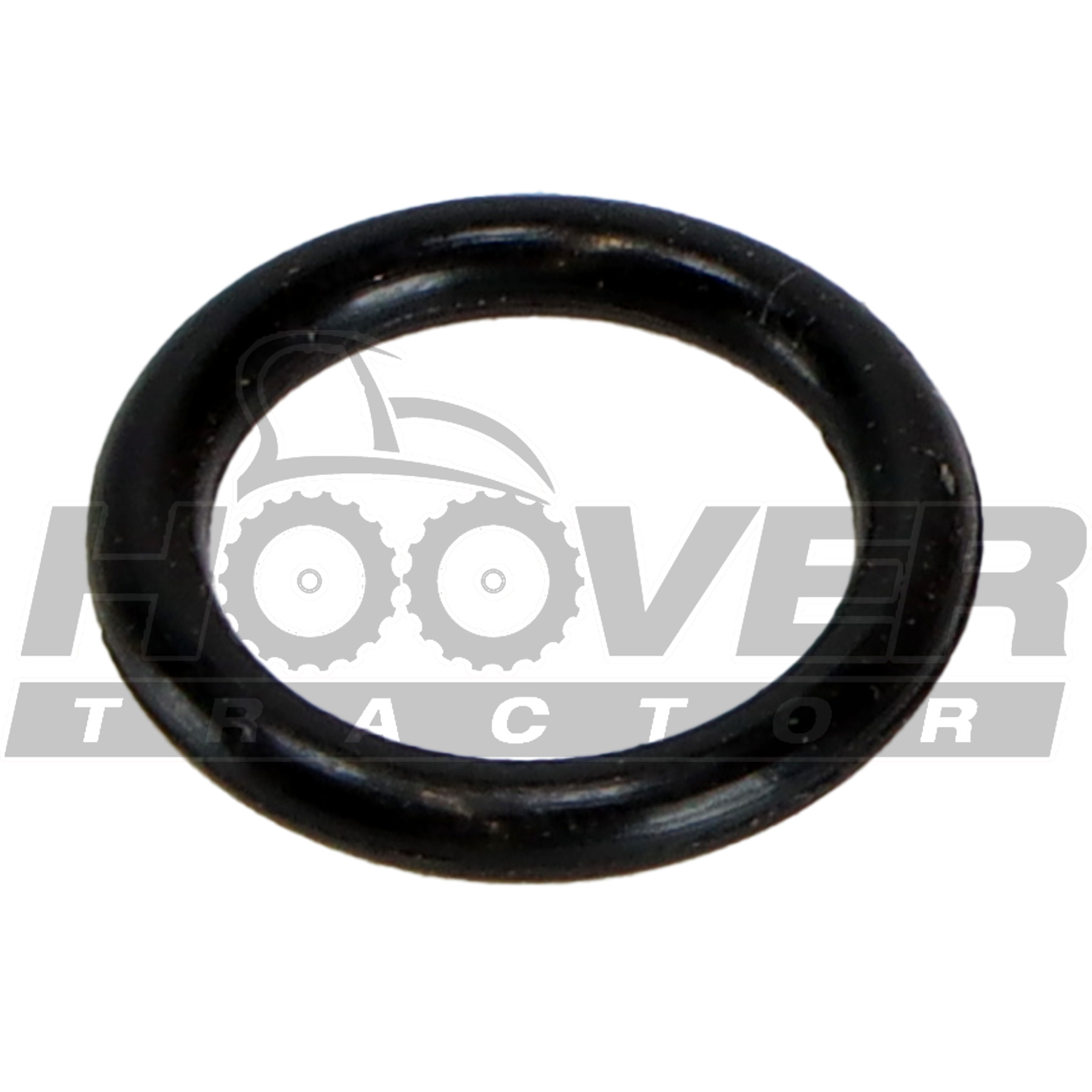

  • 9 O RING

    O RING

    • Part No. 04811-10080
    • Applied Dates 2001-01-18 to 2001-04-15
    • * multiple options for #9
    • 1 shown on diagram
    $0.73
  • 9

    SEAL, OIL

    • Part No. 15471-5798-1
    • Compatibility No interchange
    • Applied Dates 2001-04-16 and up
    • * multiple options for #9
    • 1 shown on diagram
    $7.99
  • 10

    SPRING

    • Part No. 15471-5792-1
    • Applied Dates Up to 2001-04-15
    • DIA1.2
    • * multiple options for #10
    • 1 shown on diagram
    $2.49

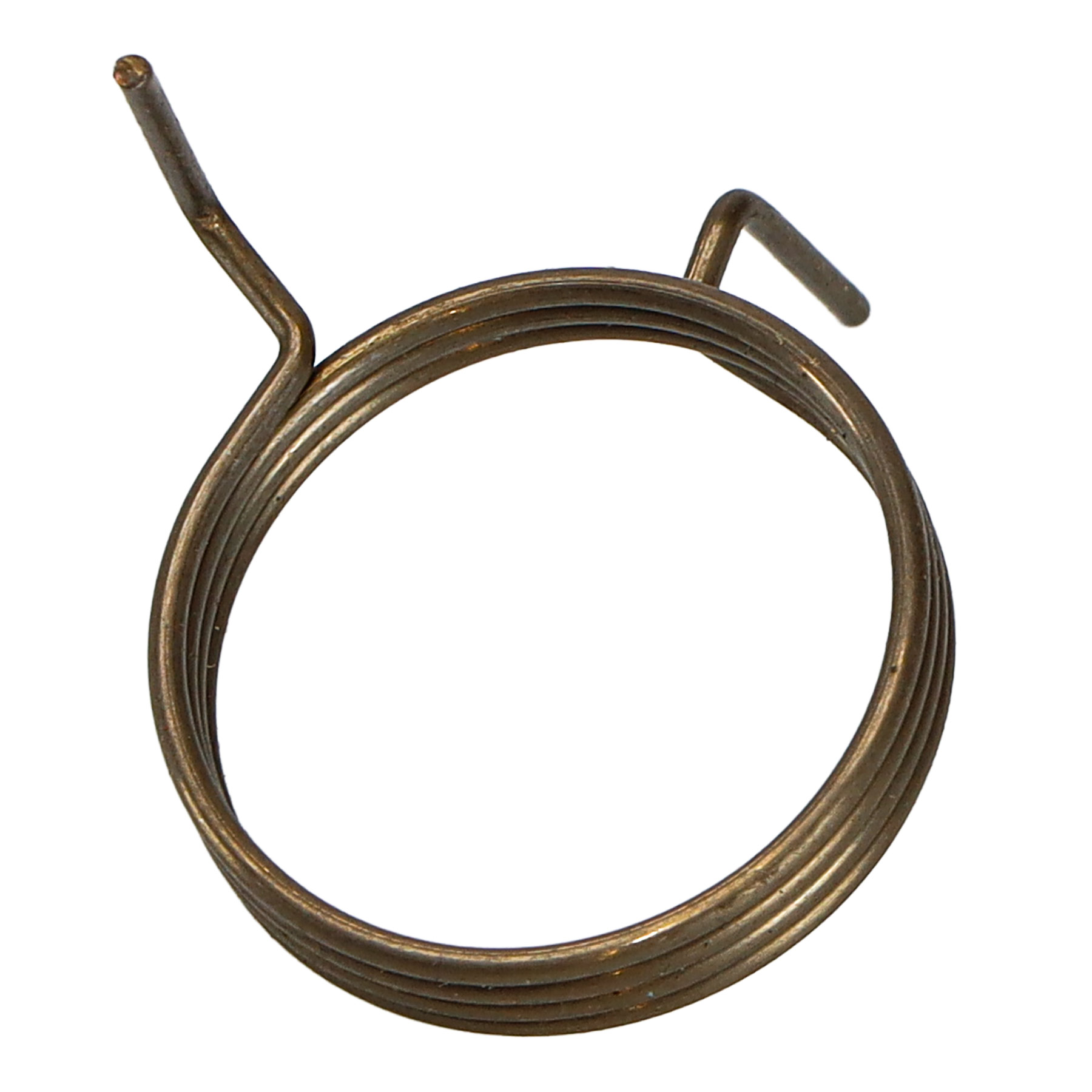

  • 10 SPRING

    SPRING

    • Part No. E6200-57922
    • Compatibility New repl old
    • Applied Dates 2001-04-16 and up
    • * multiple options for #10
    • 1 shown on diagram
    $4.49
  • 11

    LEVER,ENGINE STOP

    • Part No. E5205-57732
    • 1 shown on diagram
    $22.99
  • 12 PIN, SPRING

    PIN, SPRING

    • Part No. 05411-00420
    • DIA4.4XL20
    • 1 shown on diagram
    $0.68
  • 13

    BOLT w- WASHER

    • Part No. 01023-50618
    • M6XP1.0
    • 3 shown on diagram
    $1.79
  • 14

    BOLT, WASHER

    • Part No. 01023-50620
    • M6XP1.0
    • 1 shown on diagram
    $1.39
  • 15

    GASKET replaced by E5700-05132

    • Part No. 15231-0513-1
    • Applied Dates Up to 2002-11-17
    • T1.0*68*58
    • * multiple options for #15
    • 1 shown on diagram
    $0.00
  • 15

    GASKET v

    • Part No. E5700-05131
    • Compatibility New repl old
    • Applied Dates 2002-11-18 to 2006-08-25
    • T1.0*68*58
    • * multiple options for #15
    • 1 shown on diagram
    $1.49
  • 15

    GASKET

    • Part No. E5700-05132
    • Compatibility New repl old
    • Applied Dates 2006-08-26 and up
    • T1.0*68*58
    • * multiple options for #15
    • 1 shown on diagram
    $4.49
  • 16

    HOLDER,WIRE

    • Part No. E5205-57482
    • T2.8*55*20
    • 1 shown on diagram
    $4.99
  • 17

    SUPPORT SOLENOID

    • Part No. E5743-60111
    • Applied Dates 2002-11-18 and up
    • 1 shown on diagram
    $24.99
  • 18 Flat Washer M6

    Flat Washer M6

    • Part No. 04012-50060
    • Applied Dates 2003-09-22 and up
    • M6
    • 1 shown on diagram
    $0.67
  • 19

    LEVER, ENGINE STOP obs

    • Part No. E5205-32641
    • Applied Dates 2002-11-18 and up
    • 1 shown on diagram
    $7.99
  • 20

    LEVER 2, STOP

    • Part No. 15471-6016-2
    • Applied Dates 2002-11-18 and up
    • 1 shown on diagram
    $6.49
  • 21 Flat Washer M6

    Flat Washer M6

    • Part No. 04012-50060
    • Applied Dates 2002-11-18 and up
    • M6
    • 3 shown on diagram
    $0.67
  • 22

    PIN, SNAP

    • Part No. 05525-50600
    • Applied Dates 2002-11-18 and up
    • DIA6
    • 3 shown on diagram
    $1.19
  • 23

    Engine Stop Solenoid, Replaced by E5753-60015

    • Part No. E5753-60013
    • Applied Dates 2002-11-18 to 2003-04-08
    • Serial No. Up to 319500120
    • * multiple options for #23
    • 1 shown on diagram
    $0.00
  • 23

    Engine Stop Solenoid, Replaced by E5753-60015

    • Part No. E5753-60014
    • Compatibility New repl old
    • Applied Dates 2003-04-09 to 2003-12-09
    • Serial No. 319500121 and up
    • * multiple options for #23
    • 1 shown on diagram
    $0.00
  • 23 Engine Stop Solenoid

    Engine Stop Solenoid

    • Part No. E5753-60015
    • Compatibility Interchngable
    • Applied Dates 2003-12-10 and up
    • Serial No. D19500001 and up
    • * multiple options for #23
    • 1 shown on diagram
    $159.99
  • 24 Kioti Flange Nut, M8 P1.25

    Kioti Flange Nut, M8 P1.25

    • Part No. 02751-50080
    • Applied Dates 2002-11-18 and up
    • M8XP1.25
    • 2 shown on diagram
    $0.67
