FLYWHEEL GROUP - TD950C-E120B

Kioti TRACTOR | CK Series | CK20H

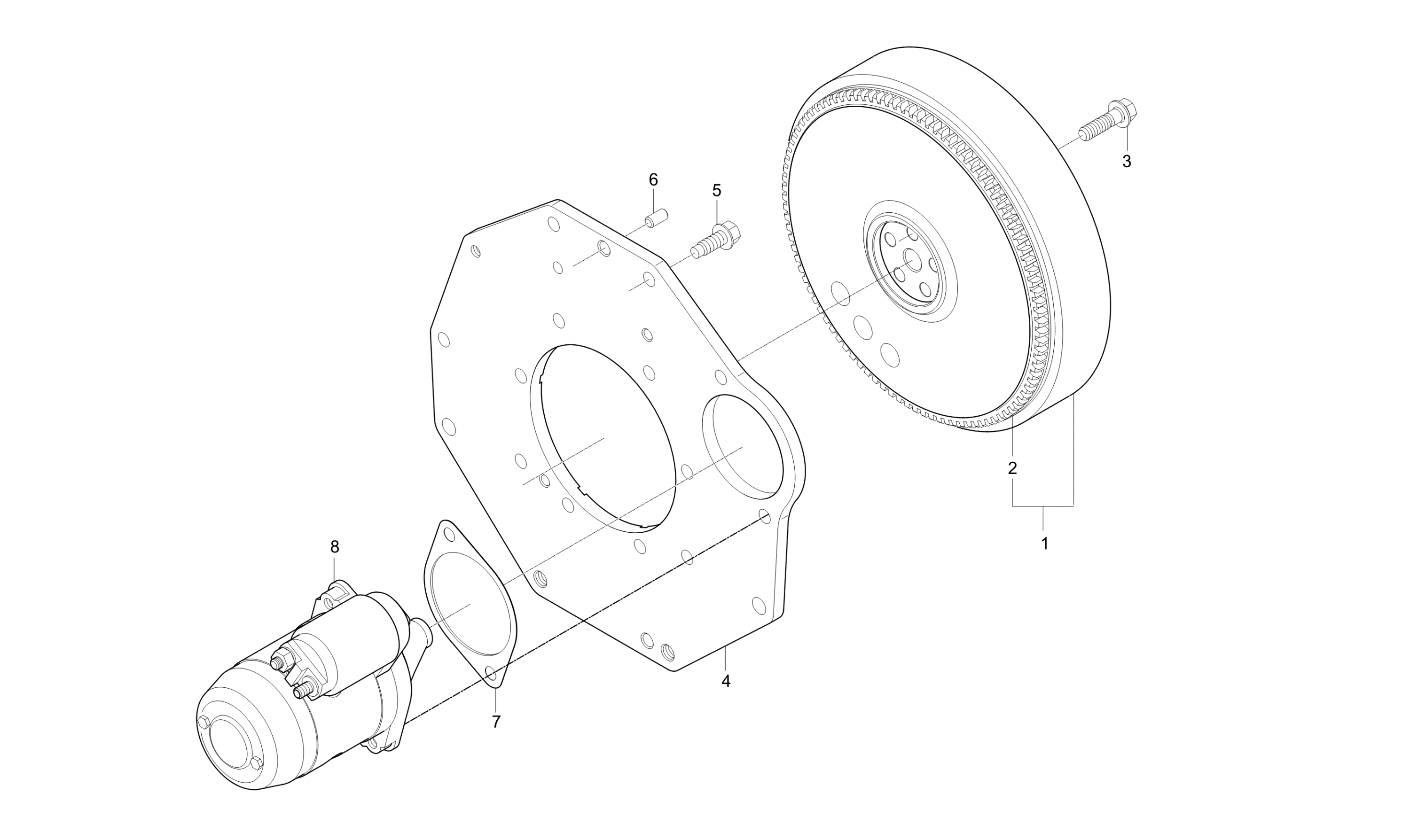

Diagram for FLYWHEEL GROUP - TD950C-E120B
  • 1

    OB ASSY, FLY WHEEL

    • Part No. E5205-25012
    • Applied Dates 1998-05-14 to 1999-12-23
    • * multiple options for #1
    • 1 shown on diagram
    $499.99
  • 1

    Flywheel (E5700-25013)

    • Part No. E5700-25013
    • Compatibility New repl old
    • Applied Dates 1999-12-24 to 2003-01-02
    • * multiple options for #1
    • 1 shown on diagram
    $549.99
  • 1

    FLYWHEEL ASSEMBLY v

    • Part No. E5700-25014
    • Compatibility Call for compat
    • Applied Dates 2003-01-03 to 2005-06-27
    • * multiple options for #1
    • 1 shown on diagram
    $624.99
  • 1

    ASS’Y FLYWHEEL

    • Part No. E5700-25015
    • Compatibility New repl old
    • Applied Dates 2005-06-28 and up
    • * multiple options for #1
    • 1 shown on diagram
    $494.99
  • 2

    GEAR,RING

    • Part No. E5205-63821
    • 1 shown on diagram
    $124.99
  • 3

    HOOD, INSTRUMENT obs v

    • Part No. E5205-25161
    • Applied Dates Up to 1993-10-07
    • HEX17.M10*1.25
    • * multiple options for #3
    • 5 shown on diagram
    $9.99
  • 3

    BOLT,FLYWHEEL

    • Part No. E5700-25162
    • Compatibility Call for compat
    • Applied Dates 1993-10-08 to 1997-09-07
    • HEX17,M10*1.25
    • * multiple options for #3
    • 5 shown on diagram
    $9.99
  • 3

    BOLT FLYWHEEL

    • Part No. E5700-25163
    • Compatibility Interchngable
    • Applied Dates 1997-09-08 and up
    • * multiple options for #3
    • 5 shown on diagram
    $9.99
  • 4

    OB REAR END PLATE

    • Part No. E5205-04622
    • Applied Dates Up to 1996-01-15
    • * multiple options for #4
    • 1 shown on diagram
    $129.99
  • 4

    PLATE,ENGINE REAR v

    • Part No. E5700-04612
    • Compatibility New repl old
    • Applied Dates 1996-01-16 to 2004-11-15
    • * multiple options for #4
    • 1 shown on diagram
    $164.99
  • 4

    REAR END PLATE

    • Part No. E5700-04613
    • Compatibility Interchngable
    • Applied Dates 2004-11-16 and up
    • T10
    • * multiple options for #4
    • 1 shown on diagram
    $139.99

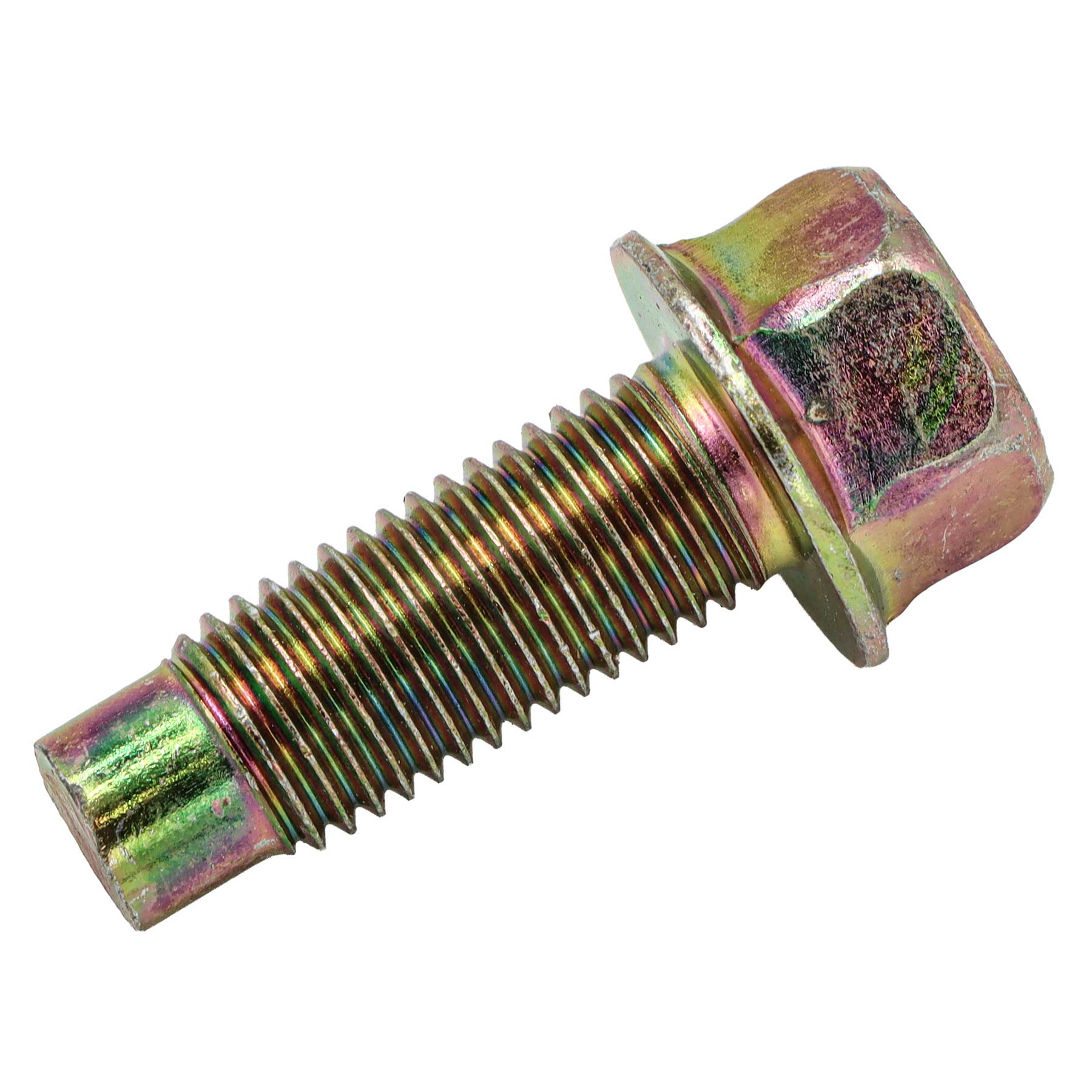

  • 5 BOLT

    BOLT

    • Part No. 01674-51028
    • Applied Dates 1994-04-06 to 2003-09-25
    • * multiple options for #5
    • 10 shown on diagram
    $1.29
  • 5

    BOLT, FLANGE WITH PIN

    • Part No. E5752-91141
    • Compatibility New repl old
    • Applied Dates 2003-09-26 and up
    • M10*1.25
    • * multiple options for #5
    • 10 shown on diagram
    $2.49
  • 6

    PIN, PARALLEL

    • Part No. 05012-00814
    • DIA10*20
    • 2 shown on diagram
    $1.49
  • 7

    GASKET V

    • Part No. E5700-51161
    • Applied Dates Up to 2006-08-25
    • T0.5
    • * multiple options for #7
    • 1 shown on diagram
    $1.39
  • 7

    GASKET V

    • Part No. E5700-51162
    • Compatibility New repl old
    • Applied Dates 2006-08-26 to 2008-09-05
    • T0.5
    • * multiple options for #7
    • 1 shown on diagram
    $6.49
  • 8

    ASSY,MOTER STARTER

    • Part No. E5205-63012
    • Applied Dates Up to 2003-01-13
    • * multiple options for #8
    • 1 shown on diagram
    $579.99
  • 8

    STARTER ASSEMBLY v, Replaced by E5753-63012

    • Part No. E5753-63011
    • Compatibility No interchange
    • Applied Dates 2003-01-14 to 2003-09-02
    • Serial No. 319500001 to 319500120
    • * multiple options for #8
    • 1 shown on diagram
    $0.00
  • 8

    ASS Y STARTER MOTOR

    • Part No. E5753-63012
    • Compatibility Interchngable
    • Applied Dates 2003-09-03 and up
    • Serial No. 319500121 and up
    • * multiple options for #8
    • 1 shown on diagram
    $614.99
