PISTON & CRANKSHAFT GROUP - TD950C-E110B

Kioti TRACTOR | CK Series | CK20H

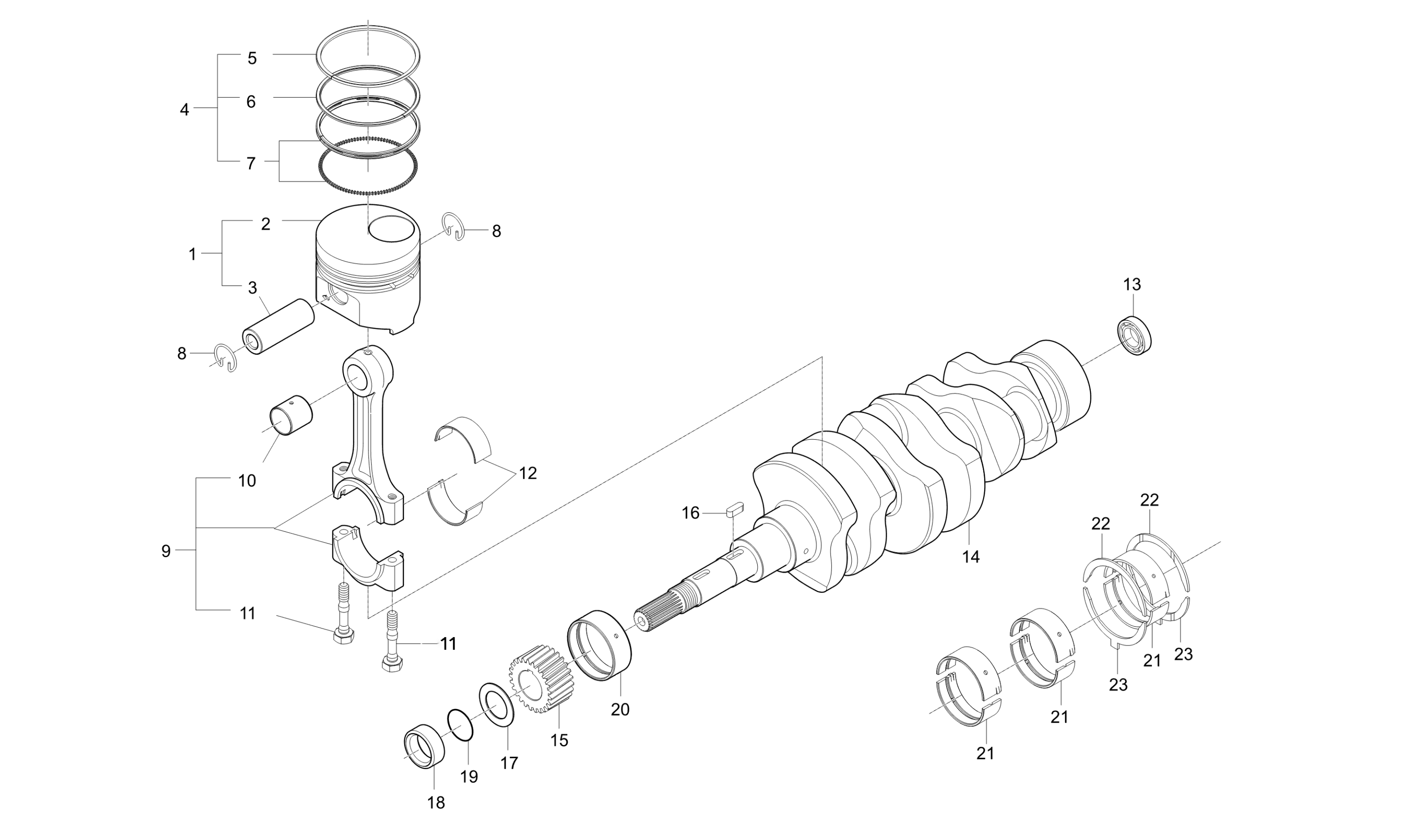

Diagram for PISTON & CRANKSHAFT GROUP - TD950C-E110B
  • 1

    Piston Assembly Replaced by E5700-21015

    • Part No. E5700-21014
    • Applied Dates 1999-12-24 to 2000-06-21
    • * multiple options for #1
    • 3 shown on diagram
    $76.99
  • 1

    Piston Assembly (E5700-21015)

    • Part No. E5700-21015
    • Compatibility New repl old
    • * multiple options for #1
    • 3 shown on diagram
    $134.99
  • 2

    PISTON

    • Part No. E5700-21117
    • Applied Dates 1999-12-24 to 2000-06-21
    • * multiple options for #2
    • 3 shown on diagram
    $0.00
  • 2

    PISTON

    • Part No. E5700-21118
    • Compatibility New repl old
    • * multiple options for #2
    • 3 shown on diagram
    $67.99
  • 3

    PIN,PISTON

    • Part No. E5205-21311
    • 3 shown on diagram
    $21.99
  • 4

    ASSY,RING PISTON v

    • Part No. E5700-21054
    • Applied Dates 1993-03-25 to 1995-01-15
    • * multiple options for #4
    • 3 shown on diagram
    $63.99

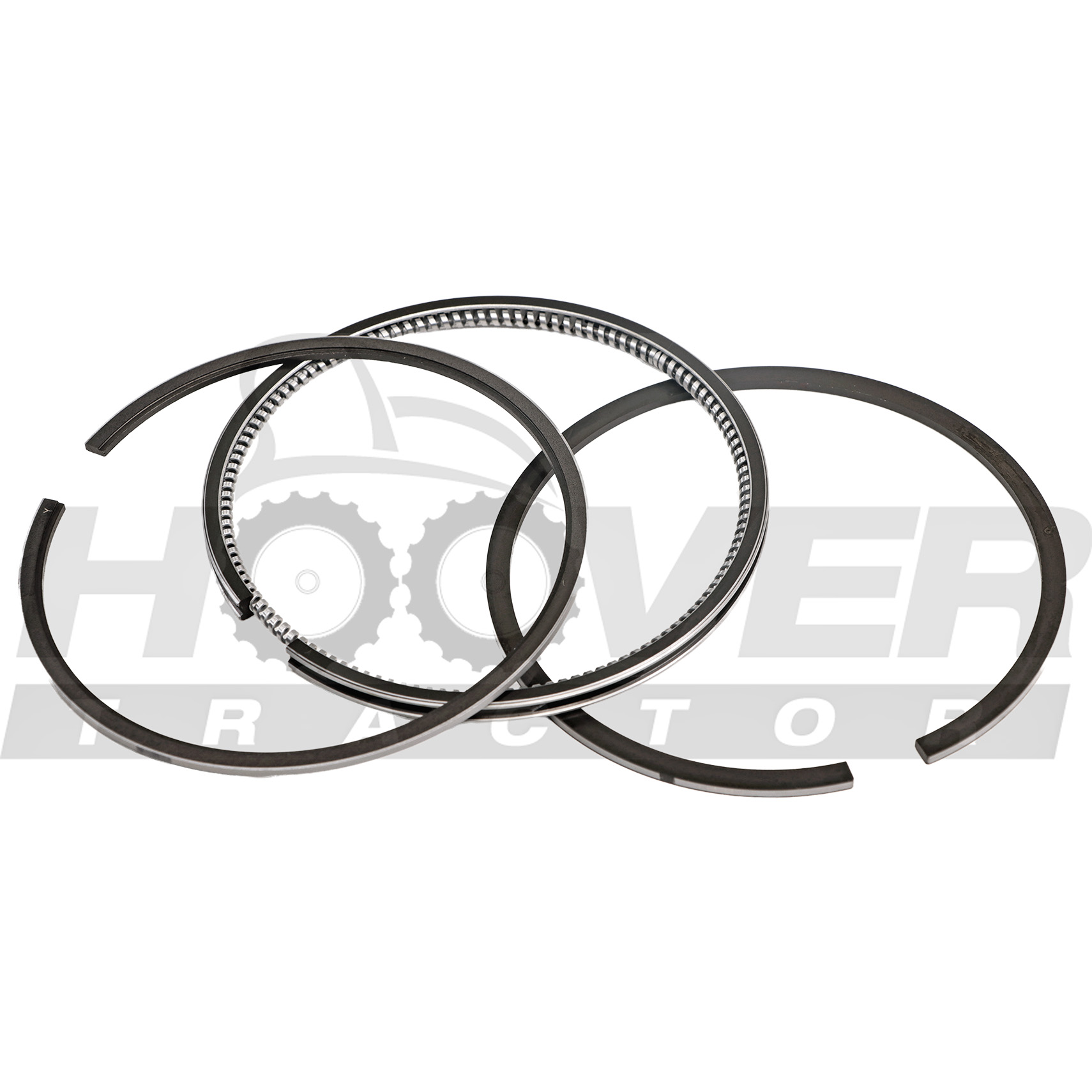

  • 4 ASSY,RING PISTON

    ASSY,RING PISTON

    • Part No. E5700-21055
    • Compatibility New repl old
    • * multiple options for #4
    • 3 shown on diagram
    $194.99
  • 5

    RING 1, PISTON dnr v

    • Part No. E5700-21004
    • Applied Dates 1993-03-25 to 1995-01-15
    • * multiple options for #5
    • 3 shown on diagram
    $23.99

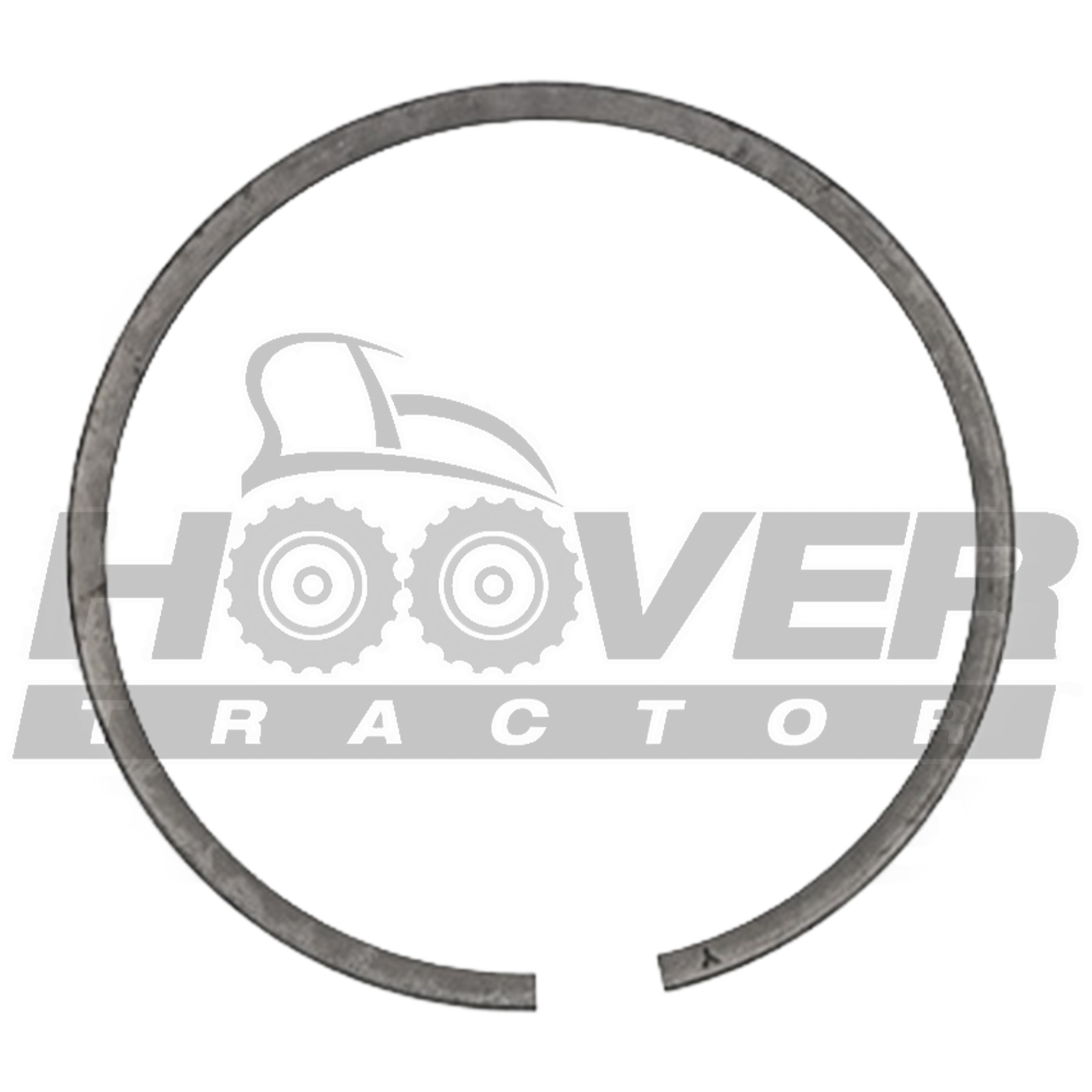

  • 5 RING 1, PISTON

    RING 1, PISTON

    • Part No. E5700-21005
    • Compatibility New repl old
    • Applied Dates 1995-01-16 and up
    • * multiple options for #5
    • 3 shown on diagram
    $27.99
  • 6

    RING 2, PISTON

    • Part No. E5700-21104
    • Applied Dates 1993-03-25 to 1995-01-15
    • * multiple options for #6
    • 3 shown on diagram
    $14.99
  • 6

    RING 2, PISTON

    • Part No. E5700-21105
    • Compatibility New repl old
    • Applied Dates 1995-01-16 and up
    • * multiple options for #6
    • 3 shown on diagram
    $23.99
  • 7

    ASSY OIL RING-ST dnr v

    • Part No. E5700-21152
    • Applied Dates Up to 1993-03-24
    • * multiple options for #7
    • 3 shown on diagram
    $18.99
  • 7

    ASSY, RING OIL v

    • Part No. E5700-21153
    • Compatibility New repl old
    • * multiple options for #7
    • 3 shown on diagram
    $36.99
  • 8

    SNAP RING

    • Part No. E5205-21331
    • DIA1.6
    • 6 shown on diagram
    $1.89
  • 9

    ASSY ROD CONNECTING

    • Part No. E5700-22015
    • Applied Dates 1997-12-30 to 1998-05-17
    • * multiple options for #9
    • 3 shown on diagram
    $474.99
  • 9

    ASSY ROD, CONNECTING

    • Part No. E5700-22016
    • Compatibility New repl old
    • Applied Dates 1998-05-18 to 2007-05-20
    • * multiple options for #9
    • 3 shown on diagram
    $474.99
  • 9

    CON ROD ASSEMBLY dnr v

    • Part No. E5700-22017
    • Compatibility Interchngable
    • Applied Dates 2007-05-21 to 2007-11-22
    • * multiple options for #9
    • 3 shown on diagram
    $379.99
  • 9

    CON ROD ASSEMBLY v

    • Part No. E5700-22018
    • Compatibility Interchngable
    • * multiple options for #9
    • 3 shown on diagram
    $369.99
  • 10

    BUSH,PISTON PIN

    • Part No. E5205-21352
    • Applied Dates 1997-08-22 to 1997-11-16
    • * multiple options for #10
    • 3 shown on diagram
    $3.99
  • 10

    Piston Pin Bushing Replaced by E5205-21354 (E5205-21353)

    • Part No. E5205-21353
    • Compatibility New repl old
    • Applied Dates 1997-11-17 to 1998-05-17
    • * multiple options for #10
    • 3 shown on diagram
    $7.99
  • 10

    Piston Pin Bushing (E5205-21354)

    • Part No. E5205-21354
    • Compatibility Interchngable
    • * multiple options for #10
    • 3 shown on diagram
    $17.99
  • 11

    BOLT,CONNECT ROD V

    • Part No. E5205-22141
    • Applied Dates Up to 2007-05-20
    • HEX13.M7*0.75
    • * multiple options for #11
    • 6 shown on diagram
    $9.99
  • 11

    BOLT, ROD V

    • Part No. E5700-22141
    • Compatibility Interchngable
    • Applied Dates 2007-05-21 to 2007-11-22
    • * multiple options for #11
    • 6 shown on diagram
    $6.49
  • 11

    BOLT, CONNECTING ROD (E5760-22143)

    • Part No. E5760-22143
    • Compatibility Interchngable
    • * multiple options for #11
    • 6 shown on diagram
    $9.99

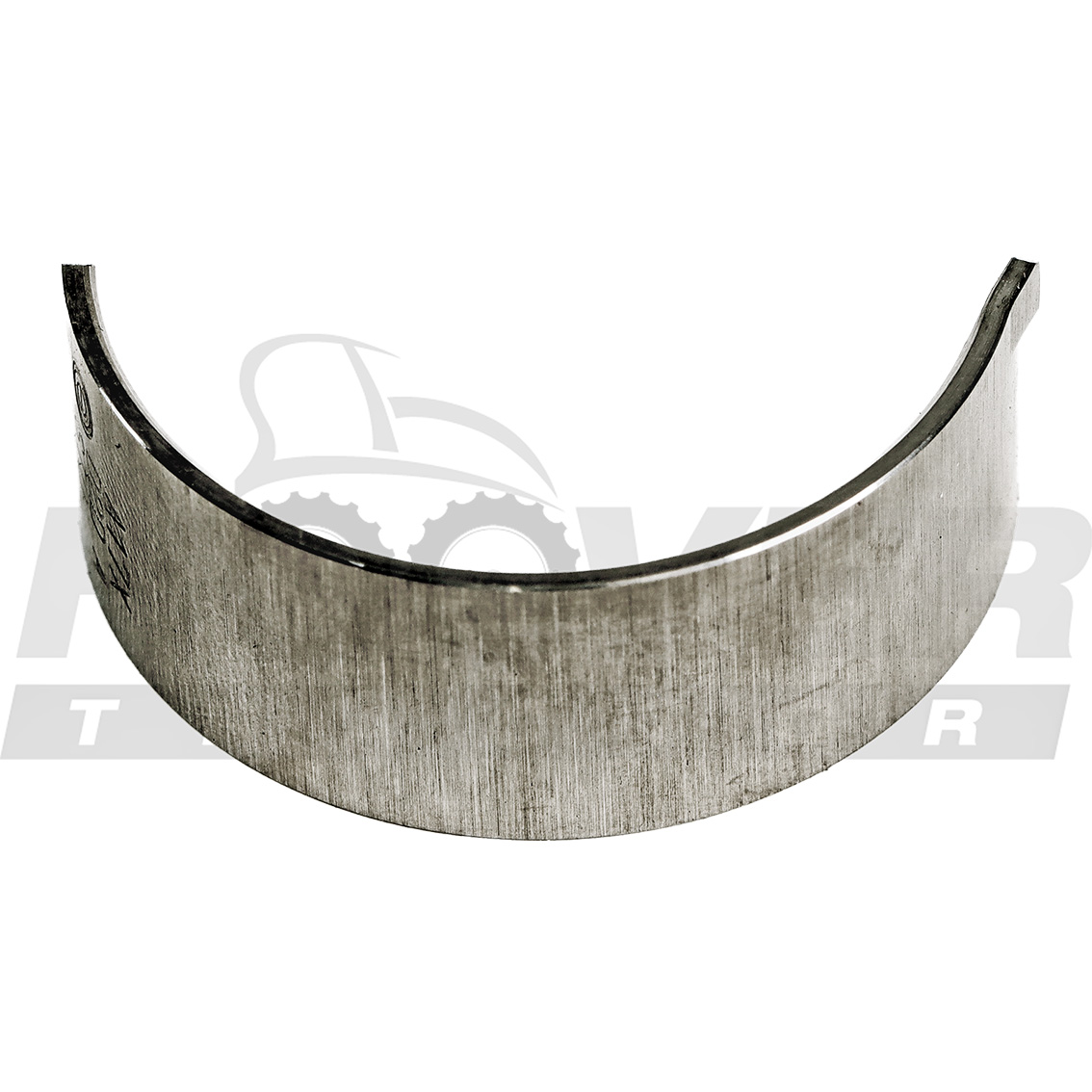

  • 12 METAL V (E5205-22313)

    METAL V (E5205-22313)

    • Part No. E5205-22313
    • 6 shown on diagram
    $13.99
  • 13

    BEARING,BALL

    • Part No. 08121-06001
    • #6001ZZ
    • 1 shown on diagram
    $12.99
  • 14

    CRANK SHAFT ASS’Y v

    • Part No. E5700-A0101
    • * multiple options for #14
    • 1 shown on diagram
    $1,334.99
  • 14

    ASSY,CRANK SHAFT v

    • Part No. E5700-A0102
    • Compatibility New repl old
    • * multiple options for #14
    • 1 shown on diagram
    $1,599.99
  • 14

    CRANKSHAFT ASSY v

    • Part No. E5700-A0103
    • Compatibility New repl old
    • * multiple options for #14
    • 1 shown on diagram
    $2,194.99
  • 15

    GEAR,CRANK SHAFT v

    • Part No. E5205-24111
    • Applied Dates Up to 1999-04-22
    • * multiple options for #15
    • 1 shown on diagram
    $32.99
  • 15

    GEAR, CRANKSHAFT

    • Part No. E5205-24112
    • Compatibility Interchngable
    • * multiple options for #15
    • 1 shown on diagram
    $64.99
  • 16

    KEY

    • Part No. 05712-00515
    • 1 shown on diagram
    $4.49
  • 17

    SLINGER, OIL

    • Part No. E5205-23311
    • T1.0*37*37
    • 1 shown on diagram
    $5.99
  • 18

    SPACER dnr v

    • Part No. E5205-23251
    • Applied Dates Up to 2003-05-22
    • DIA32*18
    • * multiple options for #18
    • 1 shown on diagram
    $11.99
  • 18

    SPACER v

    • Part No. E5700-23252
    • Compatibility Interchngable
    • * multiple options for #18
    • 1 shown on diagram
    $24.99
  • 19 O RING

    O RING

    • Part No. 04811-10220
    • 1 shown on diagram
    $0.79
  • 20

    METAL,CRANK SHAFT1

    • Part No. E5205-23473
    • 1 shown on diagram
    $31.99
  • 21

    METAL 2,CRANK SHAFT v

    • Part No. E5205-23483
    • 6 shown on diagram
    $13.99
  • 22

    METAL,SIDE 1

    • Part No. E5205-23531
    • 2 shown on diagram
    $14.99
  • 23

    METAL,SIDE 2

    • Part No. E5205-23541
    • 2 shown on diagram
    $15.99
