TRANSMISSION CASE GROUP - CK20H-T170A

Kioti TRACTOR | CK Series | CK20HJ

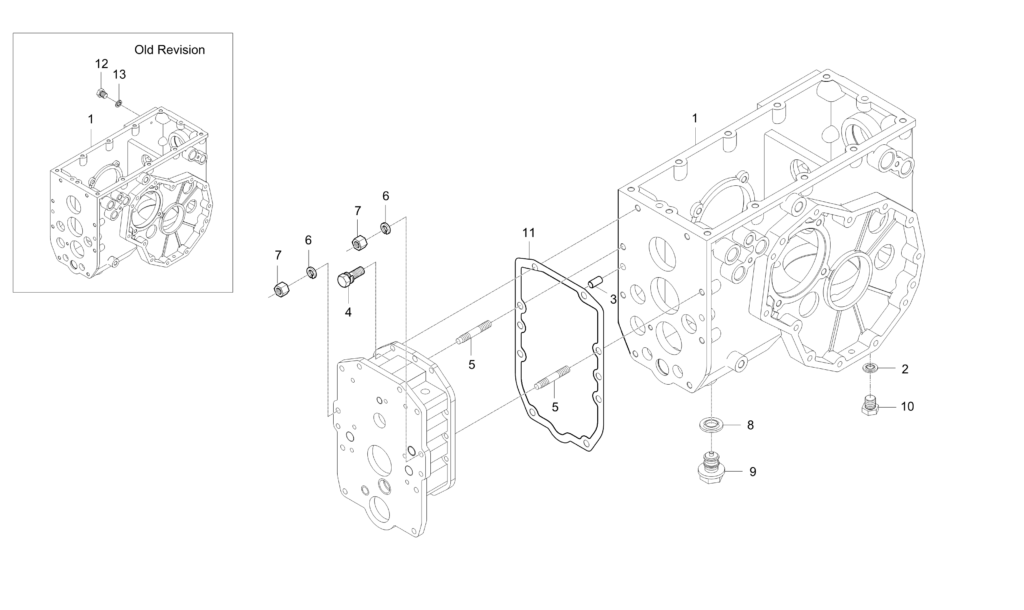

Diagram for TRANSMISSION CASE GROUP - CK20H-T170A
  • 1

    TRANSMISSION CASE

    • Part No. T2350-21112
    • Applied Dates Up to 2003-05-01
    • * multiple options for #1
    • 1 shown on diagram
    $794.99
  • 1

    CASE, TRANSMISSION

    • Part No. T2350-21113
    • Compatibility Interchngable
    • Applied Dates 2003-05-02 to 2004-10-24
    • * multiple options for #1
    • 1 shown on diagram
    $794.99
  • 1

    CASE,TRANSMISSION

    • Part No. T2350-21114
    • Compatibility Interchngable
    • Applied Dates 2004-10-25 to 2005-04-06
    • * multiple options for #1
    • 1 shown on diagram
    $924.99
  • 1

    CASE,TRANSMISSION

    • Part No. T2350-21115
    • Compatibility Interchngable
    • Applied Dates 2005-04-07 to 2006-11-01
    • Serial No. Up to F19600480
    • * multiple options for #1
    • 1 shown on diagram
    $794.99
  • 1
    • Part No. T2350-21116
    • Compatibility New repl old
    • Applied Dates 2006-11-02 and up
    • Serial No. G19600001 and up
    • * multiple options for #1
    • 1 shown on diagram
  • 1

    AIRCON SET ASSY

    • Part No. T2350-21118
    • Compatibility Interchngable
    • * multiple options for #1
    • 1 shown on diagram
    $1,724.99
  • 1

    CASE, TRANSMISSION

    • Part No. T2350-21119
    • Compatibility Call for compat
    • * multiple options for #1
    • 1 shown on diagram
    $1,299.99
  • 2 WASHER, SEAL M10

    WASHER, SEAL M10

    • Part No. 04717-01000
    • M10
    • 2 shown on diagram
    $1.99
  • 3

    PIN, STRAIGHT

    • Part No. 05012-01020
    • DIA10XL20
    • 2 shown on diagram
    $1.79
  • 4

    WASHER BOLT

    • Part No. 01133-51035
    • M10XP1.25
    • 6 shown on diagram
    $3.49
  • 5

    STUD

    • Part No. 01517-51030
    • 2 shown on diagram
    $4.99
  • 6 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50100
    • M10
    • 2 shown on diagram
    $0.79
  • 7 Nut M10 P1.25

    Nut M10 P1.25

    • Part No. 02176-50100
    • M10XP1.25
    • 2 shown on diagram
    $0.98
  • 8 WASHER, SEAL

    WASHER, SEAL

    • Part No. 04717-02650
    • PS3/4
    • 1 shown on diagram
    $5.99
  • 9

    PLUG,DRAIN

    • Part No. T4260-14271
    • Applied Dates Up to 2007-01-16
    • * multiple options for #9
    • 1 shown on diagram
    $39.99
  • 9 PLUG

    PLUG

    • Part No. T4125-14261
    • Compatibility Interchngable
    • * multiple options for #9
    • 1 shown on diagram
    $39.99
  • 10 PLUG M10XP1.25

    PLUG M10XP1.25

    • Part No. 06331-35010
    • M10XP1.25
    • 2 shown on diagram
    $4.49
  • 11 PACKING

    PACKING

    • Part No. T2350-21131
    • Applied Dates Up to 2006-11-01
    • T0.5
    • 1 shown on diagram
    $11.99
  • 12
    • Part No. 06331-45010
    • M10XP1.25
    • 1 shown on diagram
  • 13 WASHER, SEAL M10

    WASHER, SEAL M10

    • Part No. 04717-01000
    • M10
    • 1 shown on diagram
    $1.99
