MAIN SHAFT GROUP - CK20H-T180A

Kioti TRACTOR | CK Series | CK20HJ

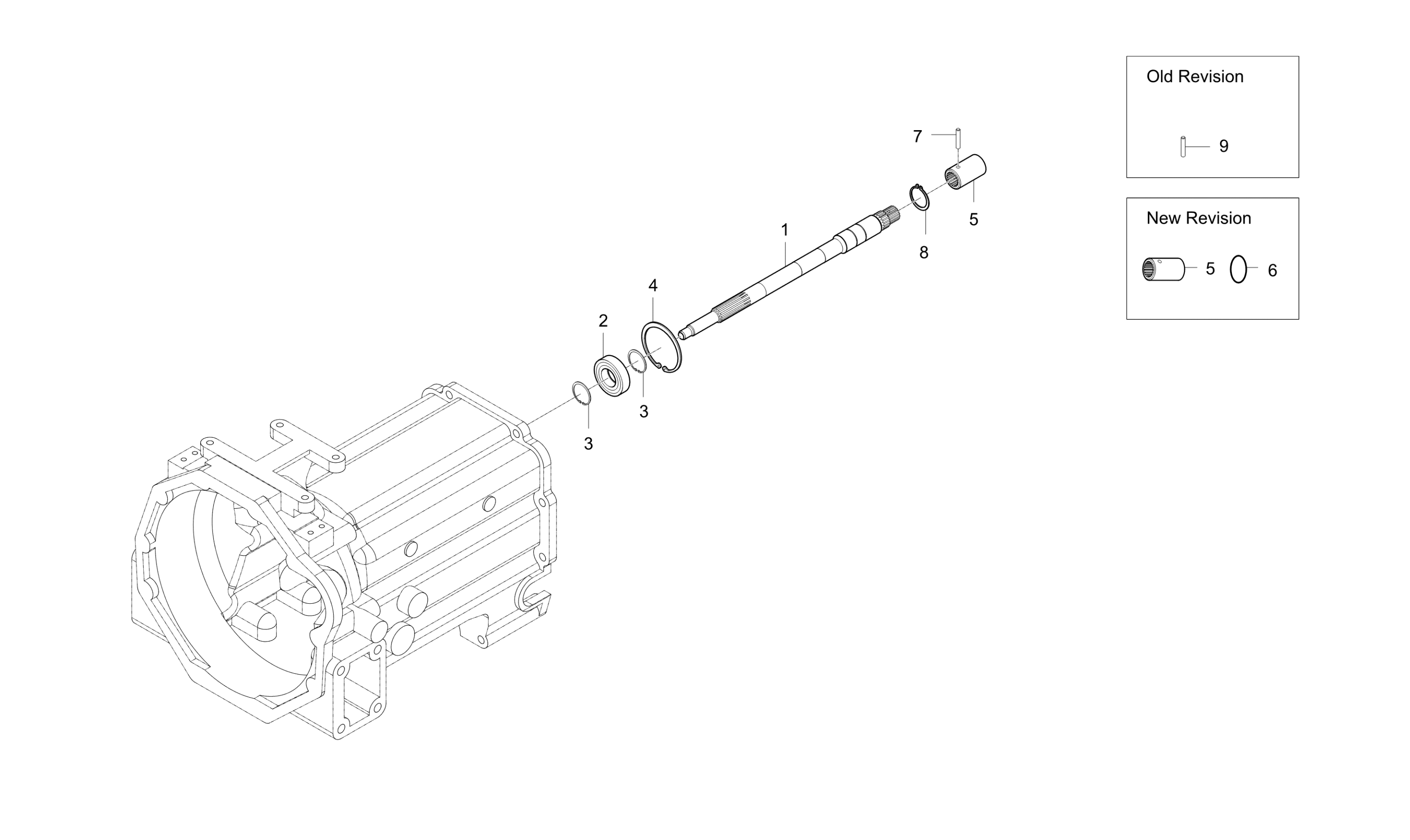

Diagram for MAIN SHAFT GROUP - CK20H-T180A
  • 1

    SHAFT,MAIN

    • Part No. T2350-21621
    • Applied Dates Up to 2004-09-02
    • Serial No. Up to 319600820
    • * multiple options for #1
    • 1 shown on diagram
    $174.99
  • 1

    SHAFT, MAIN v

    • Part No. T2350-21622
    • Compatibility No interchange
    • Applied Dates 2004-09-03 to 2005-04-06
    • Serial No. 319600821 and up
    • * multiple options for #1
    • 1 shown on diagram
    $97.99
  • 1

    SHAFT,MAIN v

    • Part No. T2350-21623
    • Compatibility New repl old
    • Applied Dates 2005-04-07 to 2005-10-18
    • Serial No. Up to F19600100
    • * multiple options for #1
    • 1 shown on diagram
    $239.99
  • 1

    SHAFT,MAIN v

    • Part No. T2350-21624
    • Compatibility No interchange
    • Applied Dates 2005-10-19 to 2008-07-20
    • Serial No. F19600101 and up
    • * multiple options for #1
    • 1 shown on diagram
    $129.99
  • 2

    BEARING,BALL

    • Part No. 08141-06205
    • Applied Dates Up to 2005-10-18
    • #6205UU
    • * multiple options for #2
    • 1 shown on diagram
    $21.99
  • 2

    BEARING,BALL

    • Part No. 08141-06205
    • Compatibility Interchngable
    • Applied Dates 2005-10-19 and up
    • #6205UU
    • * multiple options for #2
    • 2 shown on diagram
    $21.99
  • 3 CIR-CLIP

    CIR-CLIP

    • Part No. 04612-00250
    • DIA25
    • 2 shown on diagram
    $1.09
  • 4 CIR-CLIP

    CIR-CLIP

    • Part No. 04611-00520
    • DIA52
    • 1 shown on diagram
    $2.49

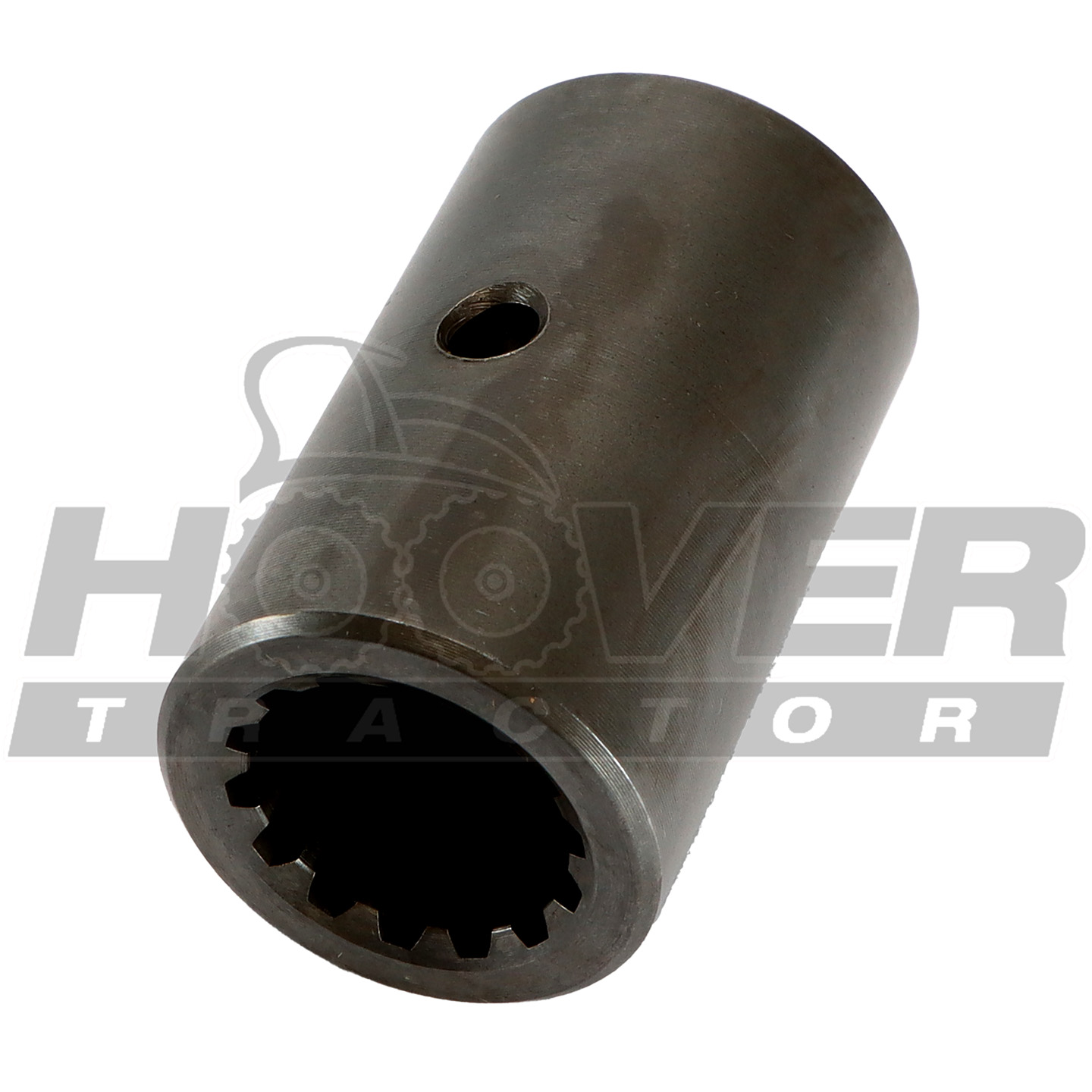

  • 5 COUPLING

    COUPLING

    • Part No. 44512-1373-3
    • Applied Dates 2004-09-08 to 2004-09-02
    • Serial No. Up to 319600820
    • * multiple options for #5
    • 1 shown on diagram
    $39.99
  • 5

    COUPLING dnr v

    • Part No. T2350-21631
    • Compatibility No interchange
    • Applied Dates 2004-09-03 to 2006-11-13
    • Serial No. 319600821 and up
    • * multiple options for #5
    • 1 shown on diagram
    $66.99
  • 5

    COUPLING v

    • Part No. T2350-21632
    • Compatibility Interchngable
    • Applied Dates 2006-11-14 and up
    • * multiple options for #5
    • 1 shown on diagram
    $73.99
  • 6 O RING

    O RING

    • Part No. 04811-00200
    • Applied Dates 2006-11-14 and up
    • DIA19.8
    • 1 shown on diagram
    $1.39
  • 7

    PIN,STRAIGHT

    • Part No. 05012-00530
    • Applied Dates 2004-09-03 and up
    • 1 shown on diagram
    $3.49

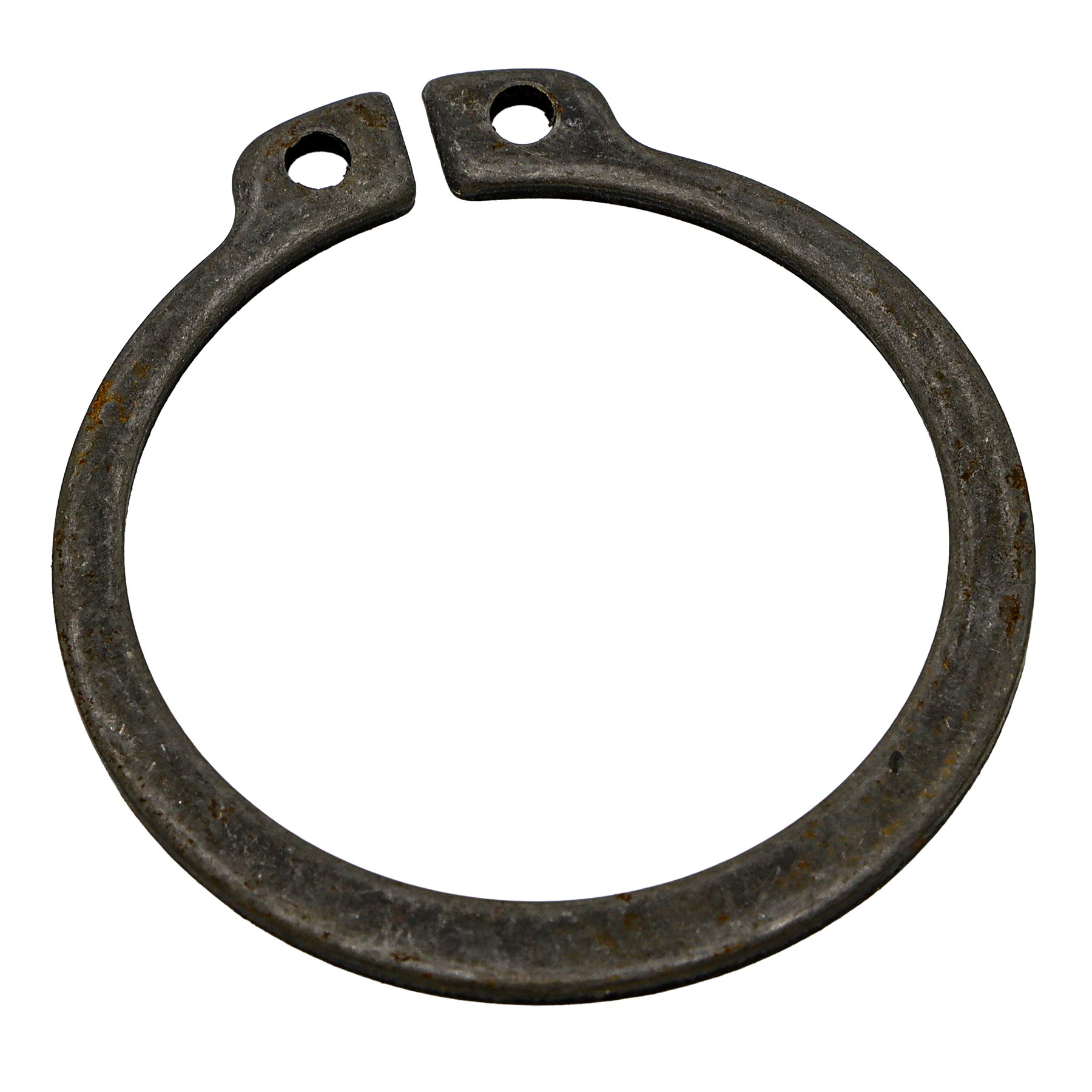

  • 8 RING, SNAP

    RING, SNAP

    • Part No. 04612-00340
    • Applied Dates 2004-09-03 and up
    • 1 shown on diagram
    $1.59
  • 9 PIN,SPRING (Roll) 5×28 05411-00528

    PIN,SPRING (Roll) 5×28 05411-00528

    • Part No. 05411-00528
    • Applied Dates Up to 2004-09-15
    • 1 shown on diagram
    $0.90
