HST CONTROL 1 GROUP - CK20H-T320A - Up to F19600480

Kioti TRACTOR | CK Series | CK20HJ

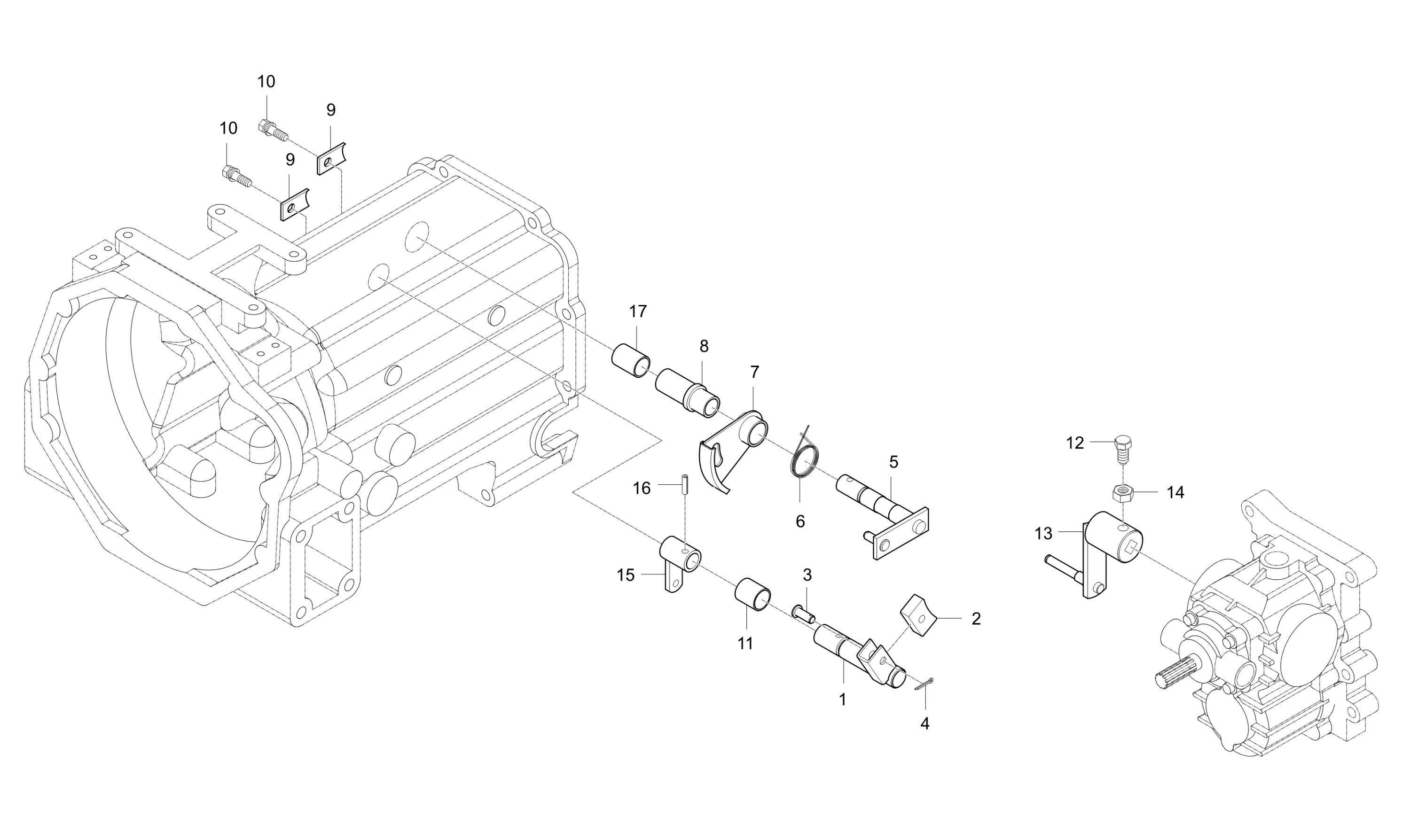

Diagram for HST CONTROL 1 GROUP - CK20H-T320A - Up to F19600480
  • 1

    SHAFT, LOCK

    • Part No. T2360-32221
    • Applied Dates Up to 2004-04-22
    • Serial No. Up to D19600200
    • * multiple options for #1
    • 1 shown on diagram
    $24.99
  • 1

    SHAFT,LOCK

    • Part No. T2195-32222
    • Compatibility No interchange
    • Applied Dates 2004-04-23 to 2004-04-24
    • Serial No. E19600001 and up
    • * multiple options for #1
    • 1 shown on diagram
    $28.99
  • 2

    SHOE,LOCK

    • Part No. T2360-32211
    • Applied Dates Up to 2004-04-22
    • Serial No. Up to D19600200
    • * multiple options for #2
    • 1 shown on diagram
    $3.49
  • 2

    SHOE, LOCK

    • Part No. T2195-32212
    • Compatibility No interchange
    • Applied Dates 2004-04-23 to 2004-04-24
    • Serial No. E19600001 and up
    • * multiple options for #2
    • 1 shown on diagram
    $5.99
  • 3

    Pin, Joint M8x22mm

    • Part No. 05122-50822
    • Applied Dates 2004-04-24 to 2004-04-22
    • Serial No. Up to D19600200
    • * multiple options for #3
    • 1 shown on diagram
    $2.99
  • 3

    Pin, Joint M8x25mm

    • Part No. 05122-50825
    • Compatibility No interchange
    • Applied Dates 2004-04-23 to 2004-04-25
    • Serial No. E19600001 and up
    • * multiple options for #3
    • 1 shown on diagram
    $2.99
  • 4 Split Pin (05511-50215)

    Split Pin (05511-50215)

    • Part No. 05511-50215
    • DIA1.8XL15
    • 1 shown on diagram
    $0.62
  • 5

    LEVER 2,CONNECTOR

    • Part No. T2360-32151
    • Applied Dates Up to 2004-04-22
    • Serial No. Up to D19600200
    • * multiple options for #5
    • 1 shown on diagram
    $29.99
  • 5

    CONNECTING LEVER 2

    • Part No. T2195-32153
    • Compatibility No interchange
    • Applied Dates 2004-06-30 to 2004-04-25
    • Serial No. E19600001 and up
    • * multiple options for #5
    • 1 shown on diagram
    $32.99
  • 6

    SPRING 1

    • Part No. T2360-32251
    • DIA2
    • 1 shown on diagram
    $4.49
  • 7

    ARM, LOCK

    • Part No. T2360-32172
    • Applied Dates Up to 2004-04-22
    • Serial No. Up to D19600200
    • * multiple options for #7
    • 1 shown on diagram
    $14.99
  • 7

    Lock Arm

    • Part No. T2195-32172
    • Compatibility No interchange
    • Applied Dates 2004-04-23 to 2004-04-25
    • Serial No. E19600001 and up
    • * multiple options for #7
    • 1 shown on diagram
    $15.99
  • 8

    SPACER

    • Part No. T2360-32162
    • Applied Dates Up to 2004-04-22
    • Serial No. Up to D19600200
    • OD27.2*T5.5
    • * multiple options for #8
    • 1 shown on diagram
    $19.99
  • 8

    SPACER

    • Part No. T2195-32163
    • Compatibility No interchange
    • Applied Dates 2004-04-23 to 2004-04-25
    • Serial No. E19600001 and up
    • DIA27.2*5.5T
    • * multiple options for #8
    • 1 shown on diagram
    $24.99
  • 9

    PLATE, LOCK dnr v

    • Part No. T2360-32182
    • 19*T3.0
    • 2 shown on diagram
    $6.49
  • 10 Bolt With Washer, M8 P1.25 x 20mm

    Bolt With Washer, M8 P1.25 x 20mm

    • Part No. 01123-50820
    • Applied Dates Up to 2005-05-19
    • Serial No. Up to 319600820
    • M8XP1.25
    • * multiple options for #10
    • 2 shown on diagram
    $2.49
  • 10 Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    • Part No. 01123-50816
    • Compatibility Interchngable
    • Applied Dates 2005-05-20 and up
    • M8XP1.25
    • * multiple options for #10
    • 2 shown on diagram
    $1.09
  • 11

    BUSH

    • Part No. T2305-14261
    • Applied Dates 2002-04-23 to 2006-03-11
    • MB2025DU
    • * multiple options for #11
    • 1 shown on diagram
    $9.99
  • 11 BUSH

    BUSH

    • Part No. 08511-02025
    • Compatibility Interchngable
    • Applied Dates 2006-03-12 and up
    • Inner Diameter 20XL25
    • * multiple options for #11
    • 1 shown on diagram
    $9.99
  • 12

    BOLT,HST LEVER

    • Part No. T2360-32111
    • 1 shown on diagram
    $5.49
  • 13

    JOINT

    • Part No. T2360-32122
    • 1 shown on diagram
    $43.99
  • 14 NUT

    NUT

    • Part No. 02116-50100
    • M10XP1.25
    • 1 shown on diagram
    $0.67
  • 15

    CONNECTING LEVER

    • Part No. T2360-32232
    • 1 shown on diagram
    $17.99
  • 16 PIN, SPRING

    PIN, SPRING

    • Part No. 05411-00635
    • Applied Dates 2003-05-02 and up
    • DIA6.4XL35
    • 1 shown on diagram
    $0.96
  • 17

    DU BUSH

    • Part No. 08511-01715
    • Applied Dates 2004-04-23 and up
    • MB1715DU
    • 1 shown on diagram
    $6.99
