FRONT DRIVE FORK GROUP - CK20M-T360A

Kioti TRACTOR | CK Series | CK20HJ

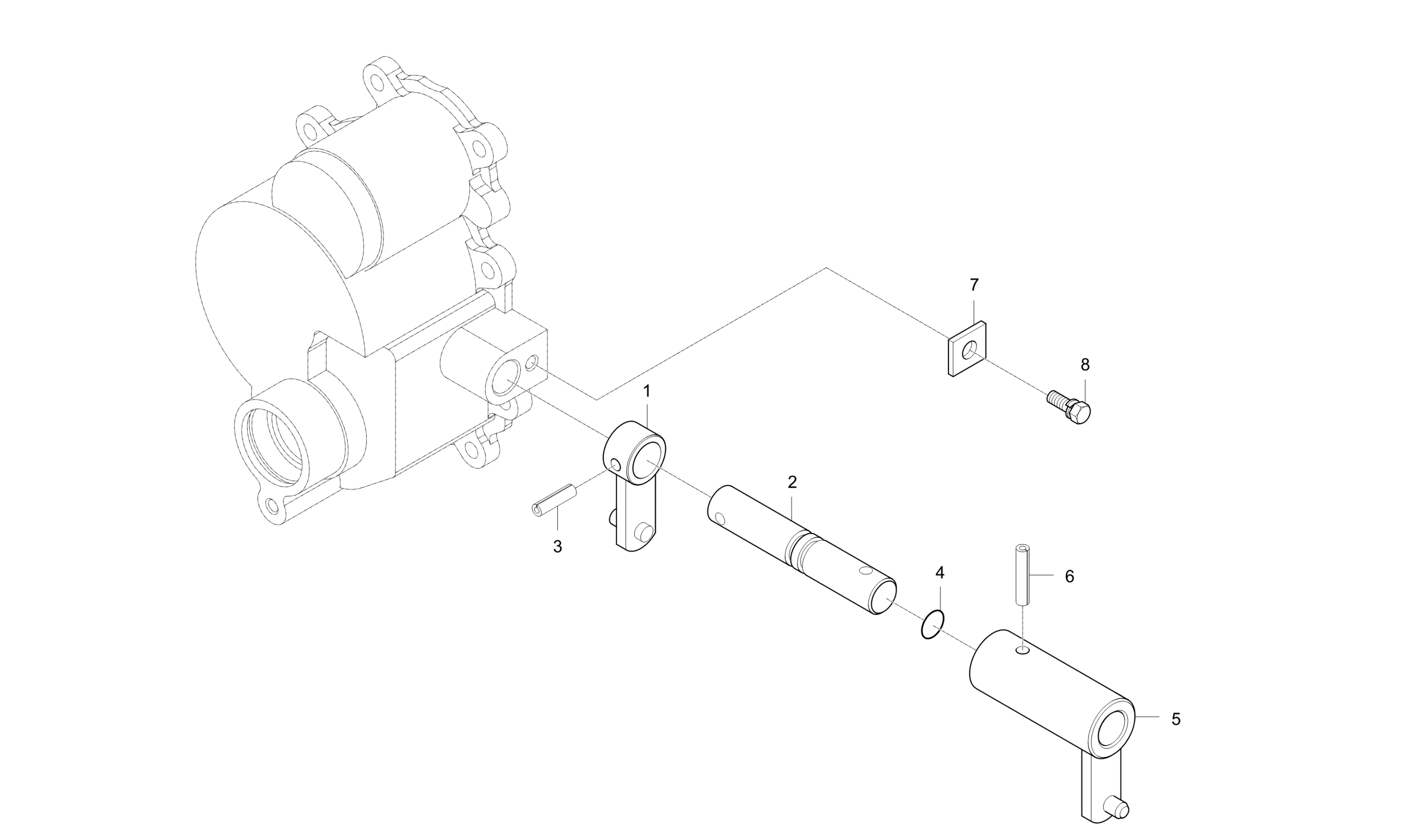

Diagram for FRONT DRIVE FORK GROUP - CK20M-T360A
  • 1

    ARM1, FRONT DRIVE V

    • Part No. T2350-44311
    • Applied Dates Up to 2005-05-19
    • * multiple options for #1
    • 1 shown on diagram
    $19.99

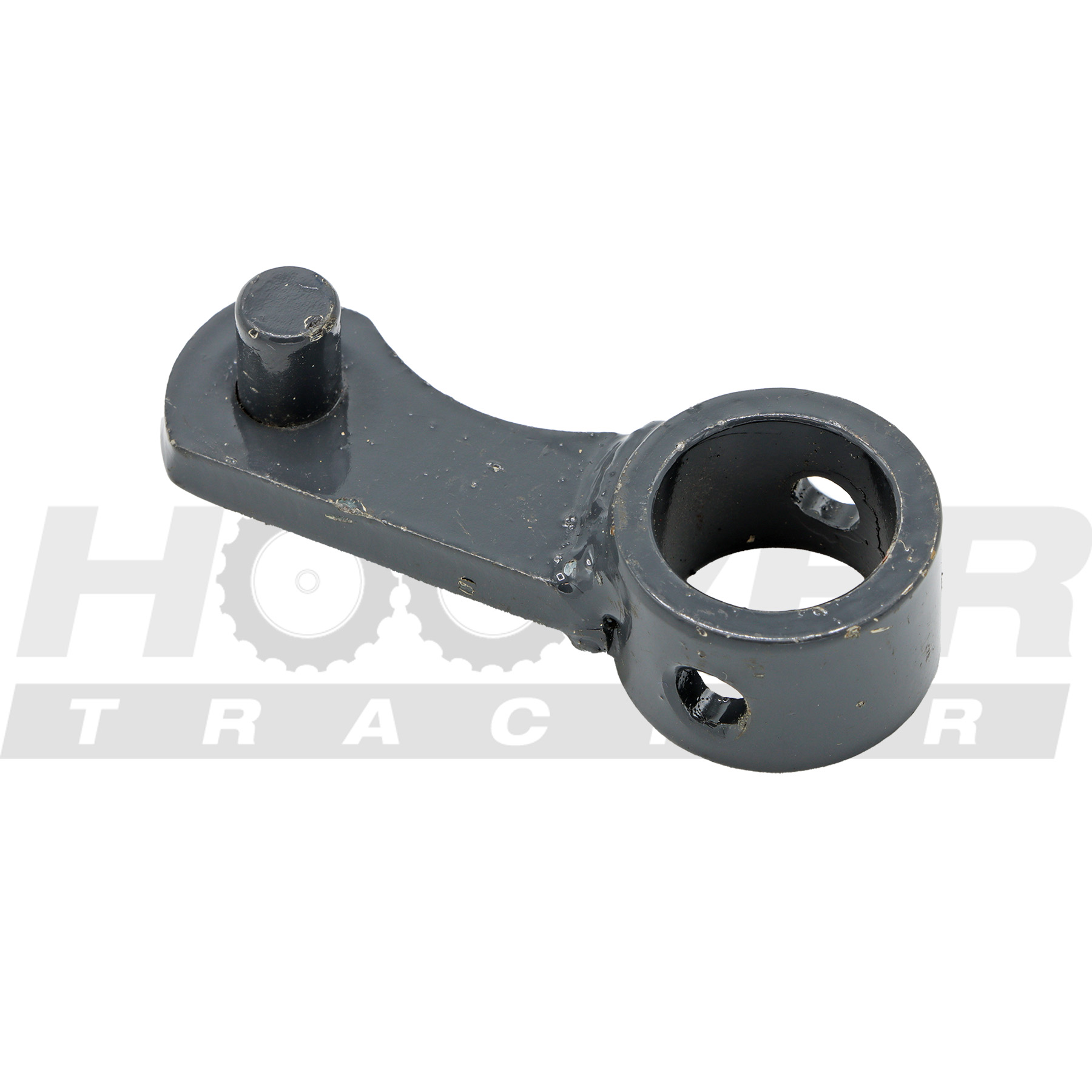

  • 1 ARM1, FRONT DRIVE

    ARM1, FRONT DRIVE

    • Part No. T2350-44312
    • Compatibility Interchngable
    • Applied Dates 2005-05-20 and up
    • * multiple options for #1
    • 1 shown on diagram
    $27.99

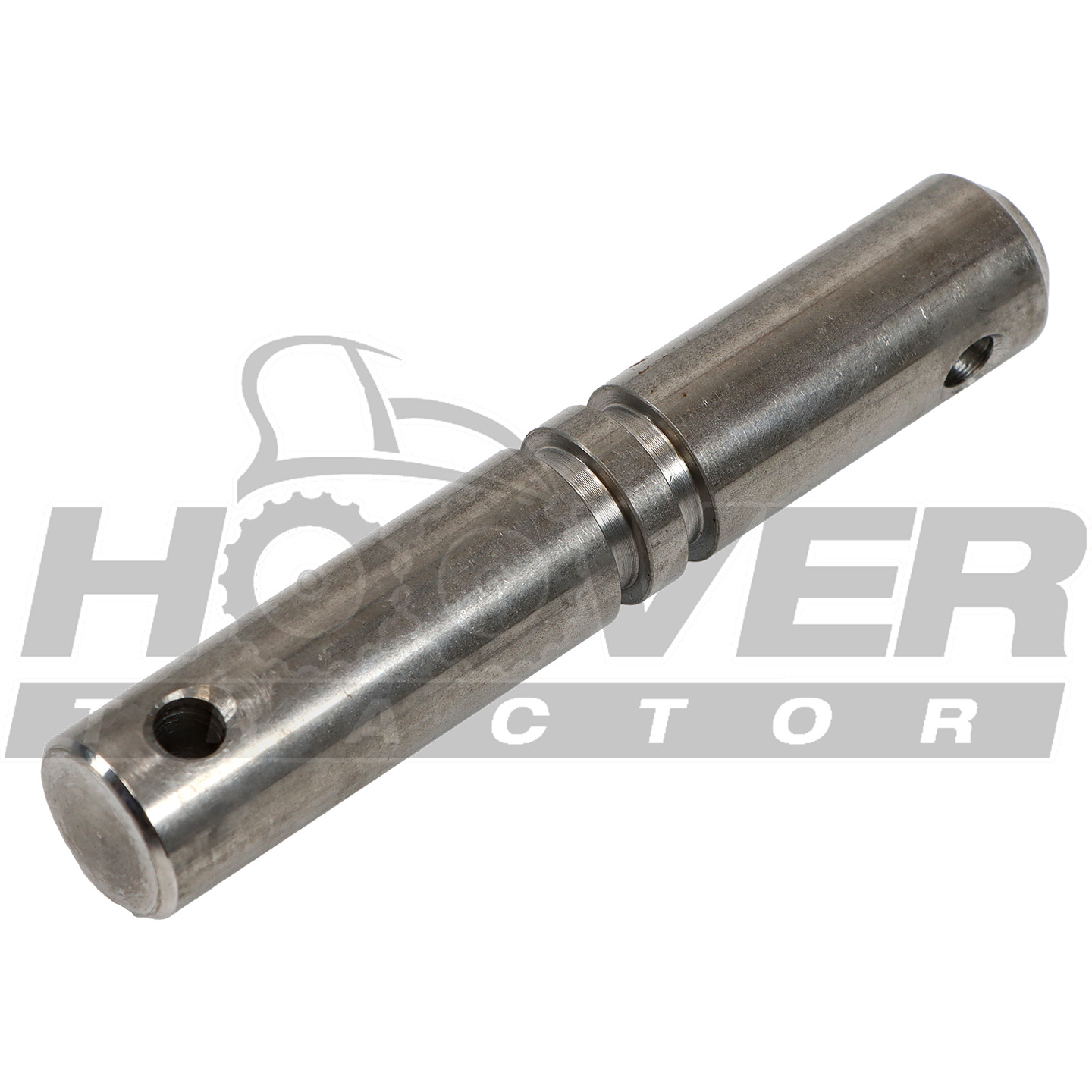

  • 2 SHAFT,FRONT DRIVE

    SHAFT,FRONT DRIVE

    • Part No. T2350-44321
    • DIA18
    • 1 shown on diagram
    $33.99
  • 3 PIN, SPRING

    PIN, SPRING

    • Part No. 05411-00625
    • DIA6.4XL25
    • 1 shown on diagram
    $1.09
  • 4 O RING

    O RING

    • Part No. 04811-00140
    • 1 shown on diagram
    $0.90
  • 5

    ARM2, FRONT DRIVE v

    • Part No. T2350-44332
    • Applied Dates Up to 2003-06-18
    • * multiple options for #5
    • 1 shown on diagram
    $23.99
  • 5

    ARM 2,FRONT DRIVE v

    • Part No. T2350-44333
    • Compatibility Interchngable
    • Applied Dates 2003-06-19 and up
    • * multiple options for #5
    • 1 shown on diagram
    $33.99
  • 6 PIN, SPRING

    PIN, SPRING

    • Part No. 05411-00630
    • DIA6.4XL30
    • 1 shown on diagram
    $0.90
  • 7

    STOPPER, FRONT DRIVE

    • Part No. T2350-44351
    • 19*T3.0
    • 1 shown on diagram
    $4.49
  • 8

    Bolt With Washer, M8 P1.25 x 14mm

    • Part No. 01123-50814
    • M8XP1.25
    • 1 shown on diagram
    $2.49
