PTO DRIVE SHAFT GROUP - CK20H-T220A

Kioti TRACTOR | CK Series | CK20H

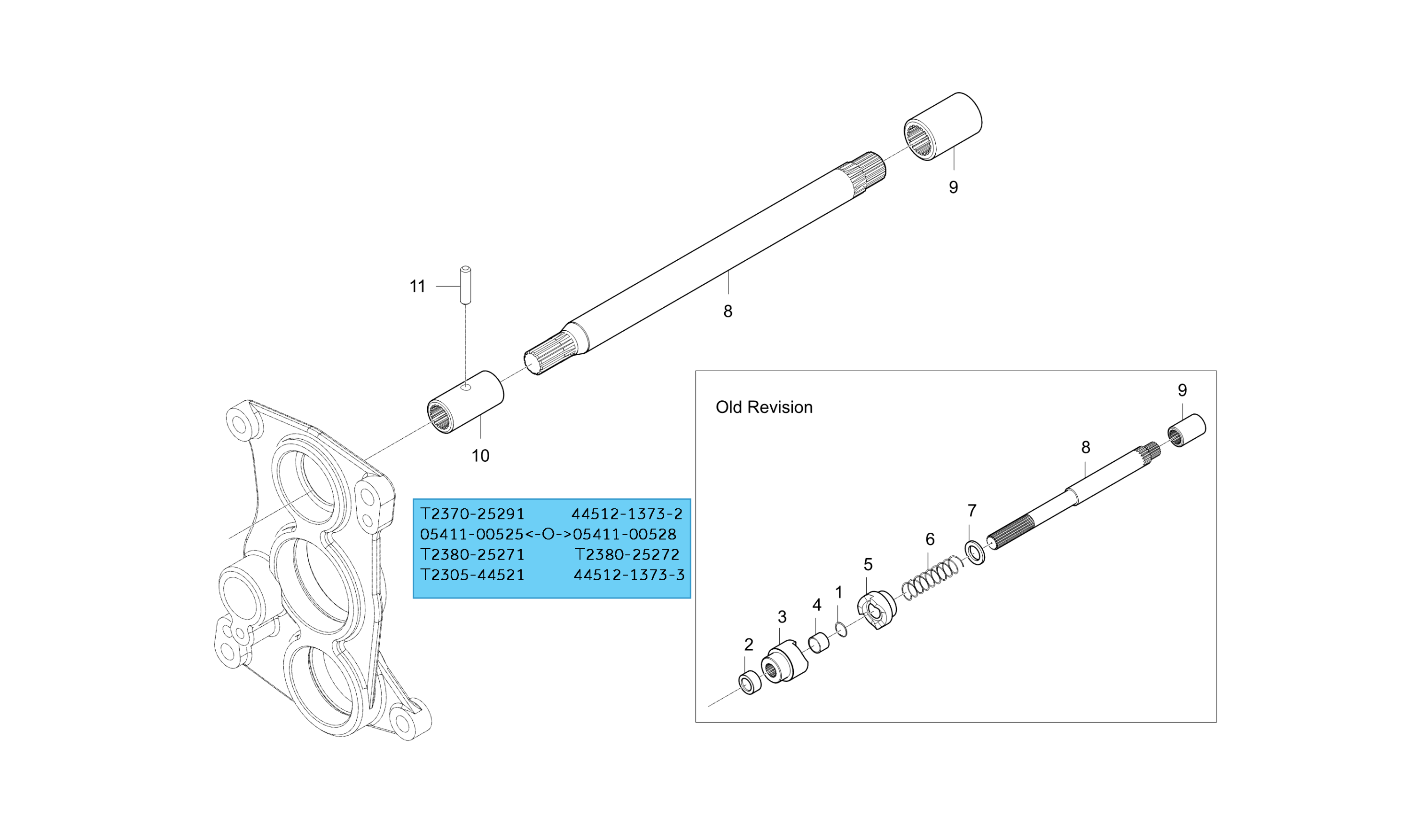

Diagram for PTO DRIVE SHAFT GROUP - CK20H-T220A
  • 1 Snap Ring (04612-00200)

    Snap Ring (04612-00200)

    • Part No. 04612-00200
    • Applied Dates Up to 2008-06-09
    • DIA20
    • 1 shown on diagram
    $1.09
  • 2

    SPACER

    • Part No. T2350-25581
    • Applied Dates Up to 2006-12-03
    • DIA27.2*T5.5
    • * multiple options for #2
    • 1 shown on diagram
    $7.99
  • 2

    SPACER

    • Part No. T2350-25582
    • Compatibility Interchngable
    • Applied Dates 2006-12-04 to 2008-06-09
    • DIA27.2*T5.5
    • * multiple options for #2
    • 1 shown on diagram
    $9.99
  • 3

    CAM,CLUTCH A v

    • Part No. T2350-25441
    • Applied Dates Up to 2005-10-18
    • * multiple options for #3
    • 1 shown on diagram
    $99.99
  • 3

    CAM,CLUTCH A

    • Part No. T2350-25442
    • Compatibility No interchange
    • Applied Dates 2005-10-19 to 2008-06-09
    • * multiple options for #3
    • 1 shown on diagram
    $159.99
  • 4

    BUSH v

    • Part No. 08511-01915
    • Applied Dates Up to 2005-10-18
    • * multiple options for #4
    • 1 shown on diagram
    $7.49
  • 4 Bushing (2 required per wheel)

    Bushing (2 required per wheel)

    • Part No. 08511-01615
    • Compatibility No interchange
    • Applied Dates 2005-10-19 to 2008-06-09
    • Inner Diameter 16XL15
    • * multiple options for #4
    • 1 shown on diagram
    $2.49
  • 5

    CAM,CLUTCH B

    • Part No. T2350-25452
    • Applied Dates Up to 2008-06-09
    • 1 shown on diagram
    $97.99
  • 6

    CAM,SPRING

    • Part No. T2350-25462
    • Applied Dates Up to 2008-06-09
    • DIA2.6
    • 1 shown on diagram
    $4.99
  • 7

    SPACER

    • Part No. 76KP-0514
    • Applied Dates Up to 2008-06-09
    • T3.2*35*35
    • 1 shown on diagram
    $3.49
  • 8

    SHAFT 2, PTO DRIVE

    • Part No. T2360-25272
    • Applied Dates Up to 2003-05-01
    • * multiple options for #8
    • 1 shown on diagram
    $71.99
  • 8

    SHAFT 2, PTO DRIVE

    • Part No. T2360-25273
    • Compatibility New repl old
    • Applied Dates 2003-05-02 to 2004-11-08
    • * multiple options for #8
    • 1 shown on diagram
    $99.99
  • 8

    SHAFT2,PTO DRIVING

    • Part No. T2360-25274
    • Compatibility No interchange
    • Applied Dates 2004-11-09 to 2005-10-18
    • * multiple options for #8
    • 1 shown on diagram
    $74.99
  • 8

    SHAFT2, PTO DRIVE

    • Part No. T2360-25275
    • Compatibility No interchange
    • Applied Dates 2005-10-19 to 2006-11-19
    • * multiple options for #8
    • 1 shown on diagram
    $74.99
  • 8

    SHAFT2, PTO DRIVE

    • Part No. T2360-25276
    • Compatibility Interchngable
    • Applied Dates 2006-11-20 to 2008-06-09
    • * multiple options for #8
    • 1 shown on diagram
    $109.99
  • 8

    SHAFT2, PTO DRIVE

    • Part No. T2380-25271
    • Compatibility Call for compat
    • * multiple options for #8
    • 1 shown on diagram
    $84.99
  • 8 Shaft 2, Pto Drive

    Shaft 2, Pto Drive

    • Part No. T2380-25272
    • Compatibility Call for compat
    • * multiple options for #8
    • 1 shown on diagram
    $89.99
  • 9

    COUPLING

    • Part No. T2305-44521
    • DIA28
    • * multiple options for #9
    • 1 shown on diagram
    $33.99
  • 9 COUPLING

    COUPLING

    • Part No. 44512-1373-3
    • Compatibility Call for compat
    • Applied Dates 2004-09-08 to 2012-03-05
    • * multiple options for #9
    • 1 shown on diagram
    $39.99
  • 10

    COUPLING

    • Part No. T2370-25291
    • 17X12X1.25
    • * multiple options for #10
    • 1 shown on diagram
    $37.99
  • 10 COUPLING

    COUPLING

    • Part No. 44512-1373-3
    • Compatibility Call for compat
    • * multiple options for #10
    • 1 shown on diagram
    $39.99
  • 11 PIN,SPRING

    PIN,SPRING

    • Part No. 05411-00525
    • DIA5.4XL25
    • * multiple options for #11
    • 1 shown on diagram
    $0.90
  • 11 PIN,SPRING (Roll) 5×28 05411-00528

    PIN,SPRING (Roll) 5×28 05411-00528

    • Part No. 05411-00528
    • Compatibility Call for compat
    • Applied Dates 2004-09-25 to 2012-03-05
    • Serial No. Up to 319500100
    • * multiple options for #11
    • 1 shown on diagram
    $0.90
