SPEED SHIFT FORK GROUP - CK20H-T290A

Kioti TRACTOR | CK Series | CK20H

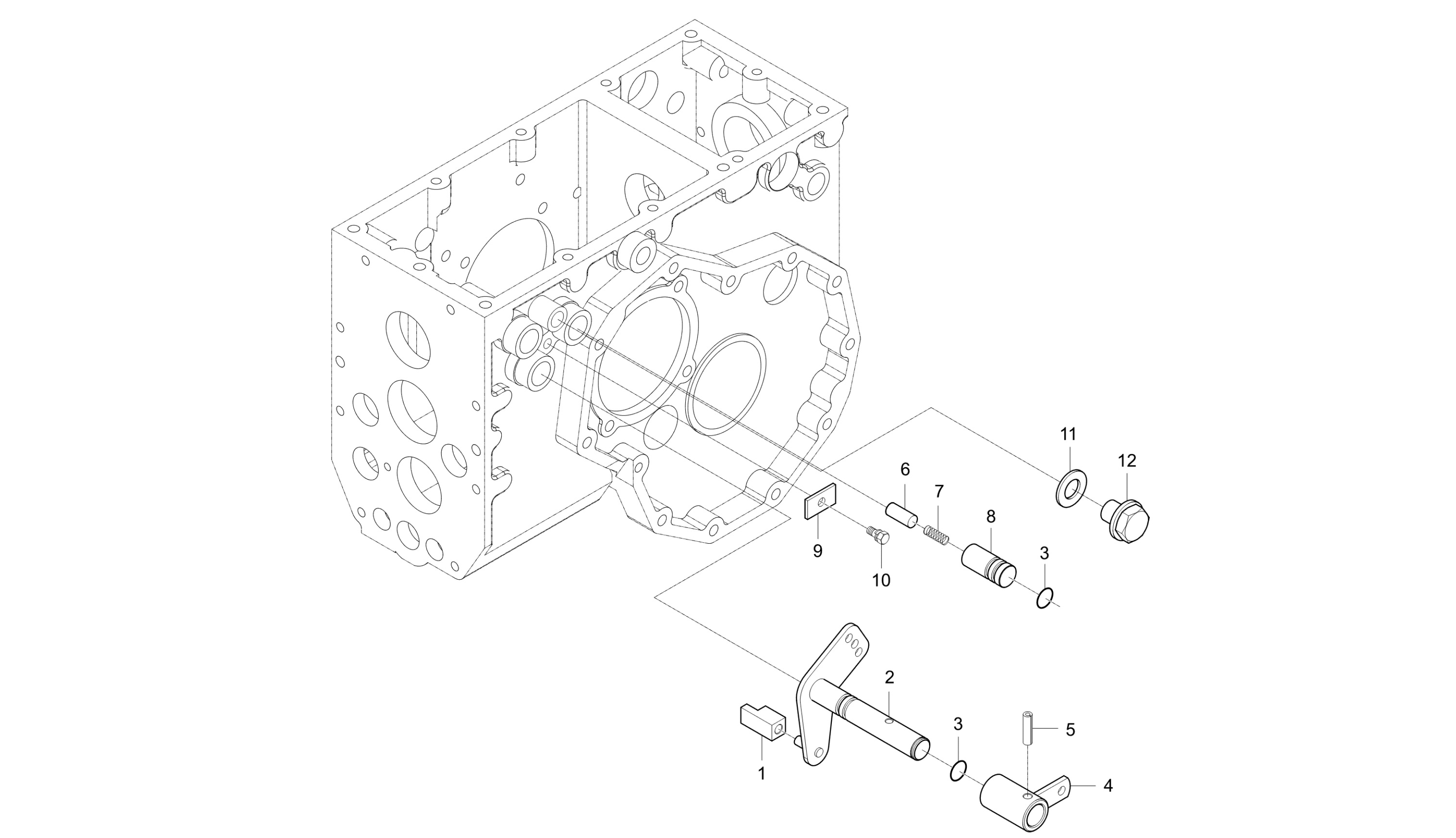

Diagram for SPEED SHIFT FORK GROUP - CK20H-T290A
  • 1

    SHIFT

    • Part No. T2350-25832
    • 1 shown on diagram
    $35.99
  • 2

    ARM,RANGE SHIFT(HI-LOW)

    • Part No. T2360-24311
    • Applied Dates Up to 2004-10-28
    • * multiple options for #2
    • 1 shown on diagram
    $58.99
  • 2

    ARM,HIGH-LOW SHIFT v

    • Part No. T2360-24312
    • Compatibility No interchange
    • Applied Dates 2004-10-29 to 2005-01-23
    • * multiple options for #2
    • 1 shown on diagram
    $29.99
  • 2 SHAFT ARM, HIGH-LOW

    SHAFT ARM, HIGH-LOW

    • Part No. T2360-24313
    • Compatibility New repl old
    • * multiple options for #2
    • 1 shown on diagram
    $58.99
  • 3 O RING

    O RING

    • Part No. 04811-00160
    • DIA15.8
    • 2 shown on diagram
    $1.09
  • 4

    ARM,CONNETING SAIFT(HI-LOW) v

    • Part No. T2350-24321
    • Applied Dates Up to 2003-04-22
    • * multiple options for #4
    • 1 shown on diagram
    $14.99
  • 4

    ARM, HI-LOW SHIFT CONNECT v

    • Part No. T2350-24322
    • Compatibility Interchngable
    • Applied Dates 2003-04-23 and up
    • * multiple options for #4
    • 1 shown on diagram
    $29.99
  • 4

    ARM, CONNECTING RANGE SHIFT dnr v

    • Part No. T2350-24323
    • Compatibility New repl old
    • * multiple options for #4
    • 1 shown on diagram
    $29.99
  • 5 PIN, SPRING

    PIN, SPRING

    • Part No. 05411-00630
    • DIA6.4XL30
    • 1 shown on diagram
    $0.90
  • 6

    PIN

    • Part No. T2305-24151
    • DIA9
    • 1 shown on diagram
    $14.99
  • 7

    SPRING obs

    • Part No. T2305-18531
    • DIA1.4
    • 1 shown on diagram
    $4.49
  • 8

    BOSS

    • Part No. T2360-24301
    • DIA16
    • 1 shown on diagram
    $32.99
  • 9

    STOPPER

    • Part No. T2350-23381
    • 19*T3
    • 1 shown on diagram
    $4.99
  • 10 Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    • Part No. 01123-50816
    • M8XP1.25
    • 1 shown on diagram
    $1.09
  • 11

    PLUG

    • Part No. 06331-45014
    • M14XP1.5
    • 1 shown on diagram
    $5.99
  • 12

    WASHER,SEAL

    • Part No. 04717-01400
    • 1 shown on diagram
    $1.69
