FRONT DRIVING GEAR GROUP - CK20H-T260A

Kioti TRACTOR | CK Series | CK20H

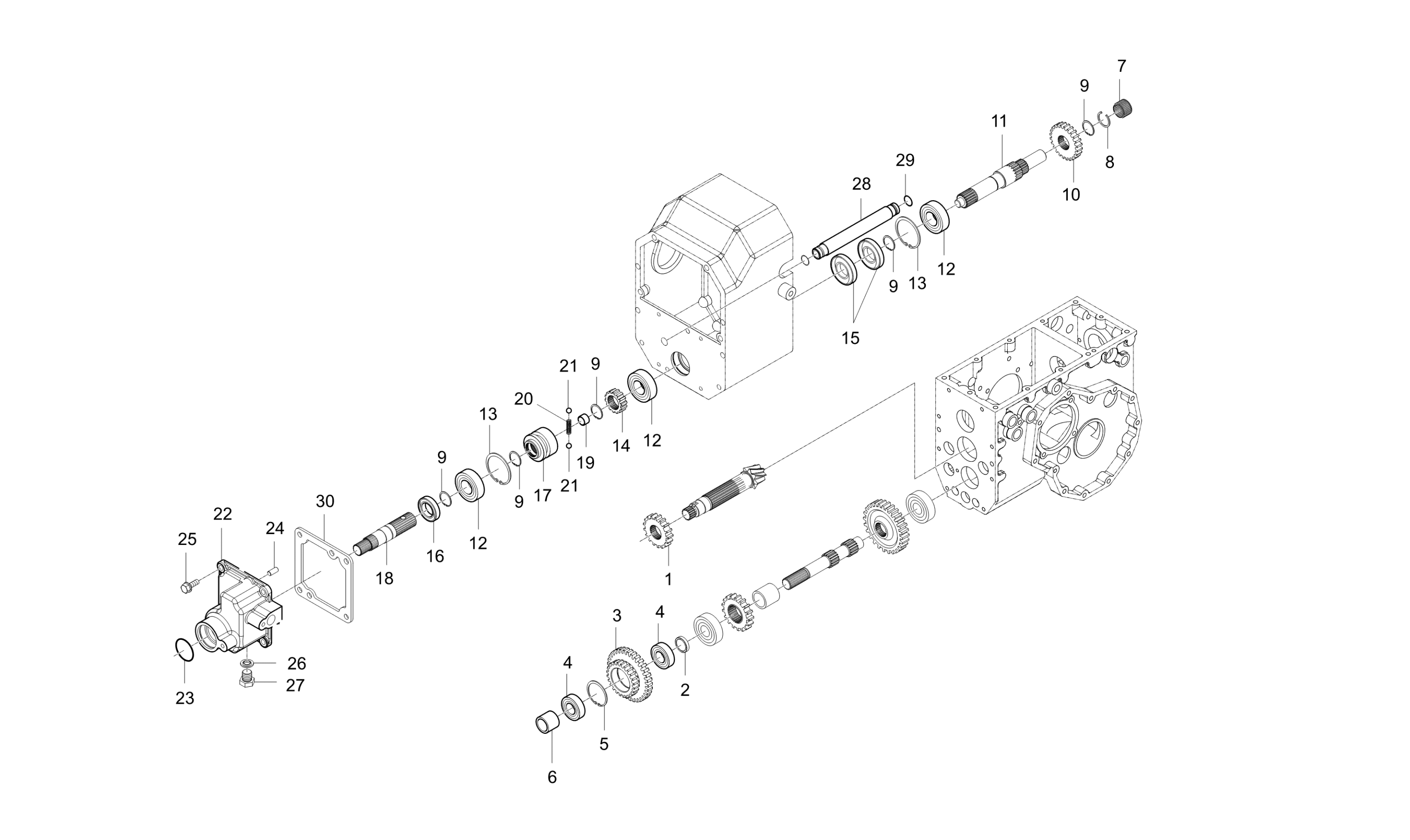

Diagram for FRONT DRIVING GEAR GROUP - CK20H-T260A
  • 1

    GEAR 20

    • Part No. T2360-44521
    • 1 shown on diagram
    $69.99
  • 2 SPACER

    SPACER

    • Part No. T2360-23651
    • DIA27.2*T3.4
    • 1 shown on diagram
    $6.49
  • 3 SPACER 2

    SPACER 2

    • Part No. T2360-23681
    • OD27.2*T3.9
    • 1 shown on diagram
    $9.99
  • 4 GEAR 23-25

    GEAR 23-25

    • Part No. T2360-44181
    • 1 shown on diagram
    $159.99
  • 5 BEARING,BALL

    BEARING,BALL

    • Part No. 08101-06004
    • #6004
    • 2 shown on diagram
    $15.99
  • 6 SNAP RING

    SNAP RING

    • Part No. 04611-00420
    • 1 shown on diagram
    $1.99
  • 7

    BEARING NIDLE

    • Part No. T2360-44271
    • 1 shown on diagram
    $26.99
  • 8

    CIR CLIP, EXTERNAL

    • Part No. T2360-44591
    • 1 shown on diagram
    $6.99
  • 9 CIR-CLIP

    CIR-CLIP

    • Part No. 04612-00250
    • DIA25
    • 5 shown on diagram
    $1.09
  • 10

    GEAR 23

    • Part No. T2360-44171
    • 1 shown on diagram
    $76.99

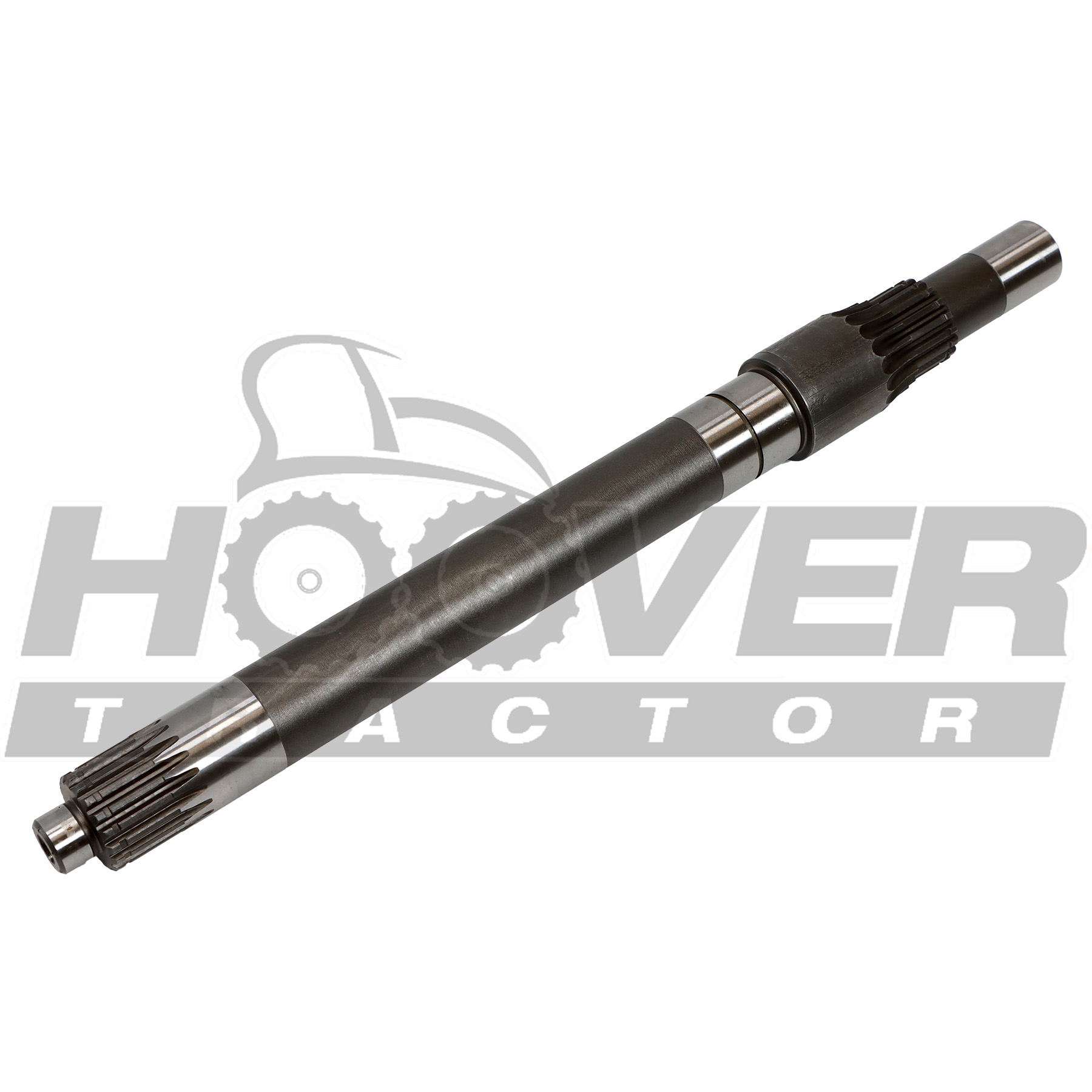

  • 11 SHAFT 1,FRONT DRIVE

    SHAFT 1,FRONT DRIVE

    • Part No. T2360-44562
    • 1 shown on diagram
    $154.99
  • 12 Bearing 25x52x15

    Bearing 25x52x15

    • Part No. 08101-06205
    • DIA25
    • 3 shown on diagram
    $17.99
  • 13 CIR-CLIP

    CIR-CLIP

    • Part No. 04611-00520
    • DIA52
    • 2 shown on diagram
    $2.49

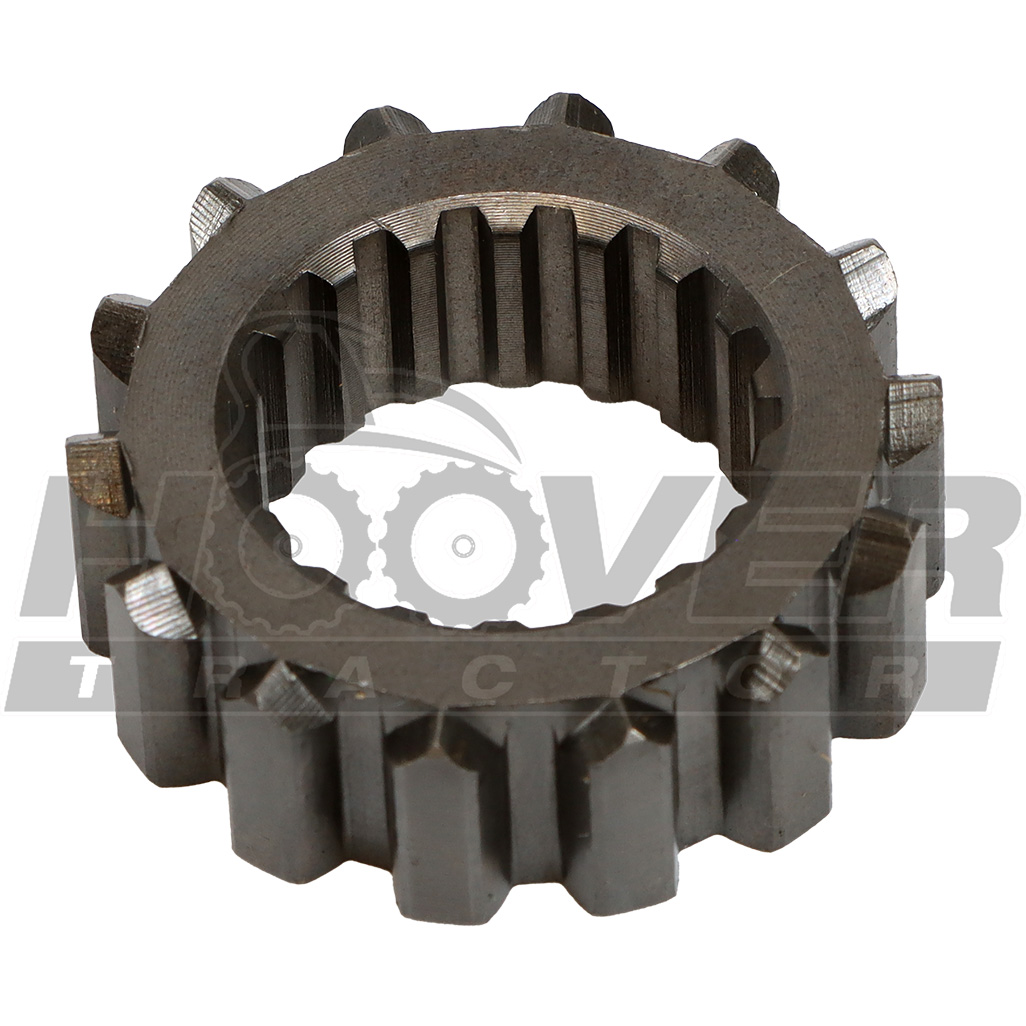

  • 14 BOSS,SPLINE

    BOSS,SPLINE

    • Part No. T2360-44241
    • 1 shown on diagram
    $49.99

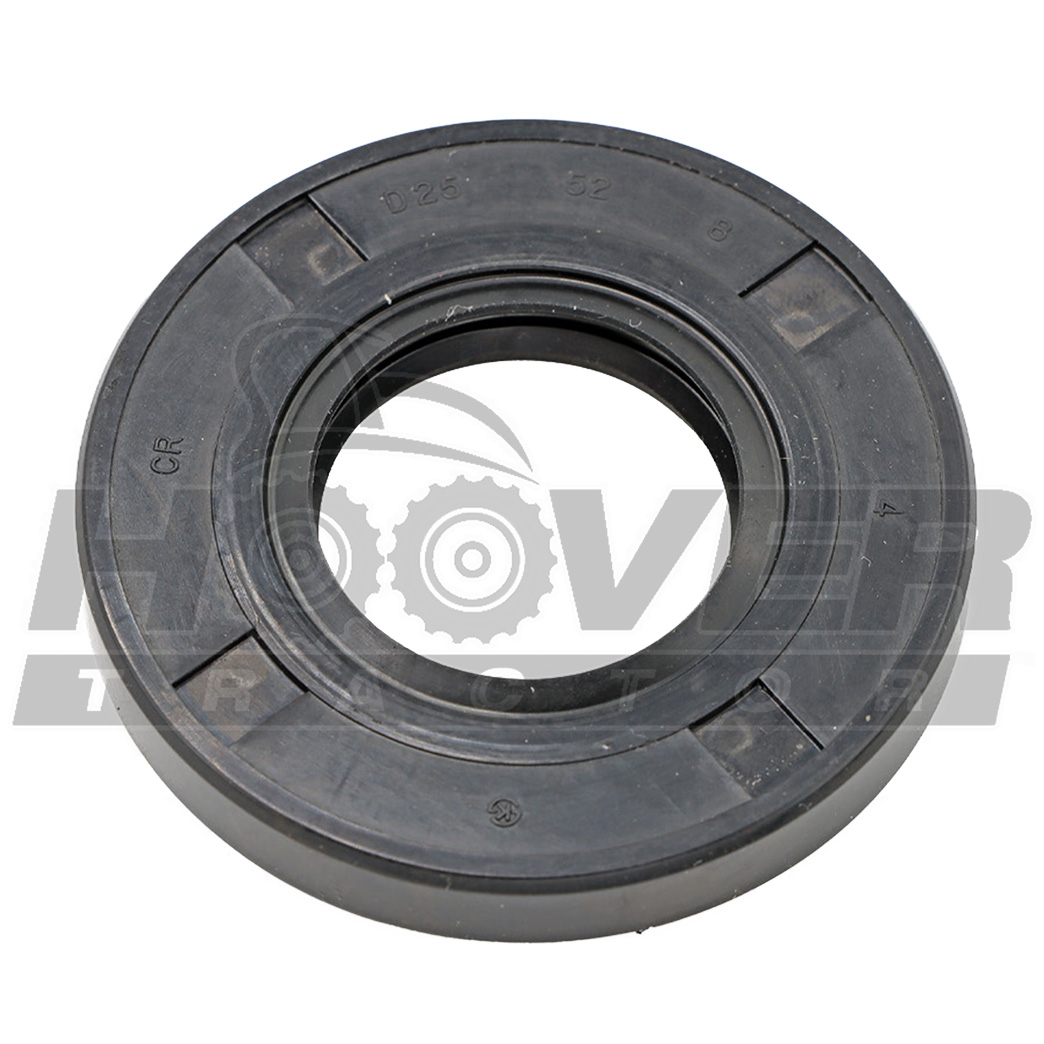

  • 15 SEAL OIL 25x52x8

    SEAL OIL 25x52x8

    • Part No. 09500-25528
    • 2 shown on diagram
    $4.99

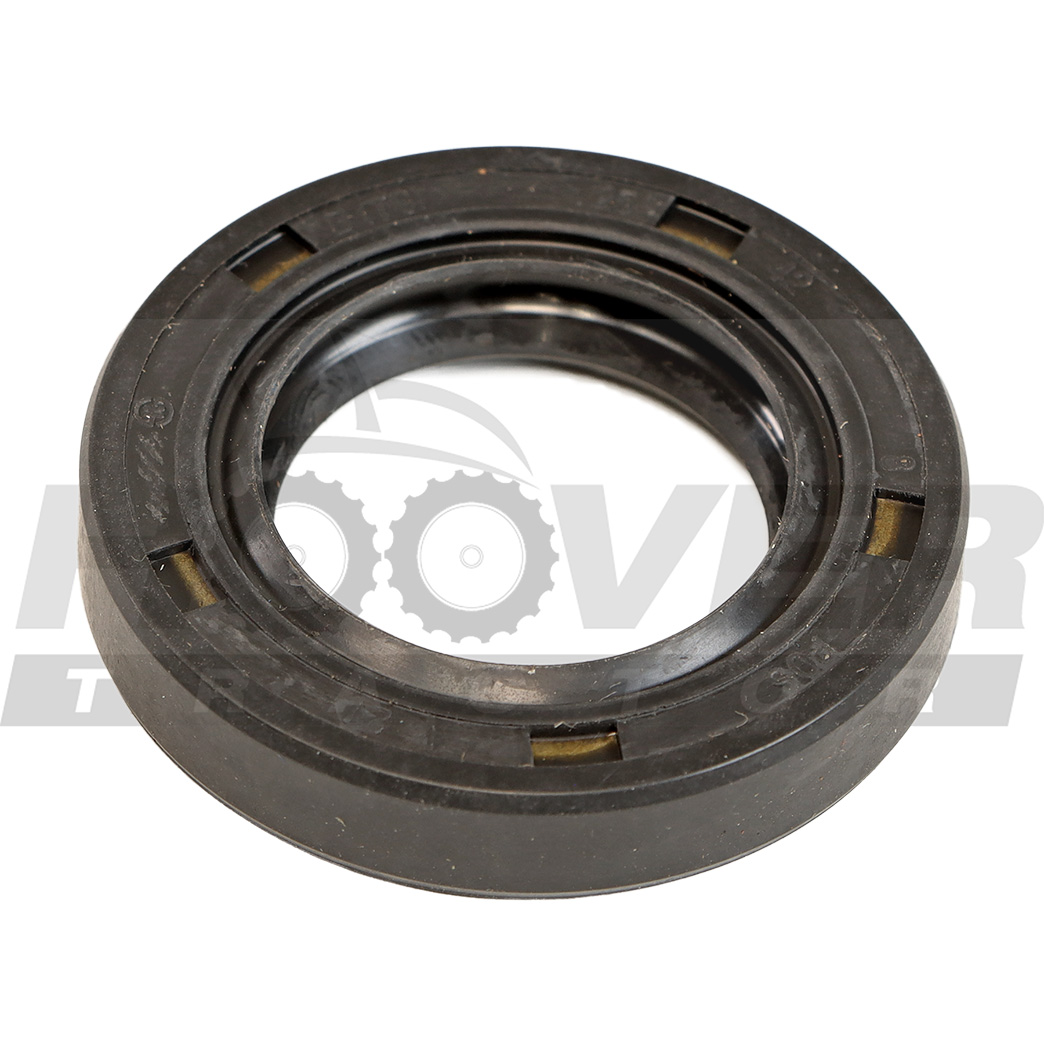

  • 16 SEAL, OIL 25x42x8

    SEAL, OIL 25x42x8

    • Part No. 09500-25428
    • 1 shown on diagram
    $3.49

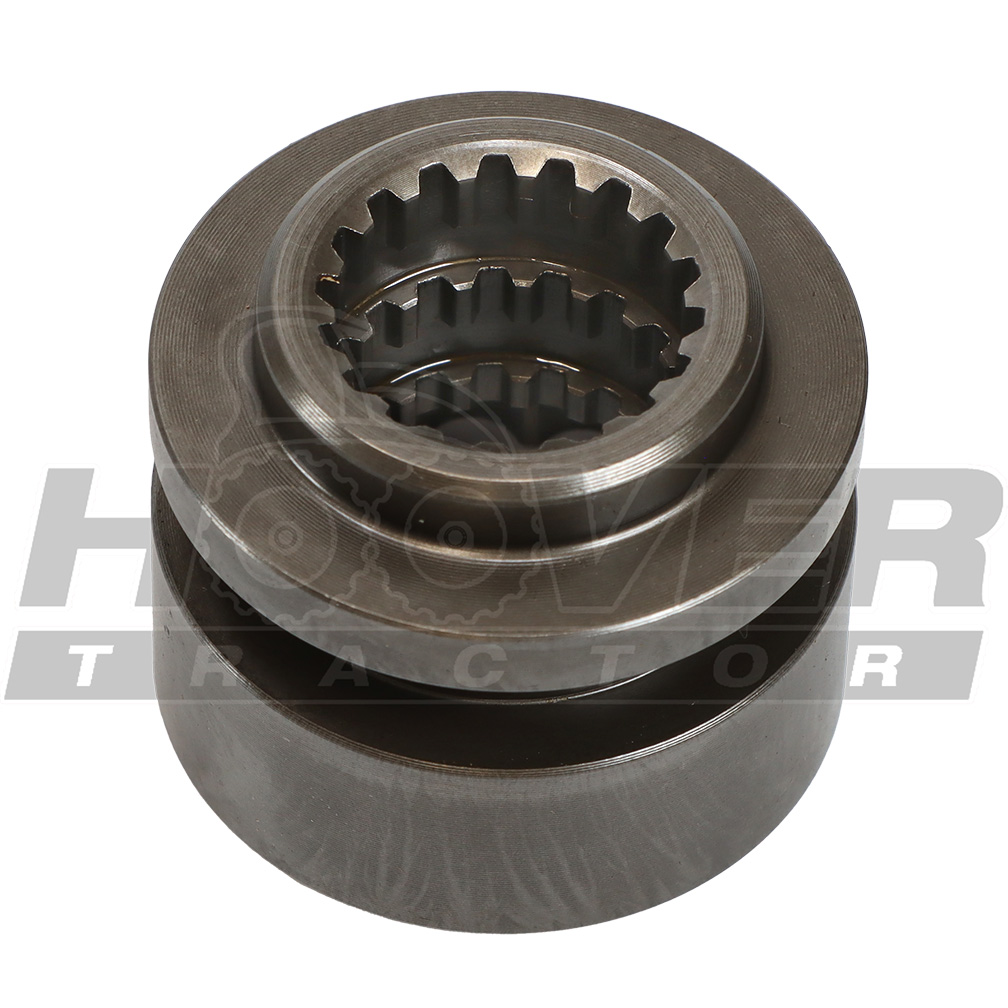

  • 17 SHIFT,FRONT

    SHIFT,FRONT

    • Part No. T2360-44231
    • 1 shown on diagram
    $83.99
  • 18 Shaft2,Front Wheel Drive

    Shaft2,Front Wheel Drive

    • Part No. T2360-44192
    • 1 shown on diagram
    $129.99

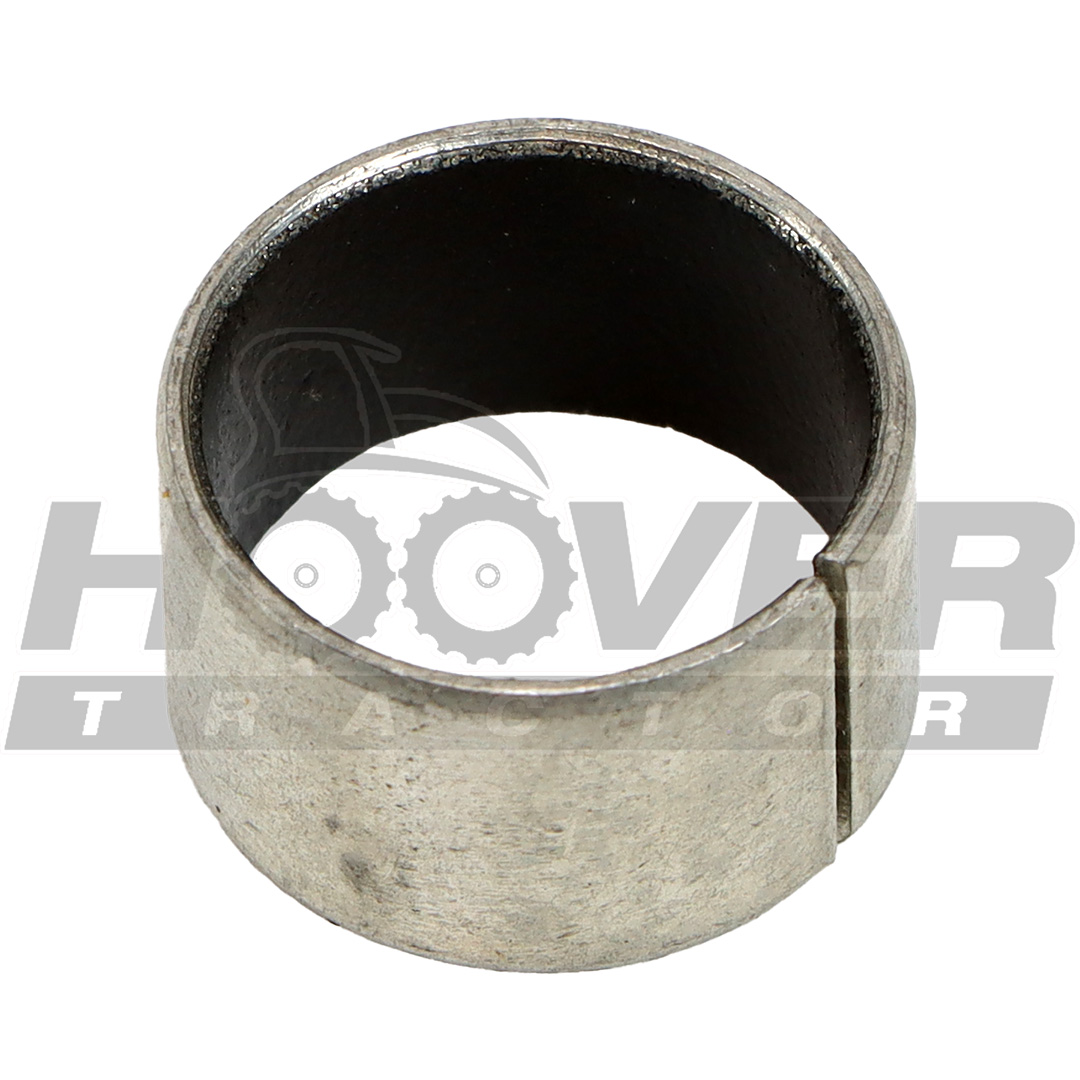

  • 19 BUSH

    BUSH

    • Part No. 08511-01410
    • MB1410DU
    • 1 shown on diagram
    $6.99
  • 20 SPRING

    SPRING

    • Part No. T2305-44252
    • DIA1.6
    • 1 shown on diagram
    $3.49
  • 21 BALL,STEEL

    BALL,STEEL

    • Part No. 07715-01605
    • DIA7.9375
    • 2 shown on diagram
    $0.56

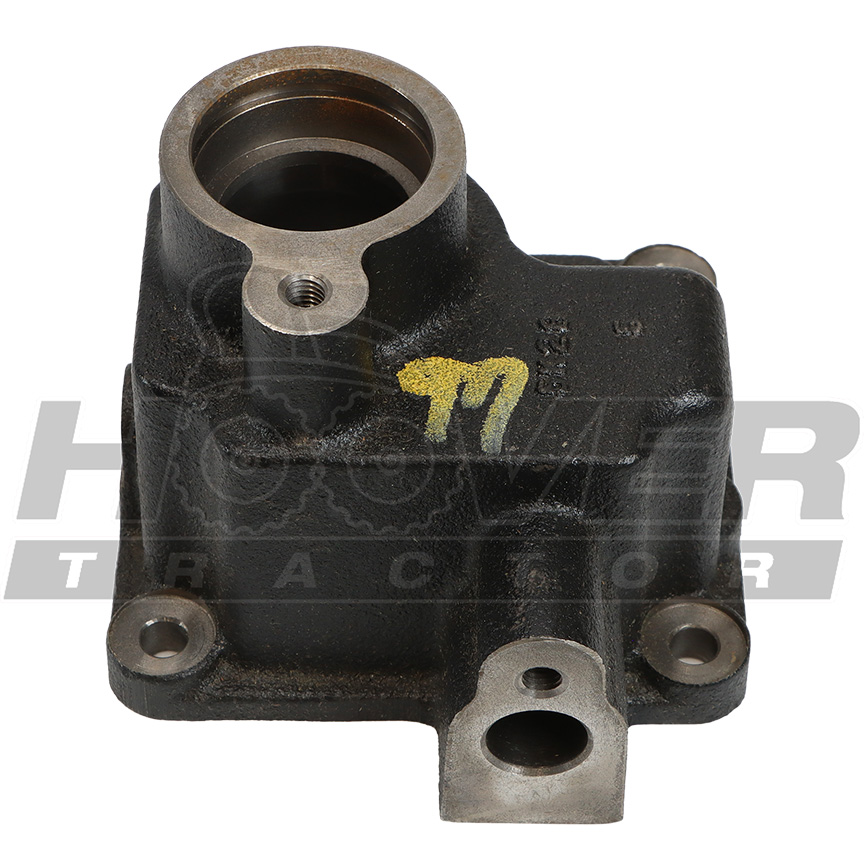

  • 22 CASE v

    CASE v

    • Part No. T2360-44114
    • 1 shown on diagram
    $234.99
  • 23 O RING

    O RING

    • Part No. 04811-06420
    • DIA42.2
    • 1 shown on diagram
    $1.69
  • 24 PIN, PARALLEL

    PIN, PARALLEL

    • Part No. 05012-00818
    • DIA8XL18
    • 2 shown on diagram
    $1.59
  • 25 Bolt With Washer, M8 P1.25 x 25mm

    Bolt With Washer, M8 P1.25 x 25mm

    • Part No. 01123-50825
    • M8XP1.25
    • 4 shown on diagram
    $1.99
  • 26 WASHER, SEAL M10

    WASHER, SEAL M10

    • Part No. 04717-01000
    • M10
    • 1 shown on diagram
    $1.99
  • 27 PLUG M10XP1.25

    PLUG M10XP1.25

    • Part No. 06331-35010
    • M10XP1.25
    • 1 shown on diagram
    $4.49
  • 28

    TUBE,OIL

    • Part No. T2360-21162
    • OD21.7*T4.7
    • 1 shown on diagram
    $29.99
  • 29 O RING

    O RING

    • Part No. 04811-00150
    • DIA14.8
    • 2 shown on diagram
    $1.09

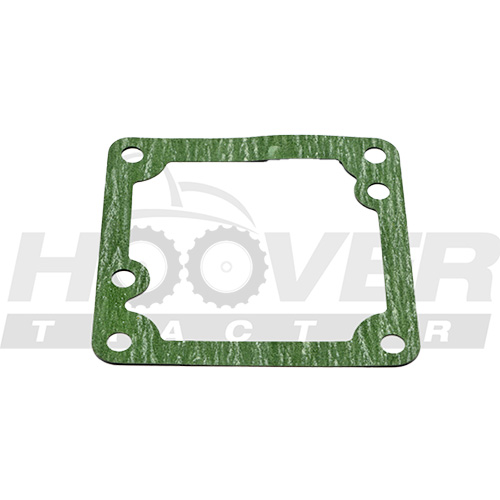

  • 30 PACKING

    PACKING

    • Part No. T2360-44121
    • Applied Dates Up to 2006-11-01
    • T0.5
    • 1 shown on diagram
    $4.99
