CLUTCH HOUSING 2 GROUP - CK20M-T140A

Kioti TRACTOR | CK Series | CK20H

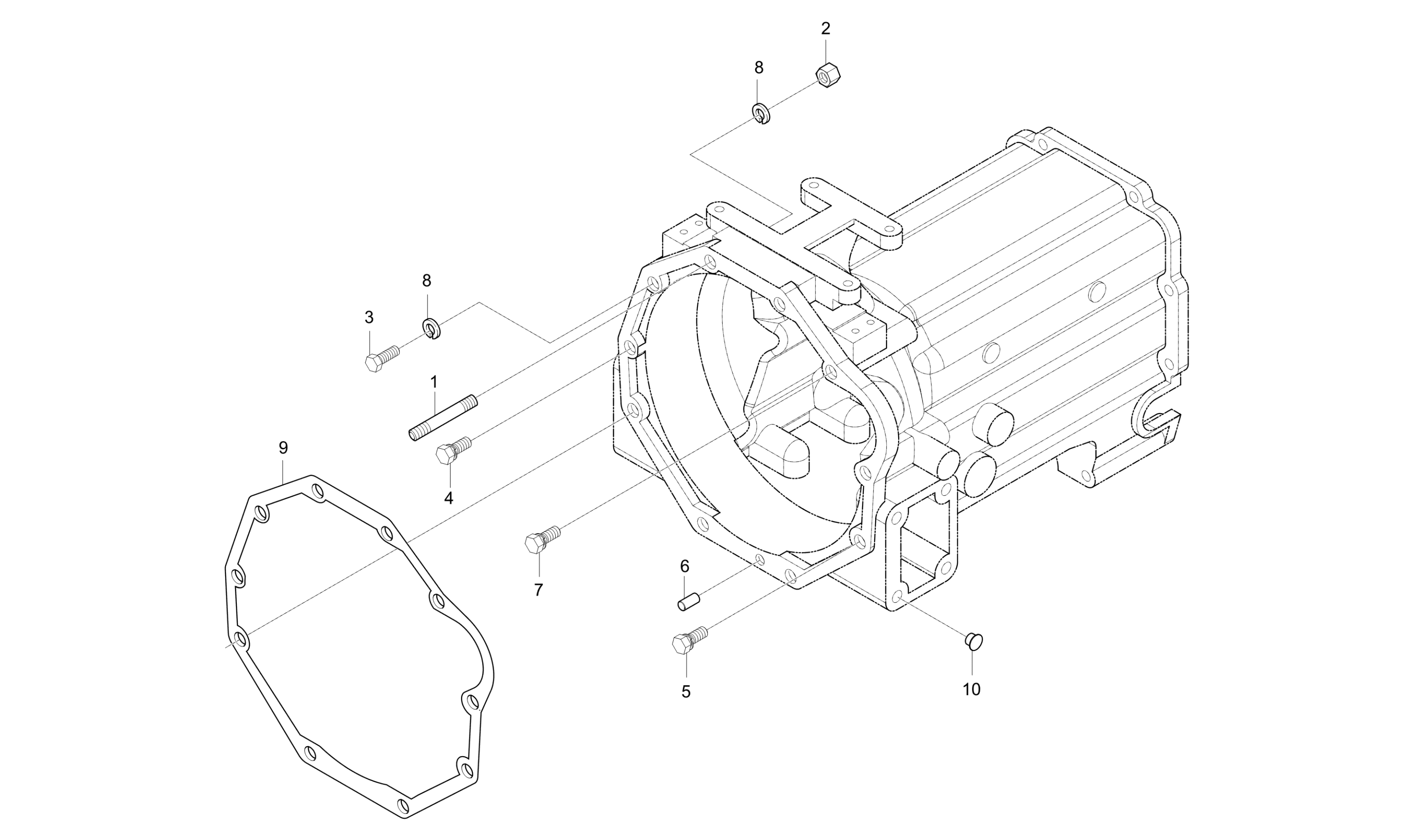

Diagram for CLUTCH HOUSING 2 GROUP - CK20M-T140A
  • 1

    STUD

    • Part No. 01517-51090
    • 2 shown on diagram
    $5.99
  • 2 Nut M10 P1.25

    Nut M10 P1.25

    • Part No. 02176-50100
    • M10XP1.25
    • 2 shown on diagram
    $0.98
  • 3

    BOLT

    • Part No. 01173-51003
    • Applied Dates Up to 2008-11-21
    • Serial No. Up to 319500100
    • M10XP1.25
    • * multiple options for #3
    • 1 shown on diagram
    $7.49
  • 3

    OB-BOLT

    • Part No. 01133-51003
    • Compatibility Call for compat
    • Applied Dates 2008-11-22 and up
    • * multiple options for #3
    • 1 shown on diagram
    $6.49
  • 4

    BOLT

    • Part No. 01133-51032
    • M10XP1.25
    • 1 shown on diagram
    $3.99
  • 5

    BOLT

    • Part No. 01133-51245
    • M12XP1.25
    • 4 shown on diagram
    $4.49
  • 6 PIN, STRAIGHT 05012-01018

    PIN, STRAIGHT 05012-01018

    • Part No. 05012-01018
    • DIA10XL18
    • 2 shown on diagram
    $1.79
  • 7

    BOLT

    • Part No. 01133-51050
    • 2 shown on diagram
    $3.99
  • 8 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50100
    • Applied Dates 2005-06-18 to 2008-11-21
    • Serial No. 319500001 to 319500100
    • M10
    • * multiple options for #8
    • 5 shown on diagram
    $0.79
  • 8 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50100
    • Compatibility Call for compat
    • Applied Dates 2008-11-22 and up
    • M10
    • * multiple options for #8
    • 4 shown on diagram
    $0.79
  • 9

    PACKING v, Replaced by T2300-51412

    • Part No. T2305-51412
    • Applied Dates Up to 2007-06-11
    • T1.0
    • 1 shown on diagram
    $0.00
  • 10

    PLUG

    • Part No. 31220-1429-3
    • 8 shown on diagram
    $3.49
