HST CONTROL 2 GROUP - CK20H-T620A

Kioti TRACTOR | CK Series | CK20H

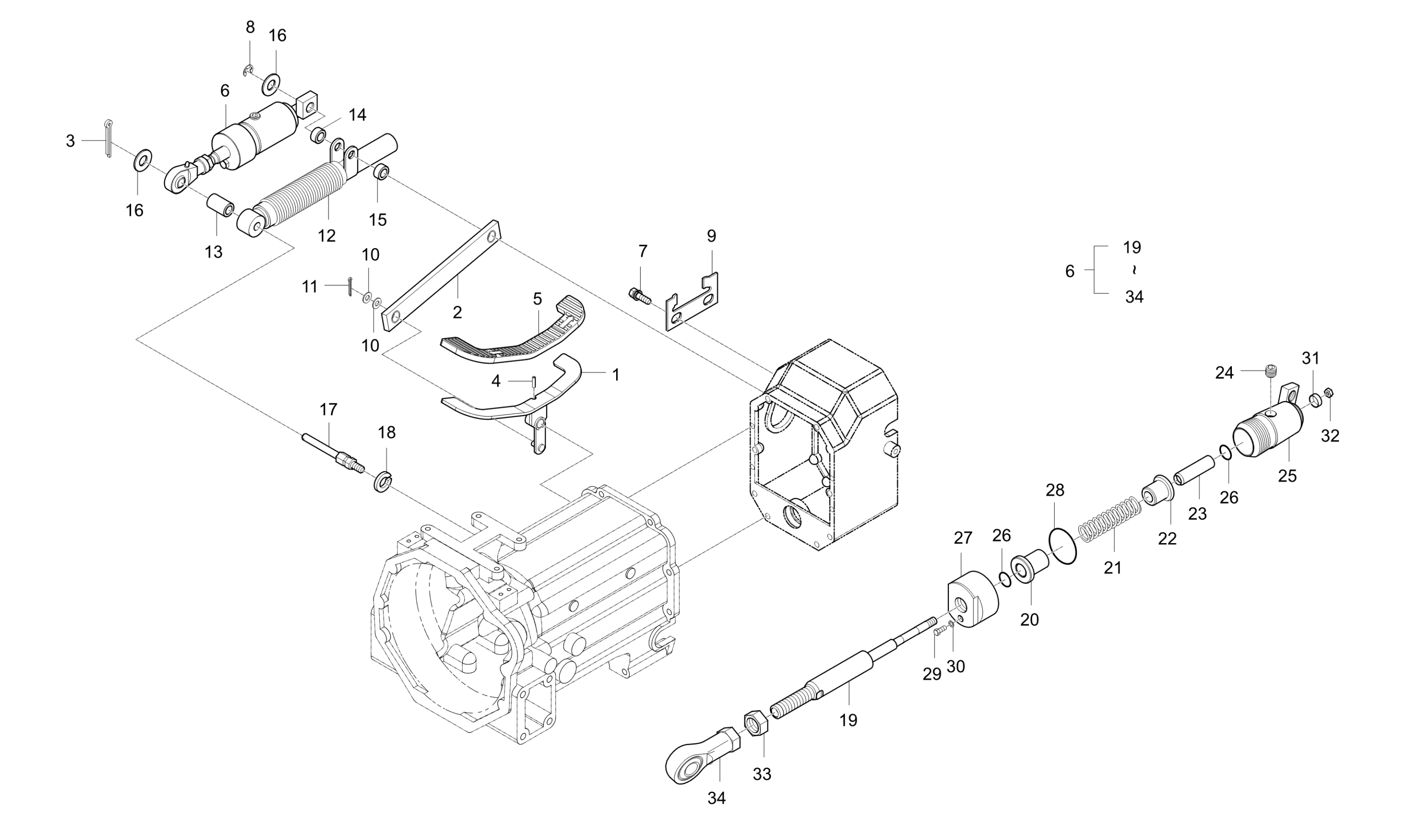

Diagram for HST CONTROL 2 GROUP - CK20H-T620A
  • 1

    PADAL,HST

    • Part No. T2360-31113
    • Applied Dates Up to 2006-11-21
    • * multiple options for #1
    • 1 shown on diagram
    $87.99
  • 1

    PEDAL, HST v

    • Part No. T2360-31114
    • Compatibility No interchange
    • Applied Dates 2006-11-22 to 2007-04-24
    • * multiple options for #1
    • 1 shown on diagram
    $43.99
  • 1

    PEDAL, HST v

    • Part No. T2360-31115
    • Compatibility Call for compat
    • Applied Dates 2007-12-31 and up
    • * multiple options for #1
    • 1 shown on diagram
    $87.99
  • 2

    PLATE,CONNECTING dnr v

    • Part No. T2360-32141
    • Applied Dates Up to 2007-03-05
    • * multiple options for #2
    • 1 shown on diagram
    $19.99
  • 2

    ARM, FEEDBACK

    • Part No. T2360-32142
    • Compatibility Interchngable
    • Applied Dates 2007-05-01 and up
    • * multiple options for #2
    • 1 shown on diagram
    $19.99
  • 3 Pin, Split

    Pin, Split

    • Part No. 05511-50320
    • DIA2.7XL20
    • 1 shown on diagram
    $0.46
  • 4 PIN, SPRING

    PIN, SPRING

    • Part No. 05411-00628
    • Applied Dates 2012-06-29 to 2006-11-21
    • * multiple options for #4
    • 1 shown on diagram
    $0.90
  • 4

    SCREW, SET

    • Part No. T2610-39572
    • Compatibility No interchange
    • Applied Dates 2006-12-31 and up
    • M8*P1.25
    • * multiple options for #4
    • 1 shown on diagram
    $2.99
  • 5

    RUBBER

    • Part No. T2360-31122
    • Applied Dates 2002-11-26 to 2007-04-24
    • Serial No. 219500001 and up
    • * multiple options for #5
    • 1 shown on diagram
    $22.99
  • 5

    RUBBER, PEDAL v

    • Part No. T2360-31123
    • Compatibility Call for compat
    • Applied Dates 2007-12-31 and up
    • * multiple options for #5
    • 1 shown on diagram
    $27.99
  • 6

    ASSY,DEMPER CYLINDER v

    • Part No. T2360-32611
    • Applied Dates Up to 2009-01-14
    • * multiple options for #6
    • 1 shown on diagram
    $399.99
  • 6

    CYL ASSY ,DAMPER v

    • Part No. T2360-33611
    • Compatibility Interchngable
    • Applied Dates 2009-01-15 to 2012-11-04
    • * multiple options for #6
    • 1 shown on diagram
    $374.99

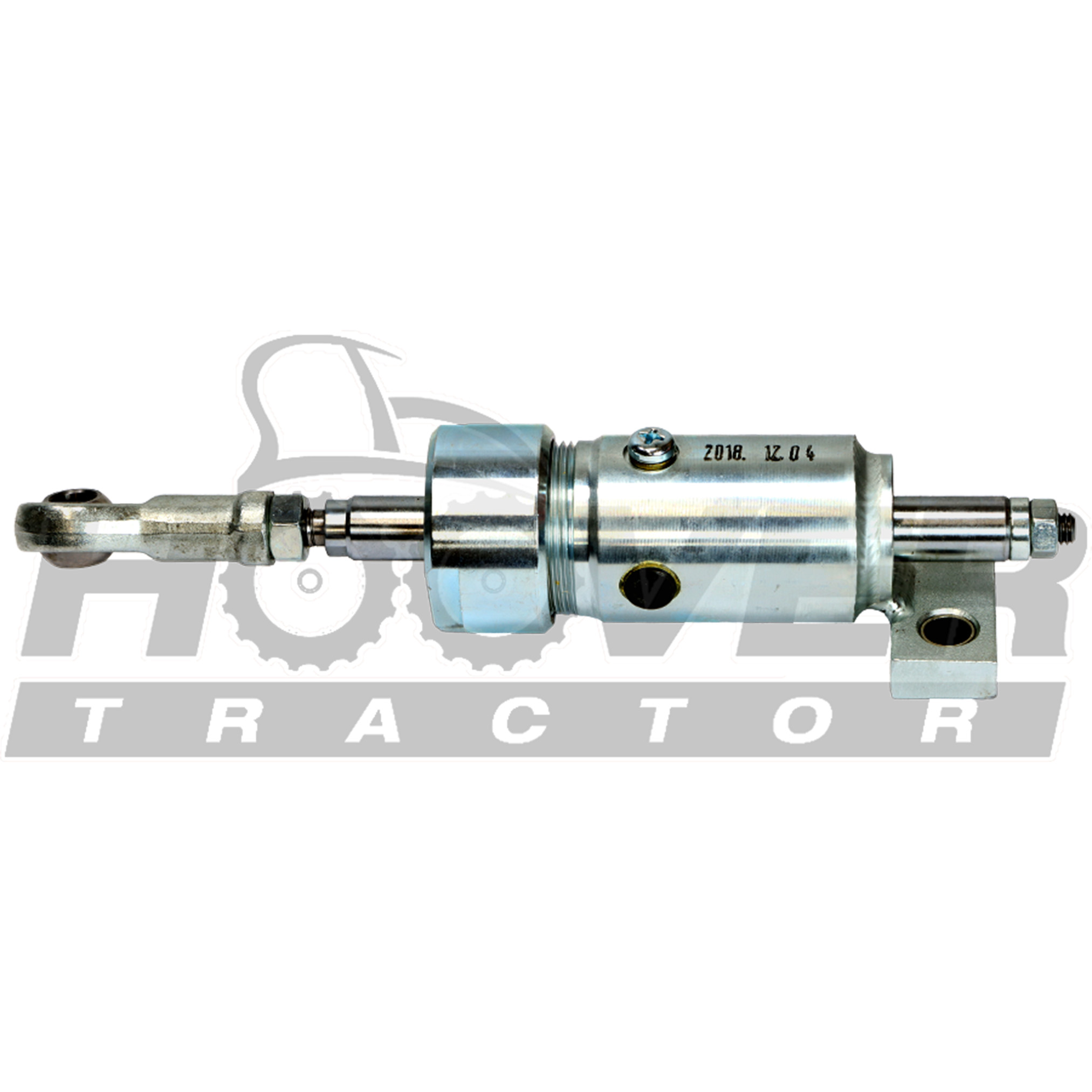

  • 6 CYLINDER ASSY DAMPER

    CYLINDER ASSY DAMPER

    • Part No. T2360-33612
    • Compatibility Interchngable
    • Applied Dates 2012-11-05 and up
    • * multiple options for #6
    • 1 shown on diagram
    $374.99
  • 7

    BOLT

    • Part No. 01133-51020
    • Applied Dates 2013-09-01 to 2008-06-17
    • Serial No. 219500001 to 319500100
    • M10XP1.25
    • * multiple options for #7
    • 2 shown on diagram
    $2.99
  • 7

    Bolt, Washer

    • Part No. 01135-51020
    • Compatibility Call for compat
    • Applied Dates 2010-10-17 to 2010-10-17
    • Serial No. 219500001 and up
    • M10*1.25
    • * multiple options for #7
    • 2 shown on diagram
    $1.99
  • 8 RING SNAP

    RING SNAP

    • Part No. 04613-50060
    • DIA06
    • 1 shown on diagram
    $0.67
  • 9

    PLATE

    • Part No. T2360-32131
    • T2.3
    • 1 shown on diagram
    $3.49
  • 10

    Flat Washer M10

    • Part No. 04011-50100
    • M10
    • 2 shown on diagram
    $0.67
  • 11 Split Pin (05511-50215)

    Split Pin (05511-50215)

    • Part No. 05511-50215
    • DIA1.8XL15
    • 1 shown on diagram
    $0.62
  • 12

    ASSY, DEMPER v

    • Part No. T2360-32511
    • Applied Dates Up to 2007-08-30
    • * multiple options for #12
    • 1 shown on diagram
    $239.99
  • 12

    ASSY DEMPER, Replaced by TC24-0221A

    • Part No. P5370-32511
    • Compatibility Interchngable
    • Applied Dates 2007-10-01 and up
    • * multiple options for #12
    • 1 shown on diagram
    $0.00
  • 13

    SPACER dnr v

    • Part No. T2360-34141
    • Applied Dates 2012-03-26 to 2017-05-31
    • Serial No. 219500001 and up
    • DIA14
    • * multiple options for #13
    • 1 shown on diagram
    $6.99
  • 13

    SPACER

    • Part No. TB16-0072A
    • Compatibility Interchngable
    • Applied Dates 2017-06-01 and up
    • DIA14
    • * multiple options for #13
    • 1 shown on diagram
    $5.49
  • 14

    SPACER

    • Part No. T2360-34151
    • DIA14
    • 1 shown on diagram
    $6.49
  • 15

    SPACER

    • Part No. T2360-34161
    • DIA14
    • 1 shown on diagram
    $6.49
  • 16 Flat Washer M8

    Flat Washer M8

    • Part No. 04013-50080
    • 2 shown on diagram
    $0.79
  • 17

    SHAFT

    • Part No. T2360-32242
    • 1 shown on diagram
    $16.99
  • 18 Spring Lock Washer M8

    Spring Lock Washer M8

    • Part No. 04512-50080
    • M08
    • 1 shown on diagram
    $0.61
  • 19

    SHAFT(A)

    • Part No. T2360-32631
    • Applied Dates Up to 2009-01-14
    • * multiple options for #19
    • 1 shown on diagram
    $93.99
  • 19

    SHAFT A

    • Part No. 3DG4-12157
    • Compatibility Call for compat
    • DIA12
    • * multiple options for #19
    • 1 shown on diagram
    $0.00
  • 20

    GUIDE(A)

    • Part No. T2360-32651
    • Applied Dates Up to 2009-01-14
    • * multiple options for #20
    • 1 shown on diagram
    $19.99
  • 20

    GUIDE(A)

    • Part No. 3DG4-00026
    • Compatibility Call for compat
    • DIA21.5
    • * multiple options for #20
    • 1 shown on diagram
    $0.00
  • 21

    SPRING

    • Part No. T2360-32681
    • Applied Dates Up to 2009-01-14
    • DIA2.3
    • * multiple options for #21
    • 1 shown on diagram
    $16.99
  • 21

    FRICTION SPRING

    • Part No. 3DS1-22000
    • Compatibility Call for compat
    • DIA2.3
    • * multiple options for #21
    • 1 shown on diagram
    $0.00
  • 22

    GUIDE(B)

    • Part No. T2360-32691
    • Applied Dates Up to 2009-01-14
    • * multiple options for #22
    • 1 shown on diagram
    $29.99
  • 22

    GUIDE B

    • Part No. 3DG4-00029
    • Compatibility Call for compat
    • DIA21.5
    • * multiple options for #22
    • 1 shown on diagram
    $0.00
  • 23

    SHAFT(B)

    • Part No. T2360-32701
    • Applied Dates Up to 2009-01-14
    • * multiple options for #23
    • 1 shown on diagram
    $79.99
  • 23

    SHAFT B

    • Part No. 3DG4-61243
    • Compatibility Call for compat
    • PF1/4
    • * multiple options for #23
    • 1 shown on diagram
    $0.00
  • 24

    PLUG dnr v

    • Part No. 15521-9602-2
    • Applied Dates Up to 2009-01-14
    • * multiple options for #24
    • 1 shown on diagram
    $3.99
  • 24

    PLUG

    • Part No. 31SB-01040
    • Compatibility Interchngable
    • PT1/8
    • * multiple options for #24
    • 1 shown on diagram
    $6.49
  • 25

    CAP(A)

    • Part No. T2360-32661
    • Applied Dates Up to 2009-01-14
    • * multiple options for #25
    • 1 shown on diagram
    $77.99
  • 25

    TUBE

    • Part No. 3DG4-23342
    • Compatibility Call for compat
    • DIA34
    • * multiple options for #25
    • 1 shown on diagram
    $0.00
  • 26 O RING

    O RING

    • Part No. 04811-00120
    • Applied Dates Up to 2009-01-14
    • DIA11.8
    • * multiple options for #26
    • 2 shown on diagram
    $0.79
  • 26

    PLATE

    • Part No. 3DG4-00032
    • Compatibility Call for compat
    • T9.0
    • * multiple options for #26
    • 1 shown on diagram
    $0.00
  • 27

    CAP(B)

    • Part No. T2360-32641
    • Applied Dates Up to 2009-01-14
    • * multiple options for #27
    • 1 shown on diagram
    $67.99
  • 27

    CAP(B)

    • Part No. 3DG4-00028
    • Compatibility Call for compat
    • DIA38
    • * multiple options for #27
    • 1 shown on diagram
    $0.00
  • 28 O RING

    O RING

    • Part No. 04811-00210
    • Applied Dates Up to 2009-01-14
    • DIA20.8
    • * multiple options for #28
    • 1 shown on diagram
    $4.49
  • 28

    SCREW

    • Part No. 3DSM-00001
    • Compatibility Call for compat
    • M5 X 0.8P X 6L
    • * multiple options for #28
    • 1 shown on diagram
    $0.00
  • 29

    BOLT

    • Part No. T2360-32731
    • Applied Dates Up to 2009-01-14
    • * multiple options for #29
    • 1 shown on diagram
    $0.34
  • 29

    COLLAR

    • Part No. 3DG4-61135
    • Compatibility Call for compat
    • * multiple options for #29
    • 1 shown on diagram
    $0.00
  • 30

    SEAL WASER

    • Part No. 04717-00500
    • Applied Dates Up to 2009-01-14
    • * multiple options for #30
    • 1 shown on diagram
    $58.99
  • 30

    HEAD COVER

    • Part No. 3DG4-00030
    • Compatibility Call for compat
    • DIA27
    • * multiple options for #30
    • 1 shown on diagram
    $0.00
  • 31

    COLLAR

    • Part No. T2360-32711
    • Applied Dates Up to 2009-01-14
    • * multiple options for #31
    • 1 shown on diagram
    $14.99
  • 31

    O RING

    • Part No. 32O1-12024
    • Compatibility Call for compat
    • 1AP12
    • * multiple options for #31
    • 2 shown on diagram
    $0.00
  • 32

    NUT, LOCK

    • Part No. T2670-50981
    • Applied Dates Up to 2009-01-14
    • * multiple options for #32
    • 1 shown on diagram
    $4.49
  • 32

    O RING

    • Part No. 3DO1-00026
    • Compatibility Call for compat
    • 1AP26
    • * multiple options for #32
    • 1 shown on diagram
    $0.00
  • 33

    NUT

    • Part No. 02156-00080
    • Applied Dates Up to 2009-01-14
    • * multiple options for #33
    • 1 shown on diagram
    $0.62
  • 33

    NUT

    • Part No. 31N1-08100
    • Compatibility Call for compat
    • M8 X 1.25P
    • * multiple options for #33
    • 1 shown on diagram
    $0.00
  • 34

    JOINT, BALL

    • Part No. T2360-32621
    • Applied Dates Up to 2009-01-14
    • * multiple options for #34
    • 1 shown on diagram
    $89.99
  • 34

    JOINT, BALL

    • Part No. 3DG4-00025
    • Compatibility Call for compat
    • M8 X 1.25P
    • * multiple options for #34
    • 1 shown on diagram
    $49.99
