DOWN SPEED CONTROL GROUP - CK20M-T720A

Kioti TRACTOR | CK Series | CK20H

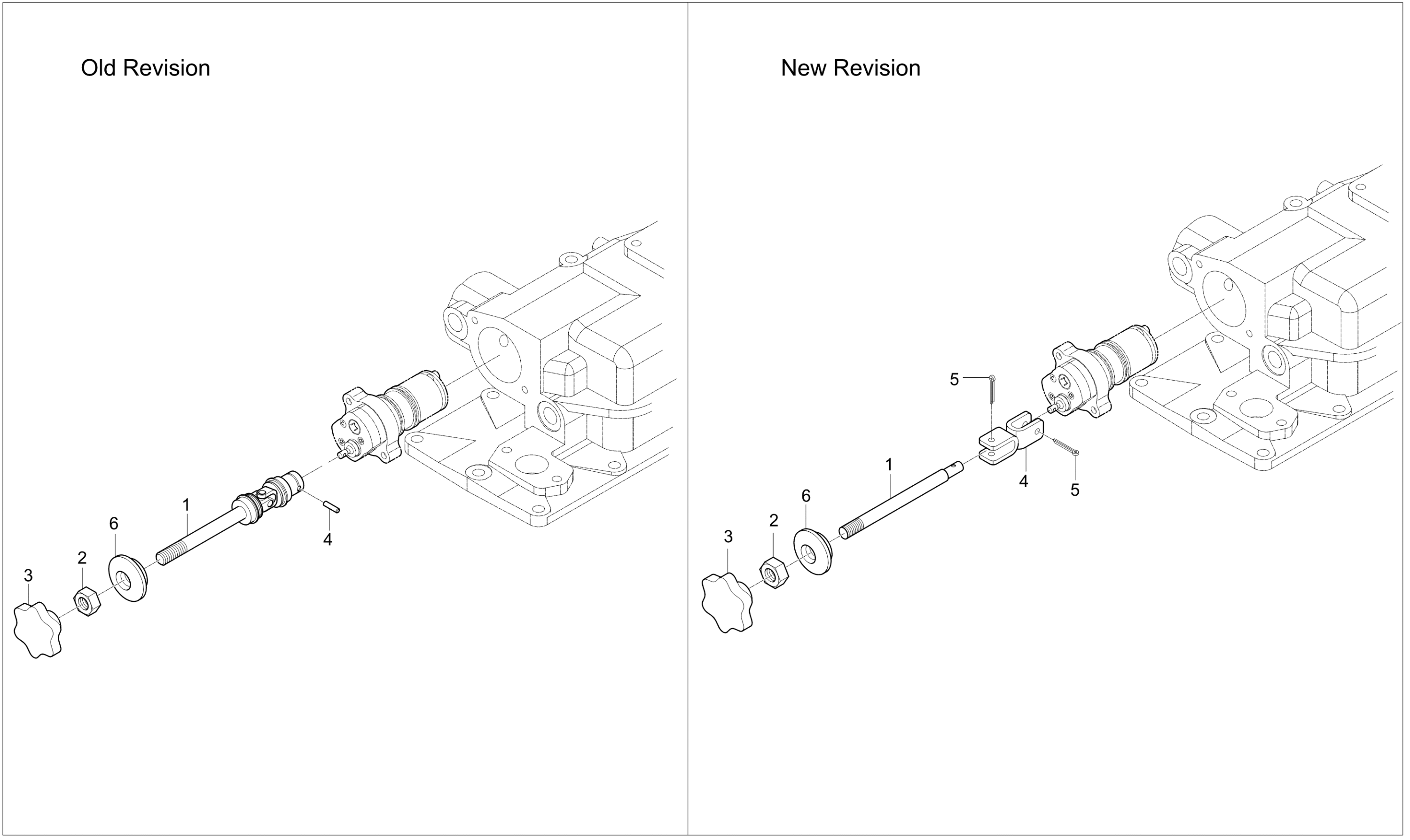

Diagram for DOWN SPEED CONTROL GROUP - CK20M-T720A
  • 1

    ROD,HYD. CONTROL

    • Part No. T2350-65321
    • Applied Dates Up to 2004-09-30
    • * multiple options for #1
    • 1 shown on diagram
    $154.99
  • 1

    ROD(MLS) T2350-65371

    • Part No. T2350-65371
    • Compatibility No interchange
    • Applied Dates 2004-10-01 and up
    • Serial No. E19500001 and up
    • DIA10
    • * multiple options for #1
    • 1 shown on diagram
    $12.99
  • 2 Nut M10 P1.25

    Nut M10 P1.25

    • Part No. 02176-50100
    • M10XP1.25
    • 1 shown on diagram
    $0.98
  • 3

    GRIP

    • Part No. T2610-39881
    • Applied Dates Up to 2004-05-10
    • * multiple options for #3
    • 1 shown on diagram
    $5.99
  • 3

    GRIP

    • Part No. T2610-39882
    • Compatibility Interchngable
    • Applied Dates 2004-05-11 and up
    • Serial No. D19500001 and up
    • * multiple options for #3
    • 1 shown on diagram
    $12.99
  • 4

    PIN

    • Part No. T2350-65341
    • Applied Dates Up to 2004-09-30
    • * multiple options for #4
    • 1 shown on diagram
    $3.99
  • 4

    U BRACKET

    • Part No. T4628-66211
    • Compatibility No interchange
    • Applied Dates 2004-10-01 and up
    • Serial No. E19500001 and up
    • T3.0
    • * multiple options for #4
    • 1 shown on diagram
    $9.99
  • 5 Snap Ring 16mm

    Snap Ring 16mm

    • Part No. 04612-00160
    • Applied Dates Up to 2004-09-30
    • Serial No. Up to 319500100
    • DIA16
    • * multiple options for #5
    • 1 shown on diagram
    $0.85
  • 5

    PIN, SPLIT

    • Part No. 05511-50425
    • Compatibility New repl old
    • Applied Dates 2007-10-05 to 2008-05-06
    • DIA4*25
    • * multiple options for #5
    • 2 shown on diagram
    $0.24
  • 5

    Split Pin (05511-50325)

    • Part No. 05511-50325
    • Compatibility Interchngable
    • Applied Dates 2008-05-07 to 2008-06-24
    • * multiple options for #5
    • 2 shown on diagram
    $0.68
  • 5 Pin, Split

    Pin, Split

    • Part No. 05511-50320
    • Compatibility Call for compat
    • Applied Dates 2008-06-25 to 2007-05-30
    • DIA2.7XL20
    • * multiple options for #5
    • 2 shown on diagram
    $0.46
  • 6

    RUBBER, CUSHION ROUND T4620-50592

    • Part No. T4620-50592
    • Applied Dates Up to 2009-05-27
    • * multiple options for #6
    • 1 shown on diagram
    $5.49
  • 6

    GROMMET

    • Part No. 31355-2949-1
    • Compatibility Interchngable
    • Applied Dates 2009-05-28 to 2007-12-24
    • * multiple options for #6
    • 1 shown on diagram
    $4.99
