POWER STEERING UNIT GROUP - CK20M-T520A

Kioti TRACTOR | CK Series | CK20H

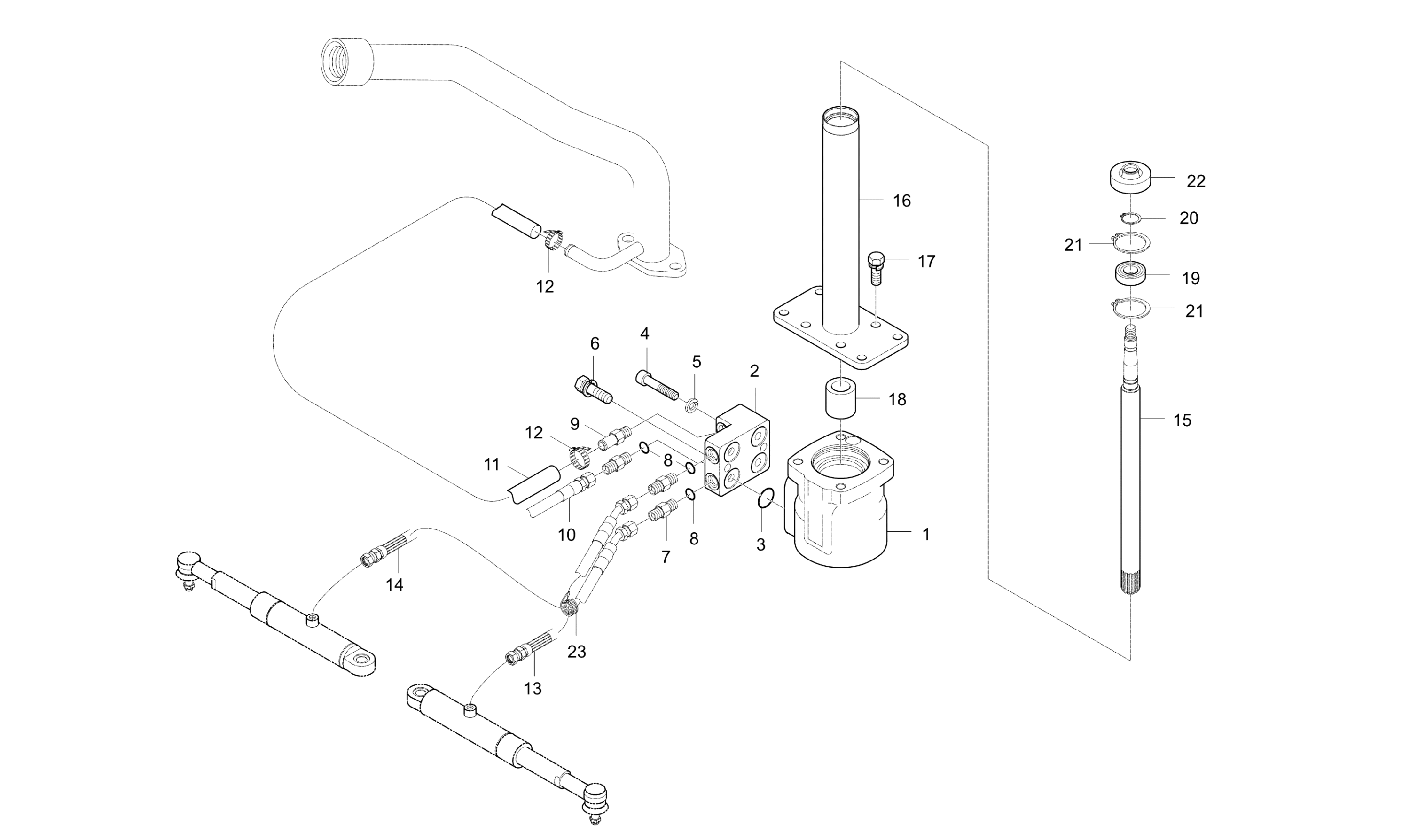

Diagram for POWER STEERING UNIT GROUP - CK20M-T520A
  • 1

    UNIT,POWER STEERING v

    • Part No. T2350-66001
    • Applied Dates Up to 2004-04-28
    • * multiple options for #1
    • 1 shown on diagram
    $1,029.99
  • 1

    UNIT, POWER STEERING v

    • Part No. T2350-66002
    • Compatibility New repl old
    • Applied Dates 2004-04-29 to 2009-05-24
    • Serial No. D19500001 and up
    • * multiple options for #1
    • 1 shown on diagram
    $1,739.99
  • 1

    UNIT POWER STEERING v

    • Part No. T2350-62101
    • Compatibility Interchngable
    • Applied Dates 2009-05-25 to 2009-12-01
    • 40 cc/rev
    • * multiple options for #1
    • 1 shown on diagram
    $1,194.99
  • 2

    BLOCK,HYDRAULCE v

    • Part No. T2350-66201
    • 1 shown on diagram
    $199.99
  • 3 O-RING, NLA, Use 330-MOR-21.8X2.4-90D, Replaced by 04816-00220

    O-RING, NLA, Use 330-MOR-21.8X2.4-90D, Replaced by 04816-00220

    • Part No. 04810-00220
    • DIA21.8
    • 4 shown on diagram
    $1.19
  • 4

    BOLT,HEXAGON SOCKET

    • Part No. T2350-66221
    • 1 shown on diagram
    $6.49
  • 5 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50100
    • M10
    • 1 shown on diagram
    $0.79
  • 6

    Bolt With Washer, M10 P1.50 x 35mm

    • Part No. 01123-51035
    • M10XP1.5
    • 1 shown on diagram
    $3.99
  • 7

    CONNECTOR

    • Part No. T4620-66161
    • PF1/4
    • 3 shown on diagram
    $13.99
  • 8

    O RING

    • Part No. 04810-00110
    • Applied Dates Up to 2007-10-05
    • DIA10.8
    • 3 shown on diagram
    $0.79
  • 9

    CONNECTOR

    • Part No. T2350-66181
    • 1 shown on diagram
    $18.99
  • 10

    HOSE P, STEERING

    • Part No. T2350-45001
    • 1 shown on diagram
    $59.99
  • 11

    HOSE T, STEERING

    • Part No. T2350-45011
    • 1 shown on diagram
    $85.99
  • 12

    BAND, HOSE v

    • Part No. 52200-2523-1
    • 2 shown on diagram
    $4.99
  • 13

    HOSE L, STEERING

    • Part No. T2350-45021
    • 1 shown on diagram
    $98.99
  • 14

    HOSE R, STEERING V

    • Part No. T2350-45031
    • 1 shown on diagram
    $99.99
  • 15

    SHAFT,STEERING

    • Part No. T2350-66101
    • 1 shown on diagram
    $97.99
  • 16

    ASSY,COLUMN v

    • Part No. T2350-66011
    • Applied Dates Up to 2003-07-18
    • * multiple options for #16
    • 1 shown on diagram
    $59.99
  • 16

    ASSY. COLUMN v

    • Part No. T2350-66012
    • Compatibility Interchngable
    • Applied Dates 2003-07-19 to 2007-12-24
    • Serial No. 319500041 and up
    • * multiple options for #16
    • 1 shown on diagram
    $84.99
  • 16

    COLUMN ASSY

    • Part No. T2350-66012BB
    • Compatibility No interchange
    • * multiple options for #16
    • 1 shown on diagram
    $66.99
  • 17

    Bolt With Washer, M10 P1.50 x 30mm

    • Part No. 01123-51030
    • Applied Dates Up to 2007-04-10
    • Serial No. Up to 319500020
    • M10*1.5
    • * multiple options for #17
    • 4 shown on diagram
    $3.49
  • 17

    Bolt With Washer, M10 P1.50 x 25mm

    • Part No. 01123-51025
    • Compatibility New repl old
    • Applied Dates 2007-04-11 to 2007-12-24
    • Serial No. 319500021 and up
    • M10X1.5
    • * multiple options for #17
    • 4 shown on diagram
    $3.49
  • 18 RUBBER CUSHION

    RUBBER CUSHION

    • Part No. T4260-50100
    • L3503, D4351
    • 1 shown on diagram
    $9.49
  • 19 BEARING,BALL 17x35x10

    BEARING,BALL 17x35x10

    • Part No. 08111-06003
    • 1 shown on diagram
    $11.99
  • 20 CIR-CLIP

    CIR-CLIP

    • Part No. 04612-00170
    • DIA17
    • 1 shown on diagram
    $0.98
  • 21 CIR CLIP, INTERNAL

    CIR CLIP, INTERNAL

    • Part No. 04611-00350
    • SK5M
    • 2 shown on diagram
    $1.39
  • 22

    SEAL,OIL

    • Part No. T2440-16351
    • 1 shown on diagram
    $5.99
  • 23

    Band Cord (T4520-82561)

    • Part No. T4520-82561
    • Applied Dates 2002-12-15 to 2009-03-12
    • Serial No. 219500001 and up
    • L200
    • * multiple options for #23
    • 4 shown on diagram
    $0.59
  • 23

    BAND, CORD

    • Part No. T2185-82561
    • Compatibility Call for compat
    • Applied Dates 2009-03-13 and up
    • L200
    • * multiple options for #23
    • 4 shown on diagram
    $0.49
