INLET TUBE GROUP - CK20H-T650-2A

Kioti TRACTOR | CK Series | CK20H

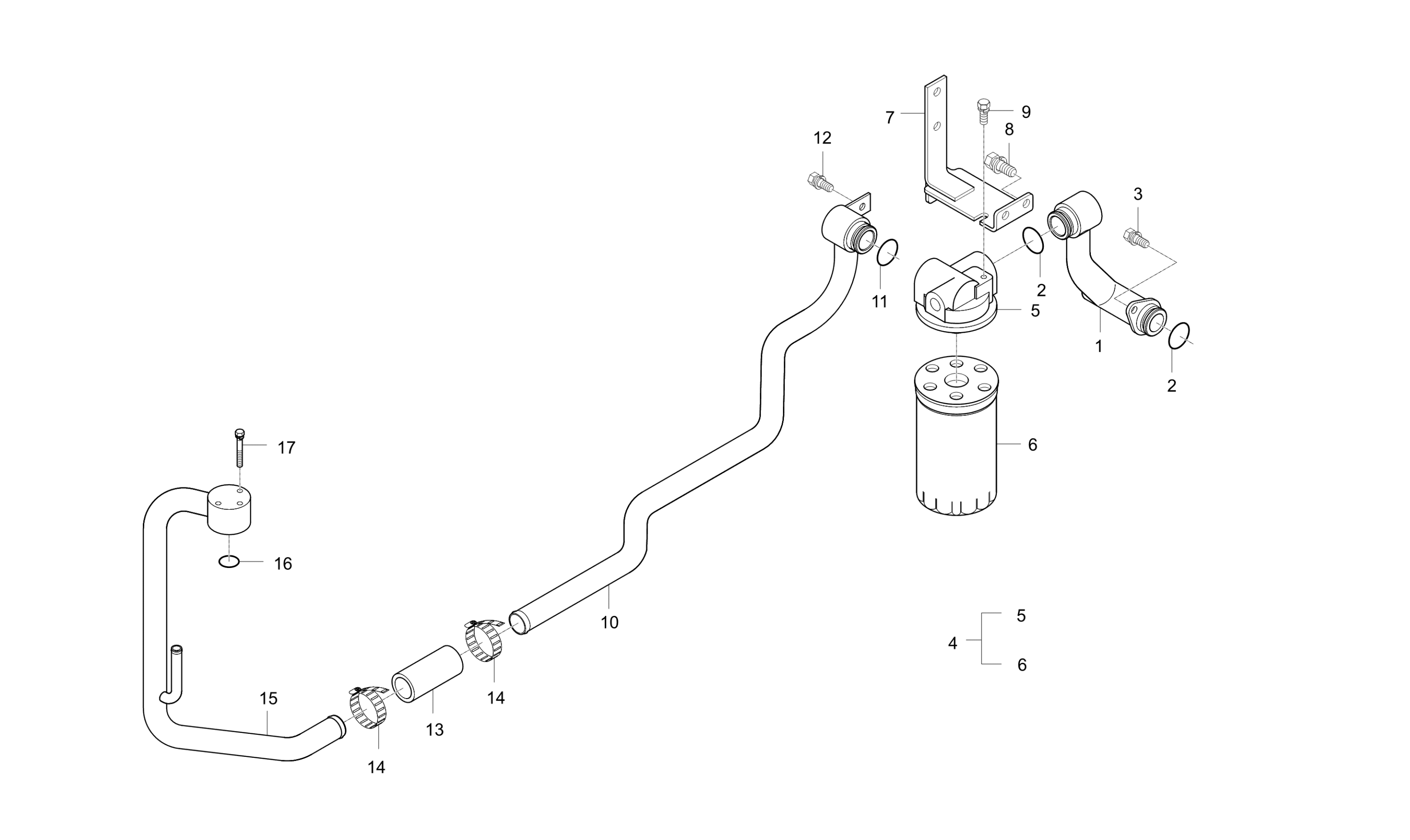

Diagram for INLET TUBE GROUP - CK20H-T650-2A
  • 1

    HOSE 1, INLET dnr v

    • Part No. T2350-38001
    • Applied Dates Up to 2004-09-10
    • * multiple options for #1
    • 1 shown on diagram
    $69.99
  • 1

    TUBE INLET 1 dnr v

    • Part No. T2350-38002
    • Compatibility New repl old
    • Applied Dates 2004-09-11 and up
    • Serial No. D19500001 and up
    • * multiple options for #1
    • 1 shown on diagram
    $124.99
  • 1

    TUBE 1, INPUT

    • Part No. T2350-38003
    • Compatibility Interchngable
    • * multiple options for #1
    • 1 shown on diagram
    $124.99
  • 2 O RING

    O RING

    • Part No. 04811-00290
    • P29
    • 2 shown on diagram
    $0.96
  • 3 Bolt With Washer, M8 P1.25 x 20mm

    Bolt With Washer, M8 P1.25 x 20mm

    • Part No. 01123-50820
    • M8XP1.25
    • 2 shown on diagram
    $2.49
  • 4

    HYDRAULIC HOSE ASSY v

    • Part No. T2360-38111
    • Applied Dates Up to 2003-09-14
    • * multiple options for #4
    • 1 shown on diagram
    $89.99
  • 4

    FILTER ASS’Y-HYD

    • Part No. T2360-38112
    • Compatibility New repl old
    • Applied Dates 2003-09-15 to 2005-04-12
    • Serial No. 319500121 and up
    • * multiple options for #4
    • 1 shown on diagram
    $69.99
  • 4

    FILTER ASS’Y-HYD.

    • Part No. T2360-38113
    • Compatibility New repl old
    • Applied Dates 2005-04-13 and up
    • Serial No. E19500001 and up
    • * multiple options for #4
    • 1 shown on diagram
    $85.99
  • 5

    BRACKET,FILTER dnr v

    • Part No. T2360-38041
    • Applied Dates Up to 2003-09-14
    • * multiple options for #5
    • 1 shown on diagram
    $52.99
  • 5

    FILTER BRACKET V

    • Part No. T2360-38042
    • Compatibility Interchngable
    • Applied Dates 2003-09-15 to 2005-04-12
    • * multiple options for #5
    • 1 shown on diagram
    $82.99
  • 5 Bracket, HST Filter

    Bracket, HST Filter

    • Part No. T2360-38043
    • Compatibility New repl old
    • Applied Dates 2005-04-13 and up
    • * multiple options for #5
    • 1 shown on diagram
    $93.99
  • 6 Hydraulic Filter

    Hydraulic Filter

    • Part No. T4260-38125
    • 1 shown on diagram
    $37.99
  • 7

    SUPPORT,FILTER dnr v

    • Part No. T2360-38061
    • 1 shown on diagram
    $29.99
  • 8

    BOLT

    • Part No. 01133-51020
    • M10XP1.25
    • 2 shown on diagram
    $2.99
  • 9

    Bolt With Washers, M8 P1.25 x 20mm

    • Part No. 01125-50820
    • M8XP1.25
    • 1 shown on diagram
    $2.49
  • 10

    PIPE, 2 SUCTION

    • Part No. T2350-38012
    • Applied Dates Up to 2004-09-20
    • * multiple options for #10
    • 1 shown on diagram
    $69.99
  • 10

    TUBE 2, SUCTION

    • Part No. T2350-38013
    • Compatibility New repl old
    • Applied Dates 2004-09-21 to 2007-03-26
    • Serial No. D19500001 and up
    • * multiple options for #10
    • 1 shown on diagram
    $72.99
  • 10

    TUBE 2, INPUT

    • Part No. T2350-38014
    • Compatibility Interchngable
    • Applied Dates 2007-03-27 and up
    • * multiple options for #10
    • 1 shown on diagram
    $59.99
  • 11 O RING

    O RING

    • Part No. 04811-00290
    • P29
    • 1 shown on diagram
    $0.96
  • 12 Bolt With Washer, M8 P1.25 x 20mm

    Bolt With Washer, M8 P1.25 x 20mm

    • Part No. 01123-50820
    • M8XP1.25
    • 1 shown on diagram
    $2.49
  • 13

    HOSE, RUBBER dnr v

    • Part No. 84612-3777-0
    • Applied Dates Up to 2008-02-24
    • * multiple options for #13
    • 1 shown on diagram
    $6.49
  • 13 HOSE,RUBBER 28mm ID

    HOSE,RUBBER 28mm ID

    • Part No. T4125-38151
    • Compatibility Call for compat
    • Applied Dates 2008-02-25 and up
    • * multiple options for #13
    • 1 shown on diagram
    $6.49
  • 14

    HOSE BAND v

    • Part No. 31355-3819-1
    • Stan40#
    • 2 shown on diagram
    $4.99
  • 15 Hose 3, Inlet Replaced by T2350-38023BB

    Hose 3, Inlet Replaced by T2350-38023BB

    • Part No. T2350-38021
    • Applied Dates Up to 2004-09-10
    • * multiple options for #15
    • 1 shown on diagram
    $69.99
  • 15

    TUBE 3, INLET dnr v

    • Part No. T2350-38022
    • Compatibility New repl old
    • Applied Dates 2004-09-11 to 2007-03-26
    • Serial No. D19500001 and up
    • * multiple options for #15
    • 1 shown on diagram
    $65.99
  • 15

    TUBE INLET 3 dnr v

    • Part No. T2350-38023
    • Compatibility Interchngable
    • Applied Dates 2007-03-27 and up
    • * multiple options for #15
    • 1 shown on diagram
    $97.99
  • 16 O RING

    O RING

    • Part No. 04810-00200
    • DIA19.8
    • 1 shown on diagram
    $1.19
  • 17

    BOLT

    • Part No. 01023-50645
    • M6XP1.0
    • 3 shown on diagram
    $1.19
