JOYSTICK VALVE GROUP - CK20H-T690A

Kioti TRACTOR | CK Series | CK20HJ

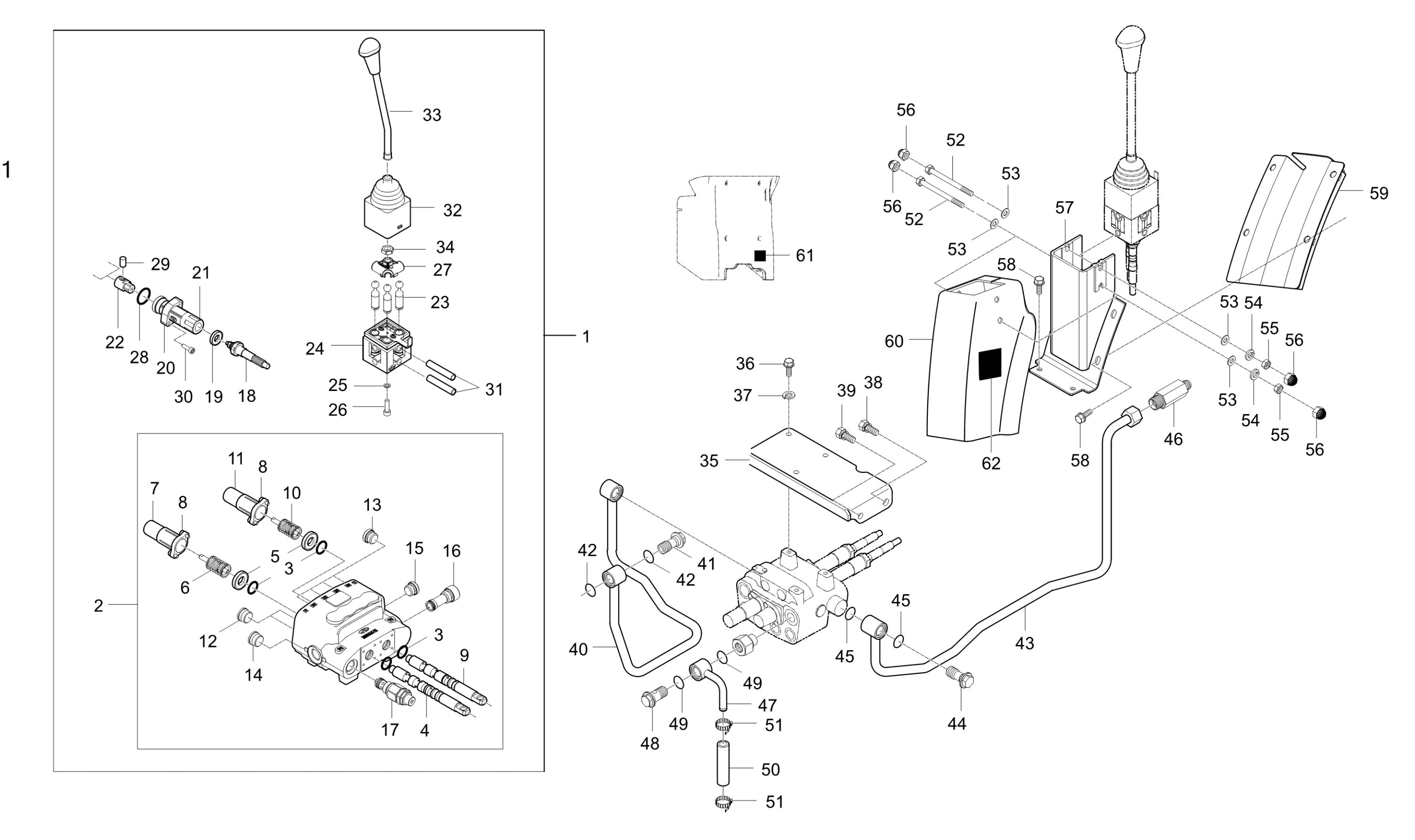

Diagram for JOYSTICK VALVE GROUP - CK20H-T690A
  • 1

    ASSY JOYSTICK VALVE dnr v

    • Part No. T2351-90111
    • Applied Dates 2008-10-17 to 2009-12-31
    • * multiple options for #1
    • 1 shown on diagram
    $1,809.99
  • 1

    ASSY VALVE, JOYSTICK dnr v

    • Part No. T2351-90201
    • Compatibility Interchngable
    • Applied Dates 2010-02-11 and up
    • * multiple options for #1
    • 1 shown on diagram
    $2,239.99
  • 2

    VALVE ASS’Y V

    • Part No. 26003-0001
    • * multiple options for #2
    • 1 shown on diagram
    $2,599.99
  • 2

    Valve Assy

    • Part No. 26003-0002
    • Compatibility Interchngable
    • * multiple options for #2
    • 1 shown on diagram
    $2,484.99
  • 3

    ORING v

    • Part No. 36001-0042
    • 4 shown on diagram
    $5.99
  • 4

    SPOOL, 1

    • Part No. 36001-0041
    • 1 shown on diagram
    $129.99
  • 5

    COLLAR v

    • Part No. 36001-0062
    • 2 shown on diagram
    $24.99
  • 6

    ASSY 1 SPRING KIT

    • Part No. 36001-0049
    • 1 shown on diagram
    $36.99
  • 7 ASSY 1 END CAP, Replaced by V001-104

    ASSY 1 END CAP, Replaced by V001-104

    • Part No. 36001-0043
    • 1 shown on diagram
    $0.00
  • 8

    BOLT HEXAGEN

    • Part No. 36001-0097
    • 4 shown on diagram
    $0.85
  • 9

    SP00L 3

    • Part No. 36001-0099
    • 1 shown on diagram
    $194.99
  • 10

    SPRING KIT ASSY (3)

    • Part No. 36001-0400
    • 1 shown on diagram
    $48.99
  • 11

    END CAP 3 v

    • Part No. 36001-0098
    • 1 shown on diagram
    $23.99
  • 12

    CHECK VAVLE ASSY

    • Part No. 36001-0077
    • 2 shown on diagram
    $49.99
  • 13

    PLUG ASSY, 9X16 18UNF

    • Part No. 36001-0063
    • * multiple options for #13
    • 4 shown on diagram
    $19.99
  • 13

    THERMOSRT PLUG

    • Part No. 36001-1063
    • Compatibility Interchngable
    • * multiple options for #13
    • 4 shown on diagram
    $0.00
  • 14

    PLUG ASSY, M18XP1.5

    • Part No. 36001-0066
    • 1 shown on diagram
    $15.99
  • 15

    PLUG ASSY, 3X4 16UNF

    • Part No. 36001-0069
    • * multiple options for #15
    • 1 shown on diagram
    $16.99
  • 15

    THERMOSRT PLUG

    • Part No. 36001-1069
    • Compatibility Interchngable
    • * multiple options for #15
    • 1 shown on diagram
    $0.00
  • 16

    JOINT ASSY,

    • Part No. 36001-0072
    • 1 shown on diagram
    $24.99
  • 17

    PLUG (R/V) ASSY

    • Part No. 36001-0420
    • 1 shown on diagram
    $45.99
  • 18 CABLE,PUSH-PULL

    CABLE,PUSH-PULL

    • Part No. 36001-0200
    • 2 shown on diagram
    $164.99
  • 19 WASHER, SEAL

    WASHER, SEAL

    • Part No. 04717-01600
    • 2 shown on diagram
    $1.99
  • 20

    FLANGE

    • Part No. 36001-0130
    • 2 shown on diagram
    $12.99
  • 21 ENDCAP

    ENDCAP

    • Part No. 36001-0120
    • 2 shown on diagram
    $22.99
  • 22 JOINT

    JOINT

    • Part No. 36001-0150
    • 2 shown on diagram
    $13.99
  • 23 Ball End, Replaced by 36001-0170

    Ball End, Replaced by 36001-0170

    • Part No. 36001-0160
    • 3 shown on diagram
    $0.00
  • 24 BODY ASS’Y v

    BODY ASS’Y v

    • Part No. 26001-0040
    • 1 shown on diagram
    $69.99
  • 25 WASHER, SPRING v

    WASHER, SPRING v

    • Part No. 36001-0100
    • 1 shown on diagram
    $1.09
  • 26 BOLT SHCS M6 P1.00×20 v

    BOLT SHCS M6 P1.00×20 v

    • Part No. 36001-0080
    • (M6x20)
    • 1 shown on diagram
    $1.09
  • 27 Selector, 3 Socket

    Selector, 3 Socket

    • Part No. 36001-0140
    • 1 shown on diagram
    $24.99
  • 28

    O RING v

    • Part No. 36001-0030
    • 21.95x1.78
    • 2 shown on diagram
    $1.19
  • 29 PIN, CONNECT V

    PIN, CONNECT V

    • Part No. 36001-0010
    • 2 shown on diagram
    $8.99
  • 30 SOCKET HEAD CAP SCREW M5 P.80×18

    SOCKET HEAD CAP SCREW M5 P.80×18

    • Part No. 36001-0060
    • M5x18
    • 4 shown on diagram
    $0.85
  • 31 Tube

    Tube

    • Part No. 36001-0050
    • 2 shown on diagram
    $8.99
  • 32 Rubber Boot

    Rubber Boot

    • Part No. 36001-0180
    • 1 shown on diagram
    $22.99
  • 33 ASSY HANDLE

    ASSY HANDLE

    • Part No. 26001-0030
    • 1 shown on diagram
    $83.99
  • 34 NUT

    NUT

    • Part No. 02072-50140
    • 1 shown on diagram
    $1.29
  • 35

    BRACKET, VALVE

    • Part No. T2350-90213
    • Applied Dates 2008-12-31 to 2008-12-30
    • T6
    • * multiple options for #35
    • 1 shown on diagram
    $26.99
  • 35

    SUPPORT, VALVE

    • Part No. T2350-90214
    • Compatibility Old repl new
    • T6
    • * multiple options for #35
    • 1 shown on diagram
    $39.99
  • 36

    Bolt, Replaced by T2350-90331

    • Part No. T2350-90311
    • 3 shown on diagram
    $2.49
  • 37 Spring Lock Washer M8

    Spring Lock Washer M8

    • Part No. 04512-50080
    • M08
    • 3 shown on diagram
    $0.61
  • 38 BOLT

    BOLT

    • Part No. 01133-51025
    • M10XP1.25
    • 1 shown on diagram
    $3.49
  • 39 BOLT, WASHER M12P1.25 X 25

    BOLT, WASHER M12P1.25 X 25

    • Part No. 01133-51225
    • M12XP1.25
    • 1 shown on diagram
    $3.49
  • 40

    TUBE-P1 HYD v

    • Part No. T2368-37081
    • Applied Dates 2007-07-01 to 2008-10-30
    • Serial No. G19600061 and up
    • * multiple options for #40
    • 1 shown on diagram
    $64.99
  • 40

    TUBE P1, HYD. obs

    • Part No. T2368-37081BB
    • Compatibility No interchange
    • * multiple options for #40
    • 1 shown on diagram
    $86.99
  • 40

    TUBE, HYD-P1 dnr v

    • Part No. T2368-37082
    • Compatibility Interchngable
    • Applied Dates 2010-10-03 and up
    • * multiple options for #40
    • 1 shown on diagram
    $86.99
  • 41 JOINT BOLT M18 P1.5 V

    JOINT BOLT M18 P1.5 V

    • Part No. T4620-37092
    • 2 shown on diagram
    $21.99
  • 42 O RING

    O RING

    • Part No. 04810-00200
    • DIA19.8
    • 4 shown on diagram
    $1.19
  • 43

    TUBE P2- HYD v

    • Part No. T2350-37091
    • * multiple options for #43
    • 1 shown on diagram
    $164.99
  • 43

    TUBE P2, HYD

    • Part No. T2350-37091BB
    • Compatibility No interchange
    • * multiple options for #43
    • 1 shown on diagram
    $164.99
  • 44

    BOLT JOINT

    • Part No. T2350-38501
    • 1 shown on diagram
    $28.99
  • 45 O RING

    O RING

    • Part No. 04810-00200
    • DIA19.8
    • 2 shown on diagram
    $1.19
  • 46

    CONNECTION

    • Part No. T2350-37061
    • 1 shown on diagram
    $28.99
  • 47

    TUBE- RETURN v

    • Part No. T2350-90221
    • * multiple options for #47
    • 1 shown on diagram
    $46.99
  • 47

    TUBE, RETURN

    • Part No. T2350-90221BB
    • Compatibility No interchange
    • * multiple options for #47
    • 1 shown on diagram
    $43.99
  • 48 BOLT, JOINT

    BOLT, JOINT

    • Part No. T4520-90042
    • 1 shown on diagram
    $26.99
  • 49 O RING

    O RING

    • Part No. 04810-00200
    • DIA19.8
    • 2 shown on diagram
    $1.19
  • 50

    HOSE, RETURN

    • Part No. T2350-38404
    • 1 shown on diagram
    $13.99
  • 51

    CLAMP, HOSE

    • Part No. 09318-89022
    • 2 shown on diagram
    $2.99
  • 52

    BOLT

    • Part No. 01123-50803
    • M8XP1.25
    • 2 shown on diagram
    $2.99
  • 53 Flat Washer M8

    Flat Washer M8

    • Part No. 04015-50080
    • M8
    • 4 shown on diagram
    $1.09
  • 54 Spring Lock Washer M8

    Spring Lock Washer M8

    • Part No. 04512-50080
    • M08
    • 2 shown on diagram
    $0.61
  • 55 Nut M8 P1.25

    Nut M8 P1.25

    • Part No. 02156-50080
    • M8XP1.25
    • 2 shown on diagram
    $0.85
  • 56 Cap Nut, M8 T4815-93211

    Cap Nut, M8 T4815-93211

    • Part No. T4815-93211
    • M8
    • 4 shown on diagram
    $1.49
  • 57

    JOYSTIC FRAME

    • Part No. T2350-78312
    • 1 shown on diagram
    $86.99
  • 58

    Bolt With Washers, M8 P1.25 x 20mm

    • Part No. 01125-50820
    • M8XP1.25
    • 6 shown on diagram
    $2.49
  • 59

    COVER, HOSE dnr v

    • Part No. T2350-95071
    • 1 shown on diagram
    $35.99
  • 60

    COVER-JOYSTICK v

    • Part No. T2350-90325
    • Applied Dates 2006-12-01 to 2008-10-23
    • Serial No. F19600481 and up
    • * multiple options for #60
    • 1 shown on diagram
    $68.99
  • 60

    COVER JOYSTICK

    • Part No. T2350-90325BB
    • Compatibility No interchange
    • * multiple options for #60
    • 1 shown on diagram
    $68.99
  • 61 LABEL

    LABEL

    • Part No. T2350-54131
    • T0.05-0.08
    • 1 shown on diagram
    $2.99
  • 62

    LABEL(JOYSTICK)

    • Part No. T2350-54141
    • 1 shown on diagram
    $3.49
