FLOW CONTROL VALVE GROUP - CK20M-T670-1A

Kioti TRACTOR | CK Series | CK20HJ

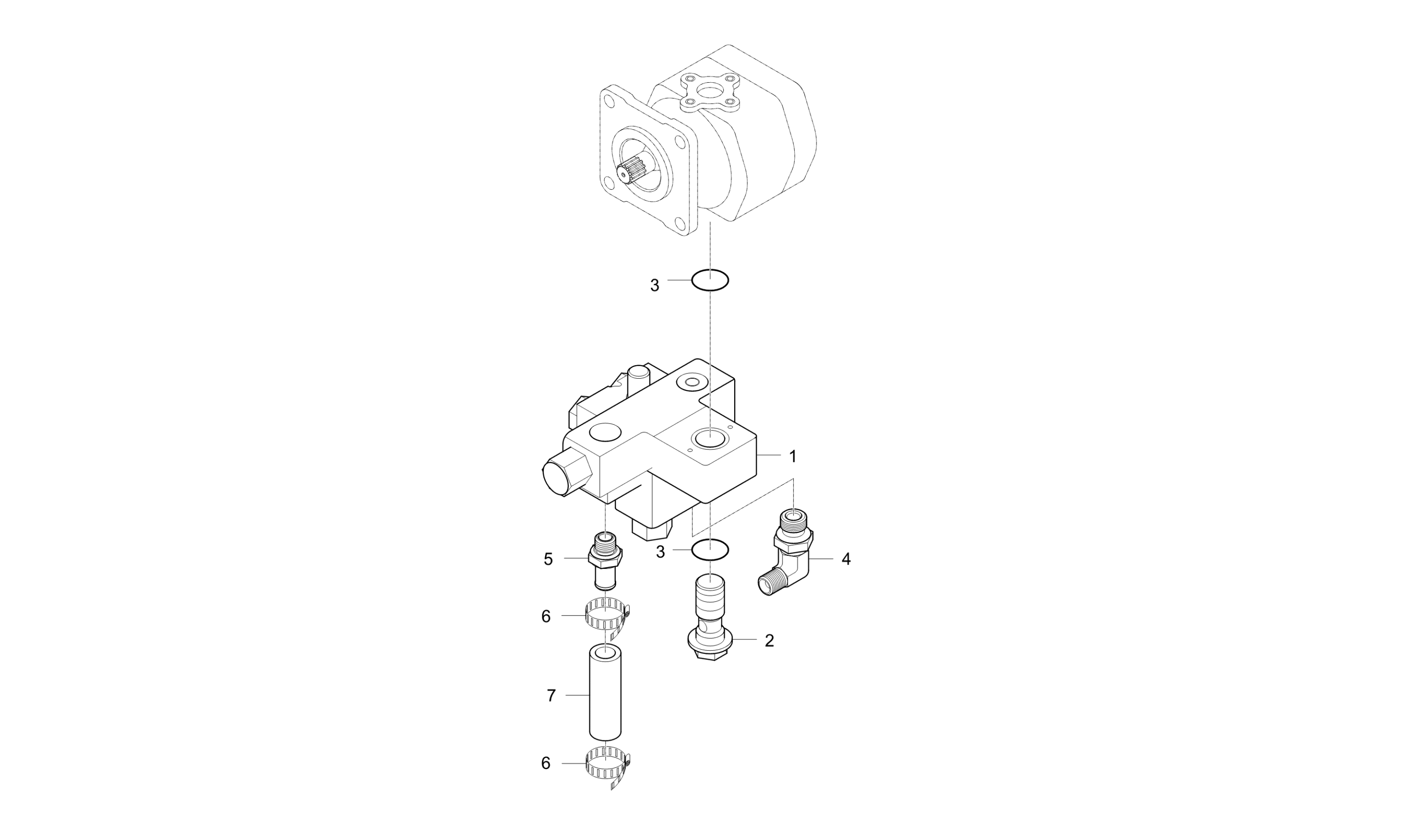

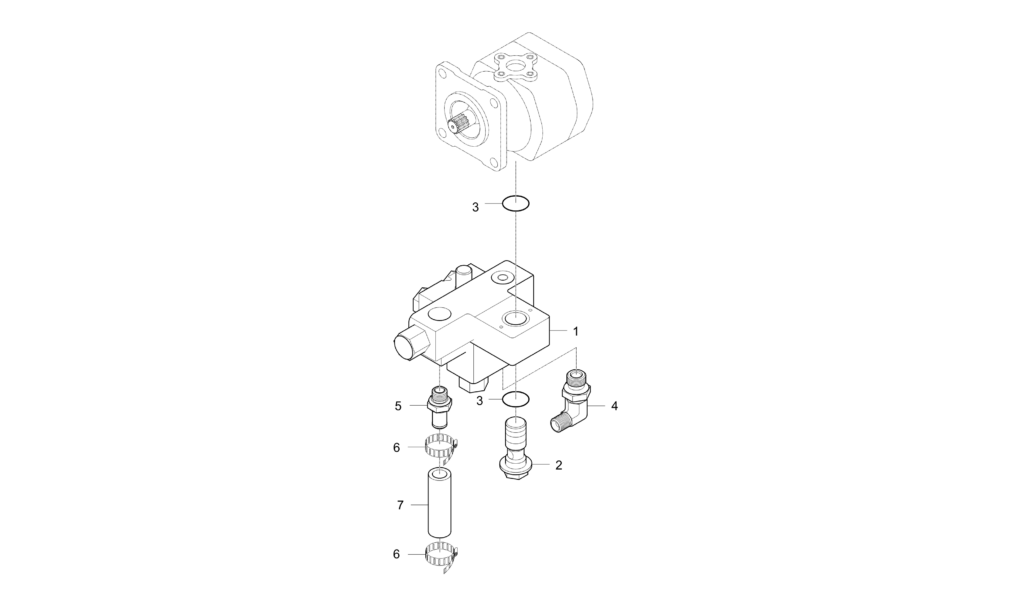

Diagram for FLOW CONTROL VALVE GROUP - CK20M-T670-1A
  • 1

    ASSY, CONTROL VALVE obs v

    • Part No. T2350-38302
    • Applied Dates 2003-05-07 to 2007-07-09
    • Serial No. 319600081 to 319600820
    • * multiple options for #1
    • 1 shown on diagram
    $459.99
  • 1

    ASSY VALVE,HYD. FLOW CONTROL v

    • Part No. T2360-38301
    • Compatibility New repl old
    • Applied Dates 2007-07-10 to 2008-01-07
    • Serial No. G19600061 and up
    • * multiple options for #1
    • 1 shown on diagram
    $384.99
  • 1

    ASSY VALVE,HYD. FLOW CONTROL obs v

    • Part No. T2360-38302
    • Compatibility Interchngable
    • Applied Dates 2008-01-08 and up
    • Serial No. H19600001 and up
    • * multiple options for #1
    • 1 shown on diagram
    $659.99
  • 2

    BOLT JOINT

    • Part No. T2350-76121
    • 1 shown on diagram
    $25.99
  • 3 O RING

    O RING

    • Part No. 04810-00200
    • Applied Dates Up to 2007-07-05
    • DIA19.8
    • 2 shown on diagram
    $1.19
  • 4

    ELBOW

    • Part No. T2350-66161
    • 1 shown on diagram
    $37.99
  • 5

    CONNECTOR

    • Part No. T2350-66181
    • 1 shown on diagram
    $18.99
  • 6

    BAND, HOSE v

    • Part No. 52200-2523-1
    • 2 shown on diagram
    $4.99
  • 7

    HOSE, RETURN

    • Part No. T2350-38402
    • Applied Dates 2003-06-19 to 2007-03-27
    • Serial No. 319600650 to 319600820
    • * multiple options for #7
    • 1 shown on diagram
    $8.99
  • 7

    HOSE, RETURN

    • Part No. T2350-38403
    • Compatibility Interchngable
    • Applied Dates 2007-03-28 to 2007-09-28
    • * multiple options for #7
    • 1 shown on diagram
    $9.99
  • 7

    HOSE, RETURN

    • Part No. T2350-38404
    • Compatibility Interchngable
    • Applied Dates 2007-09-29 and up
    • Serial No. G19600061 and up
    • * multiple options for #7
    • 1 shown on diagram
    $13.99
