JOYSTICK VALVE GROUP - CK20M-T690A

Kioti TRACTOR | CK Series | CK20HJ

Diagram for JOYSTICK VALVE GROUP - CK20M-T690A
  • 1

    JOYSTICK VALVE ASSY

    • Part No. T2350-90111
    • Applied Dates Up to 2006-11-05
    • * multiple options for #1
    • 1 shown on diagram
    $2,234.99
  • 1

    JOYSTICK VALVE ASSY v

    • Part No. T2350-90112
    • Compatibility New repl old
    • Applied Dates 2006-11-06 to 2007-06-30
    • * multiple options for #1
    • 1 shown on diagram
    $1,484.99
  • 1

    JOYSTICK VALVE ASSY v

    • Part No. T2360-90111
    • Compatibility Interchngable
    • Applied Dates 2010-01-01 to 2010-02-10
    • * multiple options for #1
    • 1 shown on diagram
    $1,694.99
  • 2

    GRIP dnr v

    • Part No. XAST281431
    • Applied Dates Up to 2006-11-05
    • * multiple options for #2
    • 1 shown on diagram
    $82.99
  • 2

    LEVER

    • Part No. XAST281436
    • Compatibility New repl old
    • Applied Dates 2006-11-06 to 2007-06-30
    • * multiple options for #2
    • 1 shown on diagram
    $59.99
  • 2 ASSY HANDLE

    ASSY HANDLE

    • Part No. 26001-0030
    • Compatibility Interchngable
    • * multiple options for #2
    • 1 shown on diagram
    $83.99
  • 3

    Assy’ Valve Body V

    • Part No. 102020059
    • 1 shown on diagram
    $1,829.99
  • 4

    Rubber Bellow, Replaced by 3SOF204111

    • Part No. 3SOF204100
    • Applied Dates Up to 2006-11-05
    • * multiple options for #4
    • 1 shown on diagram
    $0.00
  • 4 Rubber Boot

    Rubber Boot

    • Part No. 36001-0180
    • Compatibility Interchngable
    • * multiple options for #4
    • 1 shown on diagram
    $22.99
  • 5

    CABLE

    • Part No. 4CAV600500
    • Applied Dates Up to 2007-06-30
    • * multiple options for #5
    • 2 shown on diagram
    $269.99
  • 5 CABLE,PUSH-PULL

    CABLE,PUSH-PULL

    • Part No. 36001-0200
    • Compatibility Interchngable
    • * multiple options for #5
    • 2 shown on diagram
    $164.99
  • 6

    RING v

    • Part No. 3ANE112151
    • Applied Dates Up to 2007-06-30
    • * multiple options for #6
    • 2 shown on diagram
    $6.99
  • 6 Tube

    Tube

    • Part No. 36001-0050
    • Compatibility Interchngable
    • * multiple options for #6
    • 2 shown on diagram
    $8.99
  • 7

    NUT

    • Part No. 4DAD314150
    • Applied Dates Up to 2007-06-30
    • * multiple options for #7
    • 1 shown on diagram
    $6.99

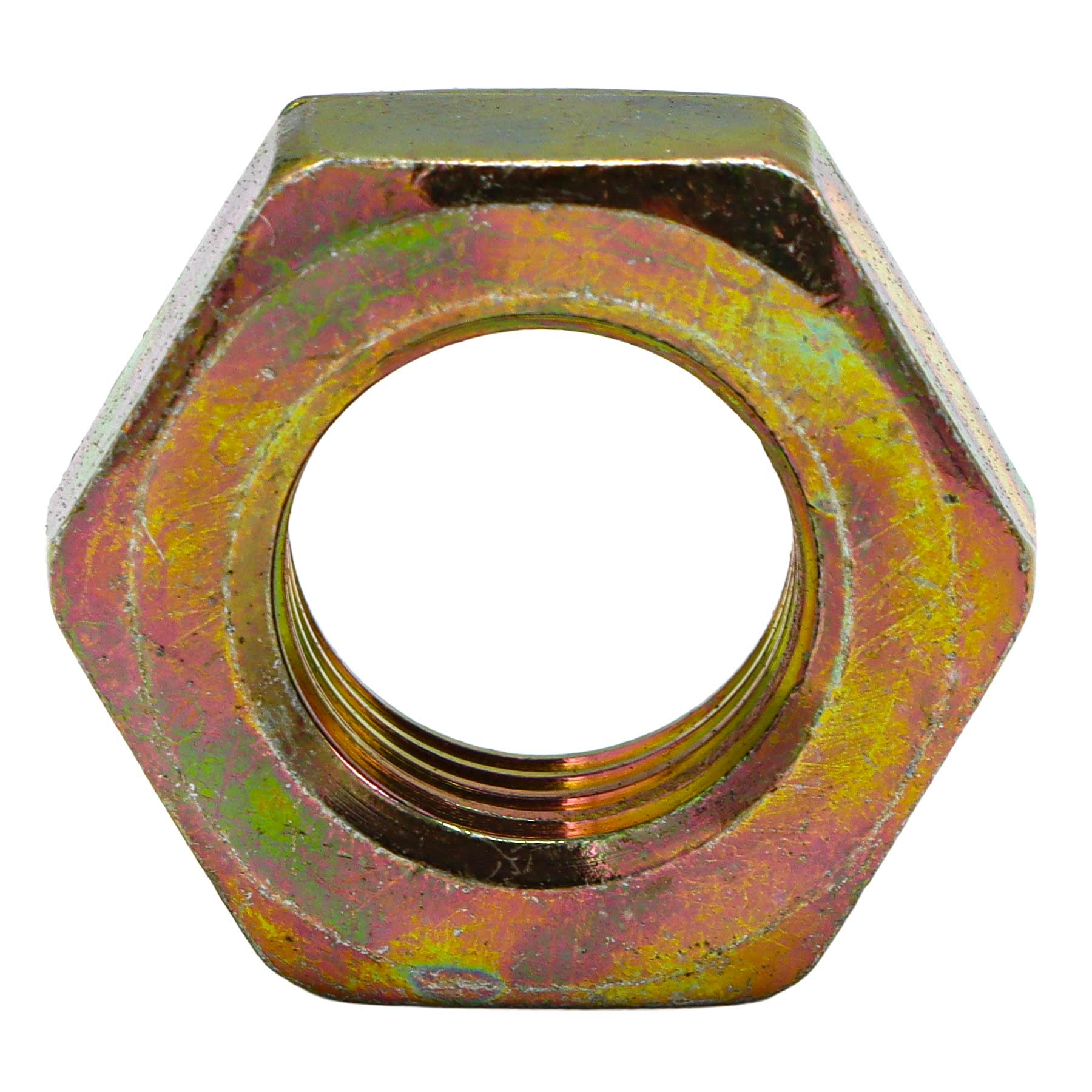

  • 7 NUT

    NUT

    • Part No. 02072-50140
    • Compatibility Interchngable
    • * multiple options for #7
    • 1 shown on diagram
    $1.29
  • 8

    OBS-SELECTOR obs v, Replaced by 36001-0140

    • Part No. 3FUL845130
    • Applied Dates Up to 2007-06-30
    • * multiple options for #8
    • 1 shown on diagram
    $67.20
  • 8 Selector, 3 Socket

    Selector, 3 Socket

    • Part No. 36001-0140
    • Compatibility Interchngable
    • * multiple options for #8
    • 1 shown on diagram
    $24.99
  • 9

    USE 5CIN305 (Pin)

    • Part No. 3PER314610
    • Applied Dates Up to 2007-06-30
    • * multiple options for #9
    • 3 shown on diagram
    $0.00

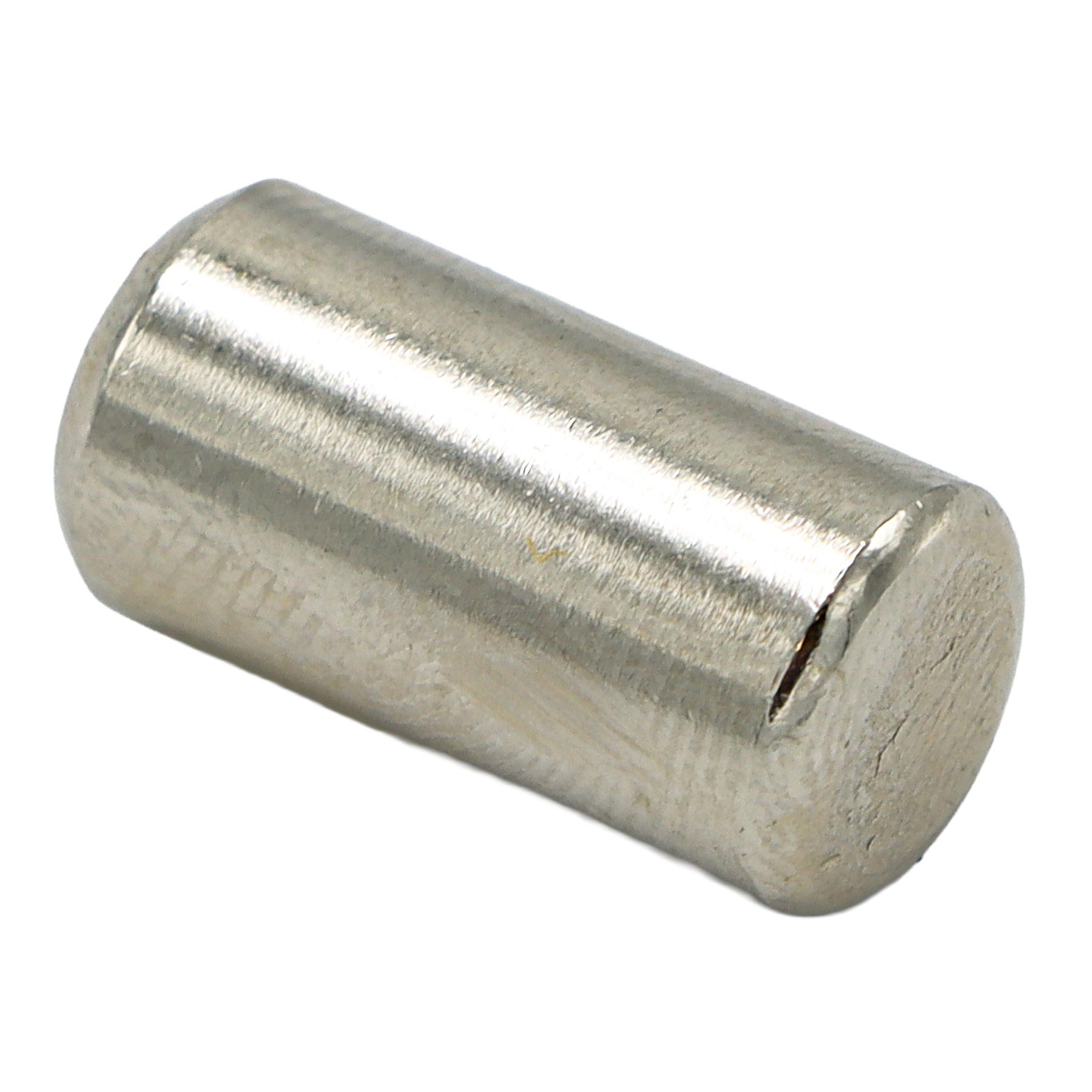

  • 9 PIN, CONNECT V

    PIN, CONNECT V

    • Part No. 36001-0010
    • Compatibility Interchngable
    • * multiple options for #9
    • 2 shown on diagram
    $8.99
  • 10

    WASHER v

    • Part No. 4ROS606407
    • Applied Dates Up to 2007-06-30
    • * multiple options for #10
    • 1 shown on diagram
    $1.19
  • 10 WASHER, SPRING v

    WASHER, SPRING v

    • Part No. 36001-0100
    • Compatibility Interchngable
    • * multiple options for #10
    • 1 shown on diagram
    $1.09
  • 11

    BOLT v [NLA], Replaced by 36001-0080

    • Part No. 4VIT606020
    • Applied Dates Up to 2007-06-30
    • * multiple options for #11
    • 1 shown on diagram
    $0.00

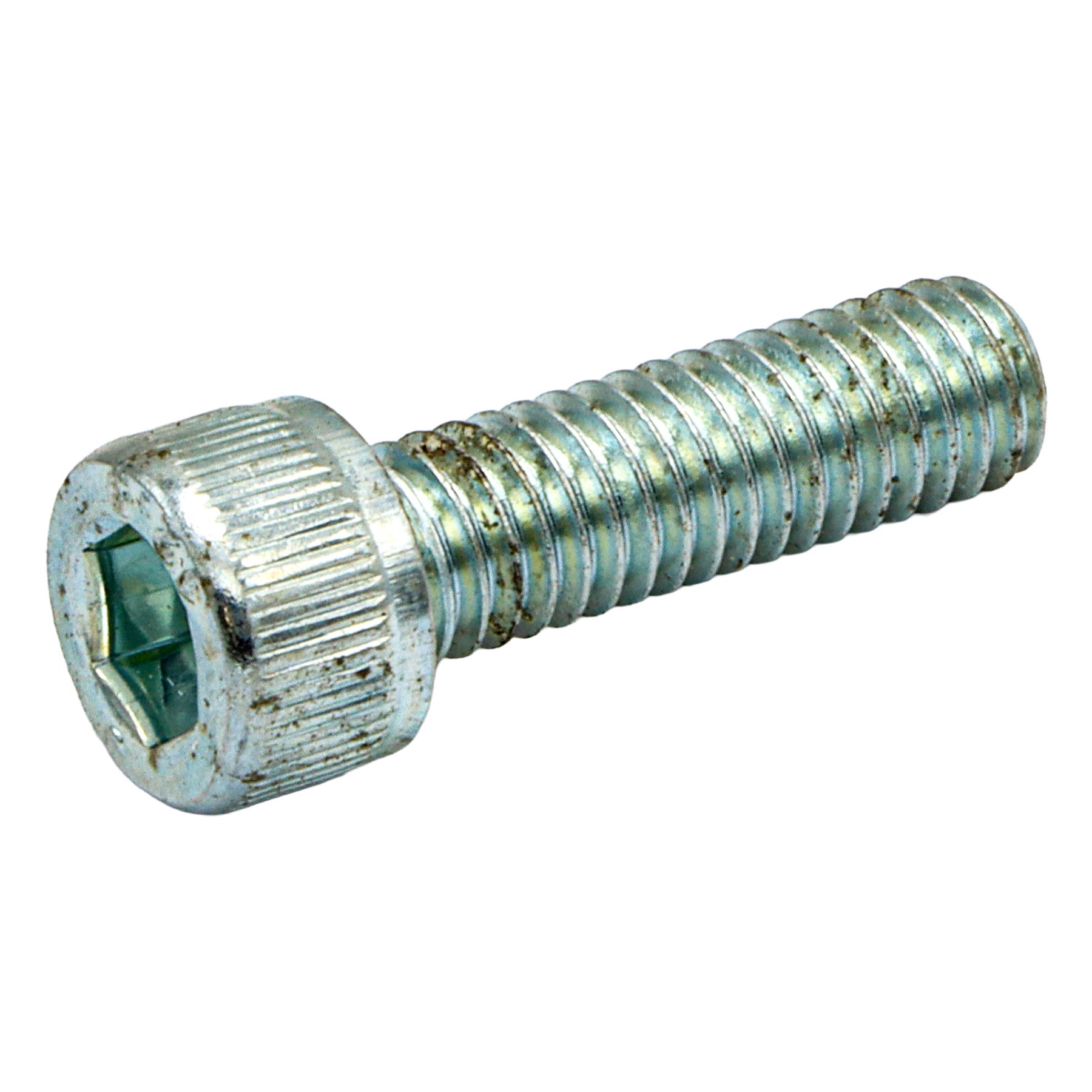

  • 11 BOLT SHCS M6 P1.00×20 v

    BOLT SHCS M6 P1.00×20 v

    • Part No. 36001-0080
    • Compatibility Interchngable
    • (M6x20)
    • * multiple options for #11
    • 1 shown on diagram
    $1.09
  • 12

    SPOOL POSITIONER

    • Part No. 5V13306020
    • 1 shown on diagram
    $0.00
  • 13 O-RING 15.88X2.62, Replaced by 5V13306020

    O-RING 15.88X2.62, Replaced by 5V13306020

    • Part No. 4GUA115926
    • Applied Dates Up to 2007-06-30
    • * multiple options for #13
    • 4 shown on diagram
    $5.49
  • 13

    O RING v

    • Part No. 36001-0030
    • Compatibility Interchngable
    • 21.95x1.78
    • * multiple options for #13
    • 2 shown on diagram
    $1.19

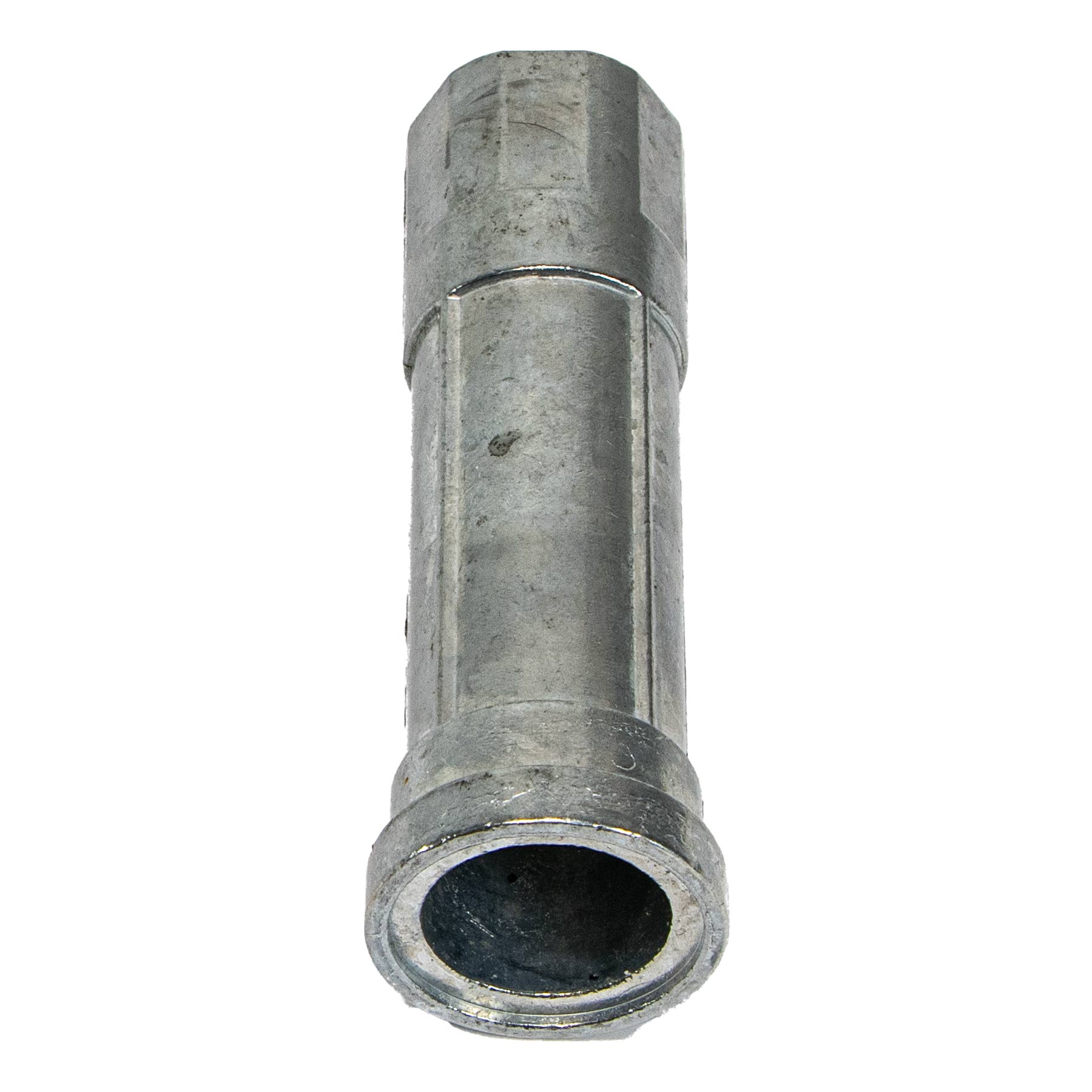

  • 14 ENDCAP

    ENDCAP

    • Part No. 36001-0120
    • 2 shown on diagram
    $22.99

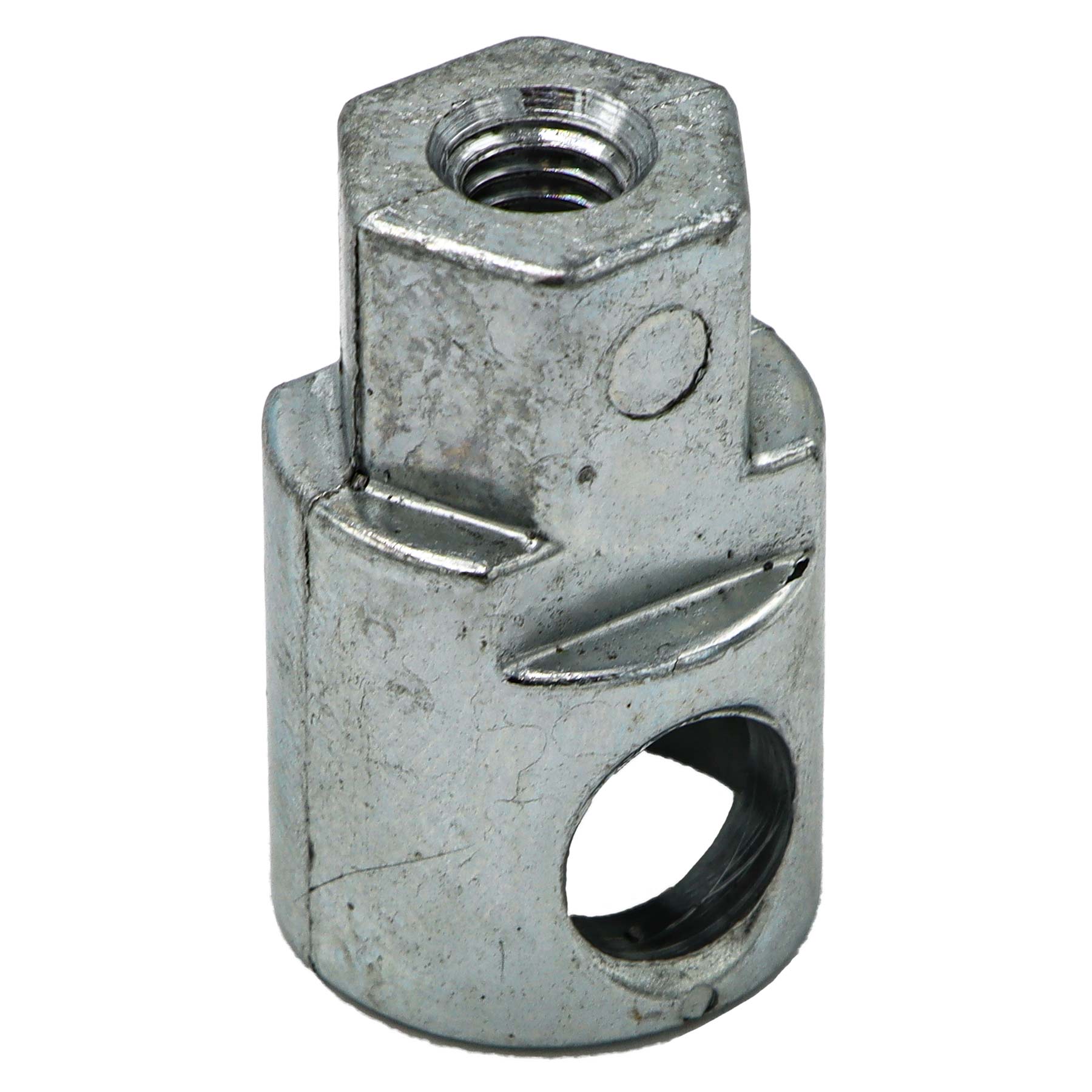

  • 15 JOINT

    JOINT

    • Part No. 36001-0150
    • 2 shown on diagram
    $13.99
  • 16 Ball End, Replaced by 36001-0170

    Ball End, Replaced by 36001-0170

    • Part No. 36001-0160
    • 3 shown on diagram
    $0.00

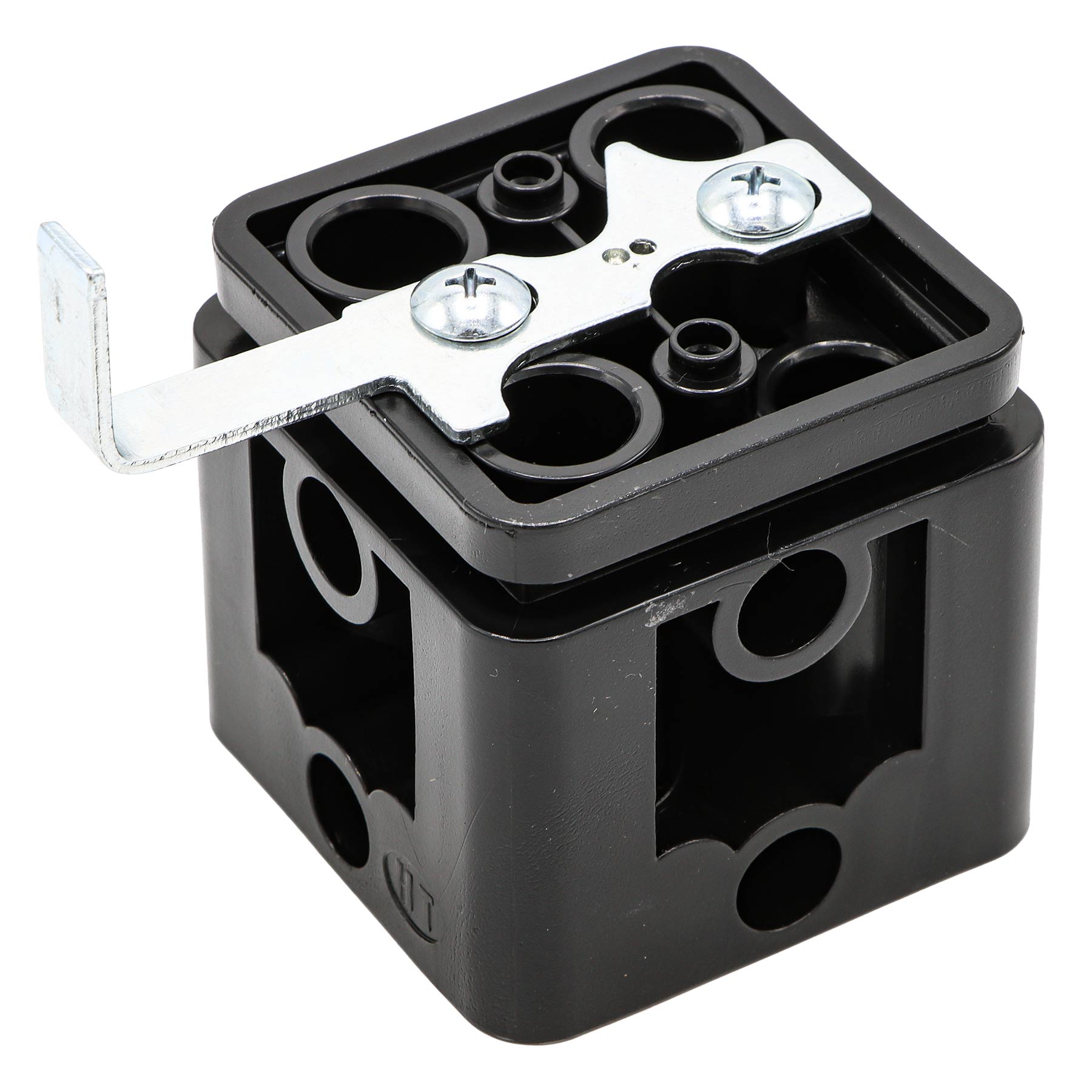

  • 17 BODY ASS’Y v

    BODY ASS’Y v

    • Part No. 26001-0040
    • 1 shown on diagram
    $69.99
  • 18

    BOLT

    • Part No. 4VIT605018
    • Applied Dates Up to 2007-06-30
    • * multiple options for #18
    • 4 shown on diagram
    $1.79
  • 18 BOLT SHCS M6 P1.00×20 v

    BOLT SHCS M6 P1.00×20 v

    • Part No. 36001-0080
    • Compatibility Interchngable
    • (M6x20)
    • * multiple options for #18
    • 1 shown on diagram
    $1.09
  • 19

    FLANGE

    • Part No. 36001-0130
    • 2 shown on diagram
    $12.99
  • 20 PLUG

    PLUG

    • Part No. 3XTAP822150
    • Applied Dates Up to 2007-06-30
    • 2 shown on diagram
    $11.99
  • 21

    PLUG

    • Part No. XTAP524340
    • Applied Dates Up to 2007-06-30
    • 1 shown on diagram
    $55.99
  • 22

    SPOOL CONTROL KIT

    • Part No. XV08105200
    • Applied Dates Up to 2007-06-30
    • 1 shown on diagram
    $134.99
  • 23

    PLUG

    • Part No. 3XTAP817130
    • Applied Dates Up to 2007-06-30
    • 4 shown on diagram
    $9.99
  • 24 PLUG

    PLUG

    • Part No. 3XTAP822150
    • 2 shown on diagram
    $11.99
  • 25

    SPOOL

    • Part No. 3CU5210100
    • Applied Dates Up to 2007-06-30
    • 1 shown on diagram
    $179.99
  • 26

    SPOOL dnr v

    • Part No. 3CU5242100
    • Applied Dates Up to 2007-06-30
    • 1 shown on diagram
    $179.99
  • 27

    BRACKET-VALVE v

    • Part No. T2350-90212
    • Applied Dates Up to 2008-05-22
    • T6
    • * multiple options for #27
    • 1 shown on diagram
    $51.99
  • 27

    BRACKET, VALVE

    • Part No. T2350-90213
    • Compatibility Interchngable
    • Applied Dates 2008-05-23 to 2008-12-30
    • T6
    • * multiple options for #27
    • 1 shown on diagram
    $26.99
  • 27

    BRACKET, VALVE

    • Part No. T2350-90213BB
    • Compatibility No interchange
    • Applied Dates 2009-01-01 to 2011-01-10
    • * multiple options for #27
    • 1 shown on diagram
    $39.99
  • 27

    SUPPORT, VALVE

    • Part No. T2350-90214
    • Compatibility Old repl new
    • T6
    • * multiple options for #27
    • 1 shown on diagram
    $39.99
  • 28

    Bolt, Replaced by T2350-90331

    • Part No. T2350-90311
    • 3 shown on diagram
    $2.49
  • 29 Spring Lock Washer M8

    Spring Lock Washer M8

    • Part No. 04512-50080
    • Applied Dates 2009-03-26 to 2009-03-26
    • M08
    • * multiple options for #29
    • 2 shown on diagram
    $0.61
  • 29 Spring Lock Washer M8

    Spring Lock Washer M8

    • Part No. 04512-50080
    • Compatibility New repl old
    • M08
    • * multiple options for #29
    • 3 shown on diagram
    $0.61
  • 30 BOLT

    BOLT

    • Part No. 01133-51025
    • M10XP1.25
    • 1 shown on diagram
    $3.49
  • 31 BOLT, WASHER M12P1.25 X 25

    BOLT, WASHER M12P1.25 X 25

    • Part No. 01133-51225
    • M12XP1.25
    • 1 shown on diagram
    $3.49
  • 32

    TUBE P1, HYDRAULIC

    • Part No. T2350-37082
    • Applied Dates Up to 2006-11-28
    • * multiple options for #32
    • 1 shown on diagram
    $119.99
  • 32

    TUBE-P1 HYD v

    • Part No. T2368-37081
    • Compatibility No interchange
    • Applied Dates 2006-11-29 and up
    • * multiple options for #32
    • 1 shown on diagram
    $64.99
  • 32

    TUBE P1, HYD. obs

    • Part No. T2368-37081BB
    • Compatibility No interchange
    • * multiple options for #32
    • 1 shown on diagram
    $86.99
  • 32

    TUBE, HYD-P1 dnr v

    • Part No. T2368-37082
    • Compatibility Interchngable
    • * multiple options for #32
    • 1 shown on diagram
    $86.99
  • 33 JOINT BOLT M18 P1.5 V

    JOINT BOLT M18 P1.5 V

    • Part No. T4620-37092
    • Applied Dates 2007-10-01 to 2007-09-30
    • * multiple options for #33
    • 1 shown on diagram
    $21.99
  • 33 JOINT BOLT M18 P1.5 V

    JOINT BOLT M18 P1.5 V

    • Part No. T4620-37092
    • Compatibility No interchange
    • Applied Dates 2007-07-01 to 2007-06-30
    • * multiple options for #33
    • 2 shown on diagram
    $21.99
  • 34 O RING

    O RING

    • Part No. 04810-00200
    • Applied Dates 2007-10-01 to 2003-09-24
    • DIA19.8
    • * multiple options for #34
    • 2 shown on diagram
    $1.19
  • 34 O RING

    O RING

    • Part No. 04810-00200
    • Compatibility No interchange
    • Applied Dates 2007-07-01 to 2007-06-30
    • DIA19.8
    • * multiple options for #34
    • 4 shown on diagram
    $1.19

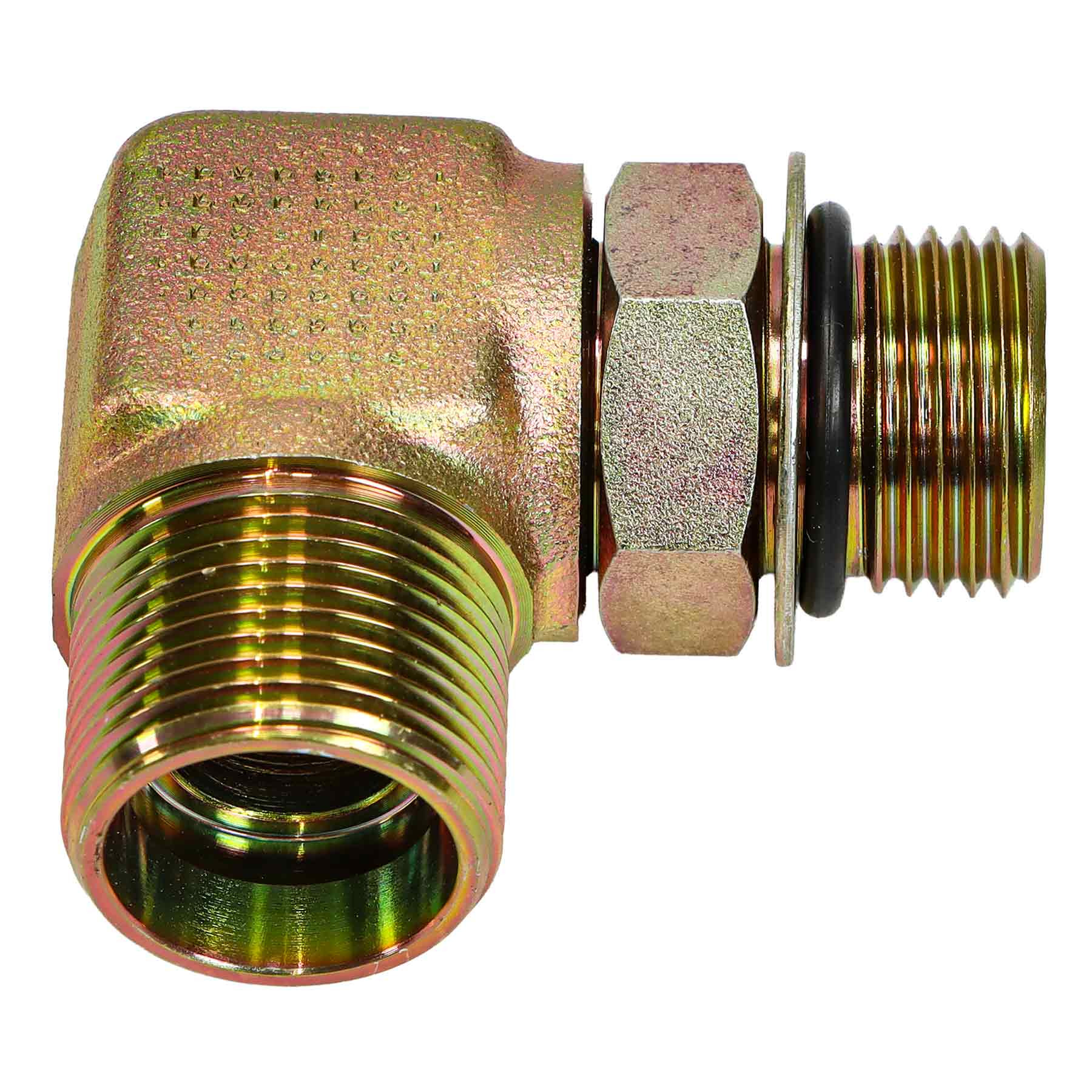

  • 35 ELBOW

    ELBOW

    • Part No. T4682-37221
    • Applied Dates Up to 2006-11-05
    • 1 shown on diagram
    $46.99
  • 36

    TUBE P2- HYD v

    • Part No. T2350-37091
    • * multiple options for #36
    • 1 shown on diagram
    $164.99
  • 36

    TUBE P2, HYD

    • Part No. T2350-37091BB
    • Compatibility No interchange
    • * multiple options for #36
    • 1 shown on diagram
    $164.99
  • 37

    BOLT JOINT

    • Part No. T2350-38501
    • 1 shown on diagram
    $28.99
  • 38 O RING

    O RING

    • Part No. 04810-00200
    • DIA19.8
    • 2 shown on diagram
    $1.19
  • 39

    CONNECTOR

    • Part No. T2350-90171
    • Applied Dates Up to 2006-11-05
    • 1 shown on diagram
    $15.99
  • 40

    CONNECTER,FILTER

    • Part No. T2350-37071
    • Applied Dates Up to 2007-01-31
    • * multiple options for #40
    • 1 shown on diagram
    $25.99
  • 40

    CONNECTION

    • Part No. T2350-37061
    • Compatibility Interchngable
    • Applied Dates 2011-08-08 to 2011-03-31
    • * multiple options for #40
    • 1 shown on diagram
    $28.99
  • 41

    TUBE- RETURN v

    • Part No. T2350-90221
    • 1 shown on diagram
    $46.99
  • 42 BOLT, JOINT

    BOLT, JOINT

    • Part No. T4520-90042
    • 1 shown on diagram
    $26.99
  • 43 O RING

    O RING

    • Part No. 04810-00200
    • DIA19.8
    • 2 shown on diagram
    $1.19
  • 44

    HOSE, RETURN

    • Part No. T2350-38402
    • Applied Dates 2003-06-19 to 2007-03-27
    • * multiple options for #44
    • 1 shown on diagram
    $8.99
  • 44

    HOSE, RETURN

    • Part No. T2350-38403
    • Compatibility Interchngable
    • Applied Dates 2007-03-28 to 2007-09-28
    • * multiple options for #44
    • 1 shown on diagram
    $9.99
  • 44

    HOSE, RETURN

    • Part No. T2350-38404
    • Compatibility Interchngable
    • * multiple options for #44
    • 1 shown on diagram
    $13.99
  • 45

    BAND, HOSE v

    • Part No. 52200-2523-1
    • Applied Dates 2008-07-05 to 2007-03-27
    • * multiple options for #45
    • 2 shown on diagram
    $4.99
  • 45

    CLAMP, HOSE dnr v

    • Part No. E5700-73361
    • Compatibility Interchngable
    • Applied Dates 2007-03-28 to 2007-09-28
    • * multiple options for #45
    • 2 shown on diagram
    $3.49
  • 45

    CLAMP, HOSE

    • Part No. 09318-89022
    • Compatibility Call for compat
    • Applied Dates 2007-11-01 and up
    • * multiple options for #45
    • 2 shown on diagram
    $2.99
  • 46

    BOLT

    • Part No. 01153-50803
    • Applied Dates Up to 2008-04-30
    • * multiple options for #46
    • 2 shown on diagram
    $2.99
  • 46

    BOLT

    • Part No. 01123-50803
    • Compatibility Interchngable
    • Applied Dates 2008-04-17 and up
    • M8XP1.25
    • * multiple options for #46
    • 2 shown on diagram
    $2.99
  • 47 Flat Washer M8

    Flat Washer M8

    • Part No. 04015-50080
    • M8
    • 4 shown on diagram
    $1.09
  • 48 Spring Lock Washer M8

    Spring Lock Washer M8

    • Part No. 04512-50080
    • M08
    • 4 shown on diagram
    $0.61

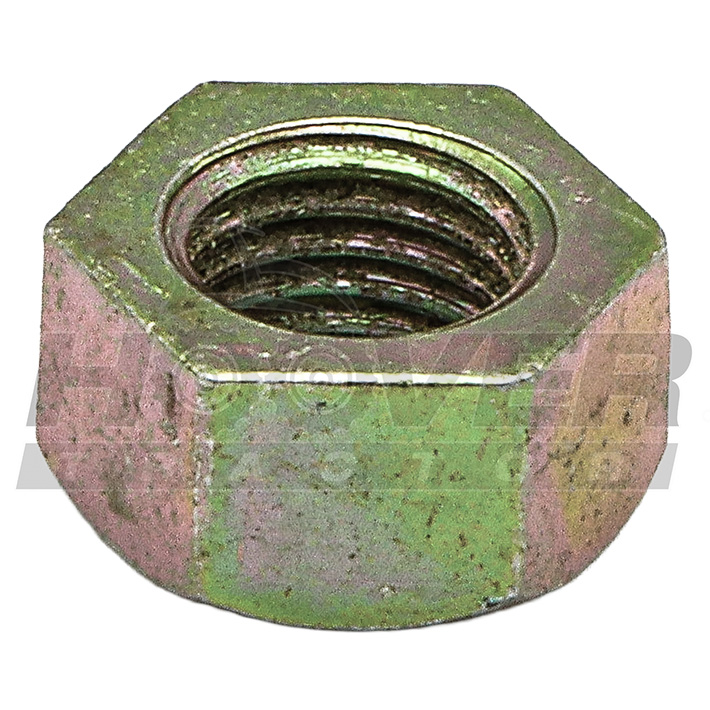

  • 49 NUT obs

    NUT obs

    • Part No. 02176-50080
    • Applied Dates 2007-06-05 to 2007-07-05
    • M8XP1.25
    • * multiple options for #49
    • 2 shown on diagram
    $0.62
  • 49 Nut M8 P1.25

    Nut M8 P1.25

    • Part No. 02156-50080
    • Compatibility Interchngable
    • M8XP1.25
    • * multiple options for #49
    • 2 shown on diagram
    $0.85
  • 50 Cap Nut, M8 T4815-93211

    Cap Nut, M8 T4815-93211

    • Part No. T4815-93211
    • M8
    • 4 shown on diagram
    $1.49
  • 51

    JOYSTIC FRAME

    • Part No. T2350-78312
    • 1 shown on diagram
    $86.99
  • 52

    Bolt With Washers, M8 P1.25 x 20mm

    • Part No. 01125-50820
    • M8XP1.25
    • 6 shown on diagram
    $2.49
  • 53

    COVER, HOSE dnr v

    • Part No. T2350-95071
    • 1 shown on diagram
    $35.99
  • 54

    COVER, JOYSTIC v

    • Part No. T2350-90324
    • Applied Dates 2003-03-25 to 2006-11-14
    • * multiple options for #54
    • 1 shown on diagram
    $38.99
  • 54

    COVER-JOYSTICK v

    • Part No. T2350-90325
    • Compatibility New repl old
    • Applied Dates 2007-01-01 and up
    • * multiple options for #54
    • 1 shown on diagram
    $68.99
  • 54

    COVER JOYSTICK

    • Part No. T2350-90325BB
    • Compatibility No interchange
    • * multiple options for #54
    • 1 shown on diagram
    $68.99
  • 55 LABEL

    LABEL

    • Part No. T2350-54131
    • T0.05-0.08
    • 1 shown on diagram
    $2.99
  • 56

    LABEL(JOYSTICK)

    • Part No. T2350-54141
    • 1 shown on diagram
    $3.49

Related Diagrams
