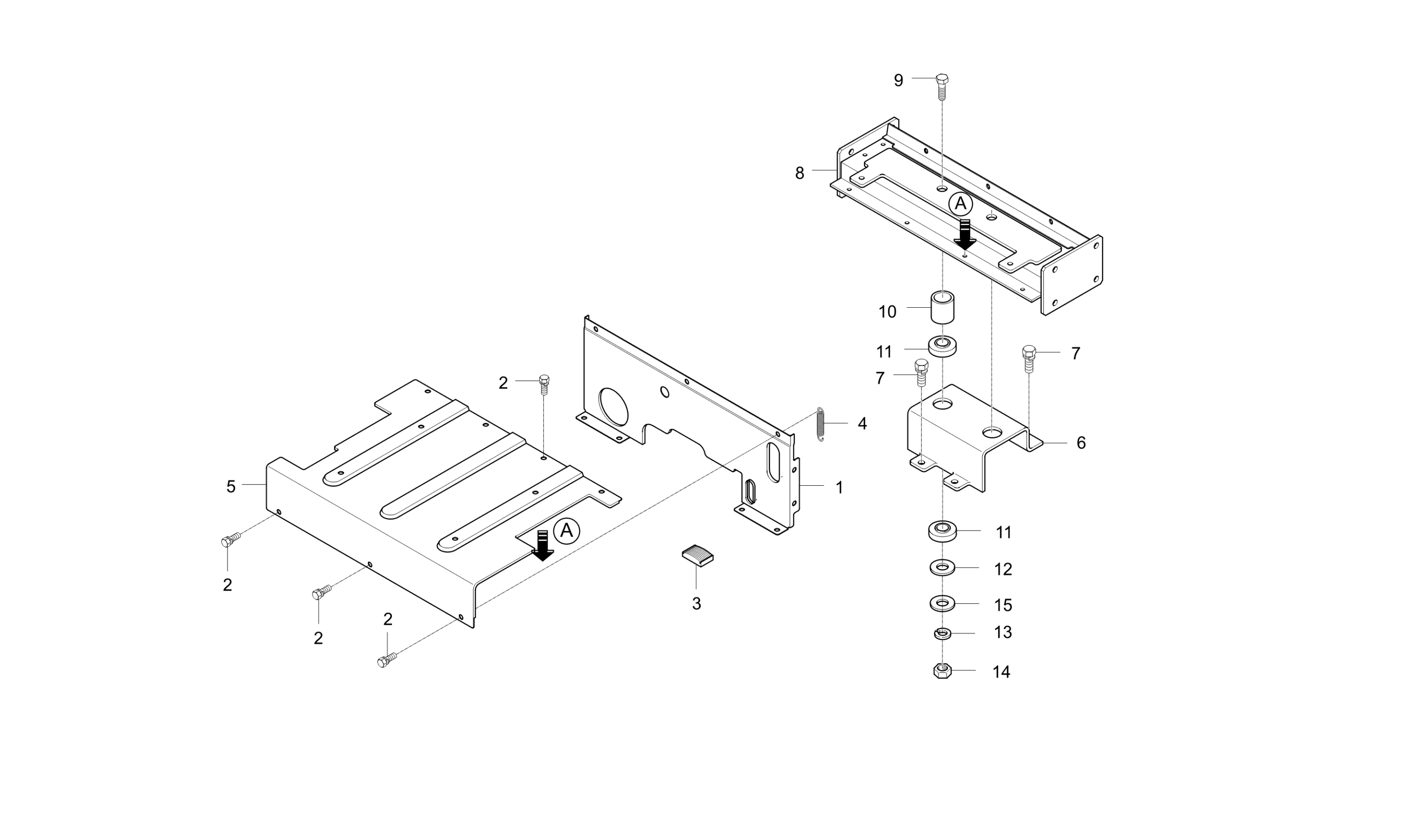

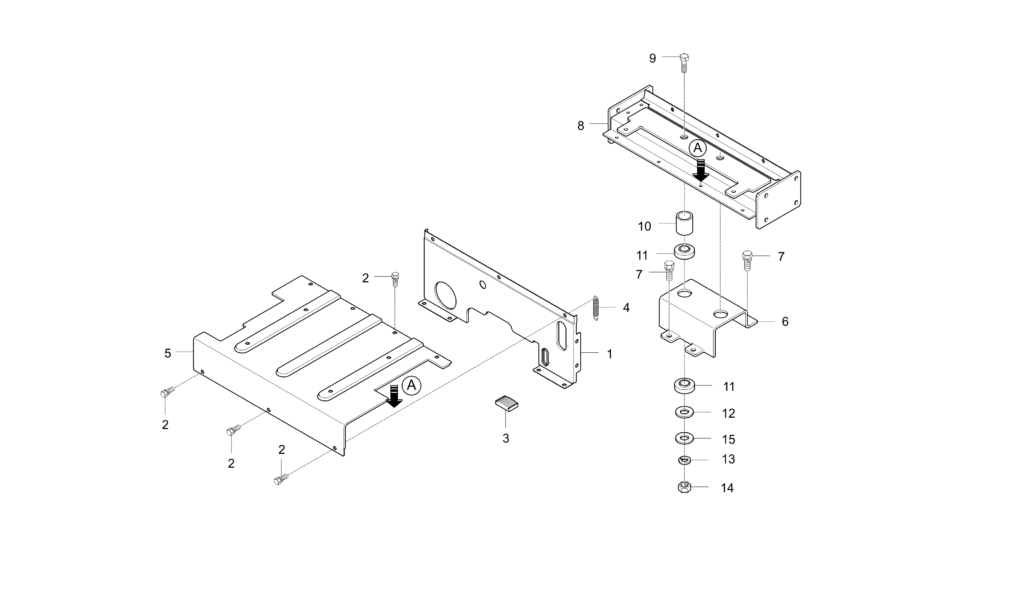

SEAT FLOOR GROUP - CK20HE-T830A

COVER, FRONT

• Part No. T2360-70412
• 1 shown on diagram

BOLT, FLANGE

• Part No. 01754-50816
• M8XP1.25
• 7 shown on diagram

RUBBER, PEDAL

• Part No. T2350-26661
• Applied Dates Up to 2007-03-29
• 1 shown on diagram

SPRING

• Part No. T4520-62331
• DIA2
• 1 shown on diagram

COVER, UPPER

• Part No. T2360-70431
• * multiple options for #5
• 1 shown on diagram

COVER, UPR dnr v

• Part No. T2360-70432
• Compatibility Interchngable
• Applied Dates 2012-09-29 and up
• Serial No. NS3000131 and up
• * multiple options for #5
• 1 shown on diagram

SUPPORT, ROOF dnr v

• Part No. T2350-95221
• Serial No. Up to HS3000350
• T6.0
• 1 shown on diagram

Bolt M10 P1.25x16mm W/Lock Washer

• Part No. 01133-51016
• Applied Dates Up to 2003-06-18
• M10*P1.25
• 4 shown on diagram

SUPPORT, FENDER

• Part No. T2350-95213
• 1 shown on diagram

BOLT

• Part No. T2350-95242
• Applied Dates Up to 2008-06-17
• Serial No. Up to HS3000530
• * multiple options for #9
• 2 shown on diagram

BOLT

• Part No. 01176-51675
• Compatibility Call for compat
• Applied Dates 2008-12-31 and up
• Serial No. HS3000531 and up
• M16*75*9T
• * multiple options for #9
• 2 shown on diagram

Collar (T2350-95231)

• Part No. T2350-95231
• DIA25
• 2 shown on diagram

RUBBER, CUSHION

• Part No. T2350-95251
• 4 shown on diagram

• Part No. T2350-95261
• Applied Dates Up to 2007-12-19
• T4.5
• * multiple options for #12
• 2 shown on diagram

Flat Washer M16

• Part No. 04015-50160
• Compatibility Interchngable
• Applied Dates 2008-01-01 and up
• Serial No. HS3000001 and up
• * multiple options for #12
• 2 shown on diagram

WASHER, SPRING

• Part No. 04512-50160
• M16
• 4 shown on diagram

NUT

• Part No. 02176-50160
• M16XP1.5
• 2 shown on diagram

Flat Washer M16

• Part No. 04011-50160
• M16
• 2 shown on diagram
