SEAT GROUP - CK20ME-T850B

Kioti TRACTOR | CK Series | CK20HS

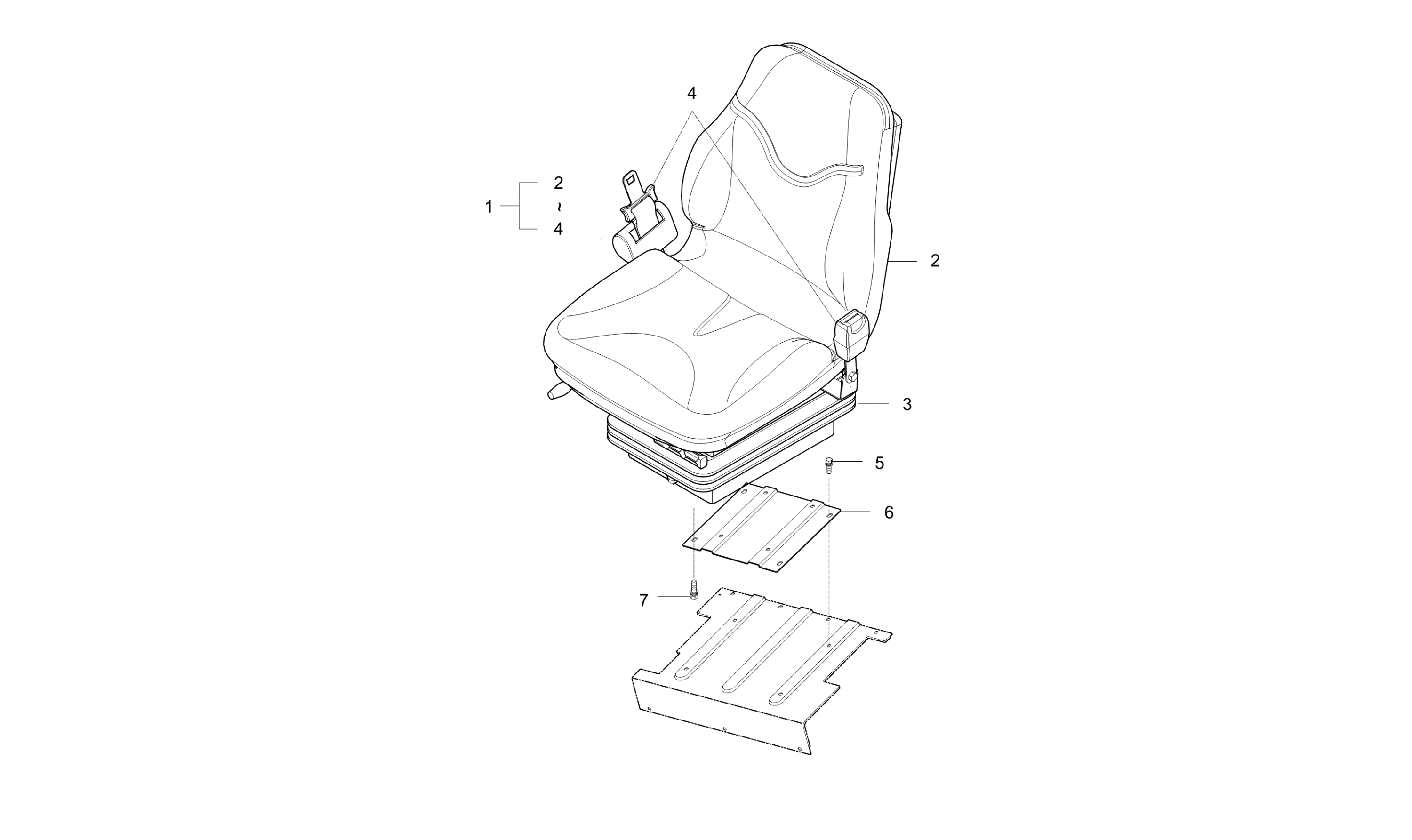

Diagram for SEAT GROUP - CK20ME-T850B
  • 1

    ASS’Y, SEAT v

    • Part No. T2181-19501
    • Applied Dates 2005-07-31 and up
    • * multiple options for #1
    • 1 shown on diagram
    $2,024.99
  • 1

    ASS’Y, SEAT

    • Part No. T2181-18501
    • Compatibility Interchngable
    • Applied Dates 2011-08-07 to 2011-08-07
    • * multiple options for #1
    • 1 shown on diagram
    $0.00
  • 1

    ASS’Y, SEAT v

    • Part No. T2181-19501
    • Compatibility Interchngable
    • * multiple options for #1
    • 1 shown on diagram
    $2,024.99
  • 2

    SEAT v

    • Part No. E8094.072
    • 1 shown on diagram
    $1,054.99
  • 3

    SUSPENSION

    • Part No. M5066.066
    • 1 shown on diagram
    $1,014.99
  • 4

    SEAT BELT v

    • Part No. A5073.049
    • 1 shown on diagram
    $139.99
  • 5 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • Applied Dates 2005-06-16 and up
    • M8XP1.25
    • 4 shown on diagram
    $1.79
  • 6

    Seat Support

    • Part No. T2351-70442
    • T1.6
    • 1 shown on diagram
    $86.99
  • 7

    Bolt With Washers, M8 P1.25 x 20mm

    • Part No. 01125-50820
    • M8XP1.25
    • 4 shown on diagram
    $2.49
