INSTRUMENT COVER GROUP - CK22H-T810A

Kioti TRACTOR | CK Series | CK20HS

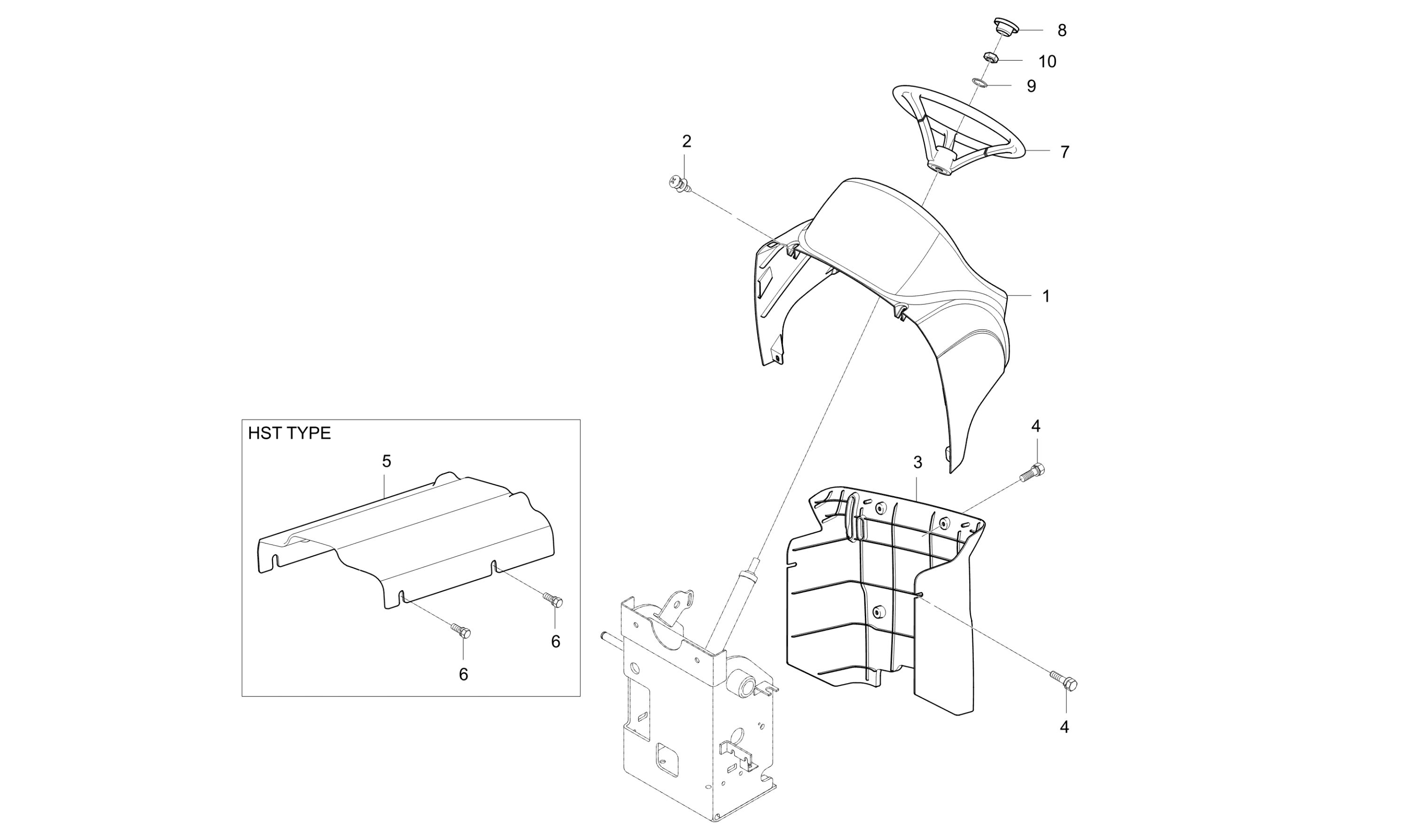

Diagram for INSTRUMENT COVER GROUP - CK22H-T810A
  • 1

    COVER(UPPER),INSTRUMENT

    • Part No. T2380-55312
    • Applied Dates 2007-02-28 to 2007-06-30
    • Serial No. GS3000001 to HS3000350
    • T3.0
    • * multiple options for #1
    • 1 shown on diagram
    $274.99
  • 1

    COVER INSTRUMENT

    • Part No. T2380-55312BB
    • Compatibility No interchange
    • Serial No. HS3000351 and up
    • * multiple options for #1
    • 1 shown on diagram
    $284.99
  • 2

    BOLT obs v

    • Part No. 55571-2128-1
    • M6*16
    • 4 shown on diagram
    $1.99
  • 3

    METER COVER(LOWER)

    • Part No. T2360-55327
    • Applied Dates 2007-02-28 and up
    • 1 shown on diagram
    $139.99
  • 4

    Bolt/Washer (01025-50620)

    • Part No. 01025-50620
    • M6XP1.0
    • 6 shown on diagram
    $2.49
  • 5

    COVER, MISSION

    • Part No. T2360-55374
    • Applied Dates Up to 2008-10-26
    • Serial No. VS3000001 to HS3000350
    • * multiple options for #5
    • 1 shown on diagram
    $56.99
  • 5

    COVER, MISSION

    • Part No. T2360-55374BB
    • Compatibility No interchange
    • Serial No. HS3000351 and up
    • * multiple options for #5
    • 1 shown on diagram
    $53.99
  • 6 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50812
    • M8XP1.25
    • 4 shown on diagram
    $1.79
  • 7

    HANDLE, Replaced by T2350-55454

    • Part No. T2350-55452
    • Applied Dates Up to 2011-10-30
    • Serial No. Up to LS3000370
    • * multiple options for #7
    • 1 shown on diagram
    $0.00
  • 7

    HANDLE

    • Part No. T2350-55453
    • Compatibility Interchngable
    • Applied Dates 2011-10-31 to 2011-10-30
    • * multiple options for #7
    • 1 shown on diagram
    $0.00
  • 7

    Steering Wheel (T2350-55454)

    • Part No. T2350-55454
    • Compatibility Interchngable
    • Applied Dates 2011-10-31 and up
    • Serial No. LS3000371 and up
    • * multiple options for #7
    • 1 shown on diagram
    $189.99
  • 8

    Steering Wheel Cap (T2350-55462 )

    • Part No. T2350-55462
    • 1 shown on diagram
    $28.99
  • 9 M12 Spring Washer (04512-50120)

    M12 Spring Washer (04512-50120)

    • Part No. 04512-50120
    • M12
    • 1 shown on diagram
    $0.95
  • 10 NUT M12 P1.25

    NUT M12 P1.25

    • Part No. 02176-50120
    • M12XP1.25
    • 1 shown on diagram
    $1.49
