ACCELERATOR GROUP - CK22H-T800A

Kioti TRACTOR | CK Series | CK20HS

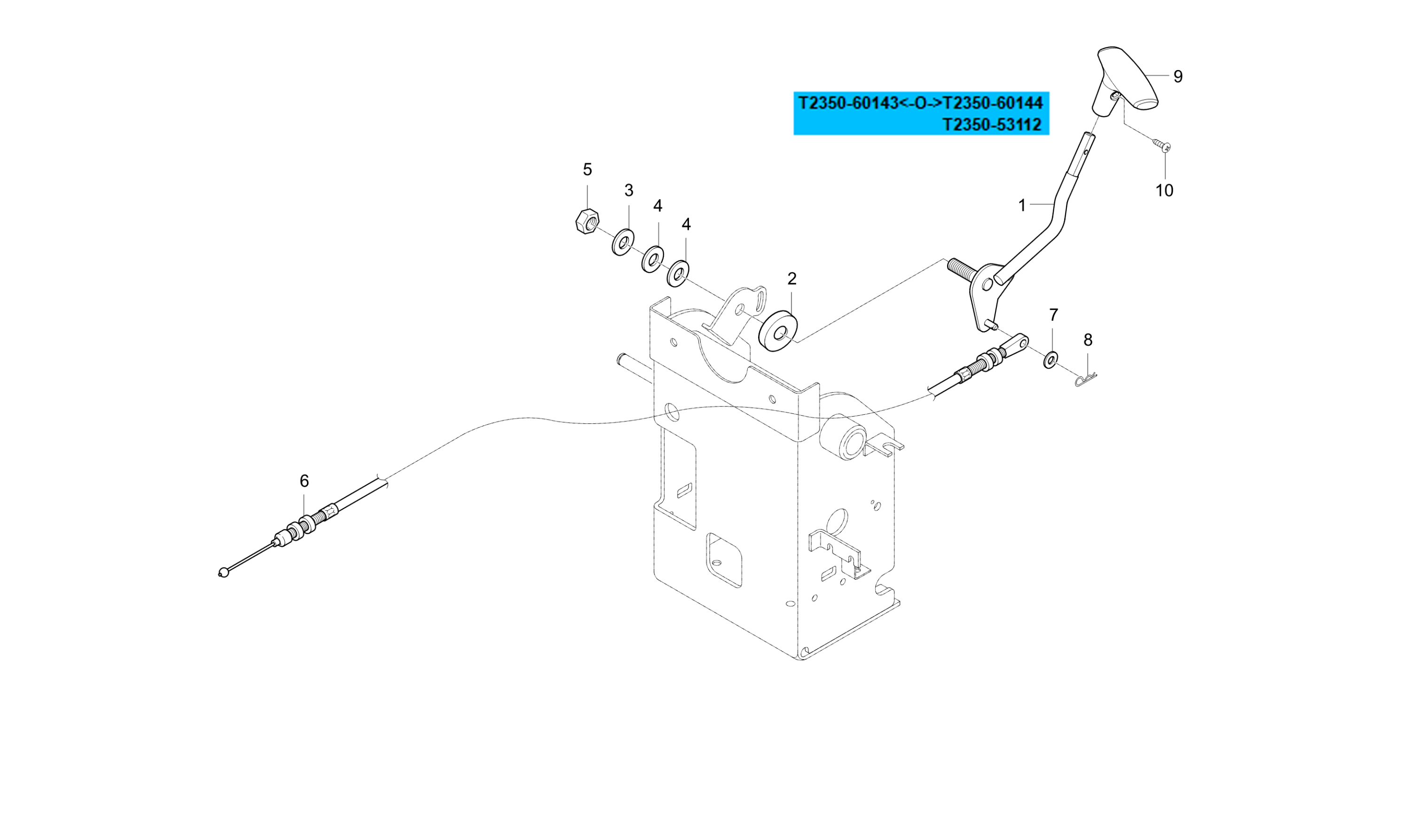

Diagram for ACCELERATOR GROUP - CK22H-T800A
  • 1

    LEVER 1, THROTTLE

    • Part No. T2368-60081
    • T9.0
    • 1 shown on diagram
    $53.99
  • 2

    LINING

    • Part No. T2670-60091
    • 1 shown on diagram
    $18.99

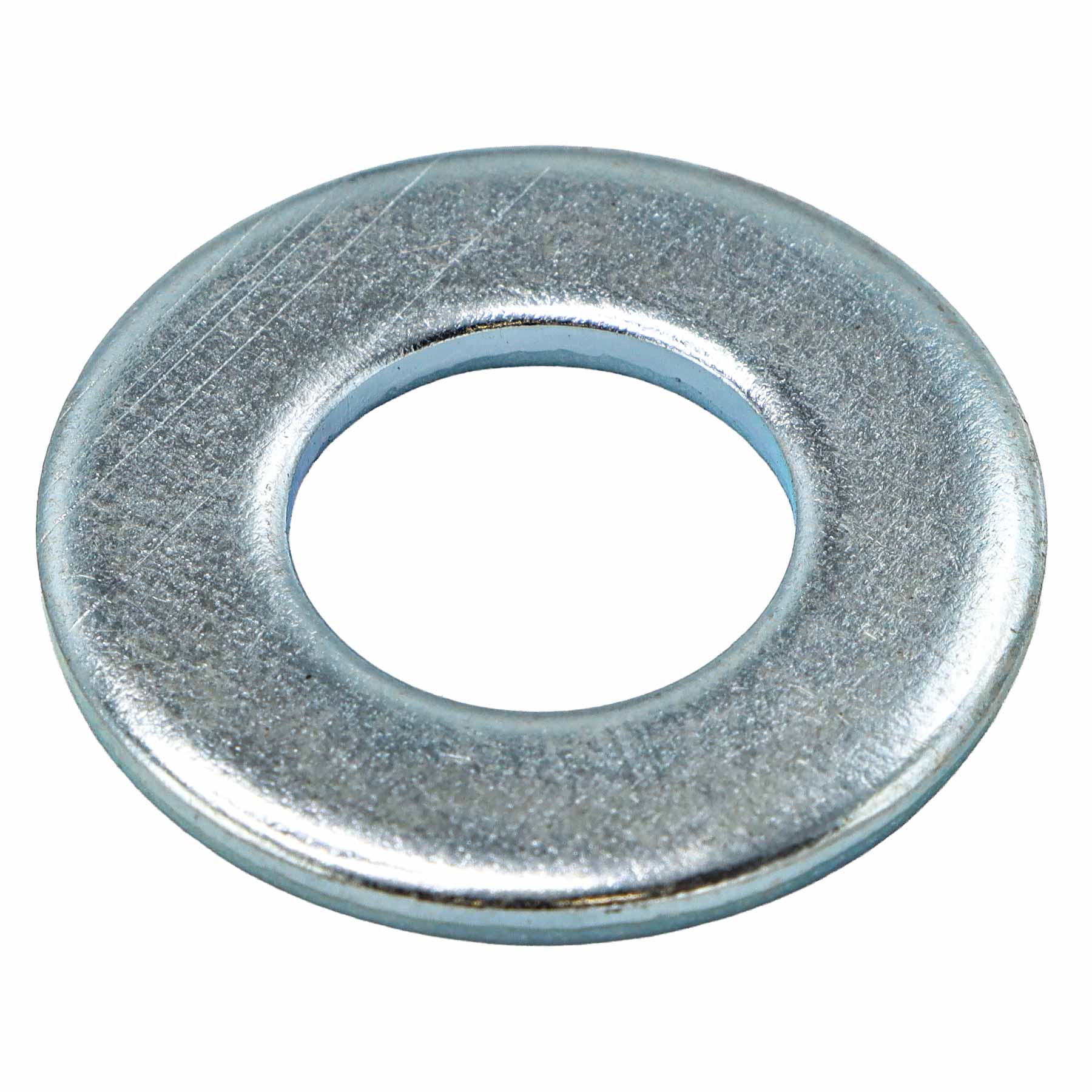

  • 3 Flat Washer M12

    Flat Washer M12

    • Part No. 04013-50120
    • M12
    • 1 shown on diagram
    $0.85
  • 4

    SPRING

    • Part No. T4835-17241
    • 2 shown on diagram
    $4.49
  • 5 NUT M12 P1.25

    NUT M12 P1.25

    • Part No. 02176-50120
    • M12XP1.25
    • 2 shown on diagram
    $1.49
  • 6

    CABLE, HAND ACCEL

    • Part No. T2546-17361
    • 1 shown on diagram
    $39.99
  • 7 Flat Washer M6

    Flat Washer M6

    • Part No. 04013-50060
    • M6
    • 1 shown on diagram
    $0.73
  • 8

    PIN, SNAP

    • Part No. 05525-50600
    • DIA6
    • 1 shown on diagram
    $1.19
  • 9

    GRIP, LEVER v

    • Part No. T2350-60142
    • Applied Dates Up to 2009-01-15
    • Serial No. Up to GS3000080
    • * multiple options for #9
    • 1 shown on diagram
    $13.99
  • 9

    LEVER, GRIP v

    • Part No. T2350-60143
    • Compatibility New repl old
    • Applied Dates 2009-01-16 and up
    • * multiple options for #9
    • 1 shown on diagram
    $22.99
  • 9

    GRIP,LEVER

    • Part No. T2350-60144
    • Compatibility New repl old
    • * multiple options for #9
    • 1 shown on diagram
    $0.00
  • 10

    SCREW v

    • Part No. 03024-50516
    • 1 shown on diagram
    $0.79
