FRONT WHEEL GROUP - CK20M-T550A

Kioti TRACTOR | CK Series | CK20S

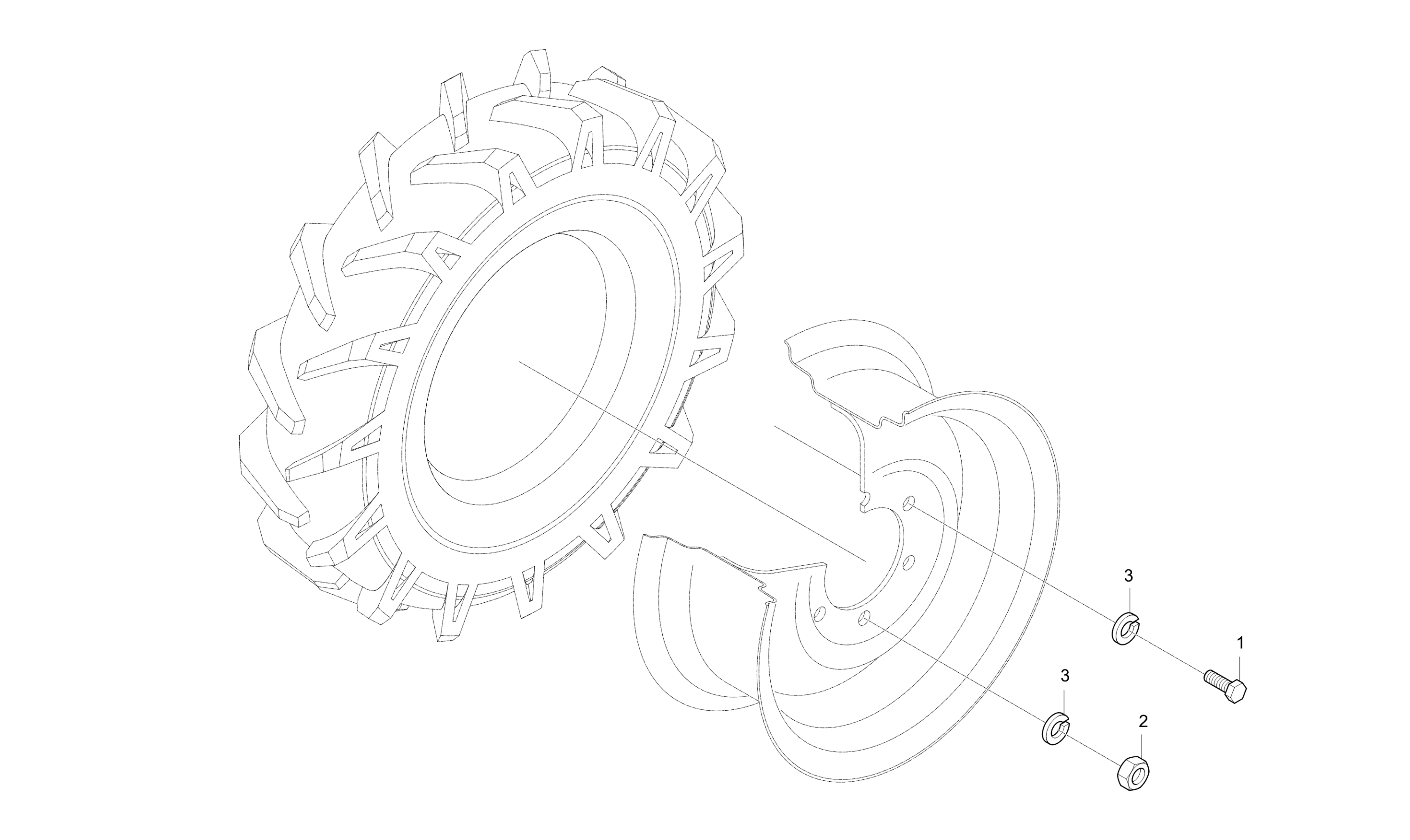

Diagram for FRONT WHEEL GROUP - CK20M-T550A
  • 1

    OBS BOLT, Replaced by 01133-51225

    • Part No. 01173-51225
    • Applied Dates Up to 2008-04-16
    • M10*1.25
    • 8 shown on diagram
    $0.00
  • 2

    NUT

    • Part No. 02174-50120
    • Applied Dates Up to 2007-05-15
    • Serial No. Up to GS2900060
    • M12*P1.25
    • * multiple options for #2
    • 4 shown on diagram
    $0.85
  • 2 NUT M12 P1.25

    NUT M12 P1.25

    • Part No. 02176-50120
    • Compatibility New repl old
    • Applied Dates 2007-05-16 and up
    • Serial No. GS2900061 and up
    • M12XP1.25
    • * multiple options for #2
    • 4 shown on diagram
    $1.49
  • 3 M12 Spring Washer (04512-50120)

    M12 Spring Washer (04512-50120)

    • Part No. 04512-50120
    • Applied Dates Up to 2008-04-16
    • M12
    • 12 shown on diagram
    $0.95
