FRAME GROUP - CK20M-T780A

Kioti TRACTOR | CK Series | CK20

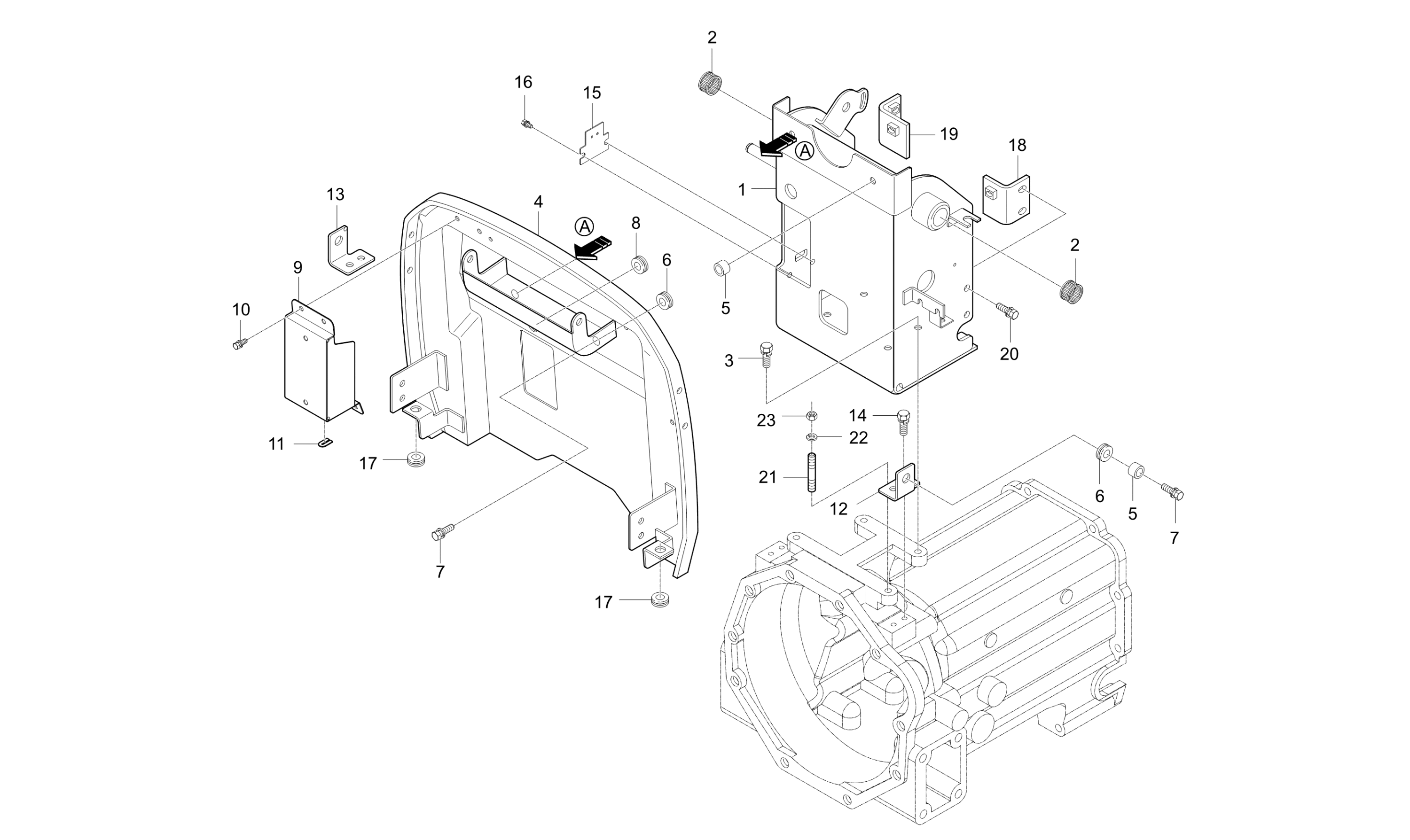

Diagram for FRAME GROUP - CK20M-T780A
  • 1

    Frame Assy Replaced by T2350-55105

    • Part No. T2350-55102
    • Applied Dates Up to 2003-05-06
    • * multiple options for #1
    • 1 shown on diagram
    $0.00
  • 1

    ASS’Y, FRAME

    • Part No. T2350-55103
    • Compatibility Interchngable
    • Applied Dates 2003-05-07 to 2004-05-13
    • Serial No. 3 00011 and up
    • * multiple options for #1
    • 1 shown on diagram
    $534.99
  • 1

    ASSY, FRAME v

    • Part No. T2350-55104
    • Compatibility Interchngable
    • Applied Dates 2004-05-14 to 2007-12-24
    • Serial No. D 00001 and up
    • * multiple options for #1
    • 1 shown on diagram
    $309.99
  • 1

    FRAME ASSY v

    • Part No. T2350-55105
    • Compatibility Interchngable
    • * multiple options for #1
    • 1 shown on diagram
    $269.99
  • 2

    NEEDLE BEARING

    • Part No. 08822-53017
    • Inner diameter 25
    • 2 shown on diagram
    $19.99
  • 3 BOLT

    BOLT

    • Part No. 01133-51025
    • M10XP1.25
    • 2 shown on diagram
    $3.49
  • 4

    PLATE

    • Part No. T2350-55034
    • Applied Dates Up to 2003-03-14
    • * multiple options for #4
    • 1 shown on diagram
    $149.99
  • 4

    PLATE, SHUTLE

    • Part No. T2350-55035
    • Compatibility New repl old
    • Applied Dates 2003-03-15 to 2007-12-20
    • Serial No. 3 00011 and up
    • * multiple options for #4
    • 1 shown on diagram
    $214.99
  • 4

    PLATE INTERCEPTION

    • Part No. T2350-55036
    • Compatibility No interchange
    • * multiple options for #4
    • 1 shown on diagram
    $179.99
  • 5

    SPACER

    • Part No. T2350-50421
    • DIA13.8XT2.3
    • 4 shown on diagram
    $4.49
  • 6

    GROMMET

    • Part No. T2350-50431
    • 4 shown on diagram
    $4.99
  • 7

    BOLT

    • Part No. 01127-50825
    • M8XP1.25
    • 4 shown on diagram
    $2.49
  • 8

    GROMMET

    • Part No. 31355-2949-1
    • 1 shown on diagram
    $4.99
  • 9

    Fuse Box Cover (T2350-55271)

    • Part No. T2350-55271
    • Applied Dates Up to 2007-12-20
    • * multiple options for #9
    • 1 shown on diagram
    $22.99
  • 9

    Fuse Box Cover (T2350-55271BB)

    • Part No. T2350-55271BB
    • Compatibility No interchange
    • * multiple options for #9
    • 1 shown on diagram
    $22.99
  • 10

    BOLT, WASHER v

    • Part No. 01023-50612
    • Applied Dates Up to 2007-12-20
    • M6XP1.0
    • 4 shown on diagram
    $1.09
  • 11

    RUBBER U

    • Part No. T2350-55281
    • Applied Dates Up to 2007-12-20
    • 1 shown on diagram
    $3.99
  • 12

    BRACKET, PLATE(LH)

    • Part No. T2350-57211
    • 1 shown on diagram
    $4.99
  • 13

    Plate Bracket (RH)

    • Part No. T2350-57221
    • 1 shown on diagram
    $4.99
  • 14

    BOLT

    • Part No. 01133-51020
    • M10XP1.25
    • 4 shown on diagram
    $2.99
  • 15

    PLATE

    • Part No. T2350-55291
    • Applied Dates Up to 2004-10-12
    • T1.2
    • 1 shown on diagram
    $1.39
  • 16

    BOLT, WASHER v

    • Part No. 01023-50612
    • M6XP1.0
    • 2 shown on diagram
    $1.09
  • 17 GROMMET

    GROMMET

    • Part No. T4682-50251
    • 2 shown on diagram
    $1.89
  • 18

    HOLDER(LH)

    • Part No. T2350-55301
    • * multiple options for #18
    • 1 shown on diagram
    $27.99
  • 18

    HOLDER

    • Part No. T2350-55301ED
    • Compatibility No interchange
    • * multiple options for #18
    • 1 shown on diagram
    $29.99
  • 19

    HOLDER(RH)

    • Part No. T2350-55331
    • * multiple options for #19
    • 1 shown on diagram
    $26.99
  • 19

    HOLDER

    • Part No. T2350-55331ED
    • Compatibility No interchange
    • * multiple options for #19
    • 1 shown on diagram
    $28.99
  • 20

    BOLT v

    • Part No. 01123-50616
    • 4 shown on diagram
    $1.19
  • 21

    STUD

    • Part No. 01517-51020
    • M10*1.25*20
    • 2 shown on diagram
    $3.99
  • 22 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50100
    • M10
    • 2 shown on diagram
    $0.79
  • 23

    NUT

    • Part No. 02114-50100
    • M10*P1.5
    • 2 shown on diagram
    $0.67
