LABEL GROUP - CK20M-T910A

Kioti TRACTOR | CK Series | CK20

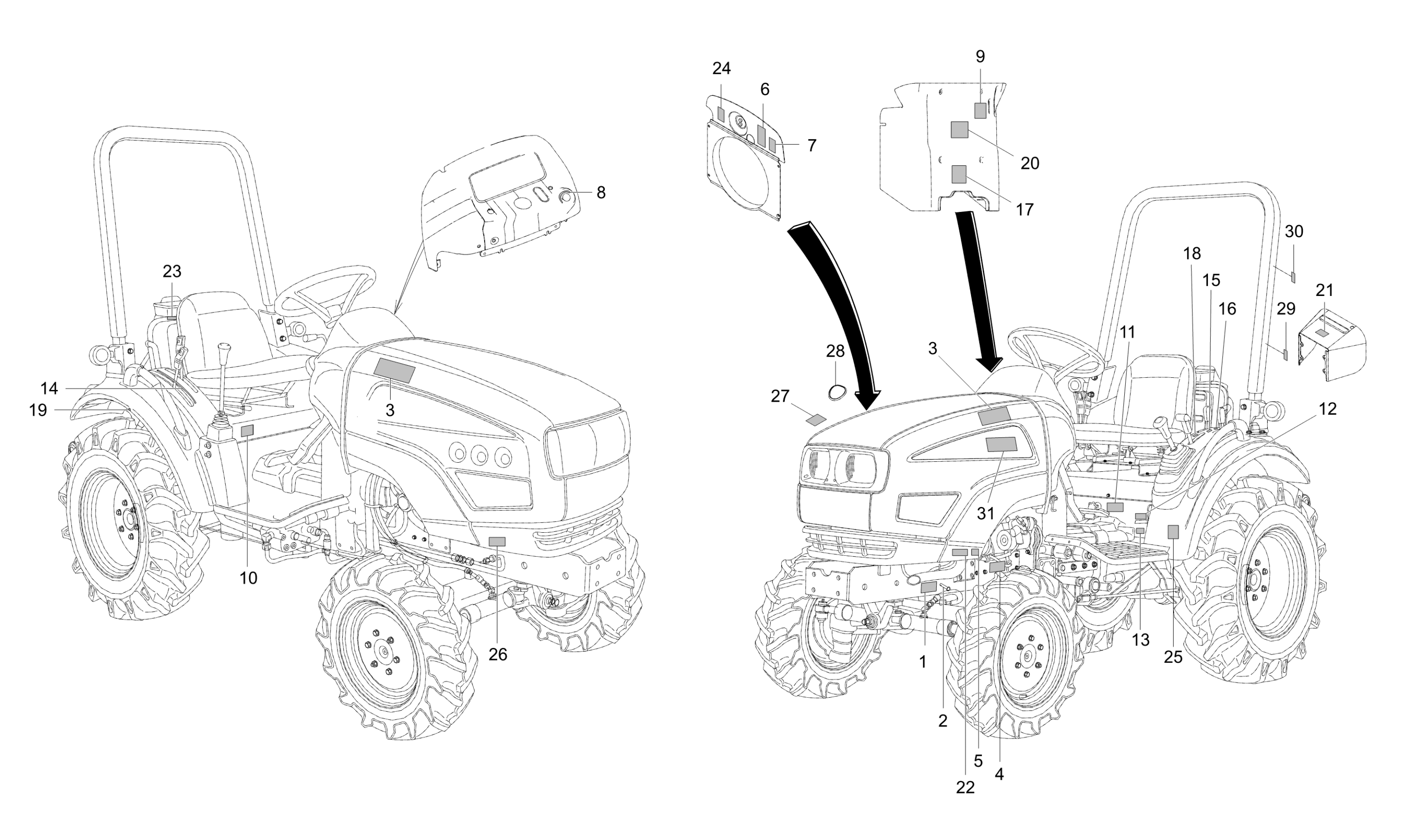

Diagram for LABEL GROUP - CK20M-T910A
  • 1

    LABEL

    • Part No. T2350-52111
    • T0.5
    • 1 shown on diagram
    $1.89
  • 2

    RIVET

    • Part No. 05624-20408
    • 4 shown on diagram
    $0.55
  • 3

    LABEL (LH) v

    • Part No. T2350-52131
    • Applied Dates Up to 2003-05-28
    • * multiple options for #3
    • 1 shown on diagram
    $11.99
  • 3

    LABEL(LH)

    • Part No. T2350-52132
    • Compatibility Interchngable
    • Applied Dates 2003-05-29 to 2003-10-20
    • * multiple options for #3
    • 1 shown on diagram
    $9.99
  • 3 (LH) NAME LABEL (T2350-52133)

    (LH) NAME LABEL (T2350-52133)

    • Part No. T2350-52133
    • Compatibility New repl old
    • Applied Dates 2003-10-21 to 2004-12-15
    • Serial No. 3 00011 and up
    • * multiple options for #3
    • 1 shown on diagram
    $17.99
  • 3

    LABEL,MODEL

    • Part No. T2350-53131
    • Compatibility Interchngable
    • Applied Dates 2004-12-16 and up
    • Serial No. E 00001 and up
    • * multiple options for #3
    • 2 shown on diagram
    $63.99
  • 4

    LABEL- ENGINE OIL FILTER CARTRIDGE

    • Part No. T2350-52171
    • T0.05-0.08
    • 1 shown on diagram
    $2.99
  • 5

    Oil Filter Label (94612-1833-1)

    • Part No. 94612-1833-1
    • 1 shown on diagram
    $1.49
  • 6

    LABEL, FAN CAUTION

    • Part No. T4625-52351
    • 1 shown on diagram
    $2.49
  • 7

    LABEL MUFFLER

    • Part No. T4625-52361
    • 1 shown on diagram
    $2.49
  • 8 LABEL

    LABEL

    • Part No. T2350-52101
    • * multiple options for #8
    • 1 shown on diagram
    $1.89
  • 8

    LABEL START SWITCH v

    • Part No. T2350-52102
    • Compatibility Interchngable
    • * multiple options for #8
    • 1 shown on diagram
    $3.49
  • 8 Key Switch Decal (T5248-52101)

    Key Switch Decal (T5248-52101)

    • Part No. T5248-52101
    • Compatibility No interchange
    • * multiple options for #8
    • 1 shown on diagram
    $3.99
  • 9 LABEL

    LABEL

    • Part No. T2350-53121
    • T0.05-0.08
    • 1 shown on diagram
    $1.19
  • 10

    LABEL

    • Part No. T2350-53141
    • T0.05-0.08
    • 1 shown on diagram
    $2.99
  • 11 LABEL, SPEED CONTROL

    LABEL, SPEED CONTROL

    • Part No. T2610-52461
    • 1 shown on diagram
    $1.89
  • 12

    LABEL,FRONT WHEEL v

    • Part No. T2445-48172
    • Applied Dates Up to 2003-12-17
    • * multiple options for #12
    • 1 shown on diagram
    $1.19
  • 12

    LABEL, 4WD dnr v

    • Part No. T2445-48173
    • Compatibility New repl old
    • Applied Dates 2003-12-18 and up
    • Serial No. D 00001 and up
    • * multiple options for #12
    • 1 shown on diagram
    $3.99
  • 12 4WD NAME,PLATE

    4WD NAME,PLATE

    • Part No. T2445-48174
    • Compatibility Interchngable
    • * multiple options for #12
    • 1 shown on diagram
    $2.99
  • 13

    LABEL,DIFFERENTIAL LOCK

    • Part No. T2611-26691
    • Applied Dates 2003-04-04 to 2003-04-16
    • * multiple options for #13
    • 1 shown on diagram
    $1.89
  • 13

    LABEL, DIFFERENTIAL FIXING v

    • Part No. T2611-26692
    • Compatibility Interchngable
    • Applied Dates 2003-04-17 and up
    • Serial No. 3 00011 and up
    • * multiple options for #13
    • 1 shown on diagram
    $2.49
  • 13 LABEL, DIFFERENTIAL FIXING

    LABEL, DIFFERENTIAL FIXING

    • Part No. T2611-26693
    • Compatibility Interchngable
    • * multiple options for #13
    • 1 shown on diagram
    $2.49
  • 14

    LABEL

    • Part No. T2350-53161
    • T0.05-0.08
    • 1 shown on diagram
    $3.49
  • 15

    LABEL. PTO

    • Part No. T2350-53182
    • T0.05-0.08
    • 1 shown on diagram
    $1.89
  • 16 LABEL

    LABEL

    • Part No. T2350-53192
    • 1 shown on diagram
    $1.59
  • 17

    LABEL

    • Part No. T2350-54111
    • T0.05-0.08
    • 1 shown on diagram
    $1.59
  • 18

    LABEL ROPS CAUTION

    • Part No. T2445-50724
    • T0.05-0.08
    • 1 shown on diagram
    $4.49
  • 19

    LABEL, FUEL FILTER

    • Part No. T2325-50192
    • 1 shown on diagram
    $1.49
  • 20 LABEL, SAFETY T2325-50512

    LABEL, SAFETY T2325-50512

    • Part No. T2325-50512
    • 1 shown on diagram
    $5.49
  • 21

    LABEL, PTO CAUTION

    • Part No. T2325-50743
    • T0.05-0.08
    • 1 shown on diagram
    $11.99
  • 22

    Oil Change Label (94612-9459-1)

    • Part No. 94612-9459-1
    • 1 shown on diagram
    $2.99
  • 23 LABEL, FUEL WARNING v

    LABEL, FUEL WARNING v

    • Part No. T2615-54112
    • T0.05-0.08
    • 1 shown on diagram
    $3.99
  • 24

    LABEL, MUFFLER CAUTION

    • Part No. T2615-55112
    • 1 shown on diagram
    $2.99
  • 25

    LABEL,TRAVELING SPEED

    • Part No. T2350-54151
    • 1 shown on diagram
    $5.49
  • 26

    LABEL, BONNET OPEN v

    • Part No. T4689-52181
    • 1 shown on diagram
    $1.69
  • 27

    Radiator Label (T2615-53561)

    • Part No. T2615-53561
    • Applied Dates 2003-10-17 and up
    • 1 shown on diagram
    $3.99
  • 28

    EMBLEM v

    • Part No. T2185-51461
    • Applied Dates 2004-09-02 to 2004-10-12
    • * multiple options for #28
    • 1 shown on diagram
    $19.99
  • 28 EMBLEM

    EMBLEM

    • Part No. T2185-51462
    • Compatibility New repl old
    • Applied Dates 2004-10-13 and up
    • Serial No. D 00001 and up
    • * multiple options for #28
    • 1 shown on diagram
    $29.99
  • 29

    LABEL ROPS CERTIFICATIN

    • Part No. T2355-52431
    • Applied Dates 2004-10-29 and up
    • T0.5
    • 1 shown on diagram
    $8.49
  • 30

    LABEL, ROPS WARNING v

    • Part No. T2625-50721
    • Applied Dates 2005-06-30 and up
    • 1 shown on diagram
    $4.99
  • 31

    LABEL(RH) v

    • Part No. T2350-52142
    • Applied Dates 2003-05-29 to 2003-10-20
    • * multiple options for #31
    • 1 shown on diagram
    $9.99
  • 31 LABEL NAME RH V

    LABEL NAME RH V

    • Part No. T2350-52143
    • Compatibility New repl old
    • Applied Dates 2003-10-21 to 2004-12-15
    • Serial No. 3 00011 and up
    • * multiple options for #31
    • 1 shown on diagram
    $19.99
